MAD PAR PUCK 6PK
SKU:
JZ1043

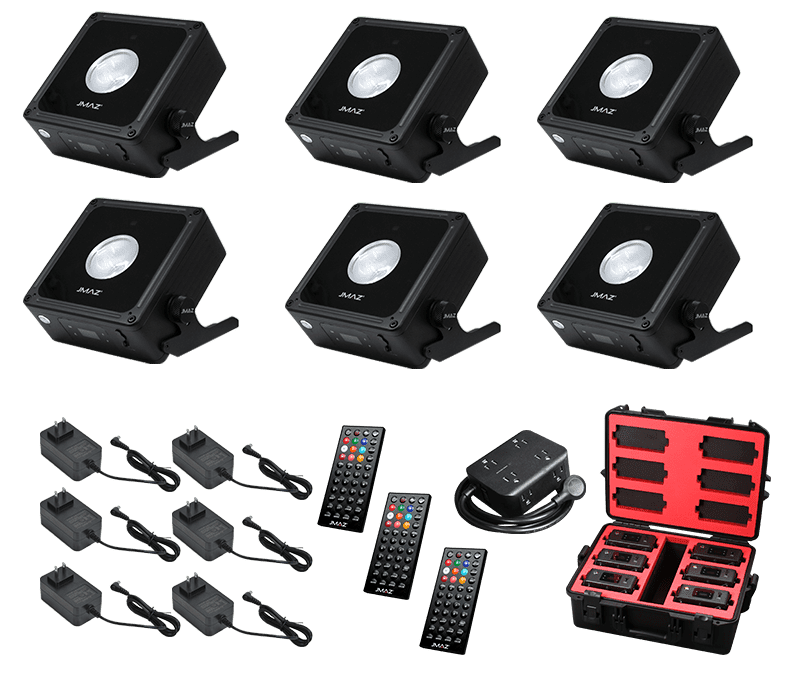

MAD PAR PUCK IP65 20W RGBAL+C LED Battery LED Event Uplight 6 Pack Kit with Injection Molded Case
Main features:
- Complete six-fixture lighting system includes six 20W RGBAL+C battery-powered uplights housed in a rugged IP65 injection-molded case, delivering a portable, professional solution for indoor and outdoor productions.
- Each fixture features a high-performance 20W RGBAL+C LED engine with an adjustable 2300K–8500K color temperature range, producing vibrant colors, exceptional pastel tones, and accurate white light.
- Wide-angle optics provide a native 60° beam for smooth wall washing and uplighting, while the included 80° diffusers create broad, even coverage for larger spaces and ambient lighting applications.
- Integrated lithium-ion batteries provide up to 20 hours of runtime on a single charge, or up to 40 hours in battery saver mode, with a fast 3-hour recharge for maximum event readiness.
- Wireless DMX and IR remote control, combined with 73 preset color programs, 72 built-in auto/fade programs, 50 sound-active modes, and four dimming curves, provide flexible programming for events of any size.
- IP65-rated construction, fanless operation, and the included waterproof injection-molded charging case with six chargers and a 6-in-1 charging solution make the MAD PAR PUCK 6PK ideal for weddings, architectural lighting, touring productions, rental inventories, and outdoor events.
*** PATENT PENDING***
Product Description
The MAD PAR PUCK 6 Pack was designed for production companies, event professionals, rental houses, DJs, and installers who need a complete battery-powered uplighting system that is compact, easy to transport, and ready for deployment. Combining six high-performance IP65 uplights with a durable injection-molded case, the MAD PAR PUCK 6 Pack provides a professional all-in-one solution for weddings, architectural lighting, concerts, corporate events, and outdoor productions.
Each fixture is powered by a **20W RGBAL+C LED engine**, delivering rich color mixing, adjustable white light from **2300K to 8500K**, and a wide **60° beam angle** that expands to **80°** with the included diffuser for smooth, even coverage. Featuring up to **20 hours of battery operation (40 hours in battery-saving mode)**, Wireless DMX, IR remote control, **73 preset color programs**, **72 built-in auto programs**, **50 advanced sound-active modes**, four dimming modes, and fanless operation, each MAD PAR PUCK offers exceptional versatility for both indoor and outdoor applications. The included **IP65 waterproof injection-molded case** securely stores all six fixtures and accessories for organized transport and protection between events.
Whether uplighting walls, illuminating architectural features, enhancing wedding venues, washing stages, or creating colorful outdoor displays, the JMAZ MAD PAR PUCK 6 Pack delivers professional-grade performance, reliable battery operation, and the convenience of a complete production-ready lighting system.
Technical specifications
Light Source
- Each Unit: 1 X 20W RGBAL+C LED
- LED Life Expectancy: 50,000 hrs
Color System
- RGBAL+C Color Mixing 8/16 bit
- CCT: 2300K to 8500K
Optics
- Advanced Lens Optic: 60° Beam Angle
- Diffuser Angle (Included): 80° Beam Angle
Dynamic Effect
- Max 20 Hour Battery Life / 40 Hour In Battery Saving Mode
- Charging Time: 3 Hours
- Selectable Battery Saving Mode: 25%, 50%, 75%, 100%
- 73 Preset Color Programs
- 50 Advanced Sound Active Mode
- 72 Auto / Fade Built-In Programs
- Stand Alone Color Mixing
- Electronic Dimmer
- Fading/Jumping Macros Light Change And Jump
- Shutter/Strobe: Electronic
- Strobe Rate: 0-25 Hz
- Preset Color Temperature
- 4 Favorite Color Customization Triggered via DMX / IR Remote
Control
- Control Protocol: Wireless DMX, IR Remote
- Personalities: 5/6/8/16 CH DMX Modes
- OLED Graphical Display
Electronics
- Strobe Shutter: 1-25Hz
- Dimming Modes: 4
Body
- Die-Cast Aluminum and Steel Structure
Physical
- Adjustable Tilt Base: 0-40 Degree
- Cooling: Fanless
Certification / Qualifications
- RoHS, CE, FCC
- IP Rating: IP 65
- Operating Temperature: –10° C (14° F) To 60° C (140° F)
Electrical
- Input Voltage: 100 V – 240 V AC, 50/60 Hz
- Power Consumption: 20W
- PWM: 1.5KHz
- Battery Voltage: 11.1V
- Battery Capacity: 5,200 mAH, 57.72 Wh/hour
- Charger: 12.6V, 3A ***UL Listed***
- Rechargeable Battery Type: Lithium Ion ***UL Listed***
Box Content
- 1 x IP65 Waterproof Injection Mold Case (Holds 6 Units)
- 6 x MAD PAR PUCK
- 6 x 80 Degree Diffuser
- 6 x A/C Charger
- 3 x IR Remote
- 1 x 6in1 Power Charger
- 1 x User Manual
Item Dimensions & Weight
- Dimensions: 7.2″ x 5.9″ x 3″
- Weight: 3.7 lbs
UPC
618528599090Video
Download
Product Data / Cut Sheet
| File name | File size | Download | |
|---|---|---|---|
 |
MAD PAR PUCK Certificates Folder | 500KB |  |
User Manual
| File name | File size | Download | |
|---|---|---|---|
 |
MAD PAR PUCK User Manual.pdf | 1.4MB |  |
|
MAD PAR PUCK QSG.pdf | 1.4MB | |
DMX Charts
| File name | File size | Download | |
|---|---|---|---|
|
MAD PAR PUCK DMX Chart.pdf | 1.4MB | |
Photometrics
| File name | File size | Download | |
|---|---|---|---|
|
MAD PAR PUCK Photometrics.pdf | 1.4MB | |
CAD Drawings
| File name | File size | Download | |
|---|---|---|---|
|
MAD PAR PUCK CAD Drawings.pdf | 1.4MB | |
