MAD PAR BULLS IP 6PK
SKU:
JZ1045

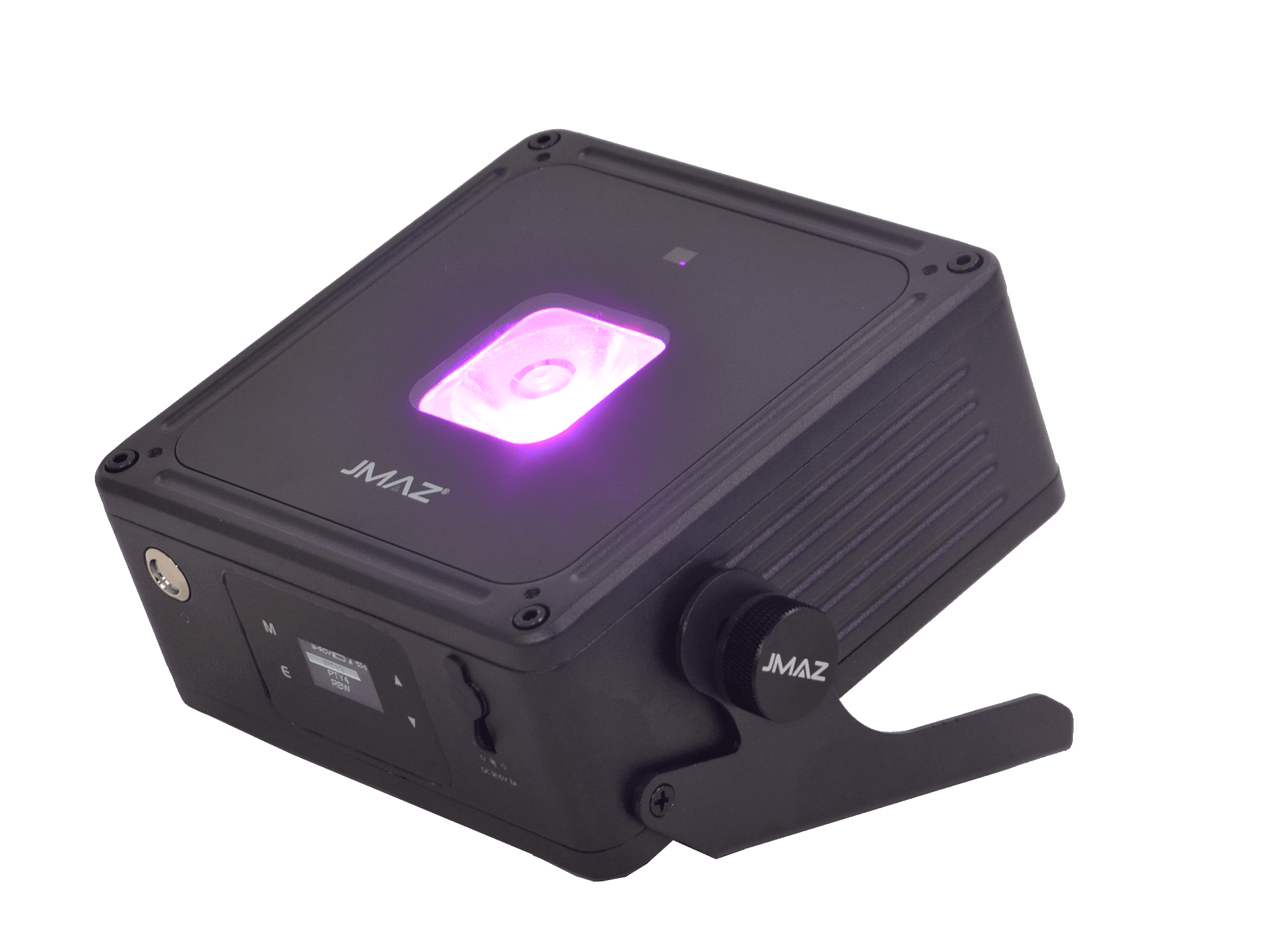

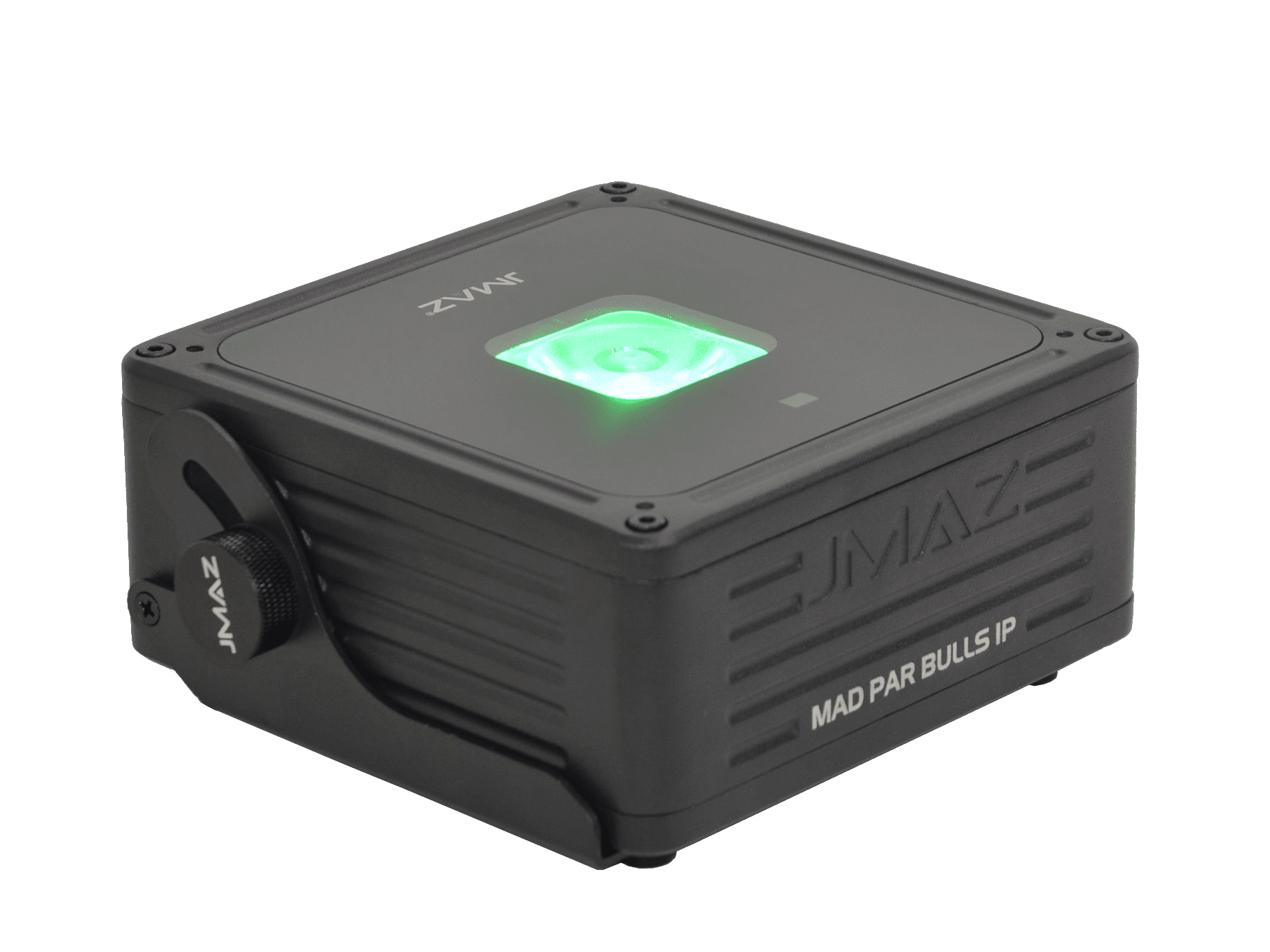

MAD PAR BULLS IP Wireless IP65 20W RGBA Battery LED Event Uplight 6 Pack Kit with Injection Mold Case
Main features:
- Complete six-fixture lighting system includes six 20W RGBA battery-powered uplights housed in a rugged IP65 injection-molded case, providing a professional all-in-one solution for mobile and outdoor lighting applications.
- Each fixture features a high-performance 20W RGBA LED engine with an adjustable 2300K–8500K color temperature range, producing vibrant saturated colors, smooth pastel tones, and accurate white light.
- Advanced quadrilateral optics provide a focused 10° beam angle for punchy uplighting and long-throw applications, while the included 20° diffusers create wider, more uniform wash coverage.
- Integrated lithium-ion batteries deliver up to 14 hours of runtime on a single charge, or up to 40 hours in battery saver mode, with fast 4-hour charging for dependable cable-free operation.
- Wireless DMX and IR remote control, combined with 73 preset color programs, 72 built-in auto/fade programs, 50 sound-active modes, and four dimming curves, provide exceptional programming flexibility for live events and architectural lighting.
- IP65-rated construction, fanless operation, and the included waterproof injection-molded charging case with six chargers and a 6-in-1 charging solution make the MAD PAR BULLS IP 6PK ideal for weddings, touring productions, architectural lighting, rental inventories, and outdoor events.
*** PATENT PENDING***
Product Description
The MAD PAR BULLS IP 6 Pack was designed for production companies, event professionals, rental houses, DJs, and installers who need a complete battery-powered uplighting system that is durable, portable, and ready for both indoor and outdoor productions. Combining six high-performance IP65 uplights with a rugged injection-molded case, the MAD PAR BULLS IP 6 Pack provides a professional all-in-one solution for weddings, architectural lighting, concerts, corporate events, and outdoor installations.
Each fixture is powered by a **20W RGBA LED engine**, delivering vibrant color mixing, adjustable white light from **2300K to 8500K**, and a precision **10° beam angle** that expands to **20°** with the included diffuser for broader wash coverage. Featuring up to **14 hours of battery operation (40 hours in battery-saving mode)**, Wireless DMX, IR remote control, **73 preset color programs**, **72 built-in auto programs**, **50 advanced sound-active modes**, four dimming modes, and smooth fanless operation, each MAD PAR BULLS IP offers exceptional versatility for a wide range of applications. The included **IP65 waterproof injection-molded case** securely stores all six fixtures and accessories, providing organized transport and dependable protection between events.
Whether uplighting architectural features, enhancing wedding venues, washing stages, illuminating outdoor events, or creating colorful accent lighting, the JMAZ MAD PAR BULLS IP 6 Pack delivers professional-grade performance, reliable battery operation, and the convenience of a complete production-ready lighting system.
Technical specifications
Light Source
- Each Unit 1 x 20W RGBA LED
- LED Life Expectancy: 50,000 hrs
Color System
- RGBA LED Color Mixing 8/16 bit
- CCT: 2300K to 8500K
Optics
- Advanced Quadrilateral Lens Optic: 10° Beam Angle
- Diffuser Angle (Included): 20° Beam Angle
Dynamic Effect
- Max 14 Hour Battery Life / 40 Hour In Battery Saving Mode
- Charging Time: 4 Hours
- Selectable Battery Saving Mode: 25%, 50%, 75%, 100%
- 73 Preset Color Programs
- 50 Advanced Sound Active Mode
- 72 Auto / Fade Built-In Programs
- Stand Alone Color Mixing
- Electronic Dimmer
- Fading/Jumping Macros Light Change And Jump
- Shutter/Strobe: Electronic
- Strobe Rate: 0-25 Hz
- Preset Color Temperature
- 4 Favorite Color Customization Triggered via DMX / IR Remote
Control
- Control Protocol: Wireless DMX, IR Remote
- Personalities: 3/4/5/6/14 CH DMX Modes
- OLED Graphical Display
Electronics
- Linear LED Dimmer: 0-100% Smooth
- Strobe Shutter: 1-25Hz
- Dimming Modes: 4
Body
- Die-Cast Aluminum and Steel Structure
Physical

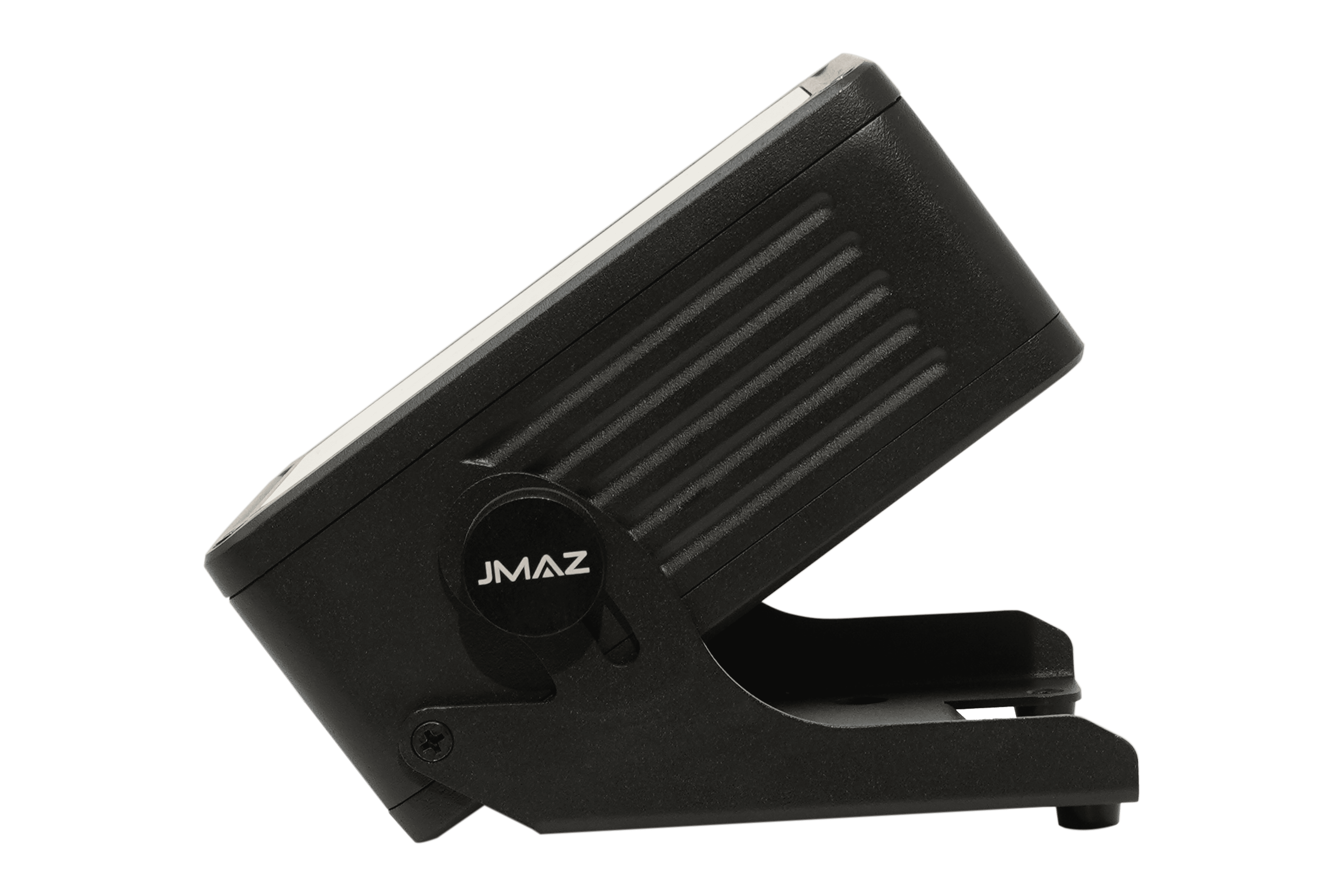

- Adjustable Tilt Base: 0-40 Degree
- Cooling: Fanless
Certification / Qualifications
- RoHS, CE, FCC
- IP Rating: IP 65
- Operating Temperature: –10 ° C ( 14 ° F) To 60 ° C ( 140 ° F)
Electrical
- Input Voltage: 100 V – 240 V AC, 50/60 Hz
- Power Consumption: 20W
- PWM: 1.5KHz
- Battery Voltage: 11.1V
- Battery Capacity: 5,200 mAH, 57.72 Wh/hour
- Charger: 12.6V, 3A ***UL Listed***
- Rechargeable Battery Type: Lithium Ion ***UL Listed***

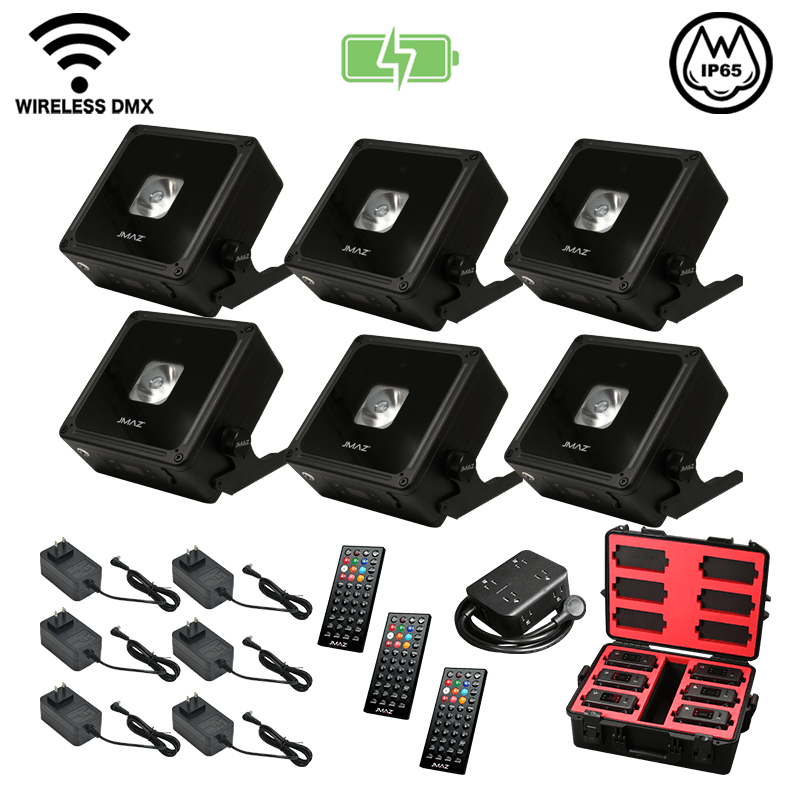

Box Content

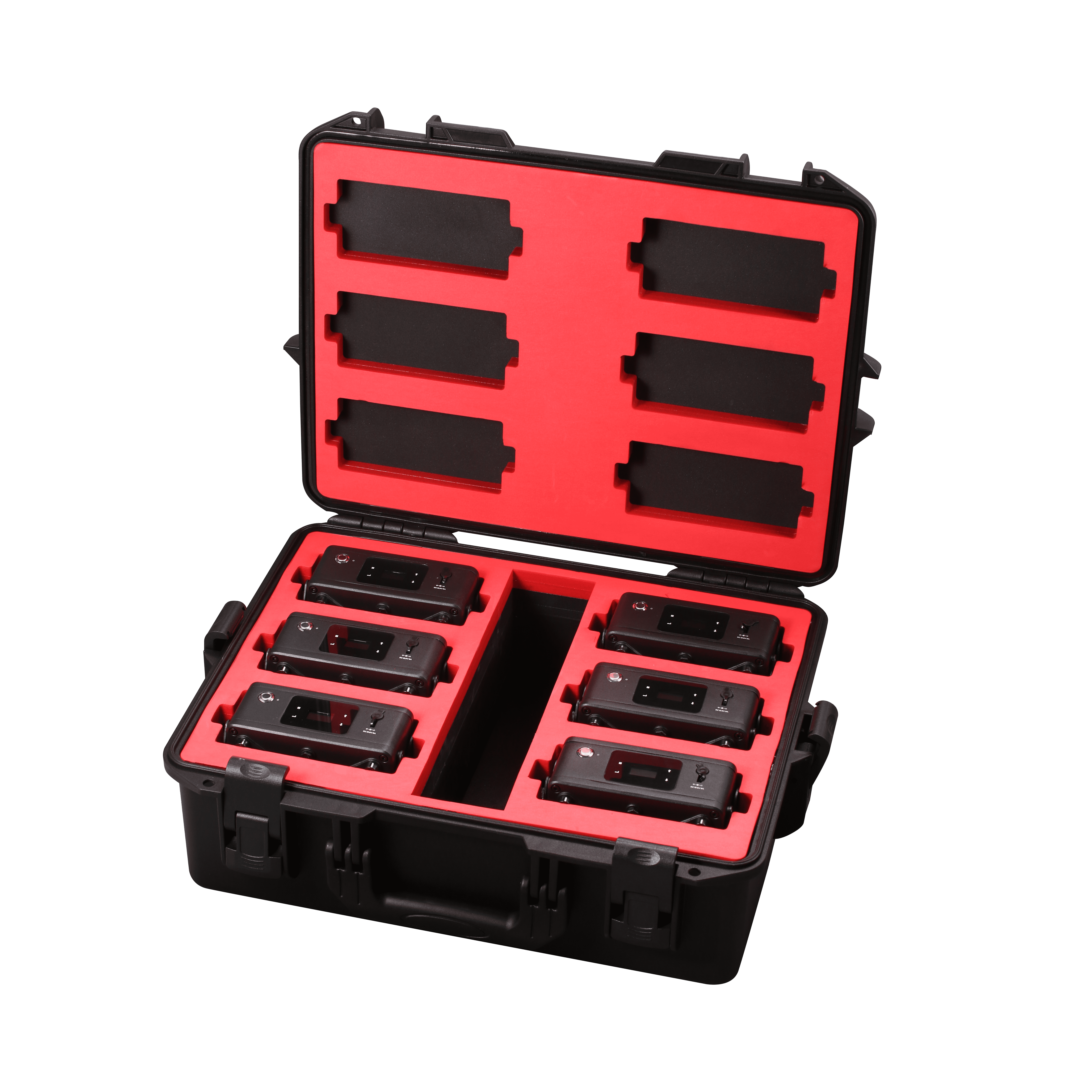

- 1 x IP65 Waterproof Injection Mold Case (Holds 6 Units)
- 6 x MAD PAR BULLS IP
- 6 x 20 Degree Diffuser
- 6 x A/C Charger

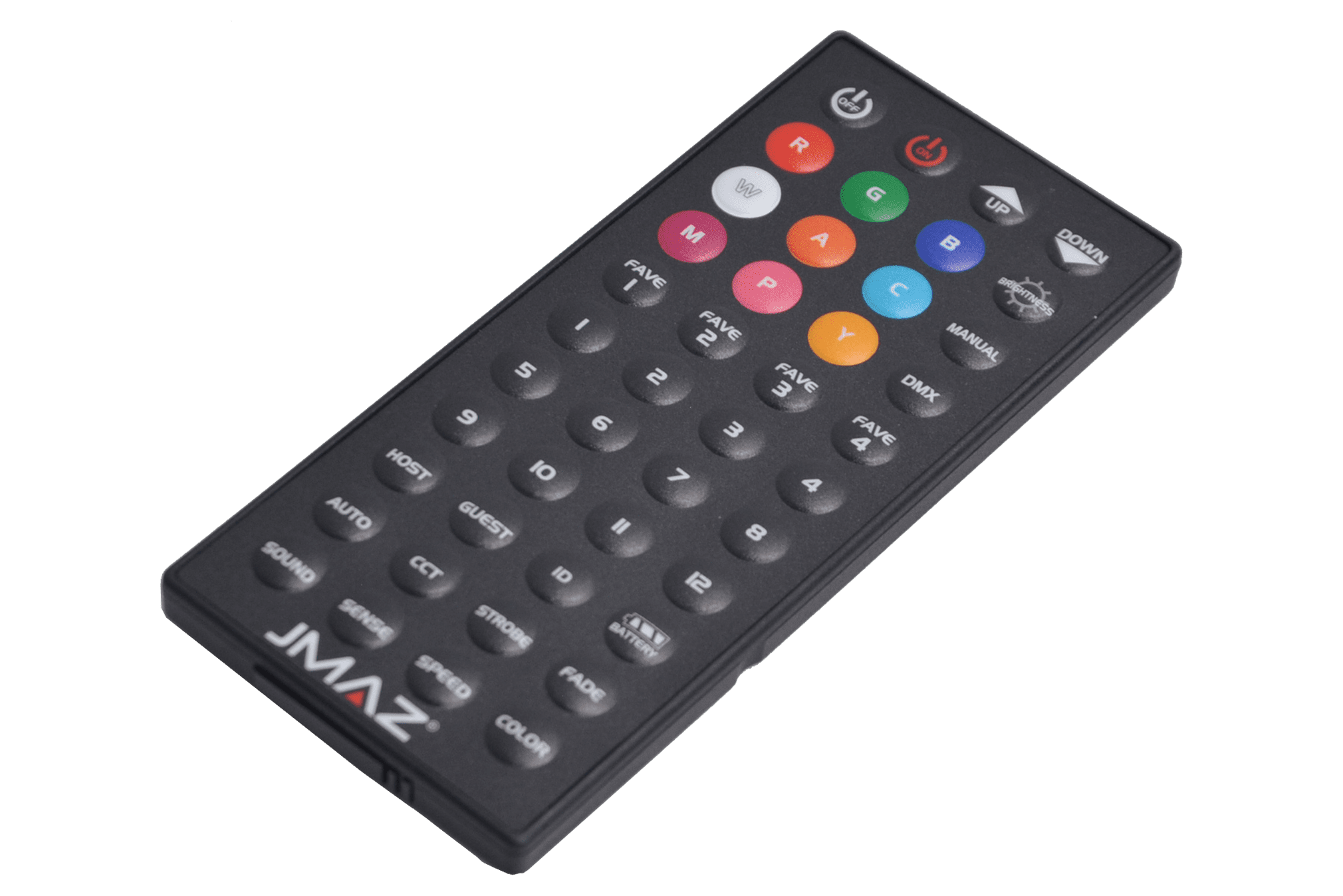

- 3 x IR Remote
- 1 x 6in1 Power Charger
- 1 x User Manual
Item Dimensions & Weight
Case:
- Dimensions: 22 x 17 x 8.5
- Weight: 32 lbs (w/ Units)
- Weight: 9 lbs (Case Only)
Unit:
- Dimensions: 7.2″ x 5.9″ x 3″
- Weight: 4.4 lbs
UPC
618528599113Warranty
2 Years (6 Month Battery)Video
Download
Product Data / Cut Sheet
| File name | File size | Download | |
|---|---|---|---|
 |
MAD PAR BULLS IP Cut Sheet | 500KB |  |
User Manual
| File name | File size | Download | |
|---|---|---|---|
|
MAD PAR BULLS IP User Manual.pdf | 1.4MB | |
|
MAD PAR BULLS IP QSG.pdf | 1.4MB | |
DMX Charts
| File name | File size | Download | |
|---|---|---|---|
|
MAD PAR BULLS IP DMX Chart | 500KB | |
Photometrics
| File name | File size | Download | |
|---|---|---|---|
|
MAD PAR BULLS IP Photometrics | 500KB | |
CAD Drawings
| File name | File size | Download | |
|---|---|---|---|
|
MAD PAR BULLS IP CAD Drawing | 500KB | |
Certifications
| File name | File size | Download | |
|---|---|---|---|
 |
MAD PAR BULLS IP Certificates Folder | 500KB |  |
