MAD PAR 4IP 6PK
SKU:
JZ1041

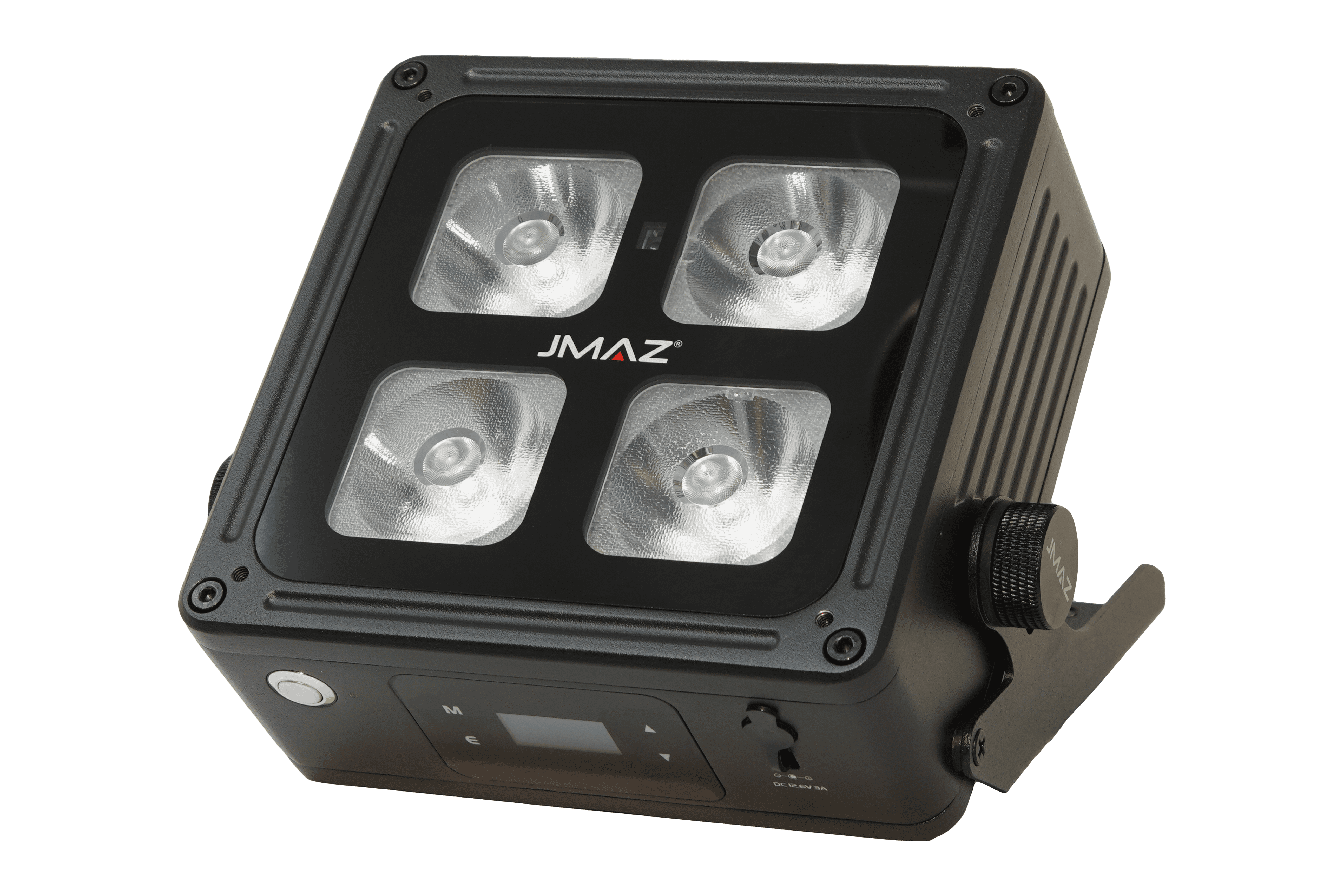

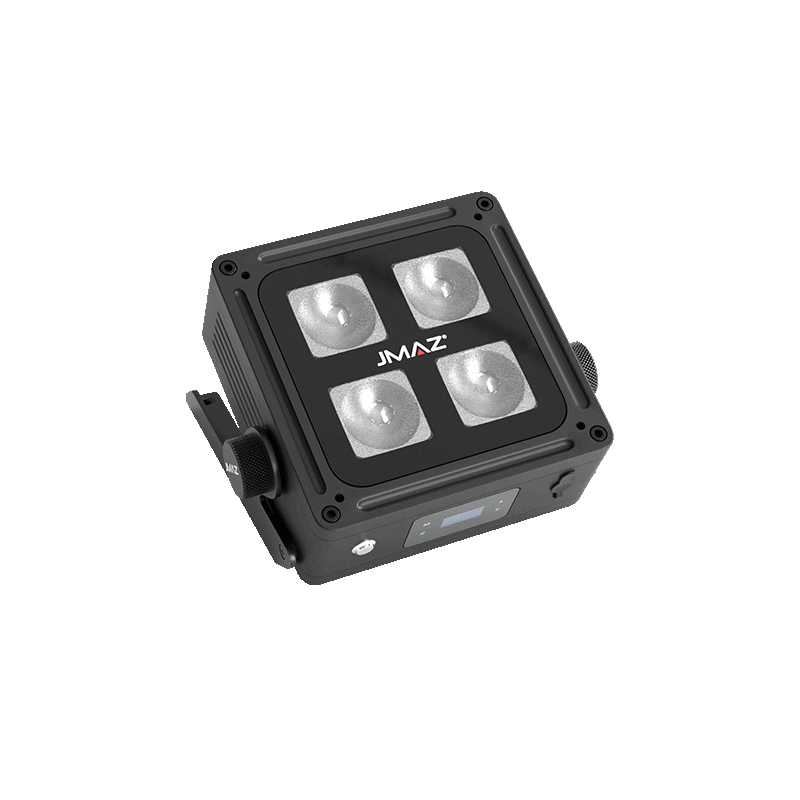

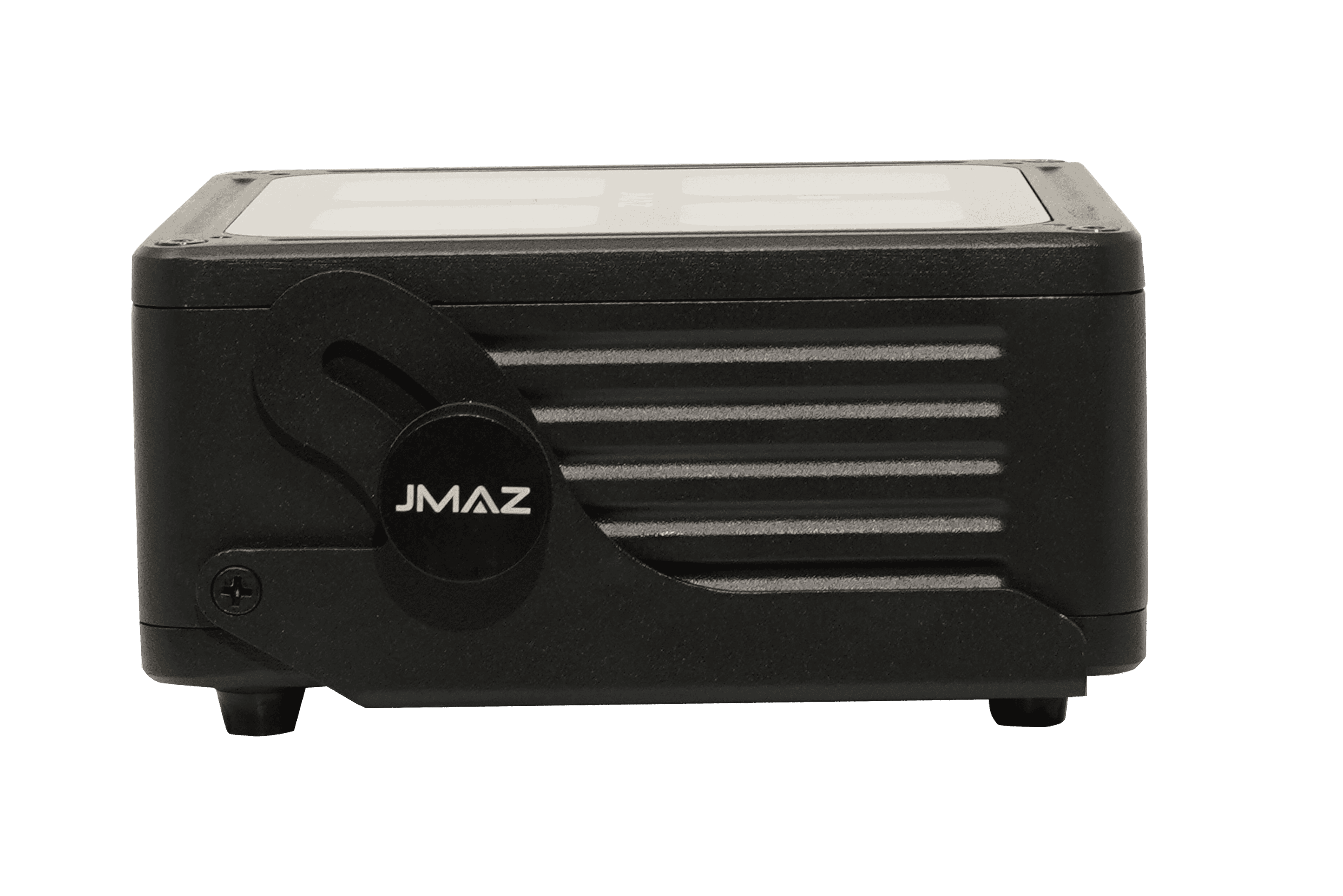

MAD PAR 4IP Wireless IP65 60W RGBWA+UV Battery LED Event Uplight 6 Pack Kit with Injection Molded Case
Main features:
- Complete six-fixture lighting system includes six 60W RGBWA+UV battery-powered uplights housed in a rugged IP65 injection-molded case, providing a professional all-in-one solution for mobile productions and outdoor events.
- Each fixture features a powerful 60W RGBWA+UV LED engine with an adjustable 2300K–8500K color temperature range, delivering vibrant saturated colors, rich pastels, true white light, and ultraviolet effects.
- Advanced quadrilateral optics produce a focused 10° beam for powerful uplighting, while the included 20° diffusers provide wider, more uniform wash coverage for versatile lighting applications.
- Integrated lithium-ion batteries deliver up to 14 hours of runtime on a single charge, or up to 40 hours in battery saver mode, with fast 4-hour charging for dependable cable-free operation.
- Wireless DMX and IR remote control, combined with 73 preset color programs, 72 built-in auto/fade programs, 50 sound-active modes, and four dimming curves, provide exceptional programming flexibility for any event.
- IP65-rated construction, fanless operation, and the included waterproof injection-molded charging case with six chargers and a 6-in-1 charging solution make the MAD PAR 4IP 6PK ideal for weddings, touring productions, architectural lighting, rental inventories, and outdoor installations.
*** PATENT PENDING***
Product Description
The MAD PAR 4IP 6 Pack was designed for production companies, event professionals, rental houses, DJs, and installers who need a complete battery-powered uplighting system that is easy to transport, organize, and deploy. Combining six high-output IP65 uplights with a durable injection-molded case, the MAD PAR 4IP 6 Pack provides a professional all-in-one solution for weddings, architectural lighting, concerts, corporate events, and outdoor productions.
Each fixture is powered by a **60W RGBWA+UV LED engine (4 × 15W LEDs)**, delivering vibrant color mixing, adjustable white light from **2300K to 8500K**, and a precision **10° beam angle** that expands to **20°** with the included diffuser. Featuring up to **14 hours of battery operation (40 hours in battery-saving mode)**, Wireless DMX, IR remote control, **73 preset color programs**, **72 built-in auto programs**, **50 advanced sound-active modes**, four dimming modes, and smooth fanless operation, each MAD PAR 4IP offers exceptional versatility for virtually any application. The included **IP65 waterproof injection-molded case** securely holds all six fixtures and accessories for organized transport and protection between events.

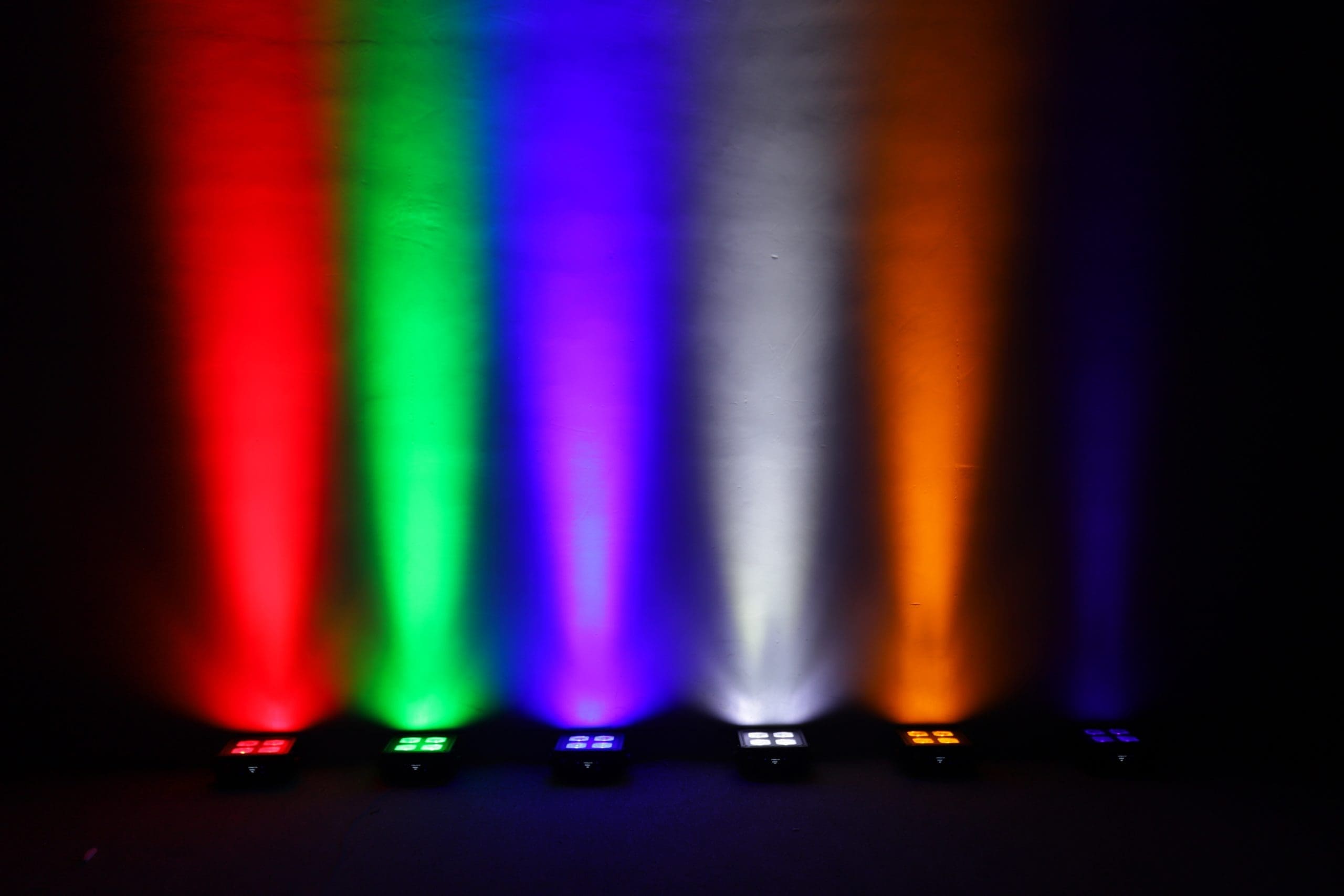

Whether uplighting venues, illuminating architectural features, enhancing wedding receptions, washing stages, or creating colorful outdoor displays, the JMAZ MAD PAR 4IP 6 Pack delivers professional-grade performance, reliable battery operation, and the convenience of a complete production-ready lighting system.
Technical specifications
Light Source
- 60W (4 x 15W) RGBWA+UV LEDs
- LED Life Expectancy: 50,000 hrs
Color System
- RGBWA+UV Color Mixing 8/16 bit
- CCT: 2300K to 8500K
Optics
- Advanced Quadrilateral Lens Optic: 10° Beam Angle
- Diffuser Angle (Included): 20° Beam Angle
Dynamic Effect
- Max 14 Hour Battery Life / 40 Hour In Battery Saving Mode
- Charging Time: 4 Hours
- Selectable Battery Saving Mode: 25%, 50%, 75%, 100%
- 73 Preset Color Programs
- 50 Advanced Sound Active Mode
- 72 Auto / Fade Built-In Programs
- Stand Alone Color Mixing
- Electronic Dimmer
- Fading/Jumping Macros Light Change And Jump
- Shutter/Strobe: Electronic
- Strobe Rate: 0-25 Hz
- Preset Color Temperature
- 4 Favorite Color Customization Triggered via DMX / IR Remote
Control
- Control Protocol: Wireless DMX, IR Remote
- Personalities: 6/8/16 CH DMX Modes
- OLED Graphical Display
Electronics
- Linear LED Dimmer: 0-100% Smooth
- Strobe Shutter: 1-25Hz
- Dimming Modes: 4
Body
- Die-Cast Aluminum and Steel Structure
Physical
- Adjustable Tilt Base: 0-40 Degree
- Cooling: Fanless
Certification / Qualifications
- RoHS, CE, FCC
- IP Rating: IP 65
- Operating Temperature: –10 ° C ( 14 ° F) To 60 ° C ( 140 ° F)
Electrical
- Input Voltage: 100 V – 240 V AC, 50/60 Hz
- Input Voltage: 100 V – 240 V AC, 50/60 Hz
- Power Consumption: 60W
- PWM: 1.5KHz
- Battery Voltage: 11.1V
- Battery Capacity: 10,400 mAH, 115.5 Wh/hour
- Charger: 12.6V, 3A
- Rechargeable Battery Type: Lithium Ion ***UL Listed***
Box Content

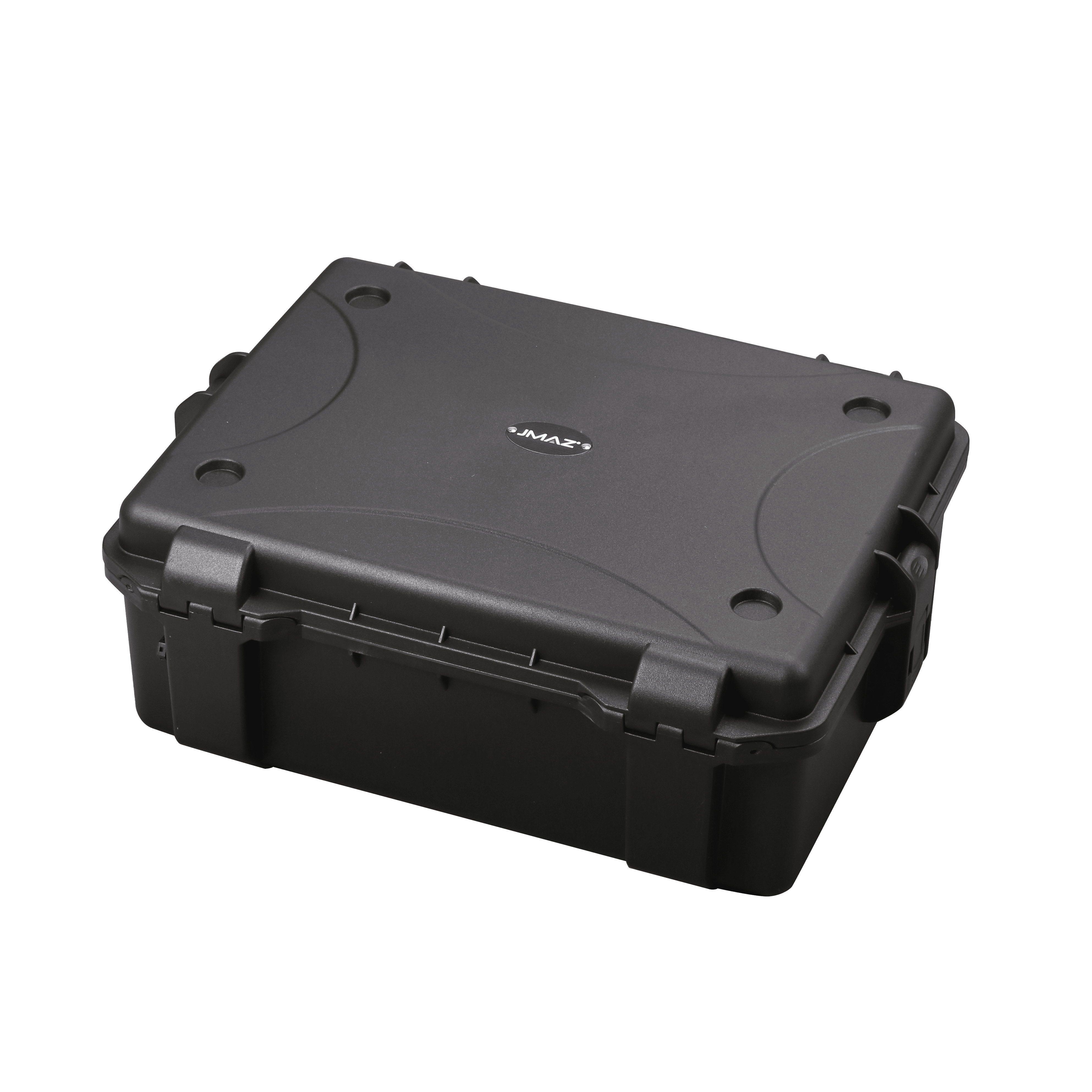

- 1 x IP65 Waterproof Injection Mold Case (Holds 6 Units)
- 6 x Mad Par 4IP
- 6 x 20 Degree Diffuser
- 6 x A/C Charger
- 3 x IR Remote
- 1 x 6in1 Power Charger
- 1 x User Manual
Item Dimensions & Weight
Case:
- Dimensions: 22 x 17 x 8.5
- Weight: 32 lbs (w/ Units)
- Weight: 9 lbs (Case Only)
Unit:
- Dimensions: 7.2″ x 5.9″ x 3″
- Weight: 4.4 lbs
UPC
618528598857Warranty
2 Years (6 Month Battery)Video
Download
User Manual
| File name | File size | Download | |
|---|---|---|---|
 |
Mad Par 4IP User Manual.pdf | 1.4MB |  |
|
Mad Par 4IP User Manual (Spanish).pdf | 1.4MB | |
|
Mad Par 4IP User Manual (French).pdf | 1.4MB | |
| File name | File size | Download | |
|---|---|---|---|
 |
Mad Par 4IP Quick Start Guide.pdf | 1.4MB | |
DMX Charts
| File name | File size | Download | |
|---|---|---|---|
|
MADPAR4IP_DMXCHART_sheet.PDF | 500KB | |
Profiles
| File name | File size | Download | |
|---|---|---|---|
 |
MAD PAR 4IP Folder | 500KB |  |
Photometrics
| File name | File size | Download | |
|---|---|---|---|
|
MADPAR_4IP_Photometrics_sheet.PDF | 500KB | |
CAD Drawings
| File name | File size | Download | |
|---|---|---|---|
|
Mad Par 4IP CAD Drawing.pdf | 1.4MB | |
Certifications
| File name | File size | Download | |
|---|---|---|---|
|
MAD PAR 4IP Certificates Folder | 500KB | |
