MAD PAR PUCK
SKU:
JZ1042

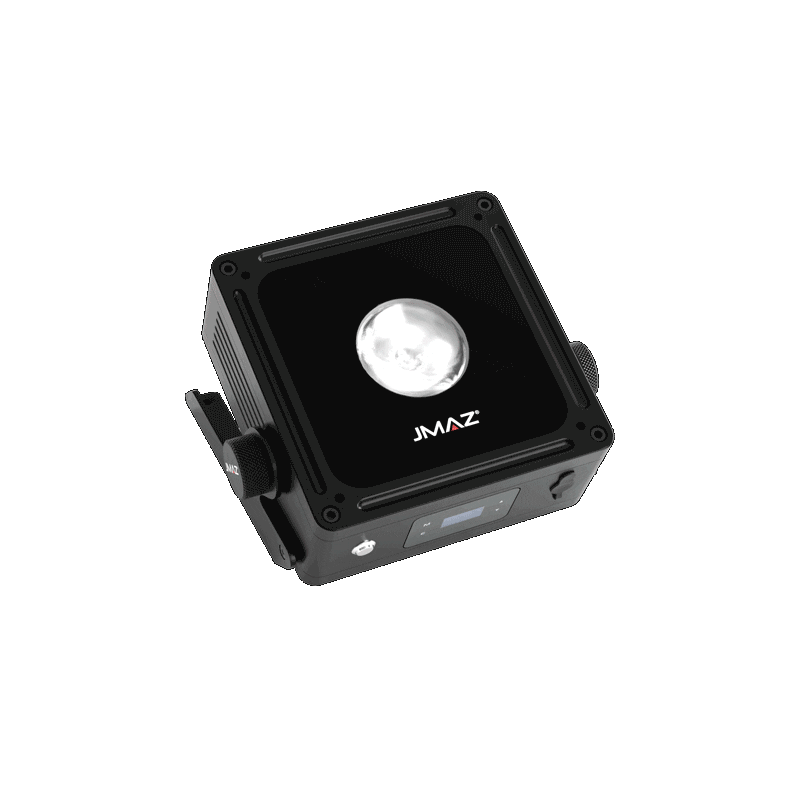

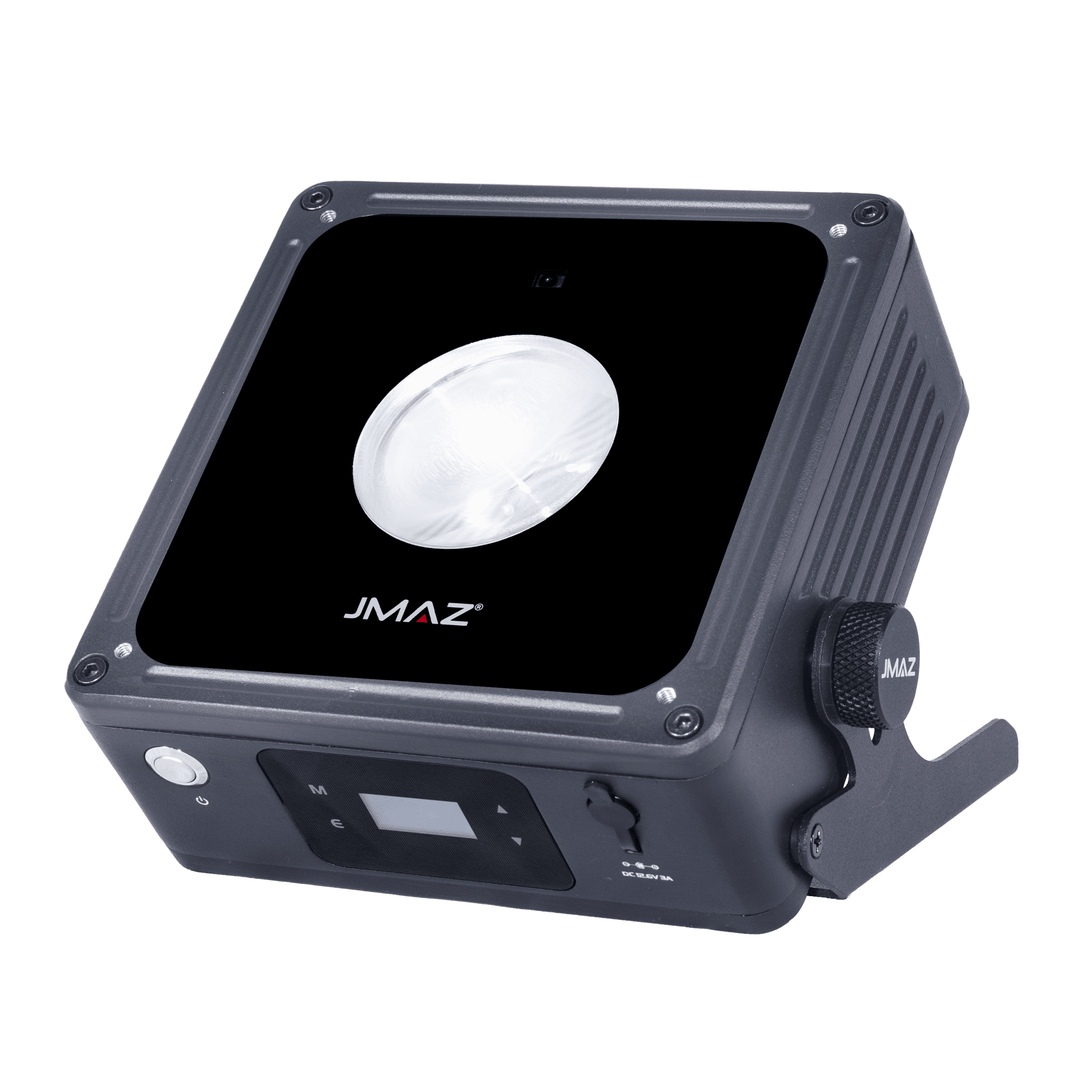

MAD PAR PUCK IP65 20W RGBAL+C LED Battery LED Event Uplight
Main features:
- High-performance 20W RGBAL+C LED engine delivers rich saturated colors, exceptional pastel tones, and precise white light with an adjustable color temperature range from 2300K–8500K.

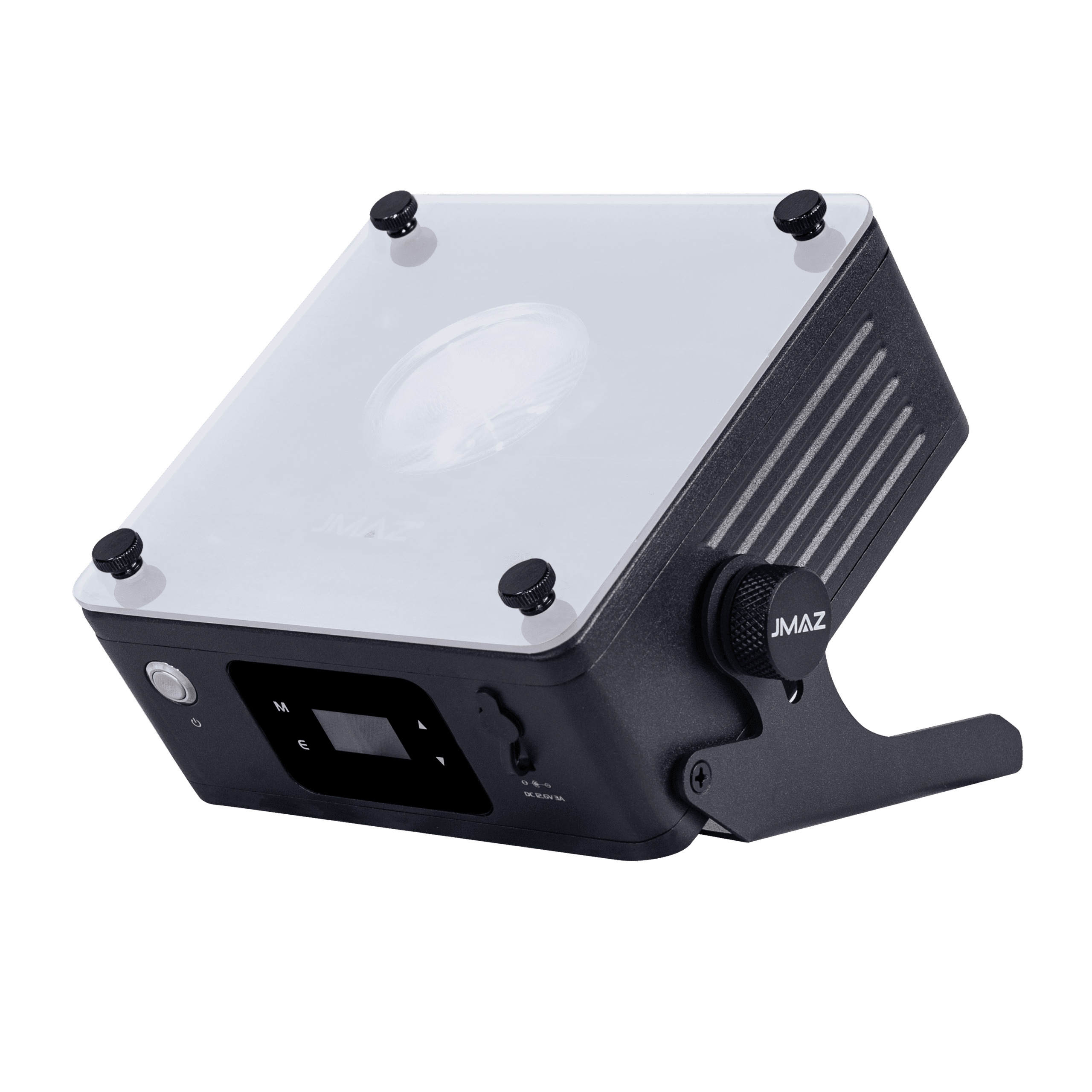

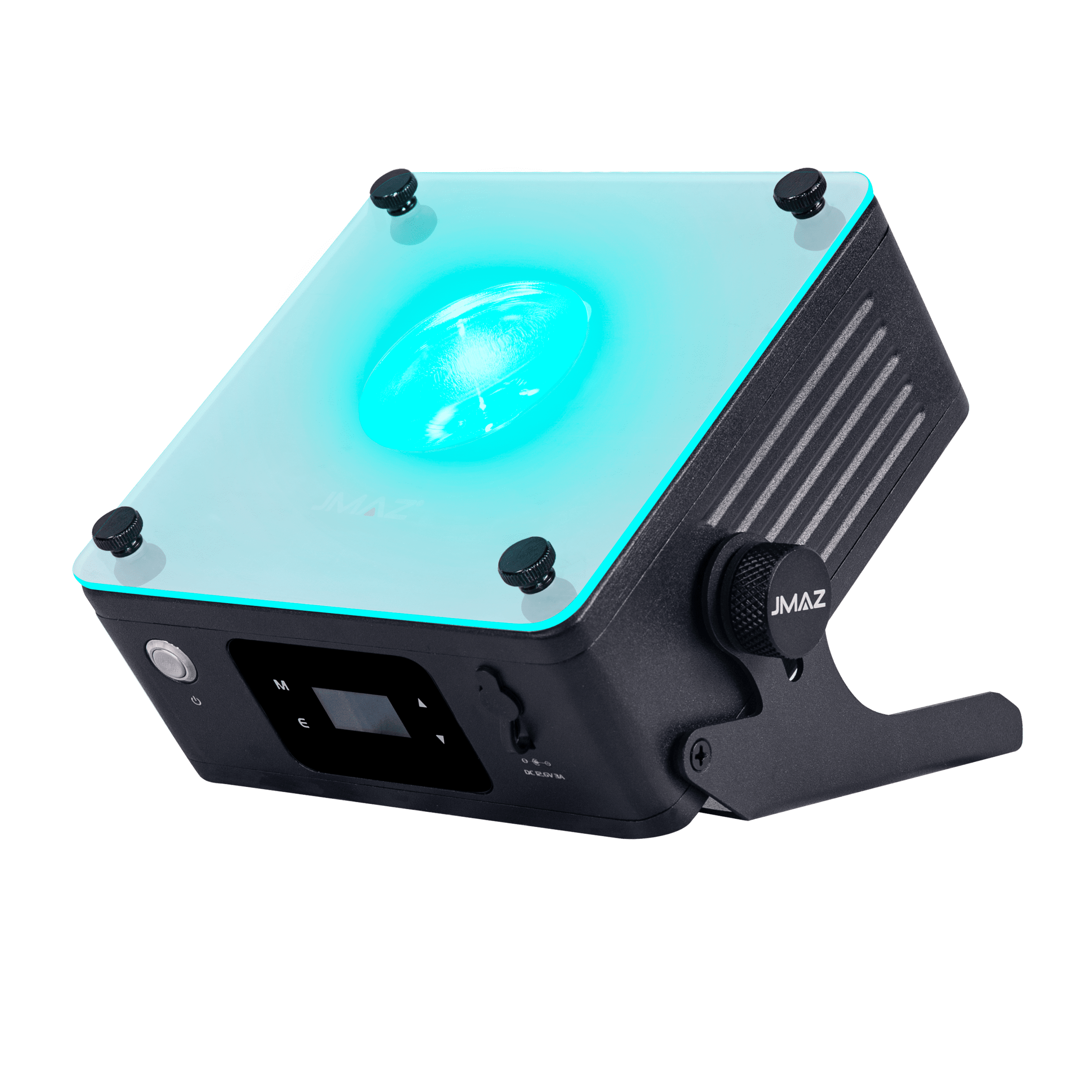

- Wide-angle optics feature a native 60° beam angle for smooth uplighting and wall washing, while the included 80° diffuser provides even broader, more uniform coverage.
- Integrated lithium-ion battery provides up to 20 hours of runtime on a single charge, or up to 40 hours in battery saver mode, with a fast 3-hour recharge for maximum event readiness.
- IP65-rated construction, fanless cooling, and an adjustable 0–40° tilt base ensure reliable outdoor performance, silent operation, and precise fixture positioning in any environment.
- Wireless DMX and IR remote control, combined with 73 preset color programs, 72 built-in auto effects, 50 sound-active modes, and four customizable favorite colors, offer flexible programming for events of any size.

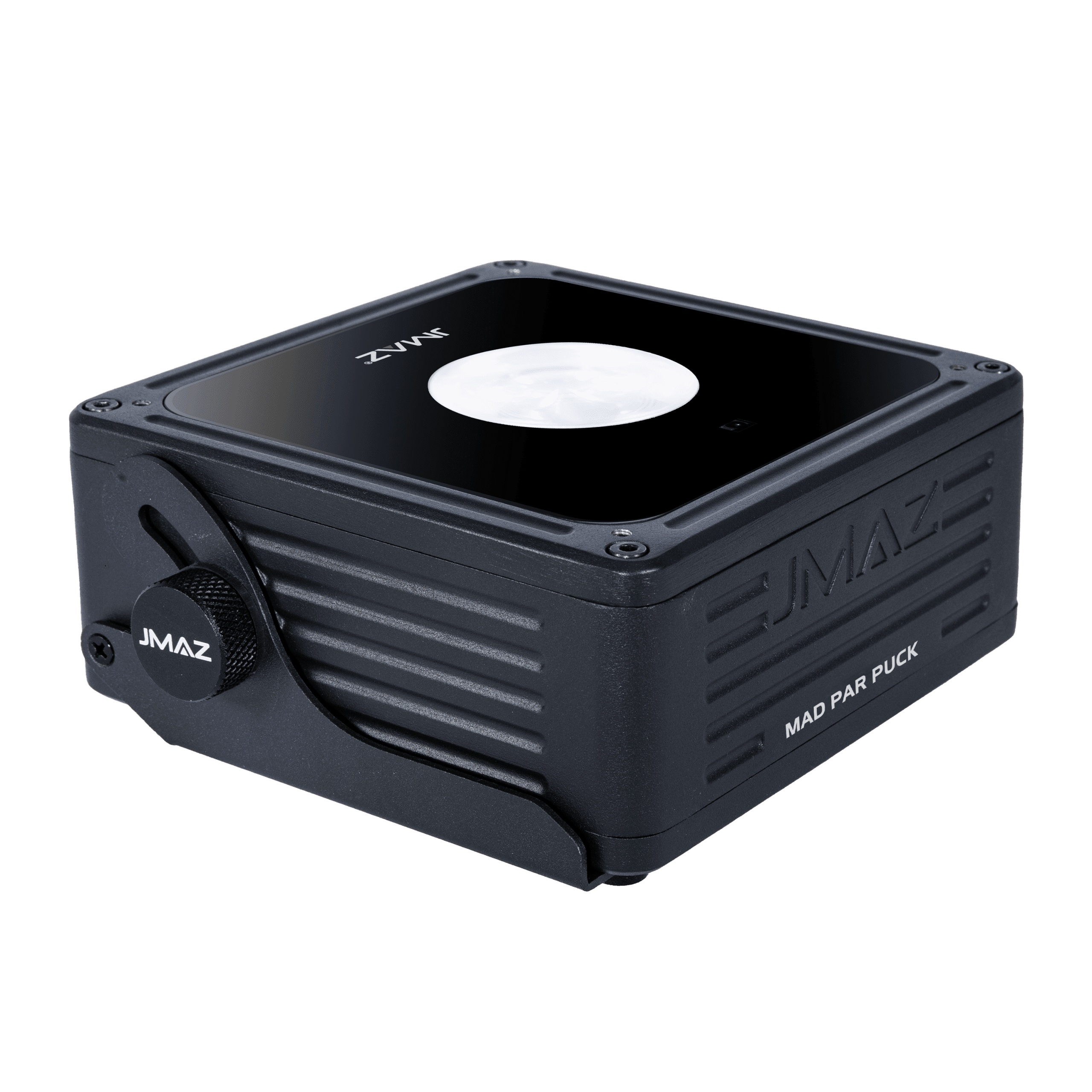

- Compact, lightweight die-cast aluminum housing makes the MAD PAR PUCK an ideal solution for uplighting, wall washing, weddings, architectural lighting, and mobile entertainment applications.
*** EU Patent Registered | US Patent Pending***
Product Description
The MAD PAR PUCK was designed for event professionals, production companies, rental houses, DJs, and installers who need a compact, battery-powered uplight capable of delivering exceptional color quality and natural white light in any environment. Combining a 20W RGBAL+C LED engine with an IP65-rated housing, long-lasting battery operation, and wireless control, the MAD PAR PUCK provides lighting professionals with a versatile solution for both indoor productions and outdoor events.
Powered by a **20W RGBAL+C LED engine**, the MAD PAR PUCK produces rich, saturated colors, beautifully balanced pastel tones, and adjustable white light from 2300K to 8500K with smooth 8/16-bit color mixing. Its advanced optic delivers a wide 60° beam angle that expands to 80° with the included diffuser, making it ideal for uniform wall washing and architectural uplighting. Featuring 73 preset color programs, 72 built-in auto programs, 50 advanced sound-active modes, Wireless DMX, IR remote control, multiple DMX personalities, and up to 20 hours of battery operation (up to 40 hours in battery-saving mode), the MAD PAR PUCK offers exceptional versatility and dependable performance. Its fanless design ensures completely silent operation, making it equally suited for live events, weddings, theatres, broadcast studios, and other noise-sensitive environments.
Whether illuminating architectural features, enhancing wedding venues, creating seamless wall washes, accenting stages, or transforming indoor and outdoor event spaces, the MAD PAR PUCK delivers vibrant color reproduction, accurate white light, and reliable wireless performance in an ultra-compact fixture built for today’s professional lighting applications.
Technical specifications
Light Source
- 1 X 20W RGBAL+C LED
- LED Life Expectancy: 50,000 hrs
Color System
- RGBAL+C Color Mixing 8/16 bit
- CCT: 2300K to 8500K
Optics
- Advanced Lens Optic: 60° Beam Angle
- Diffuser Angle (Included): 80° Beam Angle
Dynamic Effect
- Max 20 Hour Battery Life / 40 Hour In Battery Saving Mode
- Charging Time: 3 Hours
- Selectable Battery Saving Mode: 25%, 50%, 75%, 100%
- 73 Preset Color Programs
- 50 Advanced Sound Active Mode
- 72 Auto / Fade Built-In Programs
- Stand Alone Color Mixing
- Electronic Dimmer
- Fading/Jumping Macros Light Change And Jump
- Shutter/Strobe: Electronic
- Strobe Rate: 0-25 Hz
- Preset Color Temperature
- 4 Favorite Color Customization Triggered via DMX / IR Remote
Control
- Control Protocol: Wireless DMX, IR Remote
- Personalities: 5/6/8/16 CH DMX Modes

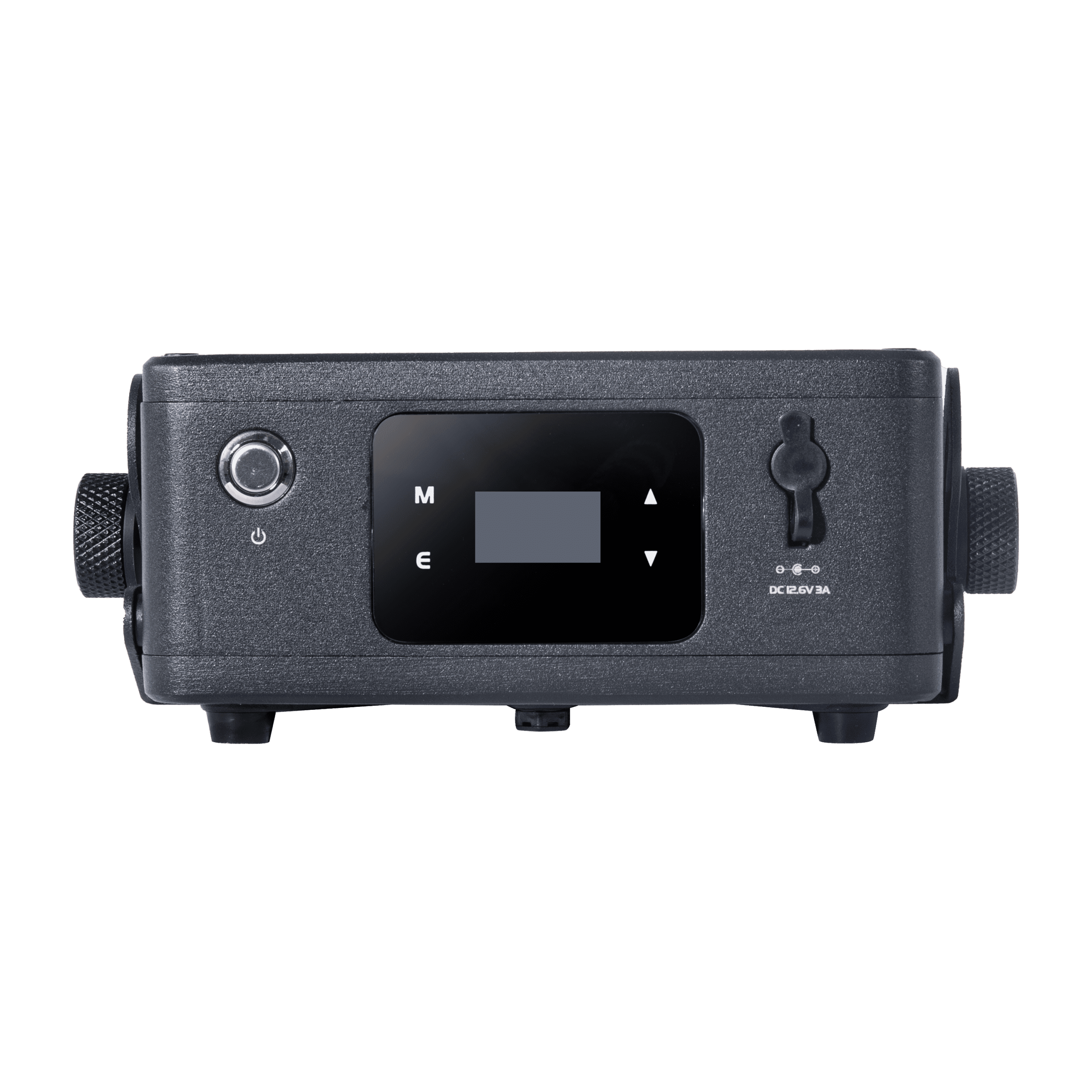

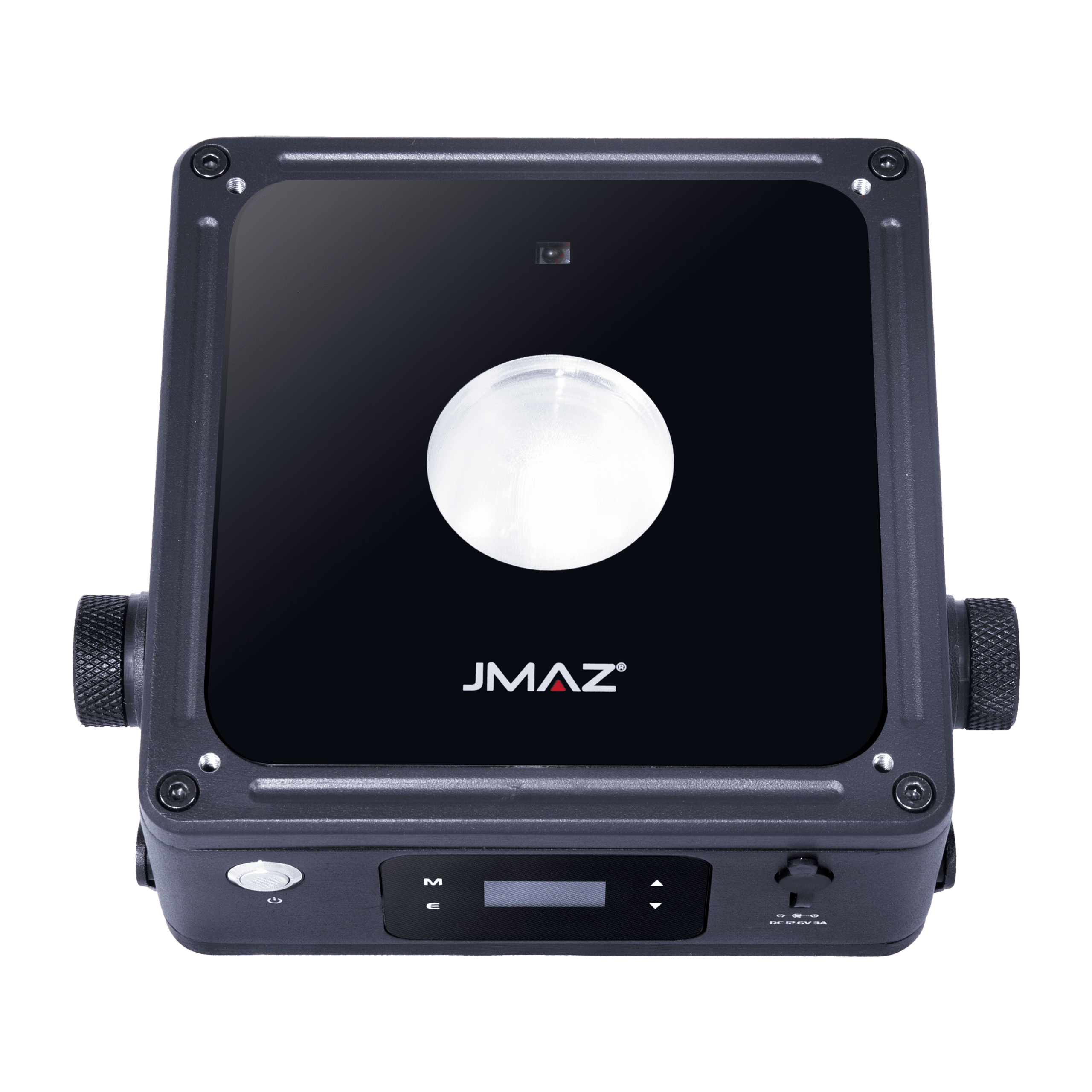

- OLED Graphical Display
Electronics
- Strobe Shutter: 1-25Hz
- Dimming Modes: 4
Body
- Die-Cast Aluminum and Steel Structure
Physical

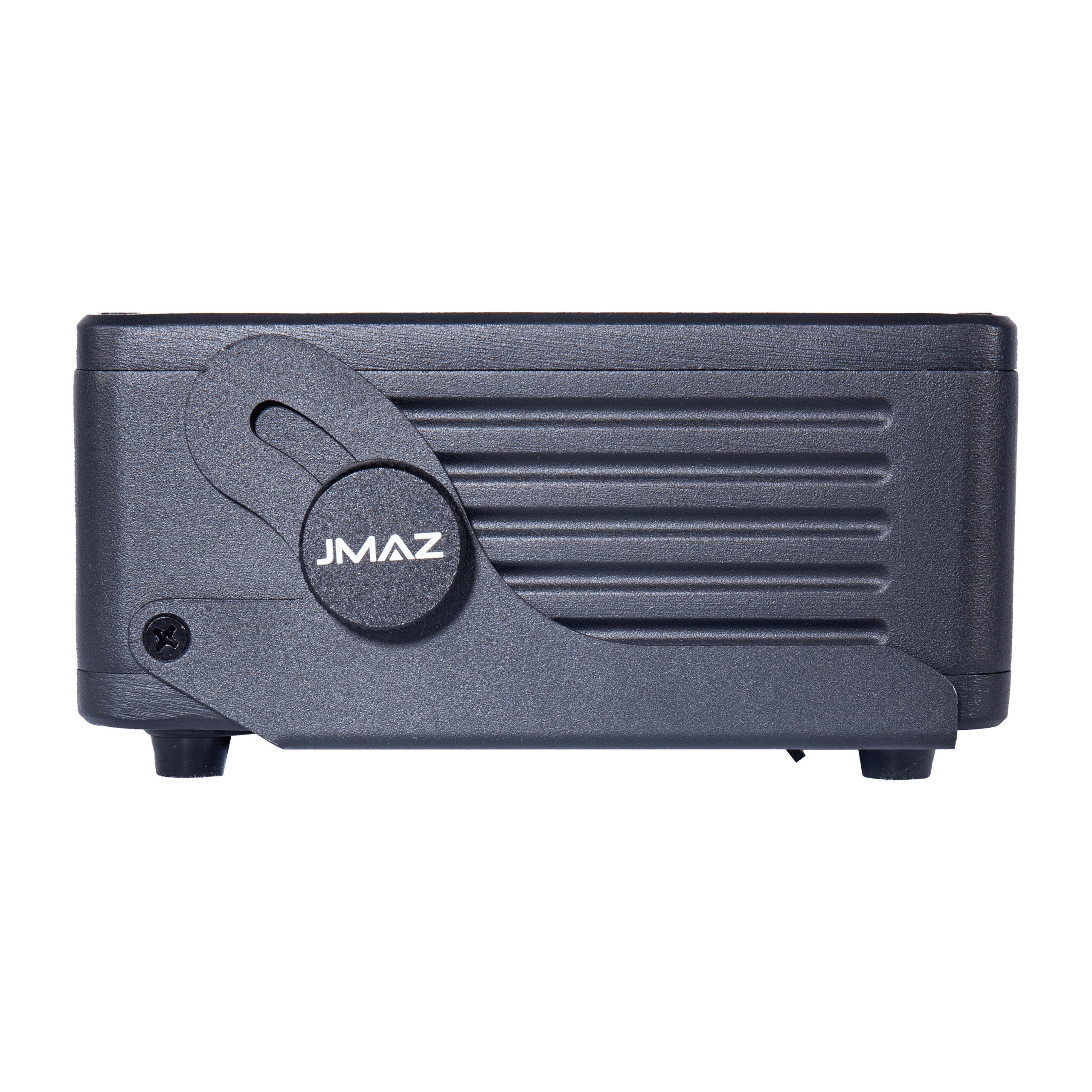

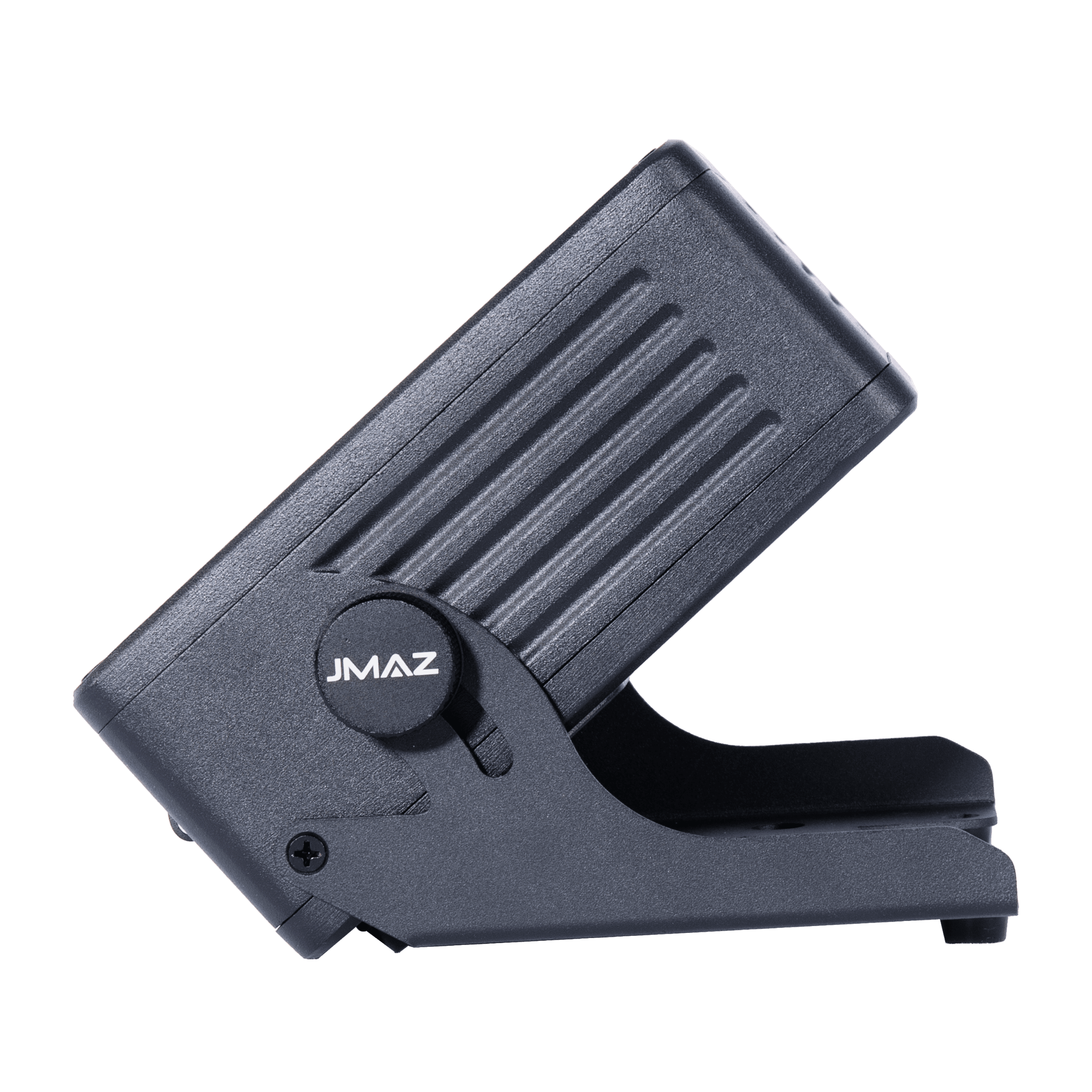

- Adjustable Tilt Base: 0-40 Degree
- Cooling: Fanless
Certification / Qualifications
- RoHS, CE, FCC
- IP Rating: IP 65
- Operating Temperature: –10° C (14° F) To 60° C (140° F)
Electrical
- Input Voltage: 100 V – 240 V AC, 50/60 Hz
- Power Consumption: 20W
- PWM: 1.5KHz
- Battery Voltage: 11.1V
- Battery Capacity: 5,200 mAH, 57.72 Wh/hour
- Charger: 12.6V, 3A ***UL Listed***
- Rechargeable Battery Type: Lithium Ion ***UL Listed***
Box Content
- 1 x 80 Degree Diffuser
- 1 x External Charger
- 1 x Quick Start Guide
- 1 x IR Remote
Item Dimensions & Weight
- Dimensions: 7.2″ x 5.9″ x 3″
- Weight: 3.7 lbs
UPC
618528599083Video
