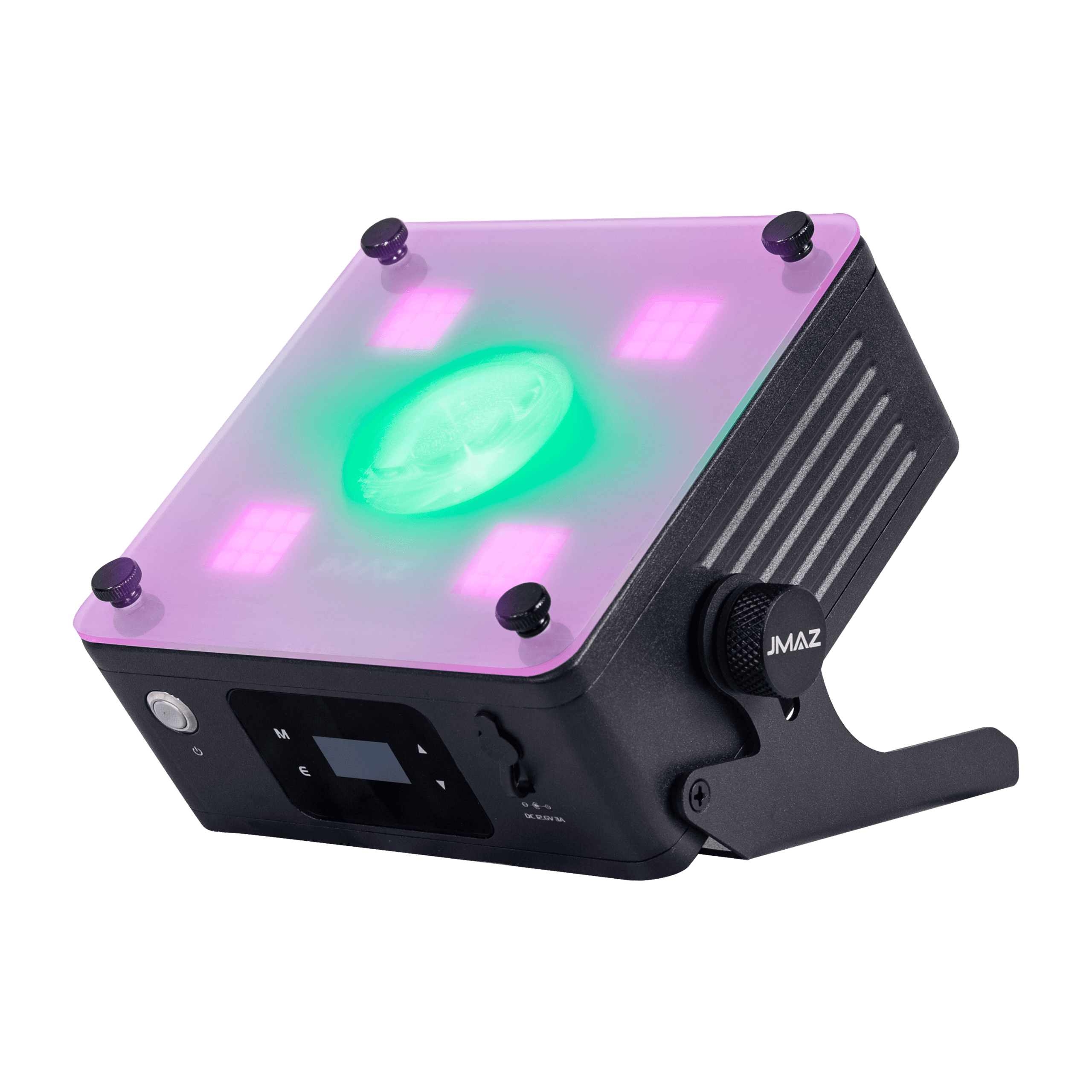

MAD PAR RUBIX
SKU:
JZ1046

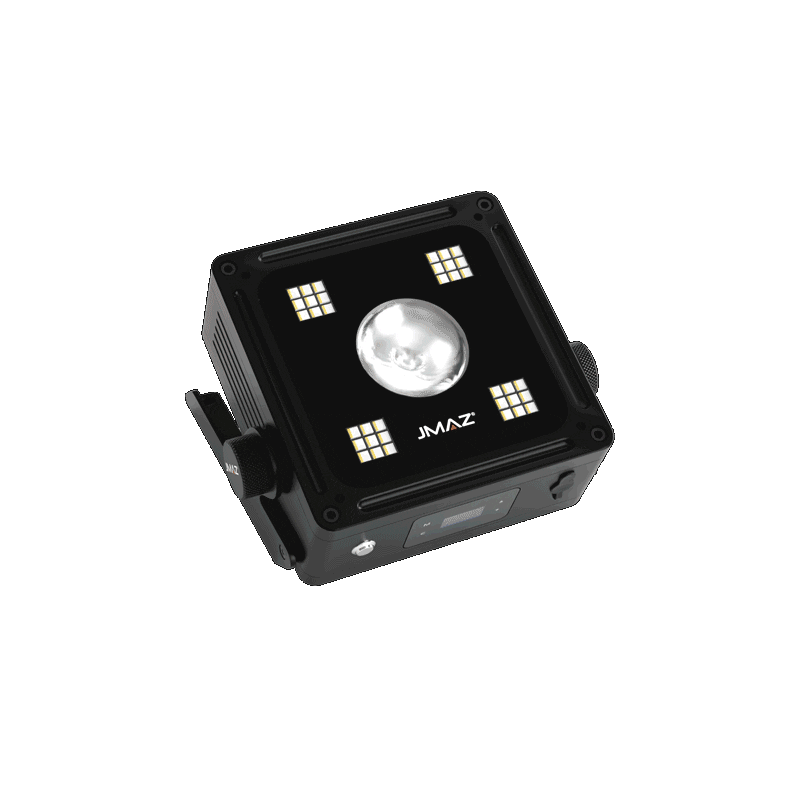

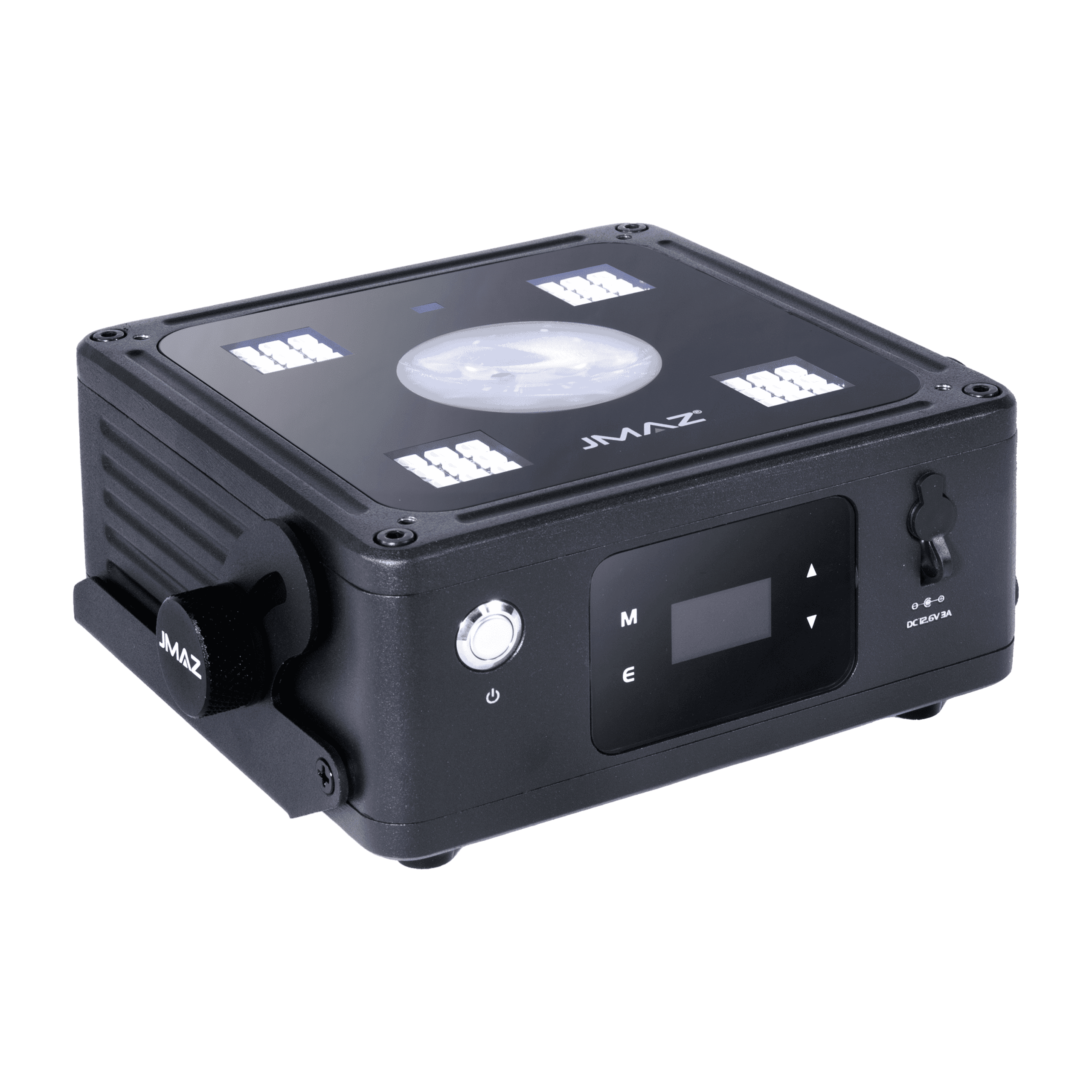

MAD PAR RUBIX Wireless IP65 38W RGBA Battery LED Uplight with RGB Dual Wash Effects
Main features:
- Innovative 38W dual light-source engine combines a 20W RGBA LED with an 18W RGB+WW SMD LED array, delivering vibrant color mixing, warm white tones, and dynamic layered lighting effects from a single fixture.
- Versatile optics feature a 40° primary beam angle, an included 60° diffuser for wider wash coverage, and a 120° outer SMD LED ring for immersive ambient illumination and eye-catching visual effects.
- Integrated lithium-ion battery provides up to 16 hours of runtime on a single charge, or up to 40 hours in battery saver mode, delivering reliable cable-free operation for indoor and outdoor events.
- IP65-rated construction, fanless cooling, and an adjustable 0–40° tilt base ensure dependable weather-resistant performance with silent operation and precise fixture positioning.
- Wireless DMX and IR remote control, combined with 73 preset color programs per light source, 99 dual-source color combinations, 80 sound-active modes, and 72 built-in auto effects, provide exceptional creative flexibility.
- Compact die-cast aluminum housing with a fast 4-hour recharge time makes the MAD PAR RUBIX an ideal solution for uplighting, architectural lighting, weddings, event production, and mobile entertainment.
*** EU Patent Registered | US Patent Pending***
Product Description
The MAD PAR RUBIX was designed for event professionals, production companies, rental houses, DJs, and installers who need more than a traditional battery-powered uplight. Featuring a unique dual light-source design, the MAD PAR RUBIX combines a focused center beam with a wide ambient outer ring, giving lighting professionals the ability to create layered effects, vibrant uplighting, and dynamic visual looks from a single compact fixture. Its IP65-rated housing and wireless operation make it an ideal solution for both indoor productions and outdoor events.

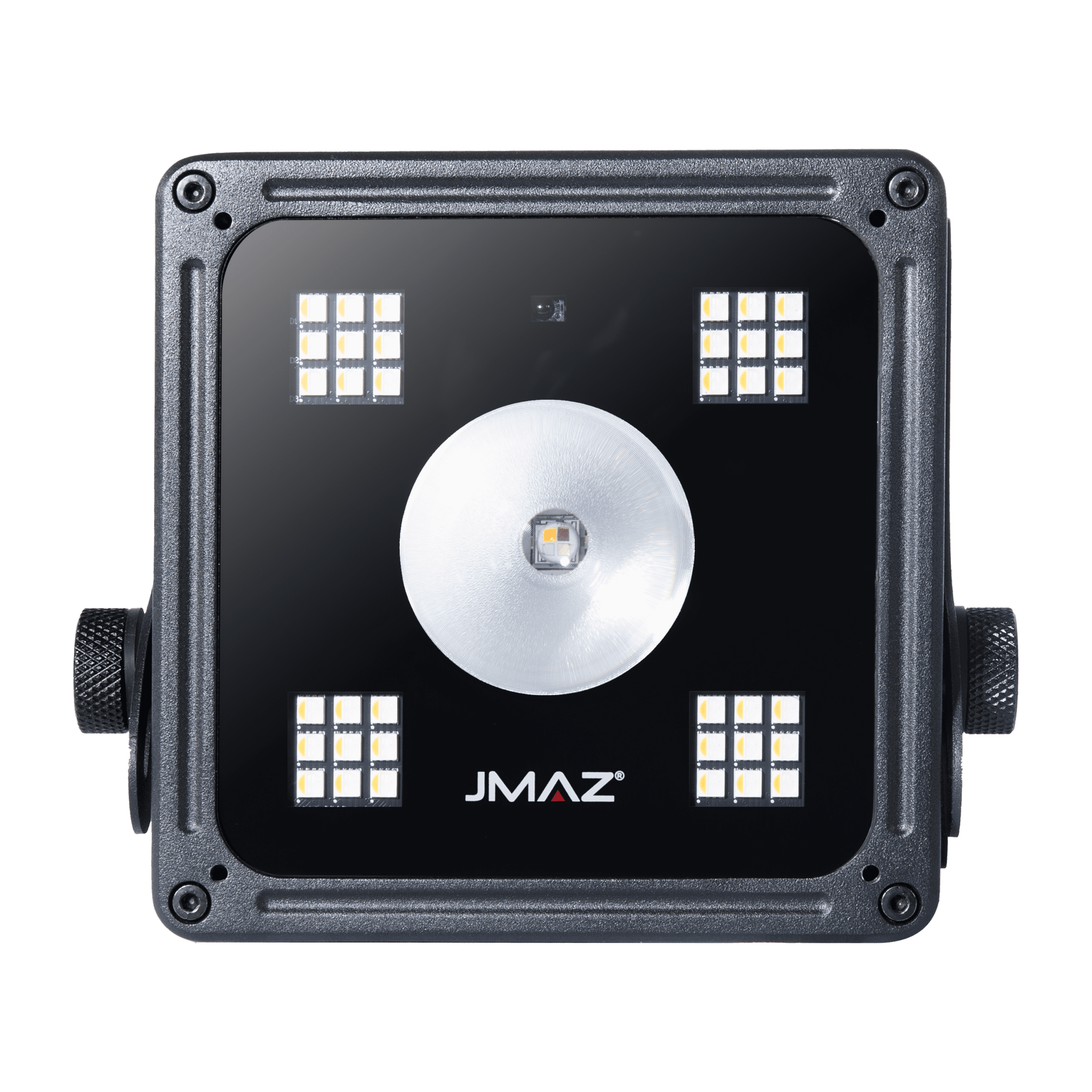

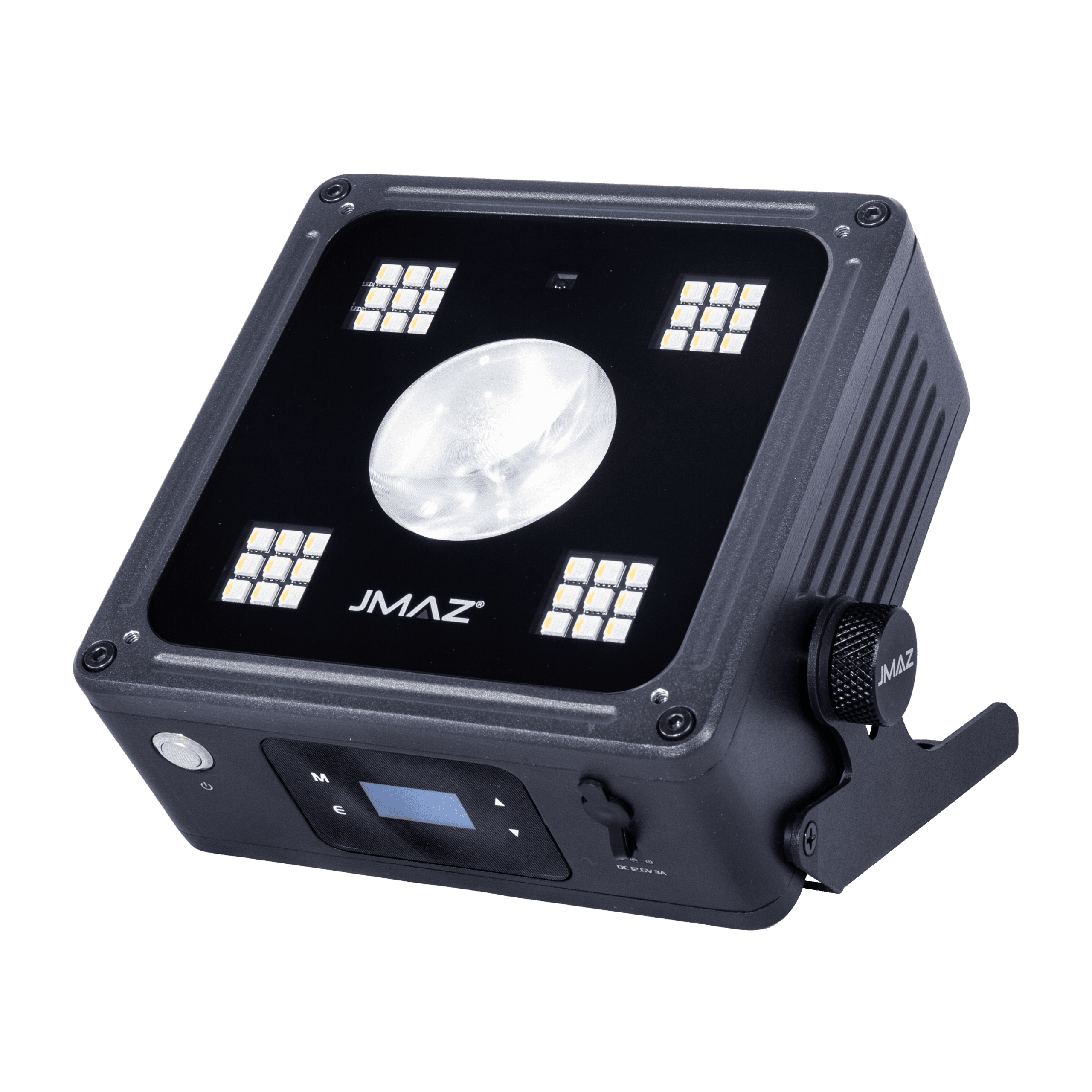

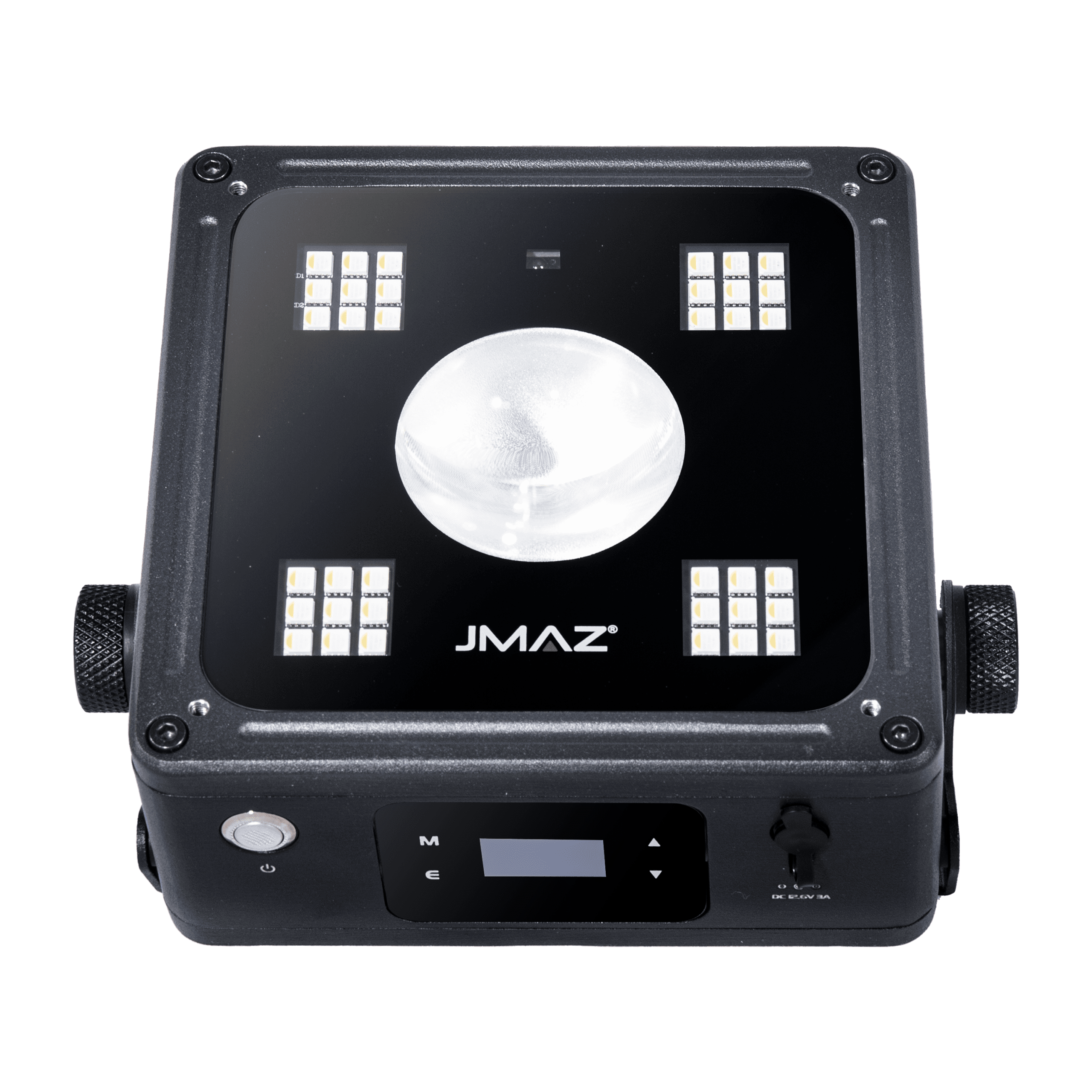

Powered by a **38W dual-source LED engine** featuring a **20W RGBA center LED** and an **18W (36 × 0.5W) RGB + Warm White SMD outer ring**, the MAD PAR RUBIX delivers vibrant color mixing, adjustable white light from 2300K to 8500K, and exceptional creative versatility. The center LED produces a focused 40° beam that expands to 60° with the included diffuser, while the independently controlled 120° SMD outer ring provides smooth wide-angle washes and eye-catching background effects. Featuring 73 preset color programs for each light source, 99 preset LED and SMD color combinations, 80 advanced sound-active modes, 72 built-in auto programs, Wireless DMX, IR remote control, multiple DMX personalities, and up to 16 hours of battery operation (up to 40 hours in battery-saving mode), the MAD PAR RUBIX delivers dependable performance with completely silent, fanless operation.
Whether accenting architectural features, transforming wedding venues, illuminating stages, enhancing ballrooms, or creating immersive indoor and outdoor lighting displays, the MAD PAR RUBIX delivers versatile dual-source performance, vibrant color reproduction, and the creative flexibility today’s lighting professionals demand.
Technical specifications
Light Source
- 20W RGBA LED
- 18W (36 x 0.5W) RGB + WW SMD LED
- LED Life Expectancy: 50,000 hrs
Color System
- RRGBA Color Mixing 8/16 bit
- RGB+WW SMD LED
- CCT: 2300K to 8500K
Optics
- Advanced Lens Optic: 40° Beam Angle

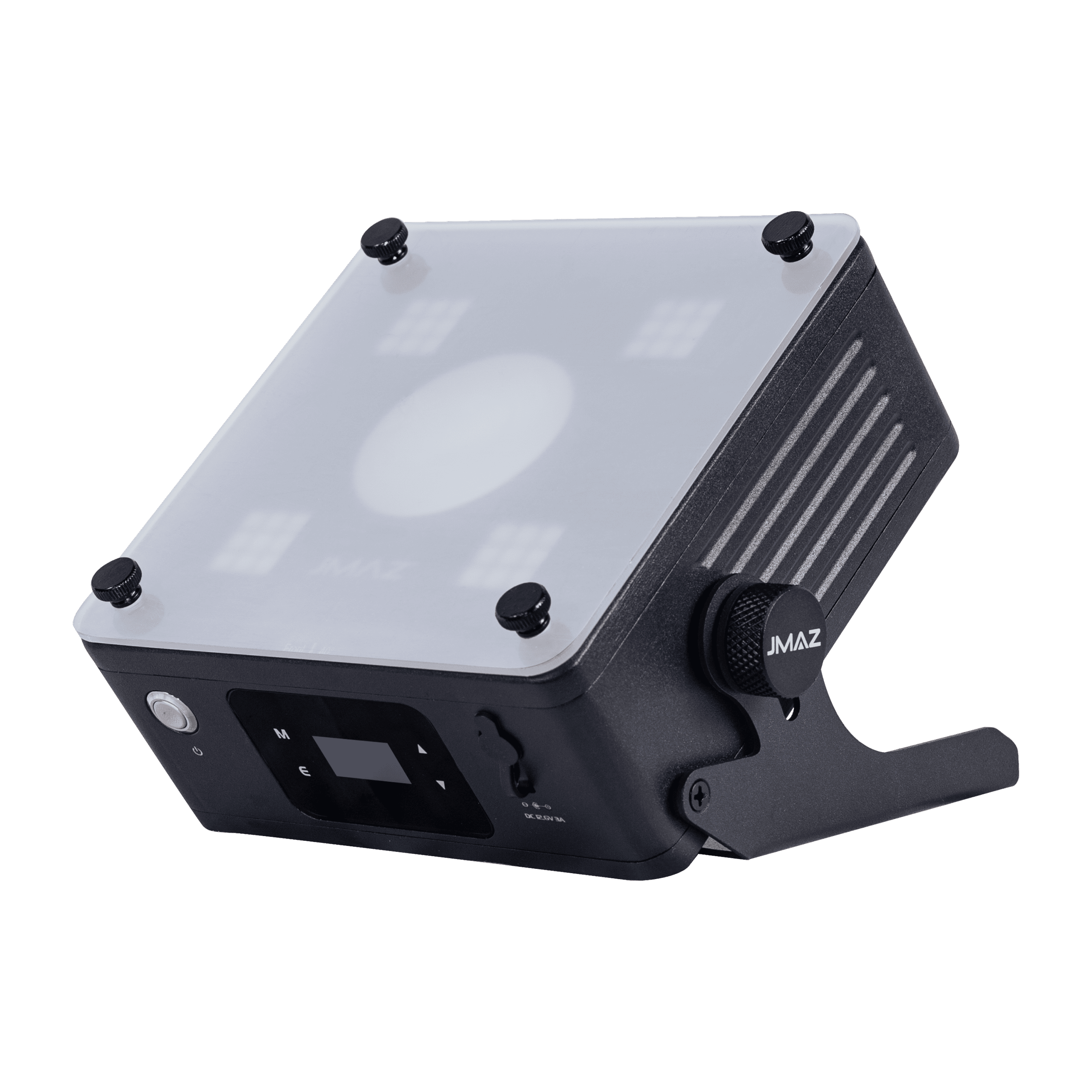

- Diffuser Angle (Included): 60° Beam Angle
- SMD LED: 120° Beam Angle
Dynamic Effect
- Max 16 Hour Battery Life / 40 Hour In Battery Saving Mode
- Charging Time: 4 Hours
- Selectable Battery Saving Mode: 25%, 50%, 75%, 100%
- 73 Preset Color Programs per light source (LED & SMD)
- 99 Preset Color Combinations for LED + SMD
- 80 Advanced Sound Active Mode
- 72 Auto / Fade Built-In Programs
- Stand Alone Color Mixing
- Electronic Dimmer
- Fading/Jumping Macros Light Change And Jump
- Shutter/Strobe: Electronic
- Strobe Rate: 0-25 Hz
- Preset Color Temperature
- 4 Favorite Color Customization Triggered via DMX / IR Remote
Control
- Control Protocol: Wireless DMX, IR Remote
- Personalities: 5/8/12/20/25 CH DMX Modes

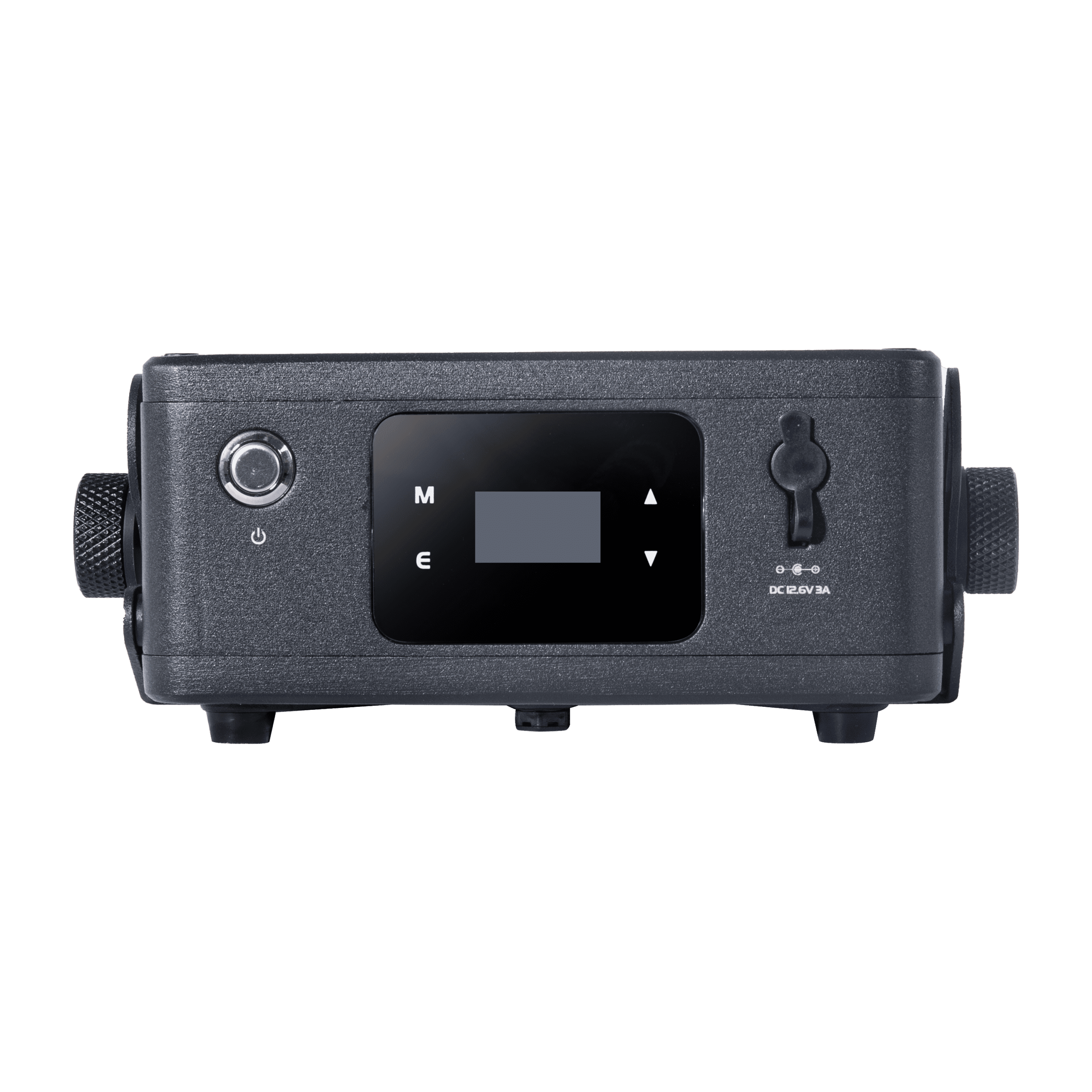

- OLED Graphical Display
Electronics
- Strobe Shutter: 1-25Hz
- Dimming Modes: 4
Body

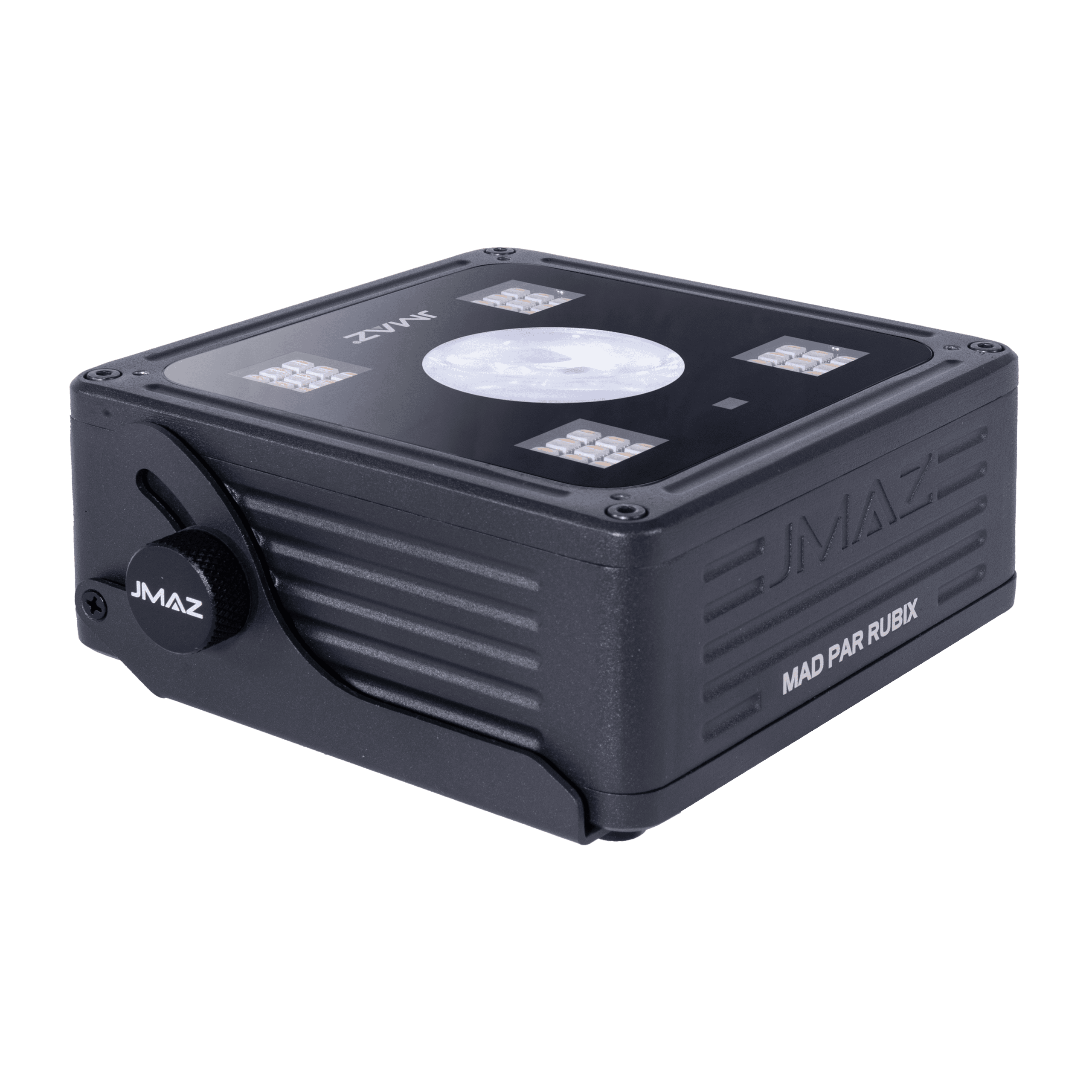

- Die-Cast Aluminum and Steel Structure
Physical

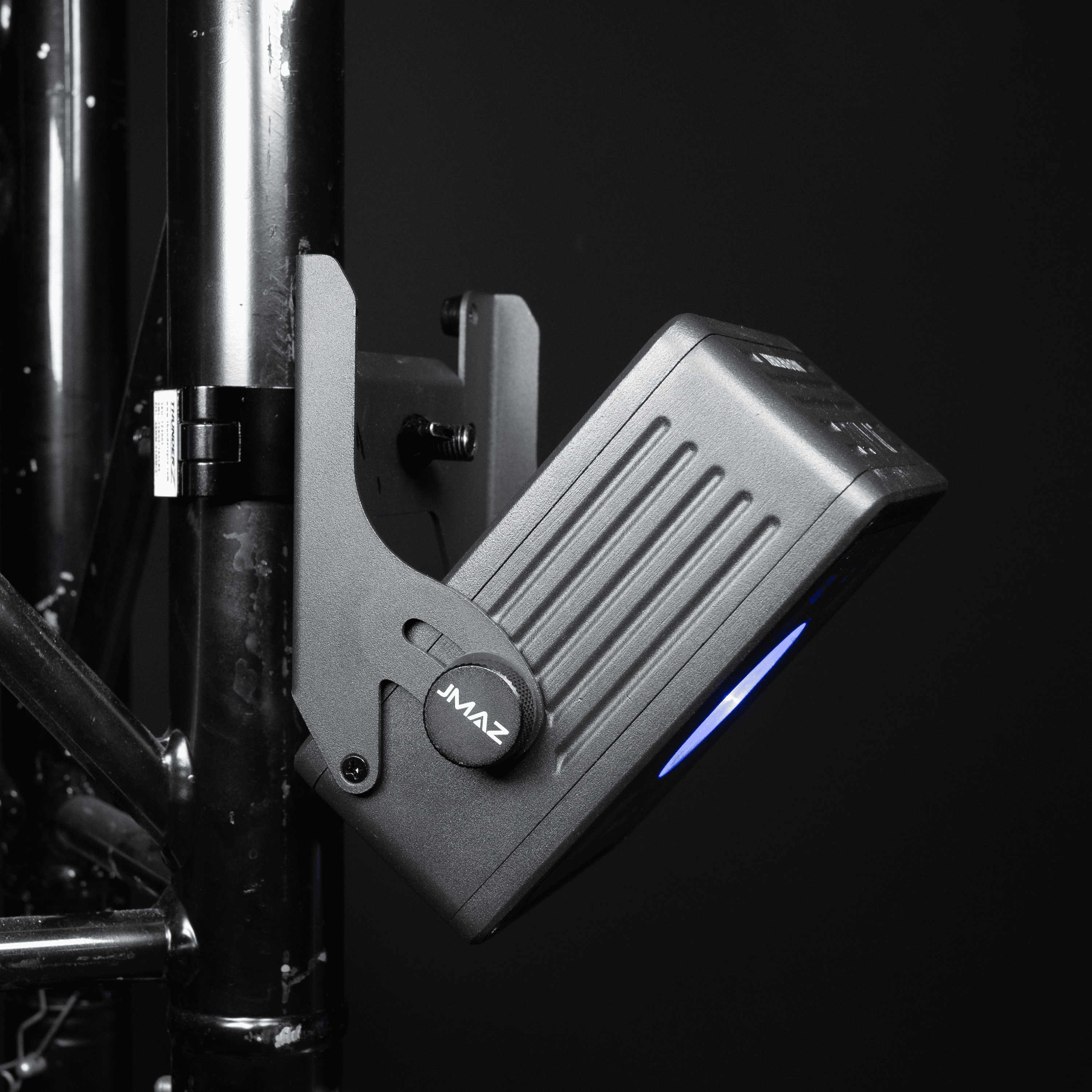

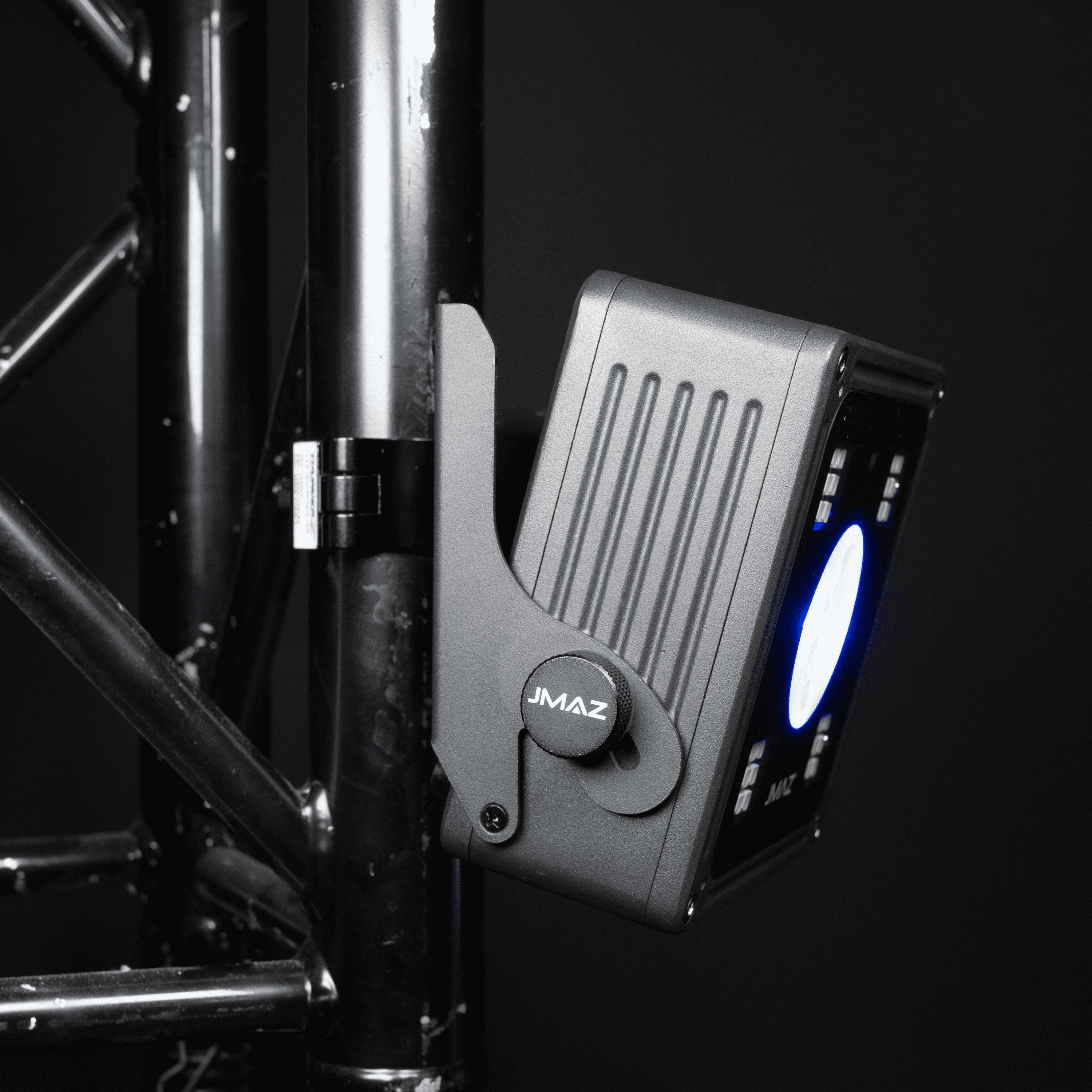

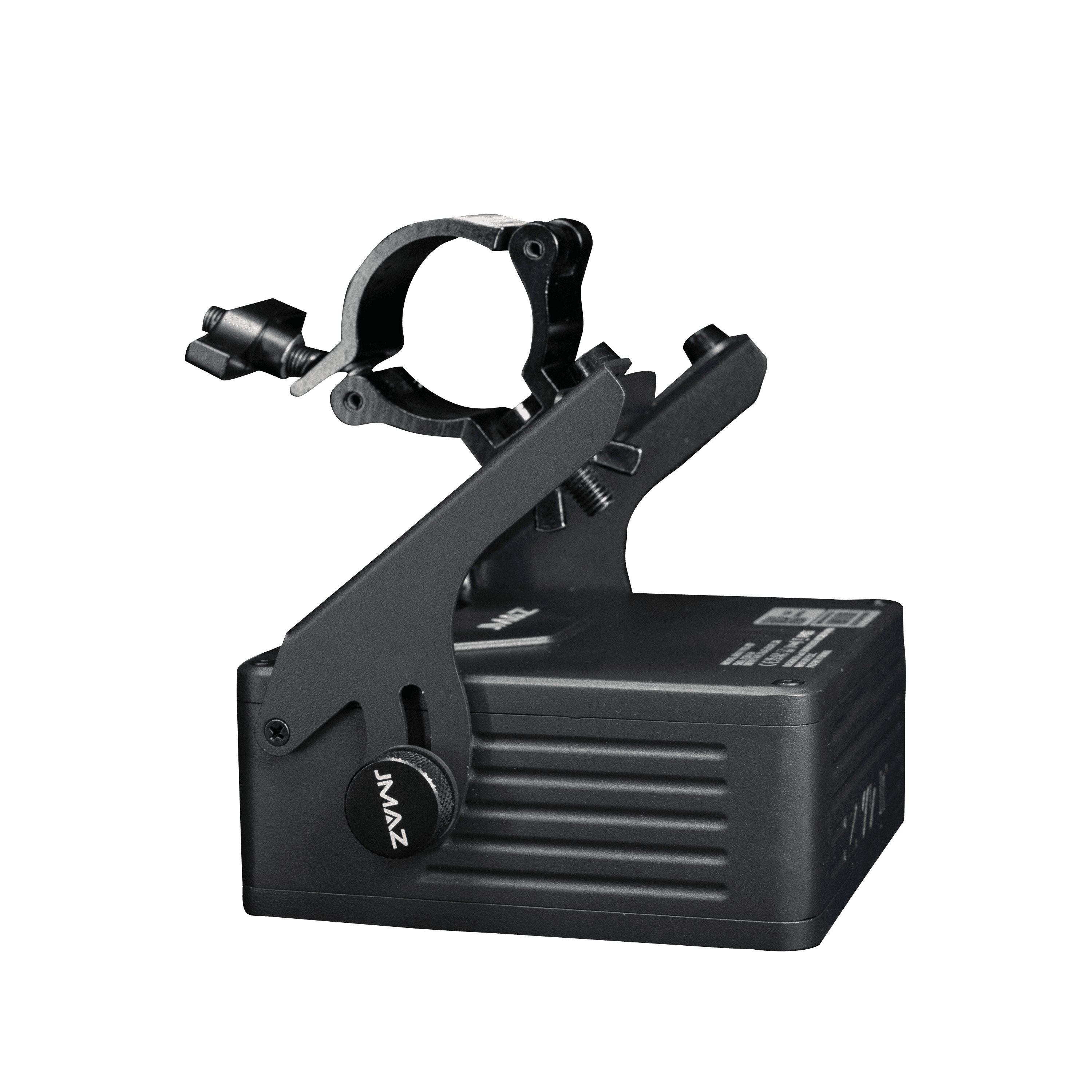

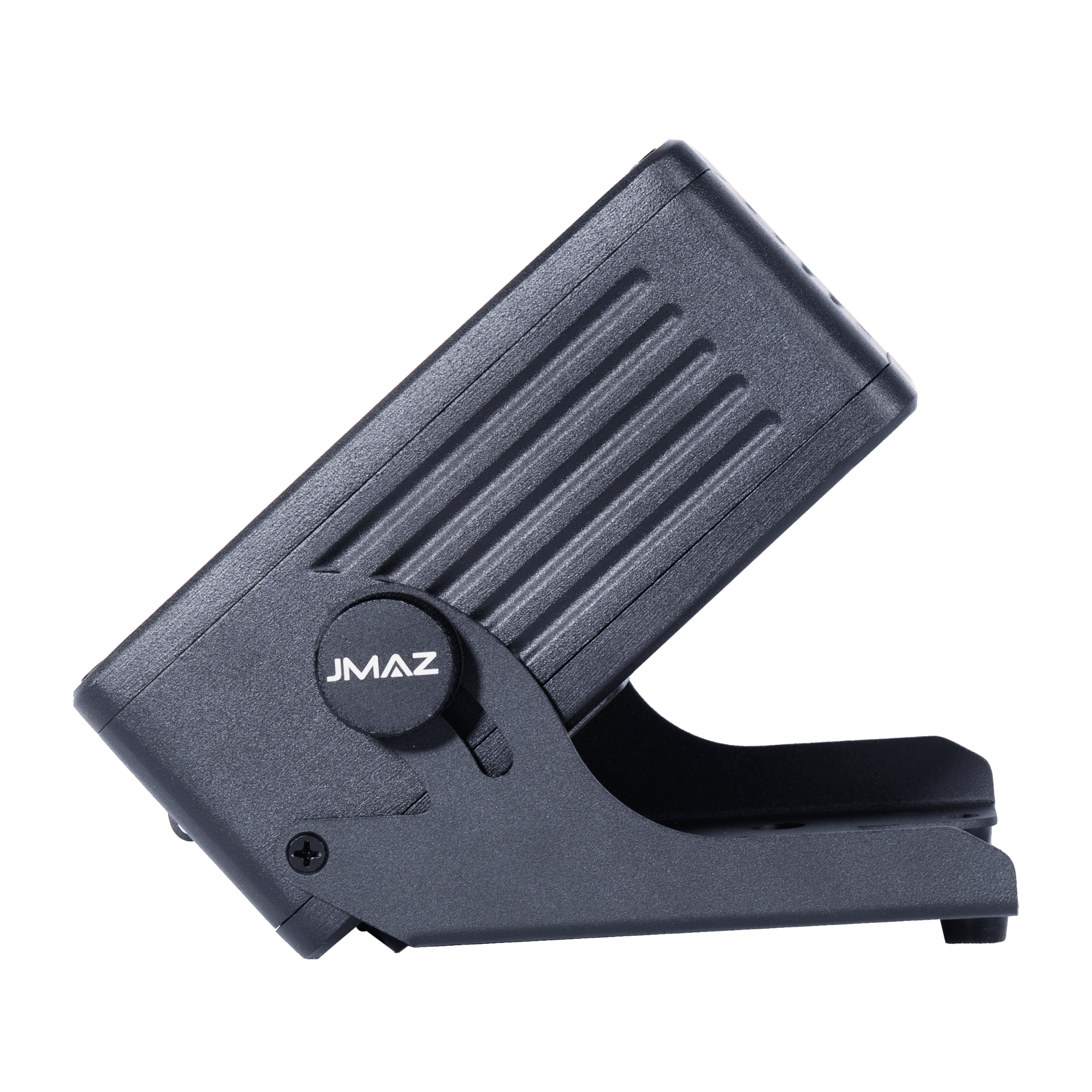

- Adjustable Tilt Base: 0-40 Degree
- Cooling: Fanless
Certification / Qualifications
- RoHS, CE, FCC
- IP Rating: IP 65
- Operating Temperature: –10 ° C ( 14 ° F) To 60 ° C ( 140 ° F)
Electrical
- Input Voltage: 100 V – 240 V AC, 50/60 Hz
- Power Consumption: 60W
- PWM: 1.5KHz
- Battery Voltage: 11.1V
- Battery Capacity: 10,400 mAH, 115.5 Wh/hour
- Charger: 12.6V, 3A ***UL Listed***
- Rechargeable Battery Type: Lithium Ion ***UL Listed*****
Box Content
- 1 x 120 Degree Diffuser
- 1 x External Charger
- 1 x User Manual
- 1 x IR Remote
Item Dimensions & Weight
- Dimensions: 7.2″ x 5.9″ x 3″
- Weight: 4.4 lbs
UPC
618528599120Video
Download
Product Data / Cut Sheet
| File name | File size | Download | |
|---|---|---|---|
 |
MAD PAR RUBIX Product Data Sheet | 500KB |  |
User Manual
| File name | File size | Download | |
|---|---|---|---|
|
MADPAR RUBIX_User Manual_sheet.PDF | 500KB | |
|
MADPAR RUBIX_QSG_sheet.PDF | 500KB | |
|---|---|---|---|
DMX Charts
| File name | File size | Download | |
|---|---|---|---|
 |
MAD PAR RUBIX DMX Chart Folder | 500KB |  |
Profiles
| File name | File size | Download | |
|---|---|---|---|
|
MAD PAR RUBIX DMX Profiles Folder | 500KB | |
Photometrics
| File name | File size | Download | |
|---|---|---|---|
|
MADPAR RUBIX_Photometrics_sheet.PDF | 500KB | |
CAD Drawings
| File name | File size | Download | |
|---|---|---|---|
|
MADPAR RUBIX_CAD_sheet.PDF | 500KB | |
