MAD PAR 4IP
SKU:
JZ1040

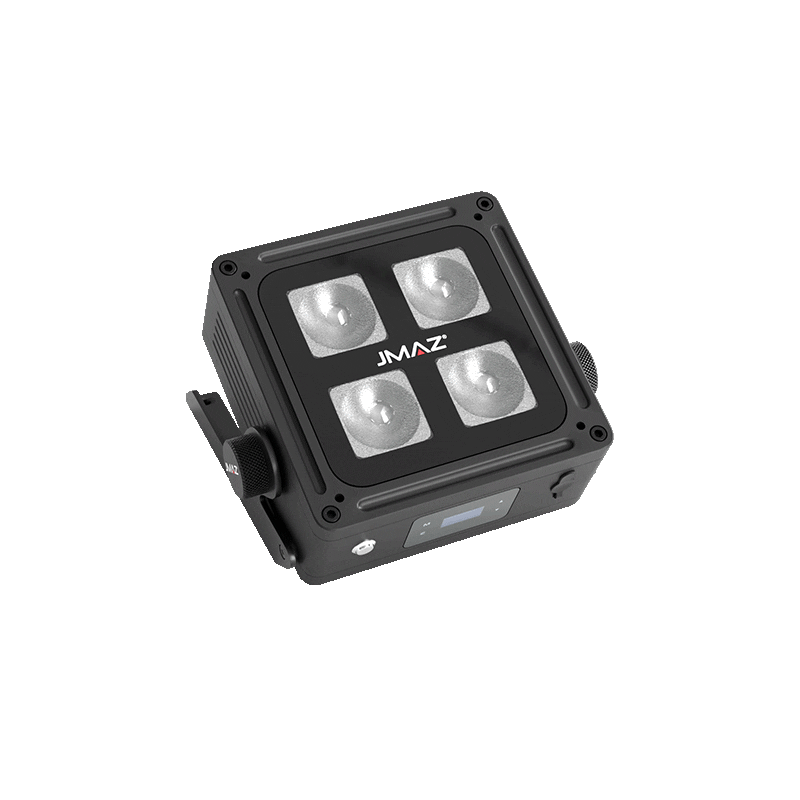

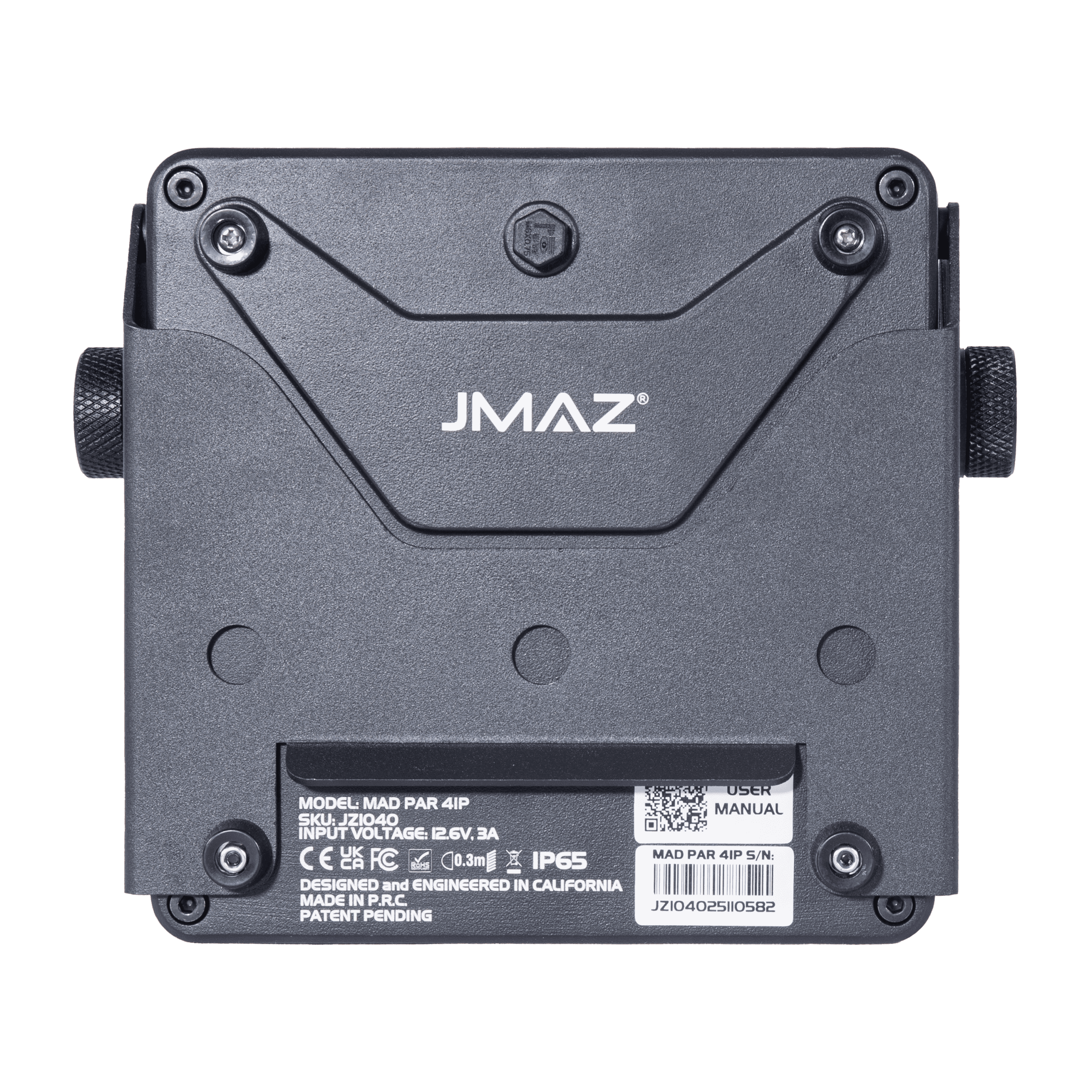

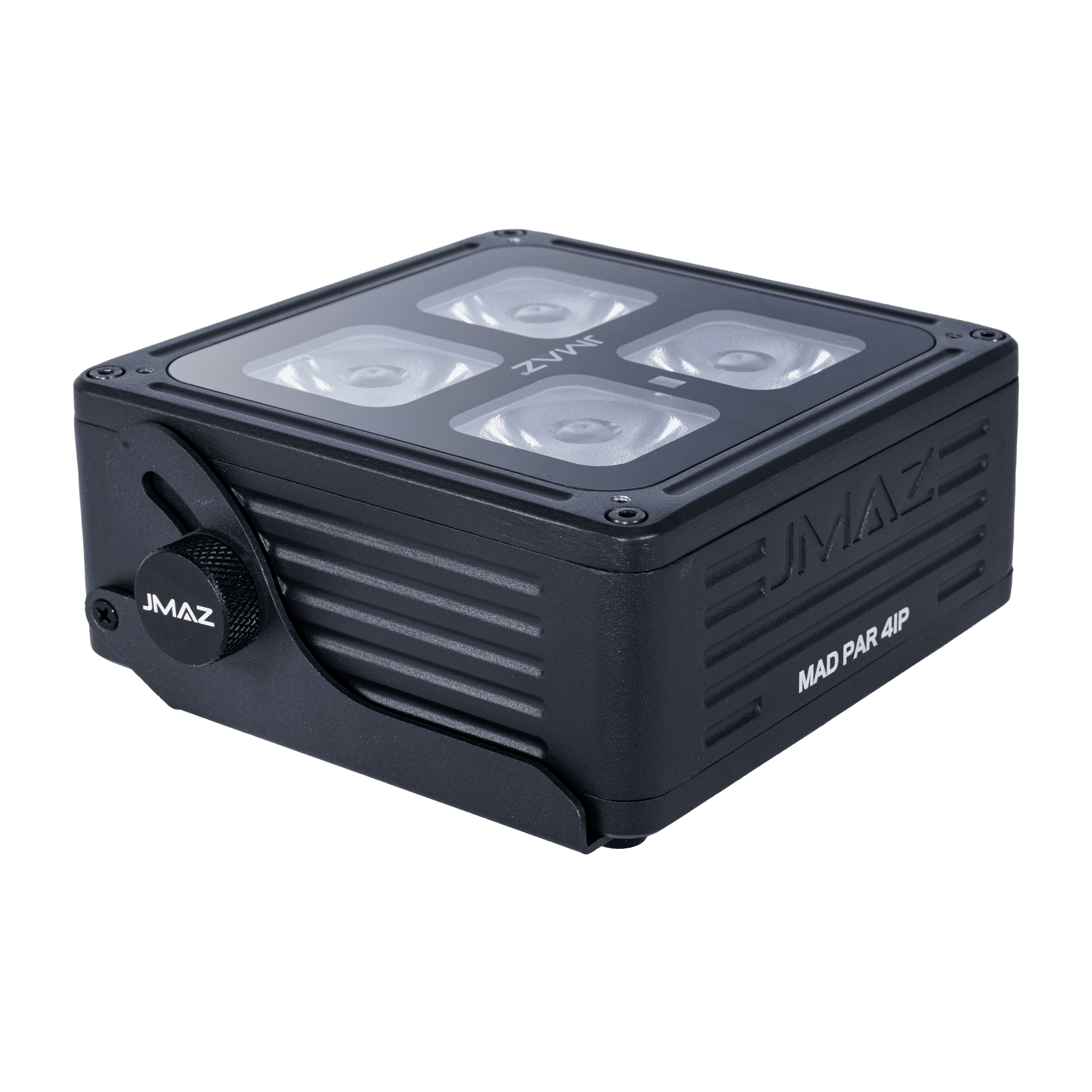

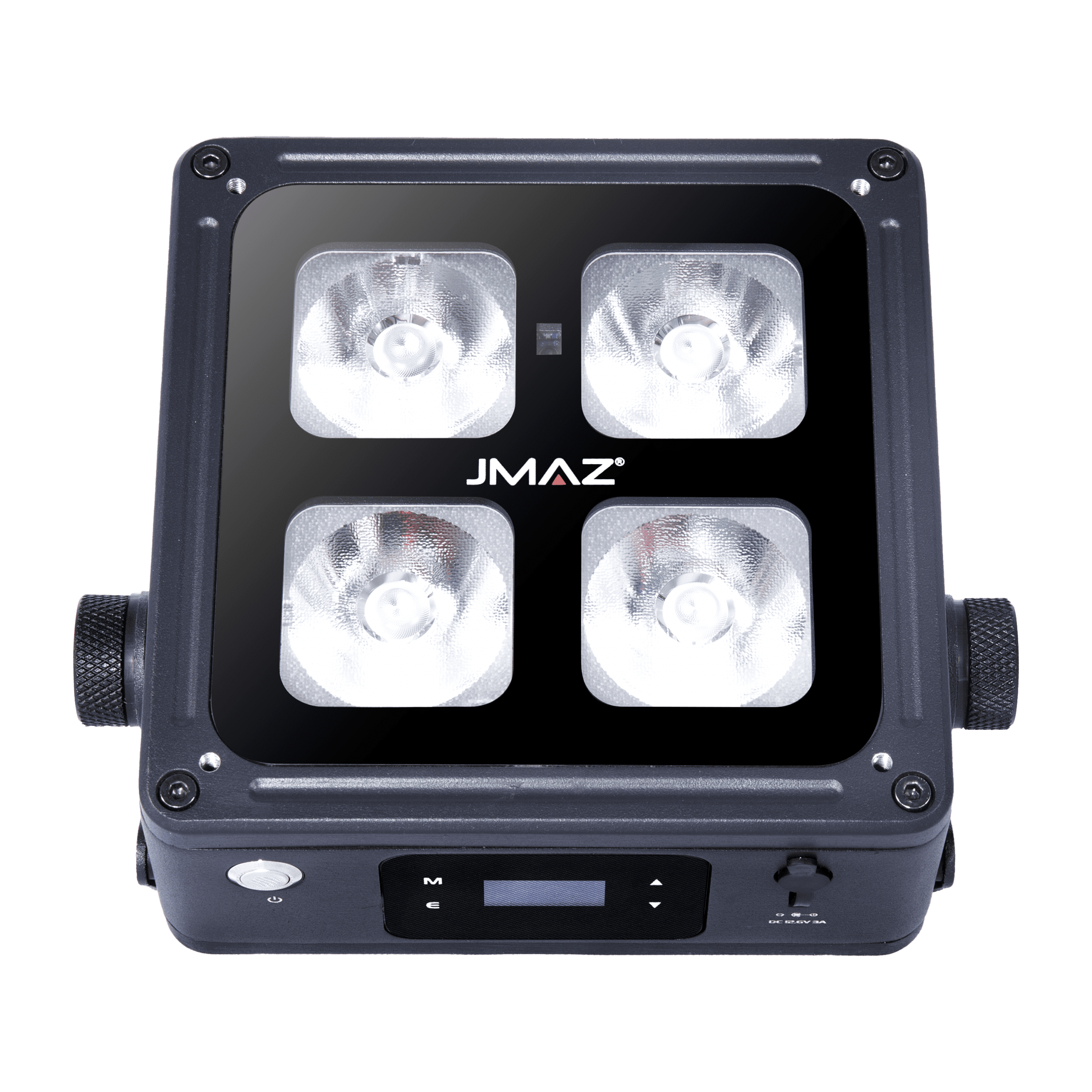

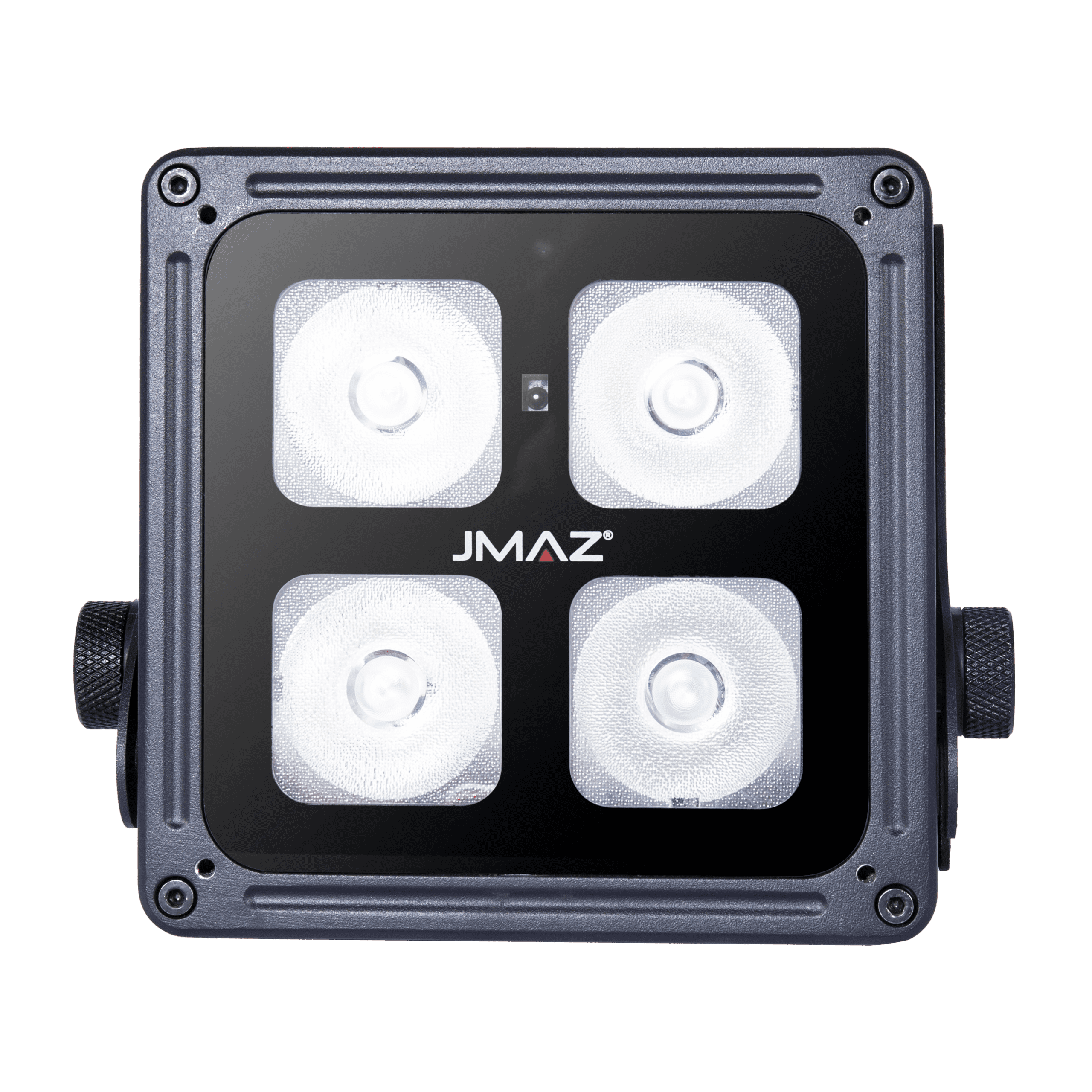

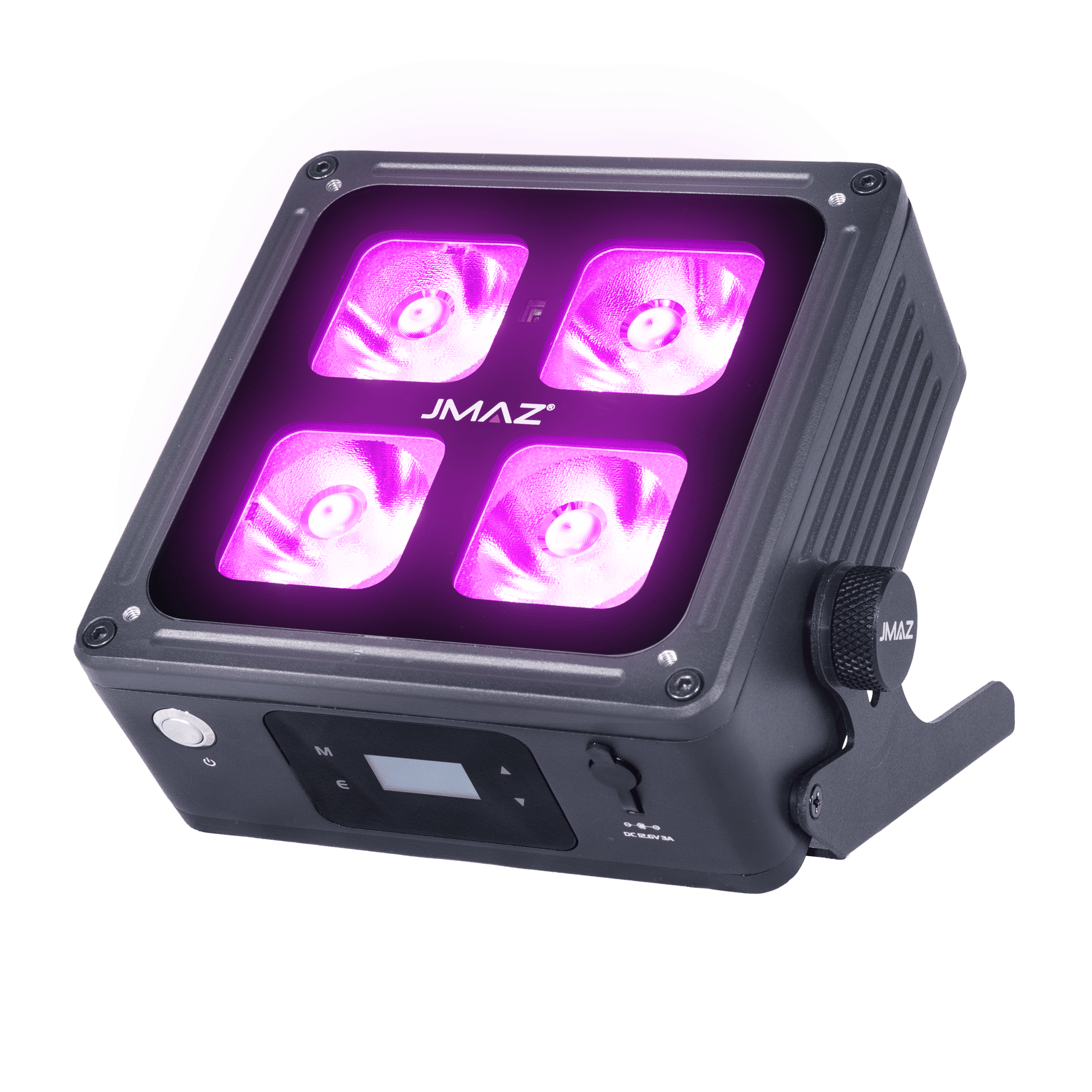

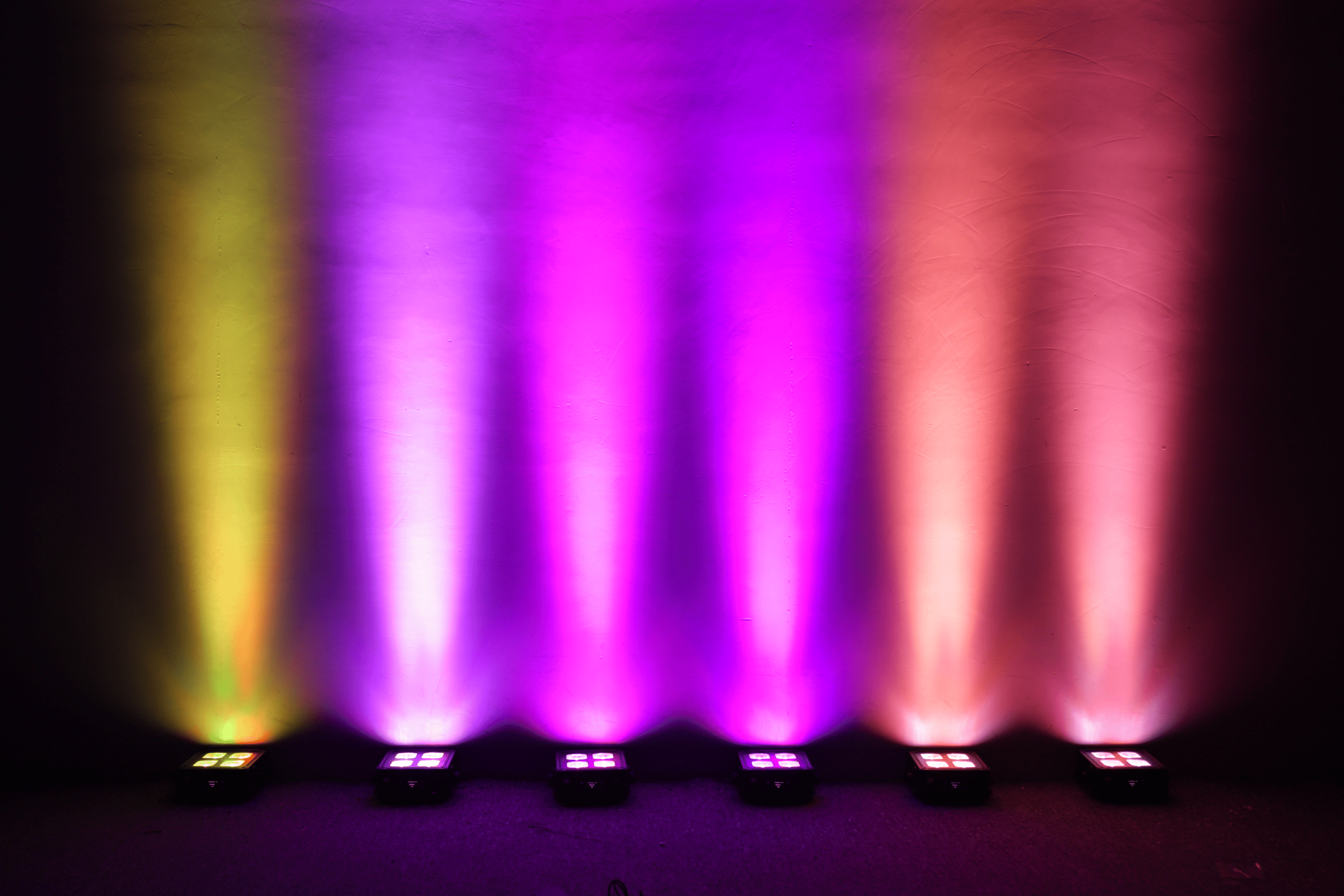

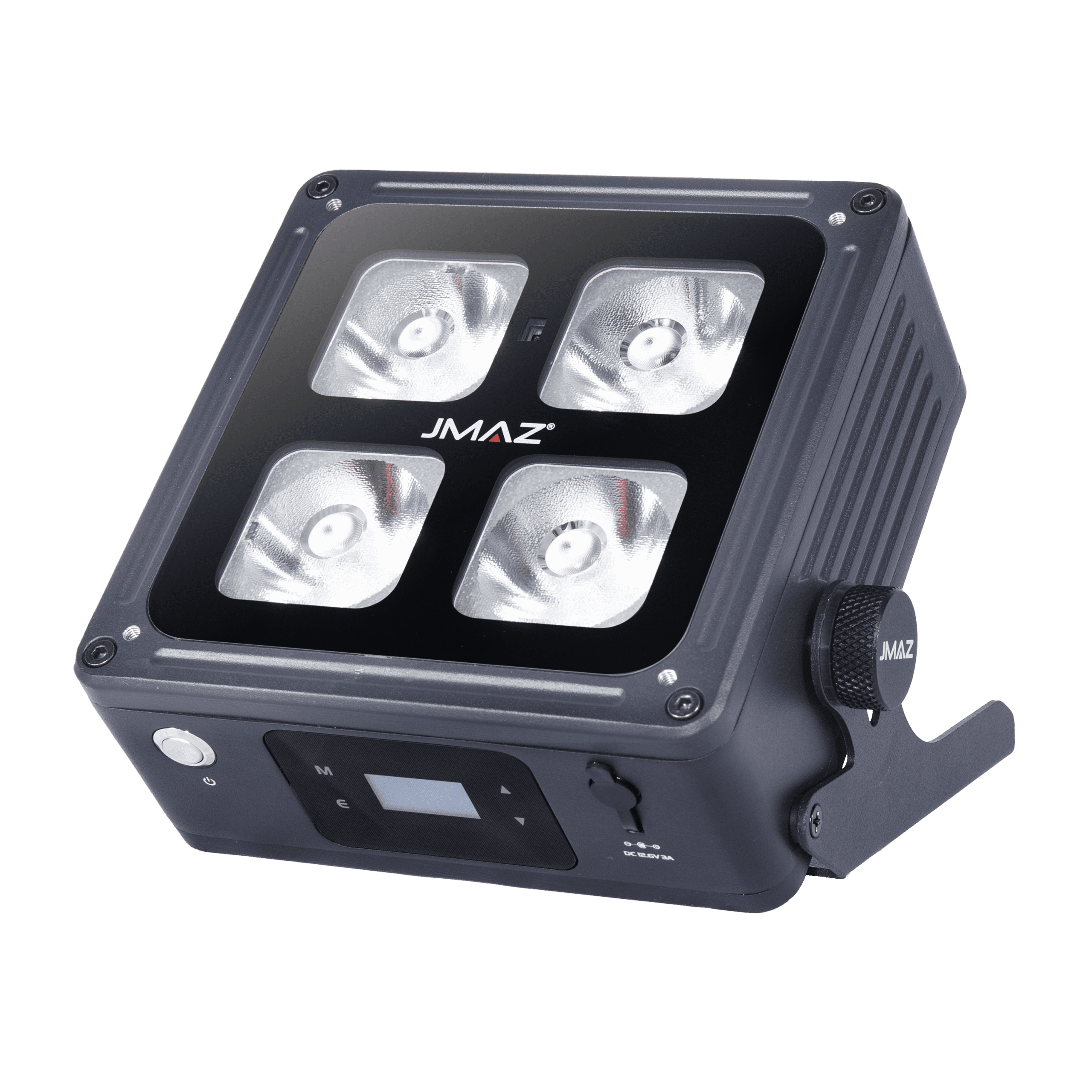

MAD PAR 4IP 60W RGBWA+UV LED Battery Powered Outdoor Uplight
Main features:
- 60W (4 x 15W) RGBWA+UV LEDs
- IP65 Outdoor Rated
- Max 14 Hour Battery Life / 40 Hour In Battery Saving Mode
- Charging Time: 4 Hours
- CCT: 2300K – 8500K
- 73 Preset Color Programs
- 50 Advanced Sound Active Mode
- 72 Auto / Fade Built-In Programs
- 10° Beam Angle / 20° Beam Angle w/Diffuser Included
- Protocols: Wireless DMX, IR Remote
- Includes: IR Remote, Diffuser Filter, A/C Charger, Manual
*** PATENT PENDING***
Product Description
The JMAZ MAD PAR 4IP 60W RGBWA+UV LED Battery-Powered Outdoor Uplight delivers vibrant color versatility with 73 presets, 50 sound-active modes, and 72 auto-fade programs. Rated IP65 for outdoor use, it features up to 14 hours of battery life (48 in saving mode) and includes wireless DMX and IR control. With a 10° or 20° beam angle (with diffuser), this versatile uplight is ideal for dynamic outdoor lighting setups life (48 hours in battery-saving mode) and versatile control options, including Wireless DMX. With 72 color programs, 50 sound-active modes, and a 10° beam angle (expandable to 20° with diffuser), this uplight delivers stunning effects for any event. Includes IR remote, diffuser filter, A/C charger, and manual for seamless setup and operation.
Technical specifications
Light Source
- 60W (4 x 15W) RGBWA+UV LEDs
- LED Life Expectancy: 50,000 hrs
Color System
- RGBWA+UV Color Mixing 8/16 bit
- CCT: 2300K to 8500K
Optics
- Advanced Quadrilateral Lens Optic: 10° Beam Angle

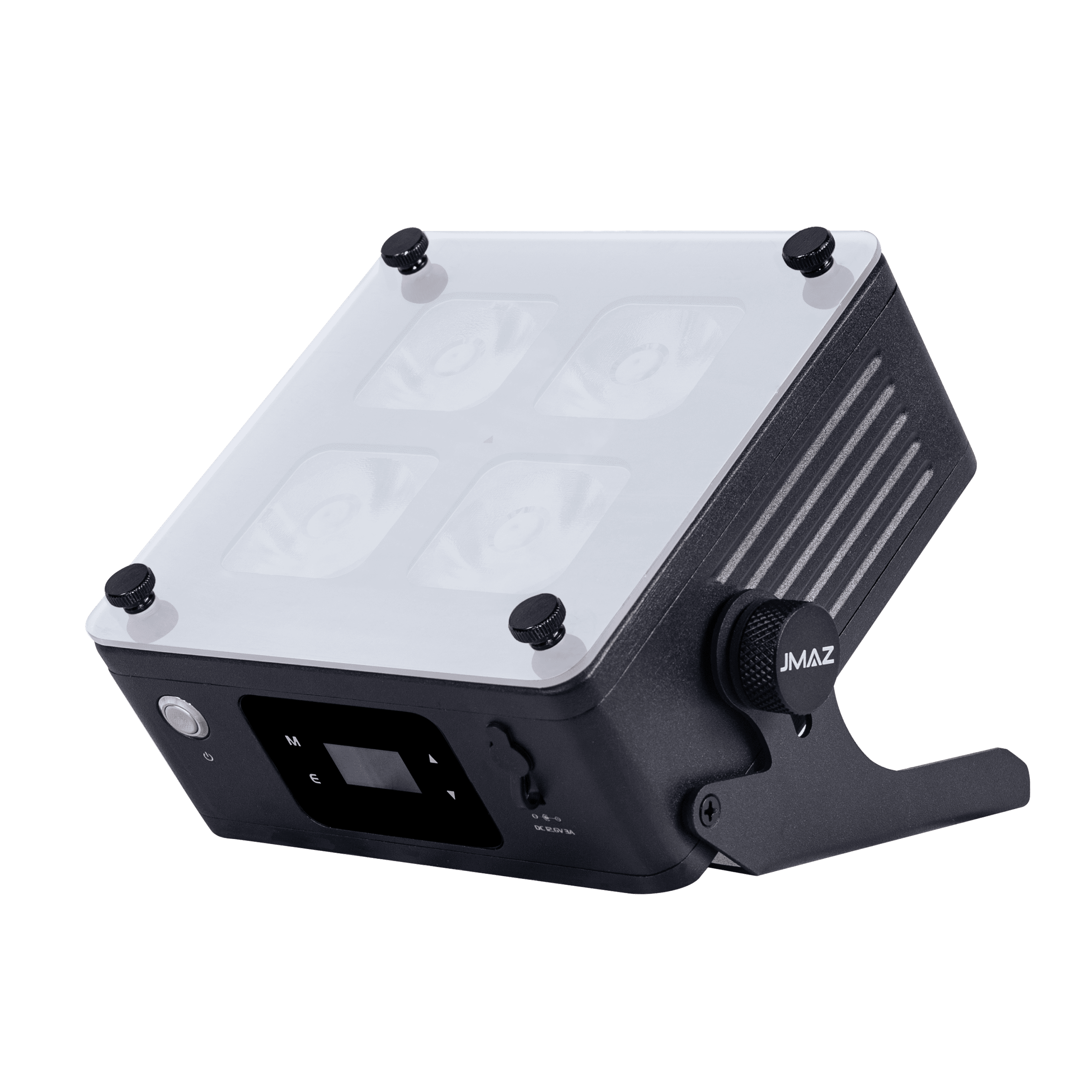

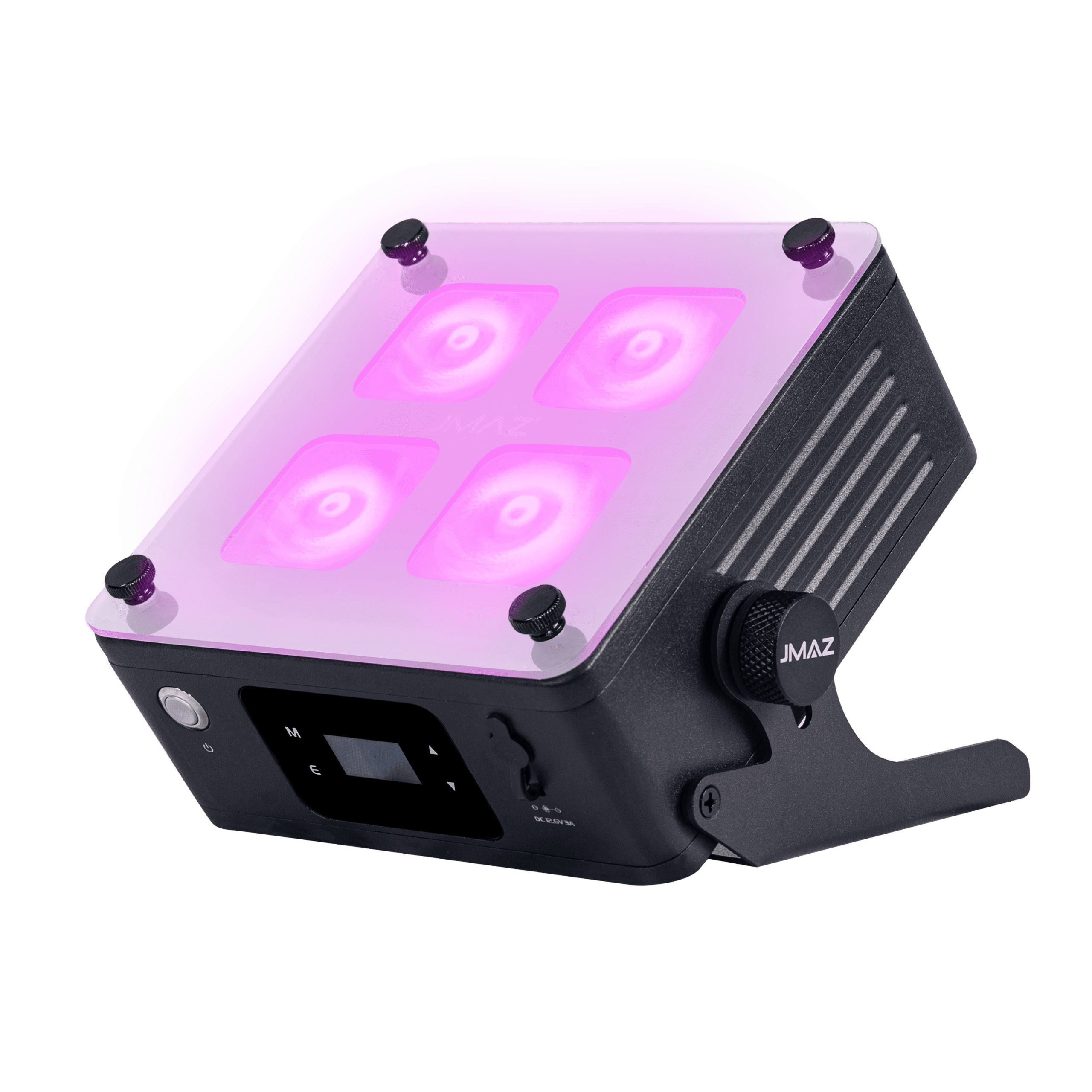

- Diffuser Angle (Included): 20° Beam Angle
Dynamic Effect
- Max 14 Hour Battery Life / 40 Hour In Battery Saving Mode
- Charging Time: 4 Hours
- Selectable Battery Saving Mode: 25%, 50%, 75%, 100%
- 73 Preset Color Programs
- 50 Advanced Sound Active Mode
- 72 Auto / Fade Built-In Programs
- Stand Alone Color Mixing
- Electronic Dimmer
- Fading/Jumping Macros Light Change And Jump
- Shutter/Strobe: Electronic
- Strobe Rate: 0-25 Hz
- Preset Color Temperature
- 4 Favorite Color Customization Triggered via DMX / IR Remote
Control
- Control Protocol: Wireless DMX, IR Remote
- Personalities: 5/6/8/16 CH DMX Modes

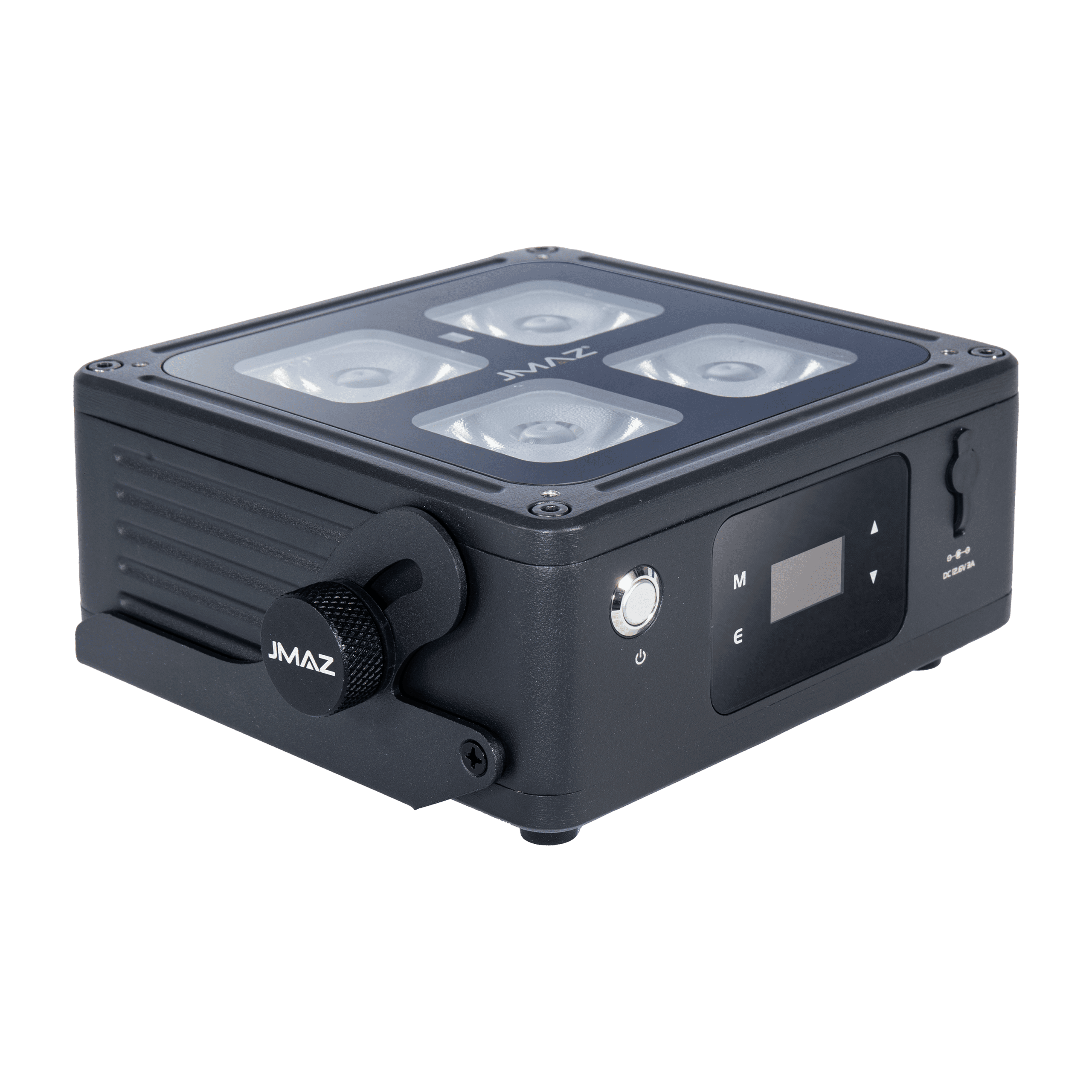

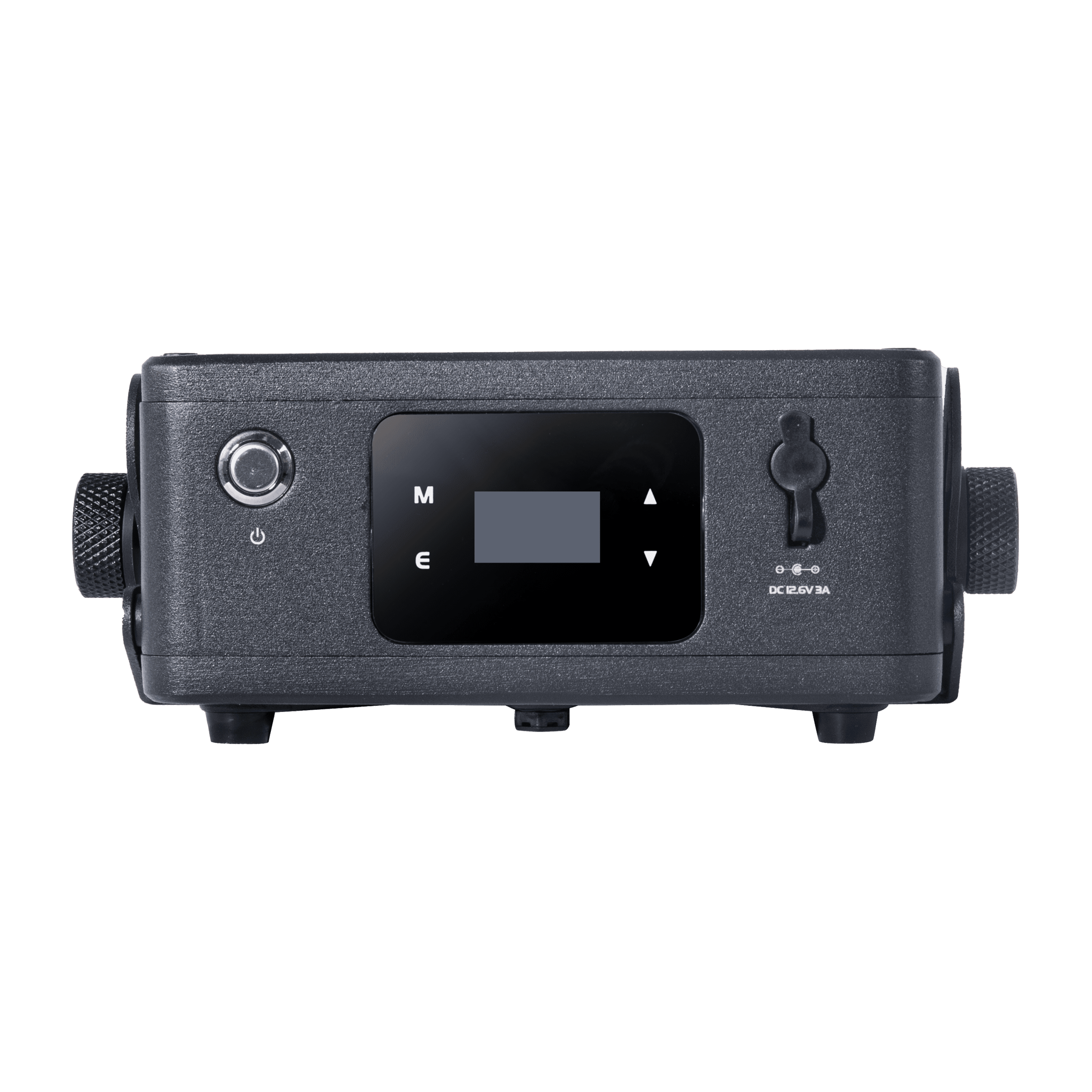

- OLED Graphical Display
Electronics
- Strobe Shutter: 1-25Hz
- Dimming Modes: 4
Body
- Die-Cast Aluminum and Steel Structure
Physical

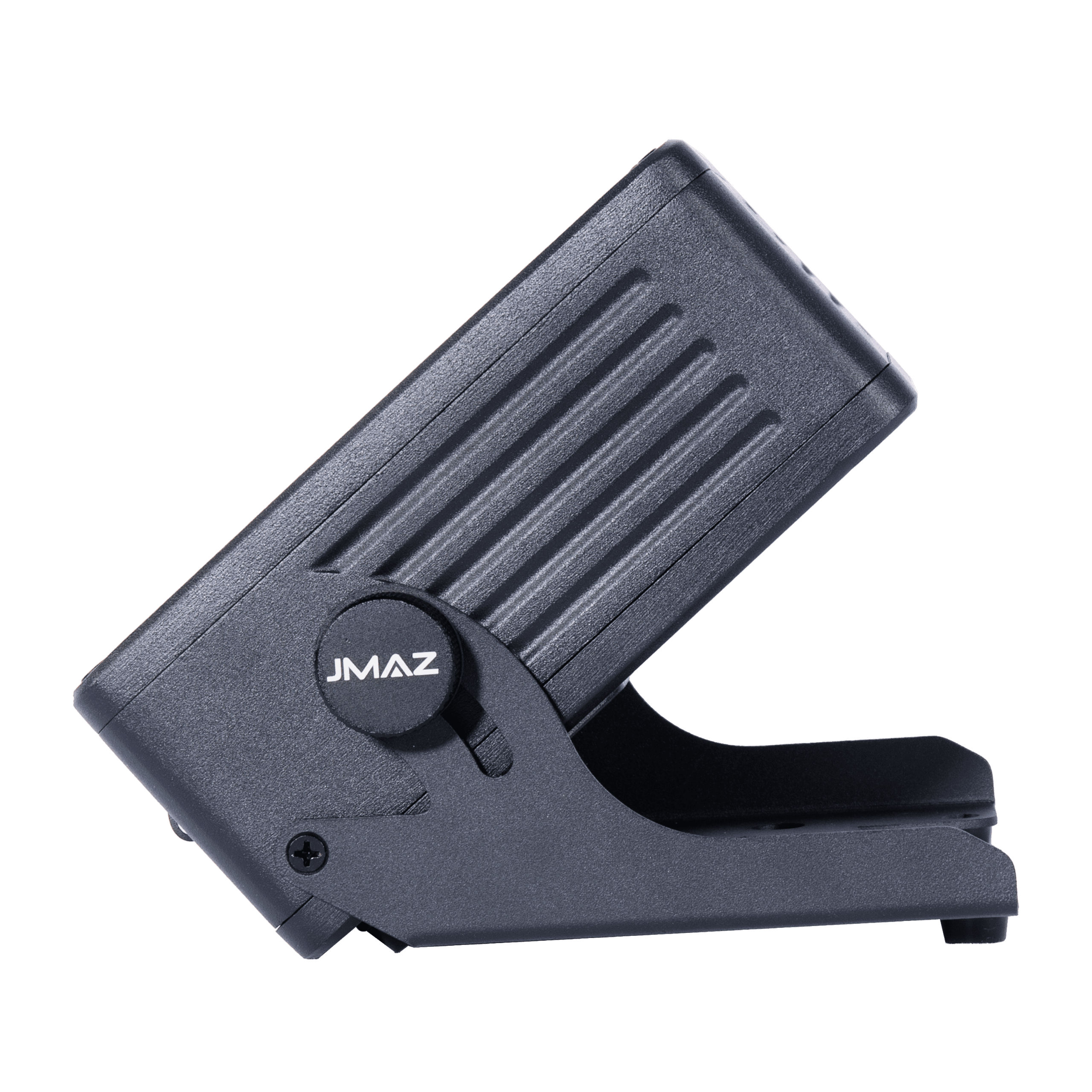

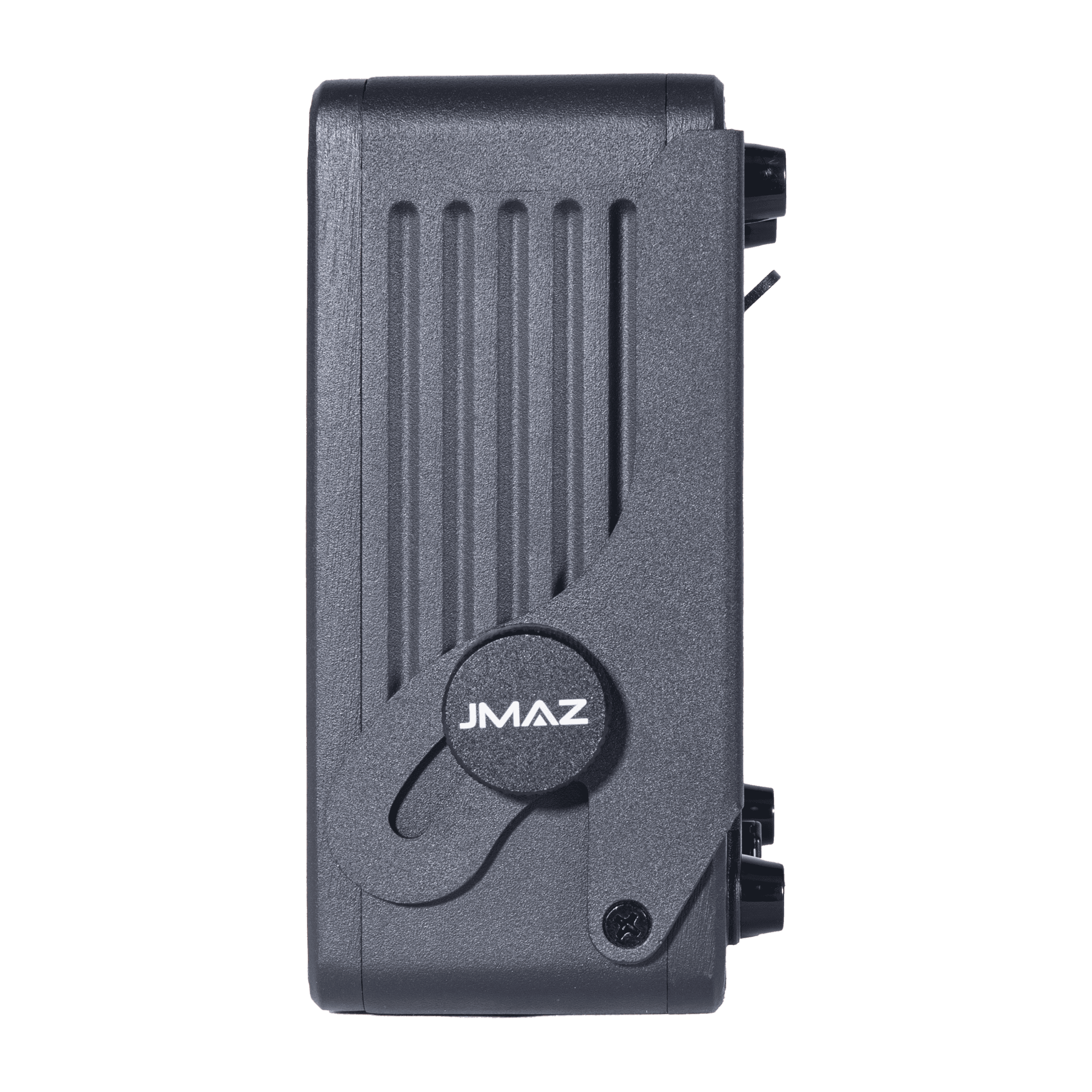

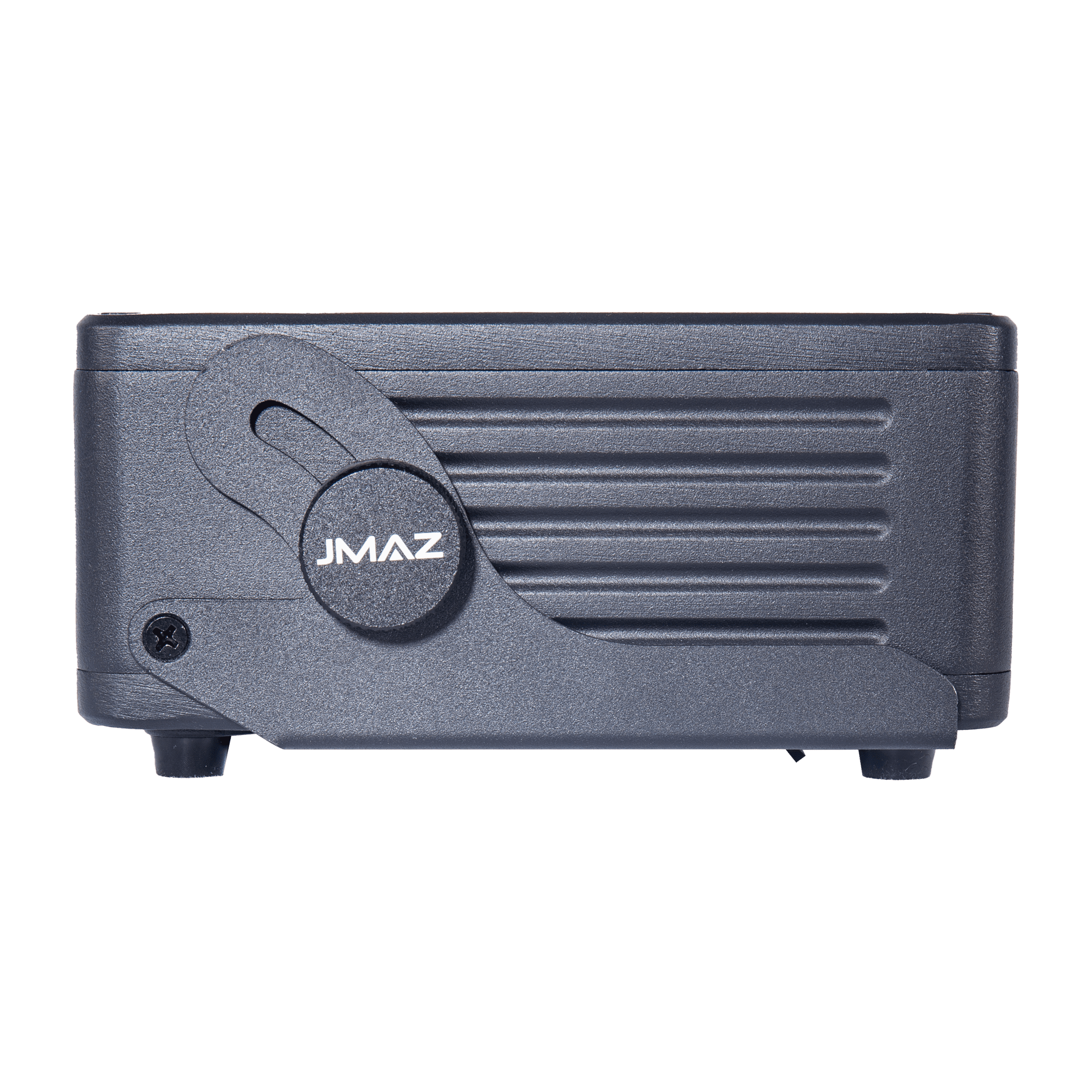

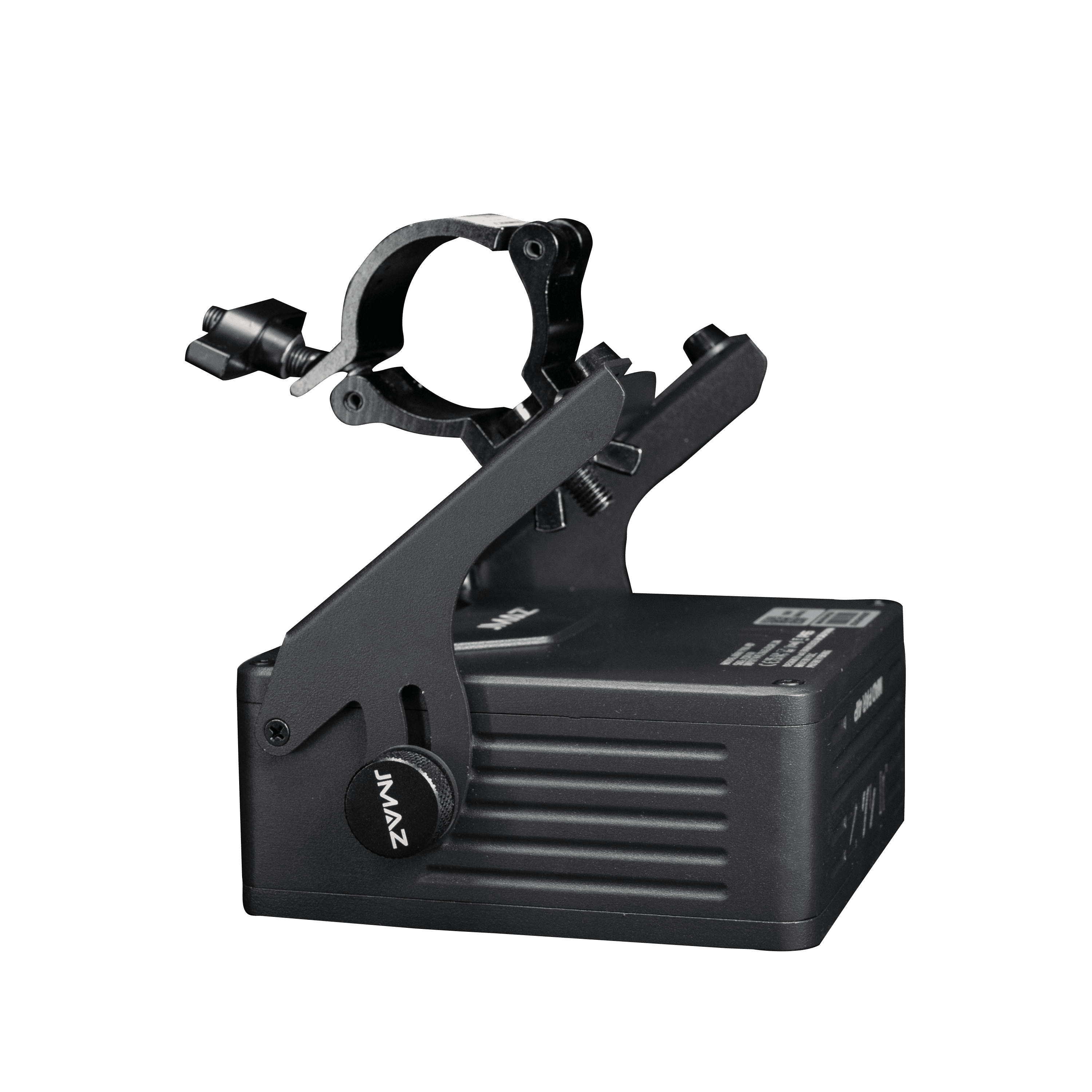

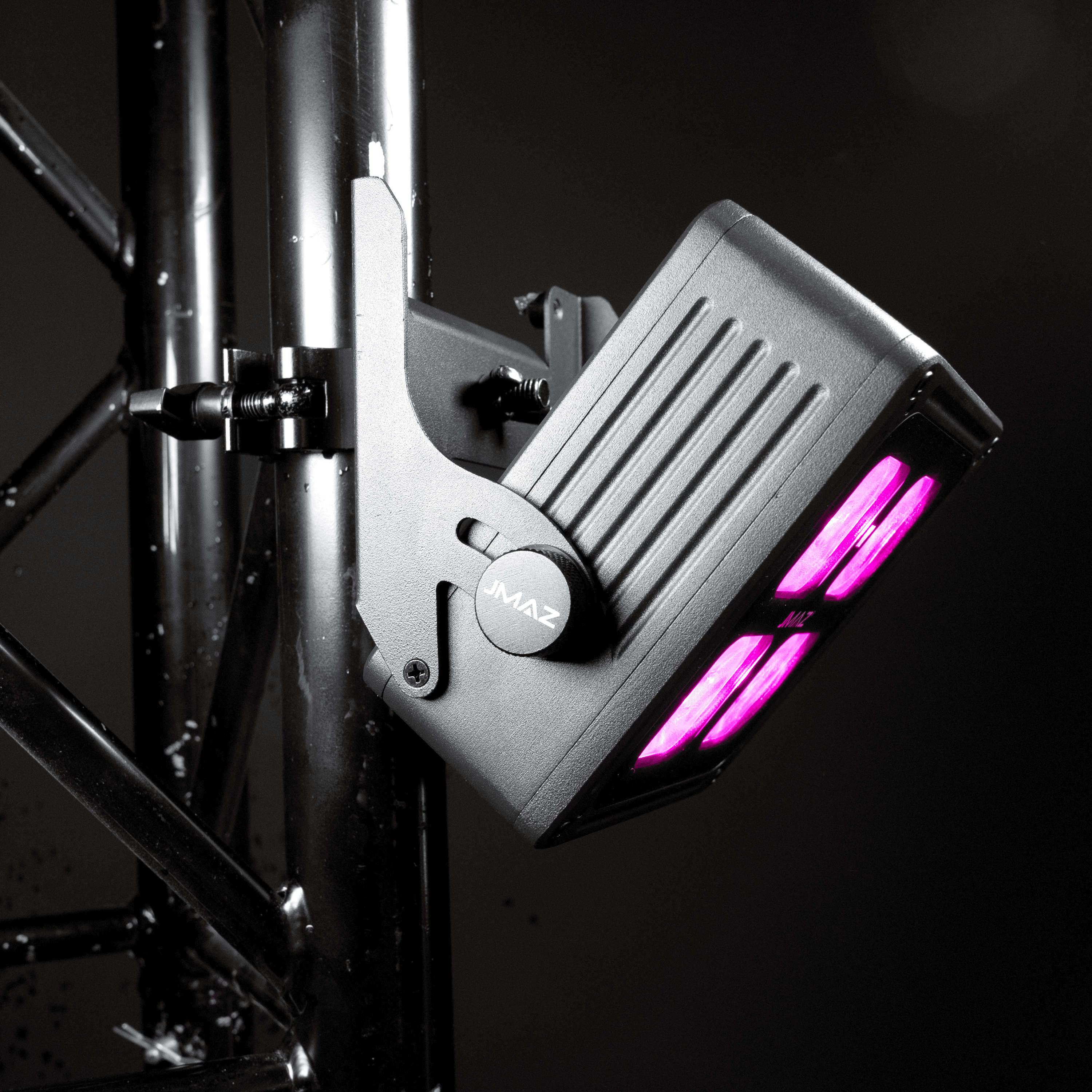

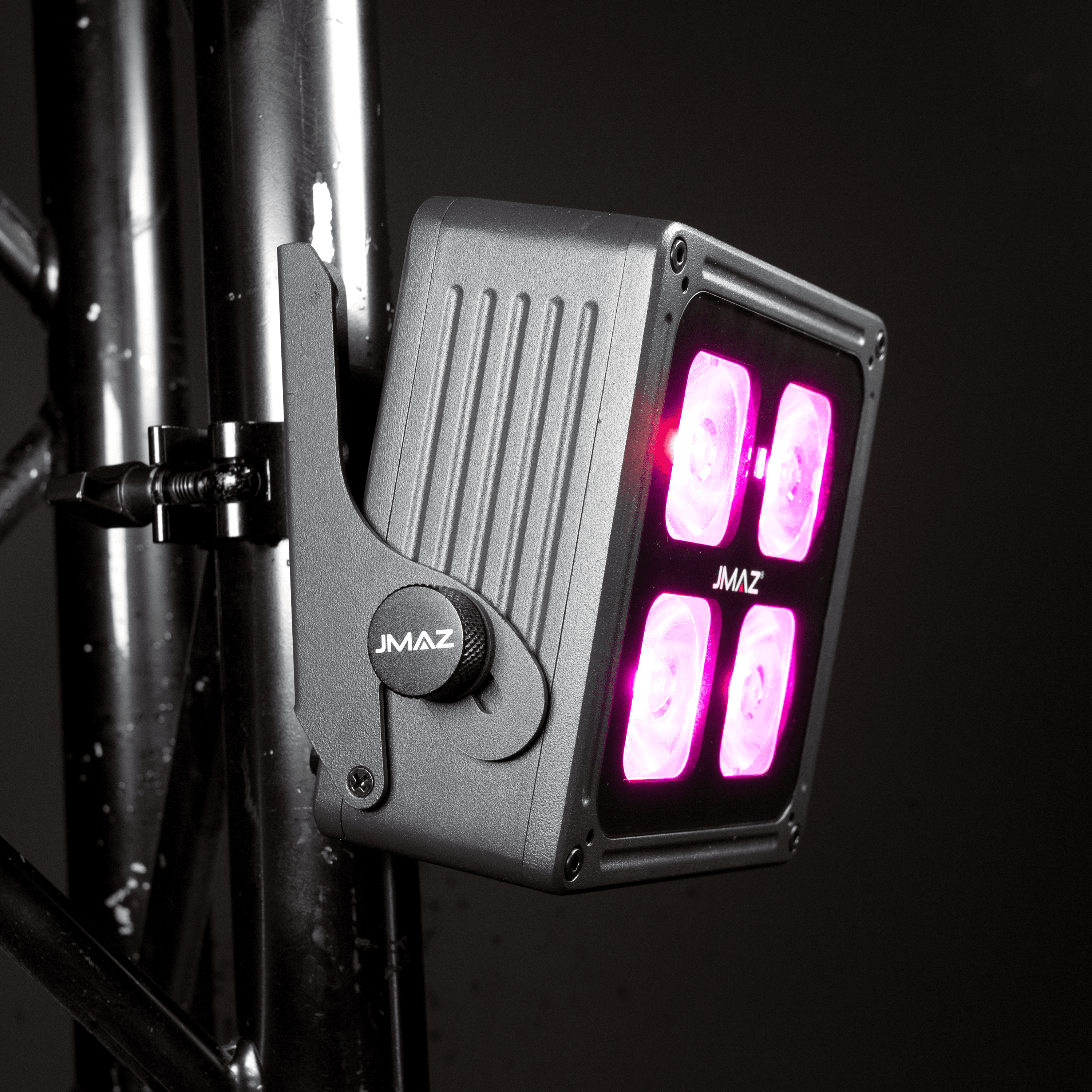

- Adjustable Tilt Base: 0-40 Degree
- Cooling: Fanless
Certification / Qualifications
- RoHS, CE, FCC
- IP Rating: IP 65
- Operating Temperature: –10 ° C ( 14 ° F) To 60 ° C ( 140 ° F)
Electrical
- Input Voltage: 100 V – 240 V AC, 50/60 Hz
- Power Consumption: 60W
- PWM: 1.5KHz
- Battery Voltage: 11.1V
- Battery Capacity: 10,400 mAH, 115.5 Wh/hour
- Charger: 12.6V, 3A
- Rechargeable Battery Type: Lithium Ion ***UL Listed***
Box Content
- 1 x 20 Degree Diffuser
- 1 x External Charger
- 1 x User Manual

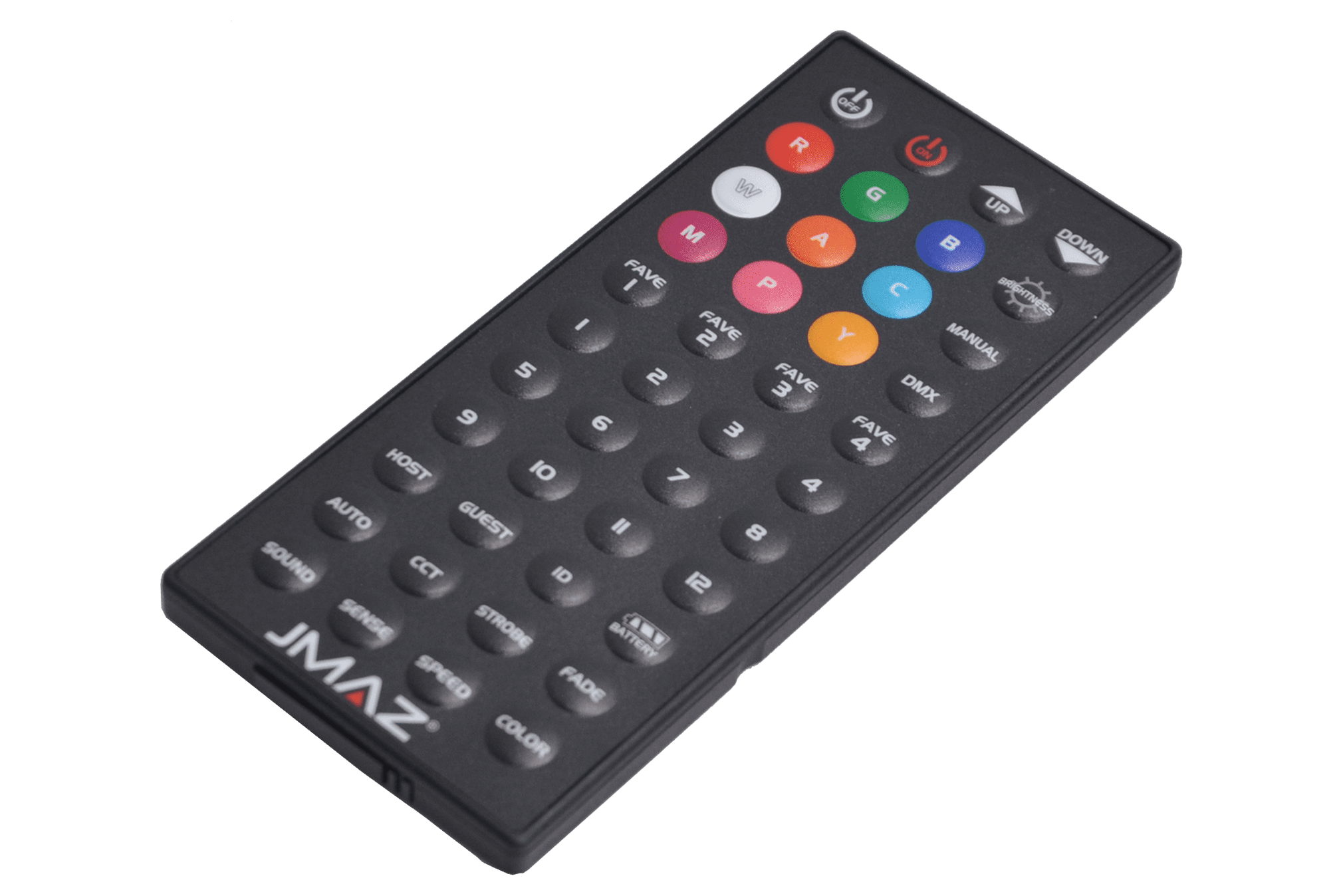

- 1 x IR Remote
Item Dimensions & Weight
- Dimensions: 7.2″ x 5.9″ x 3″
- Weight: 4.4 lbs
UPC
618528598840Video
Download
User Manual
| File name | File size | Download | |
|---|---|---|---|
 |
Mad Par 4IP User Manual.pdf | 1.4MB |  |
|
Mad Par 4IP User Manual (Spanish).pdf | 1.4MB | |
|
Mad Par 4IP User Manual (French).pdf | 1.4MB | |
| File name | File size | Download | |
|---|---|---|---|
 |
Mad Par 4IP Quick Start Guide.pdf | 1.4MB | |
DMX Charts
| File name | File size | Download | |
|---|---|---|---|
|
MADPAR4IP_DMXCHART_sheet.PDF | 500KB | |
Profiles
| File name | File size | Download | |
|---|---|---|---|
 |
MAD PAR 4IP Profiles Folder | 500KB |  |
Photometrics
| File name | File size | Download | |
|---|---|---|---|
|
MADPAR4IP_Photometrics_sheet.PDF | 500KB | |
CAD Drawings
| File name | File size | Download | |
|---|---|---|---|
|
MADPAR4IP_CAD_sheet.PDF | 500KB | |
Certifications
| File name | File size | Download | |
|---|---|---|---|
|
MAD PAR 4IP Certificates Folder | 500KB | |
