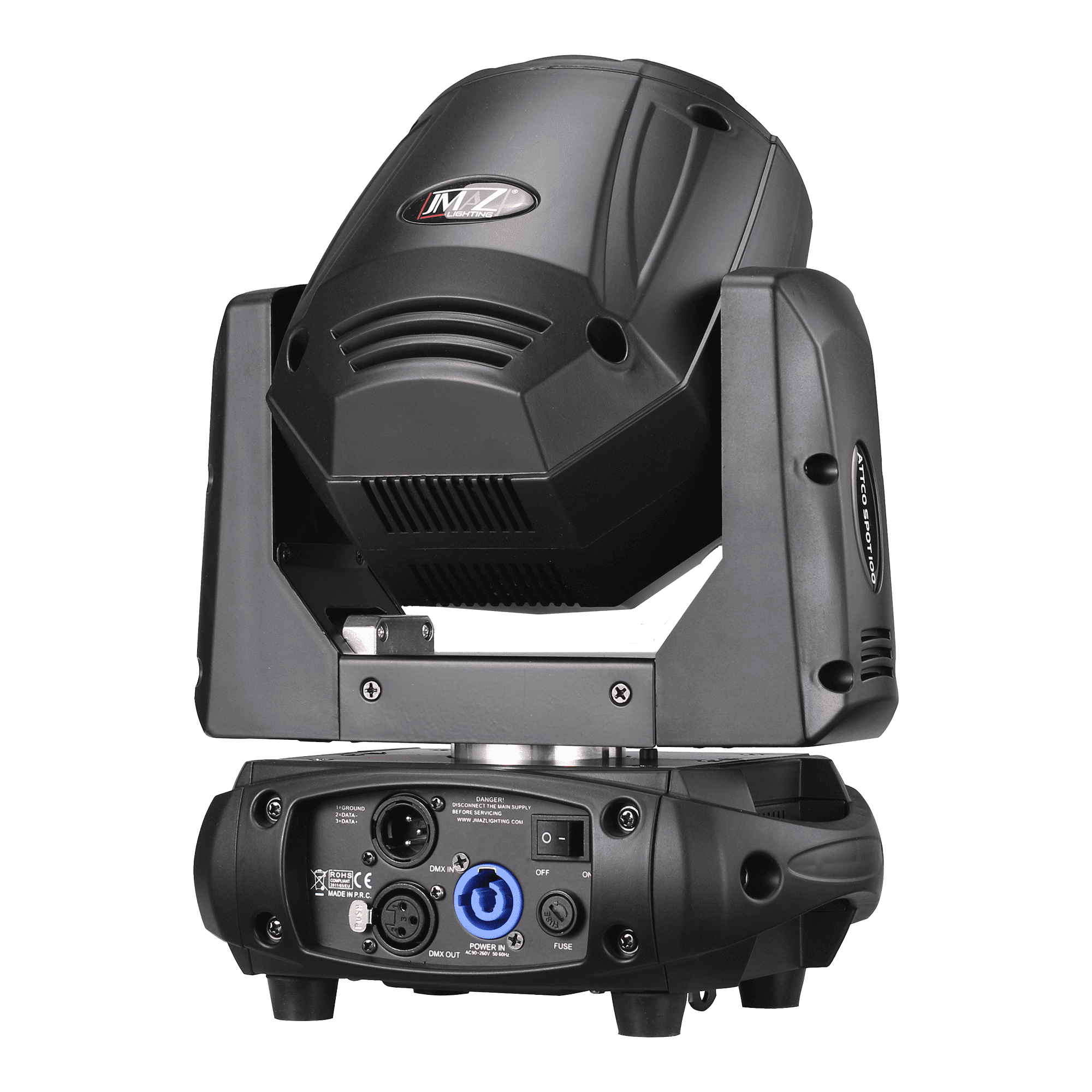

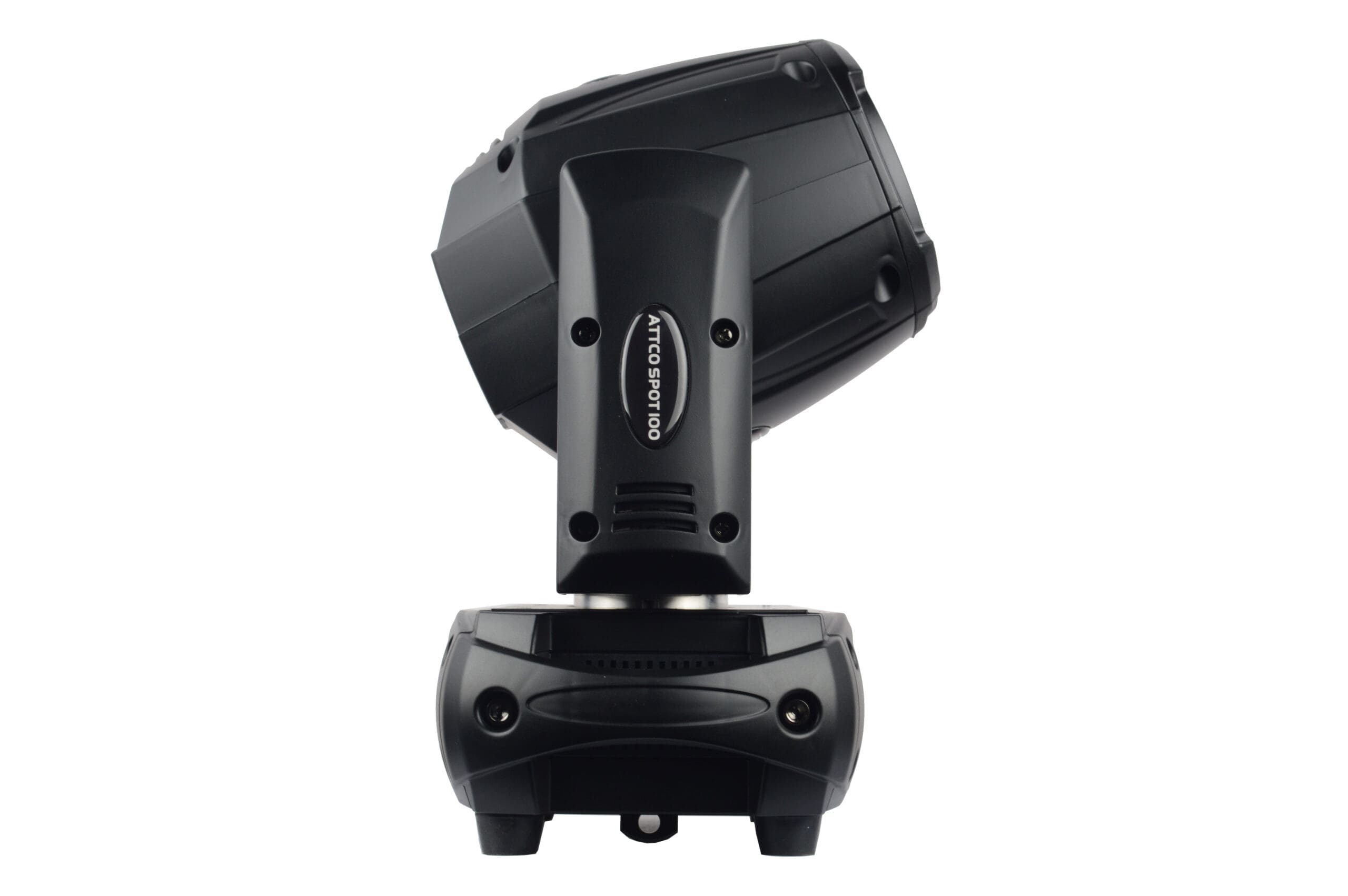

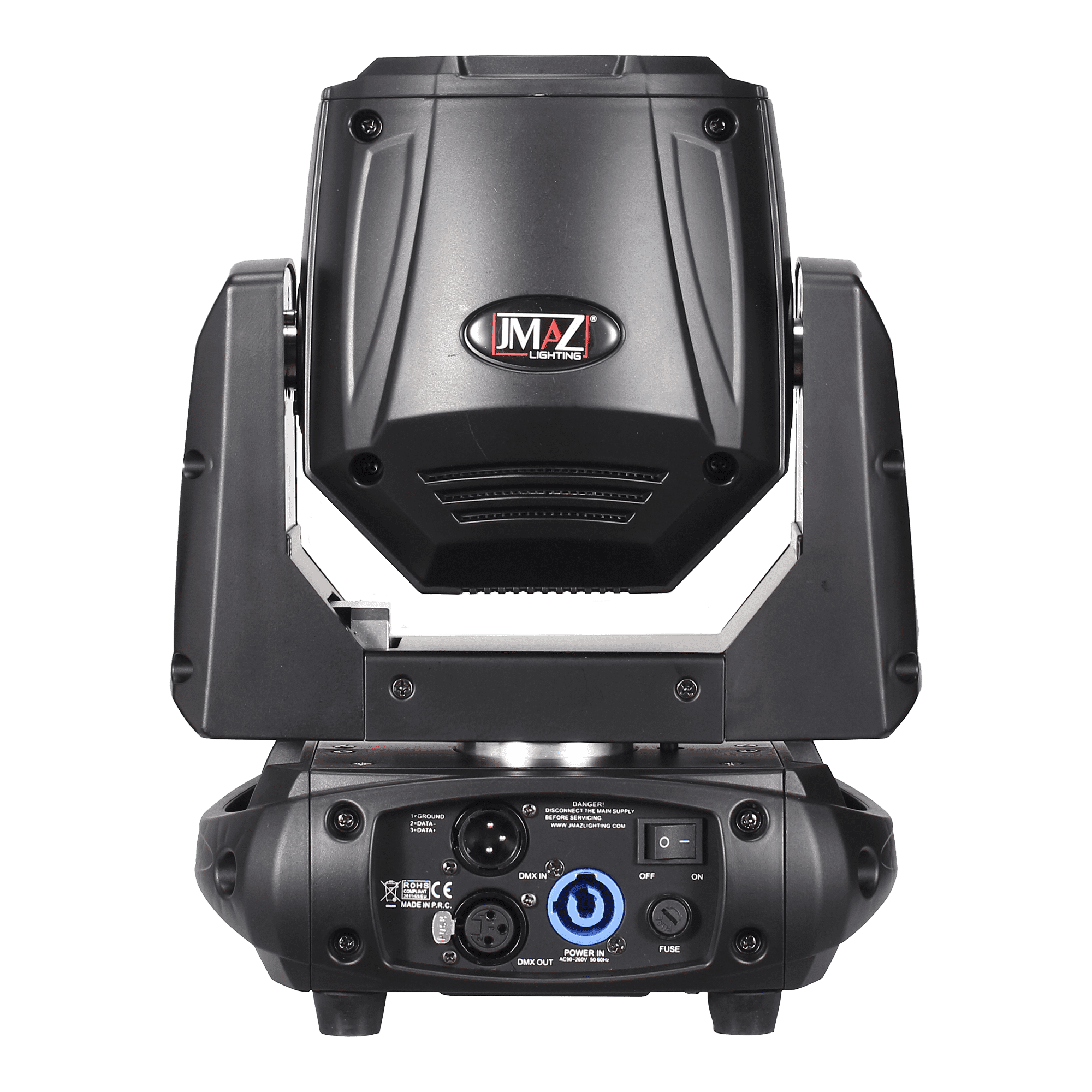

Attco Spot 100


Black: JZ3009
White: JZ3021

75w LED Spot Moving Head

JMAZ ATTCO SPOT 100 Make the best impression at any event short or long distance, small or large coverage area. The ATTCO SPOT 100 from JMAZ lighting is your best choice! Compact, lightweight and low power consumption will allow you to put on a great performance. Featuring a powerful 75W LED producing sharp colored beams is no problem and the customizable gobo wheel is sure to make you stand out! Split the colored beams, split the gobos or combine the two, the ATTCO SPOT 100 also features a 3 facet prism for a more impressive show to cover larger areas. Operation modes include 11 or 13 channel DMX, AUTO with existing built in light shows, SOUND ACTIVE, linked via MASTER/SLAVE or the included RF remote control from anywhere in the room. The options are endless and the light is intense, there is no doubt the ATTCO SPOT 100 is a must have! Perfect for lighting designers, DJ’s, Bands, Clubs, Bars and installations where small footprint and low weight is critical.

Main features:

  • 1 x 75W White LED
  • Color Wheel with 8 Colors Plus White
  • 6 Rotating Gobos Plus Open
  • 3-Facet Prism Effect with Variable Speed and Direction
  • 4 Operating Modes: Sound Active, Show Mode, DMX Controlled and RF Remote Control

Technical specifications

Light Source

  • Source: 75W White LED

Color System

  • Color Wheel: 8 Colors + Open


  • Hardware On-Board: sockets for quick-Lock Omega bracket
  • Pan Angle: 630°
  • Title Angle: 270°
  • Pan/Tilt Resolution: 8 / 16 Bit
  • Feedback: Scan position memory, auto reposition after unexpected movement
  • Body: High Temperature Engineered Plastic and Cast Aluminum Casing
  • Body Colour: Black / White


  • Dimmer: 0-100% Linear Dimmer
  • Strobe/Shutter: 20 T/sex
  • Operating Temperature: -20° C to 45° C


  • Mains Power Supply:AC Mains
  • Max Power Consumption: 120W
  • Input Voltage: 110-240V, 50/60Hz


Black: 654728999506

White: 618528607252


  • Beam Angle: 14°

Dynamic Effect

  • Prism: 3 Facet
  • Rotating Gobos: 6 + Open


  • Protocols: DMX512
  • DMX Channels: 11/13 Channel Modes
  • Wireless Control: RF Remote
  • Display: 2.4″” TFT LCD Display
  • Firmware Upgrade: Yes, USB-DMX Interface, not included.


  • IP Rating: 20
  • Cooling: Fan
  • Pan/Tilt:8/16 bit smooth
  • Data Connection: DMX
  • Power Connection: Power-CON
  • Dimensions: 11.4″” x 8.3″” x 8.7″”
  • Weight: 7.7 lbs

Box Content

  • 1 x Attco Spot 100
  • 1 x User Manual
  • 2 x Omega Brackets
  • 1 x 3ft 3-pin DMX Chord
  • 1 x 3ft PowerCON Chord
  • 1 x RF Remote


Product Data / Cut Sheet

File name File size Download
Letter datasheet AttcoSpot100_Catalog_sheet.PDF 500KB Letter datasheet

User Manual

File name File size Download
Letter datasheet AttcoSpot100_User_Manual.PDF 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet AttcoSpot100_DMX_Charts.PDF 500KB Letter datasheet


File name File size Download
Attco Spot100_Profiles Folder 500KB


File name File size Download
Letter datasheet AttcoSpot100_Photometrics.PDF 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet AttcoSpot100_CAD_Drawings.PDF 500KB Letter datasheet

Tech / Data Sheets

File name File size Download
Letter datasheet AttcoSpot100_Full_cut_sheet.PDF 500KB Letter datasheet
