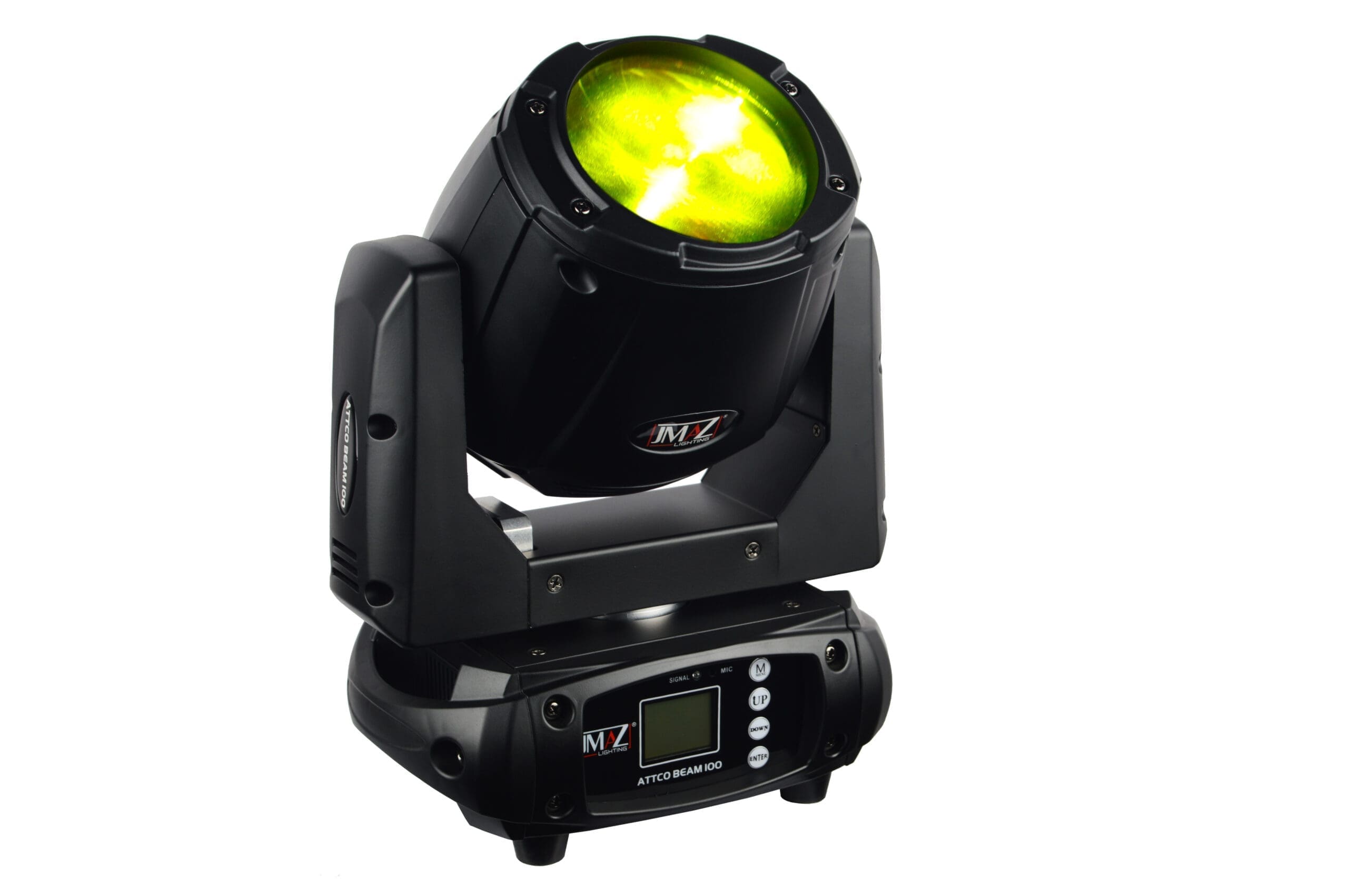

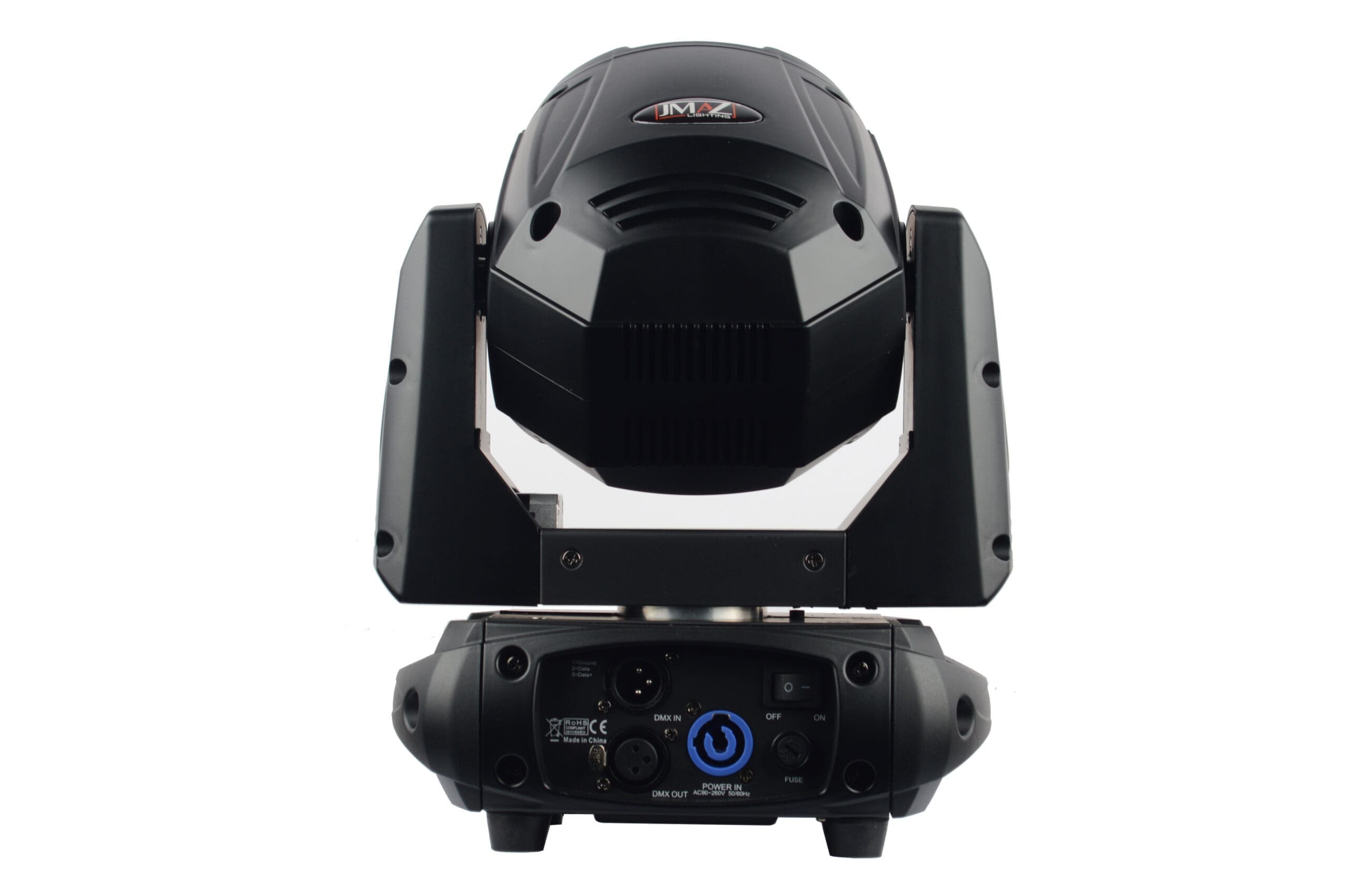

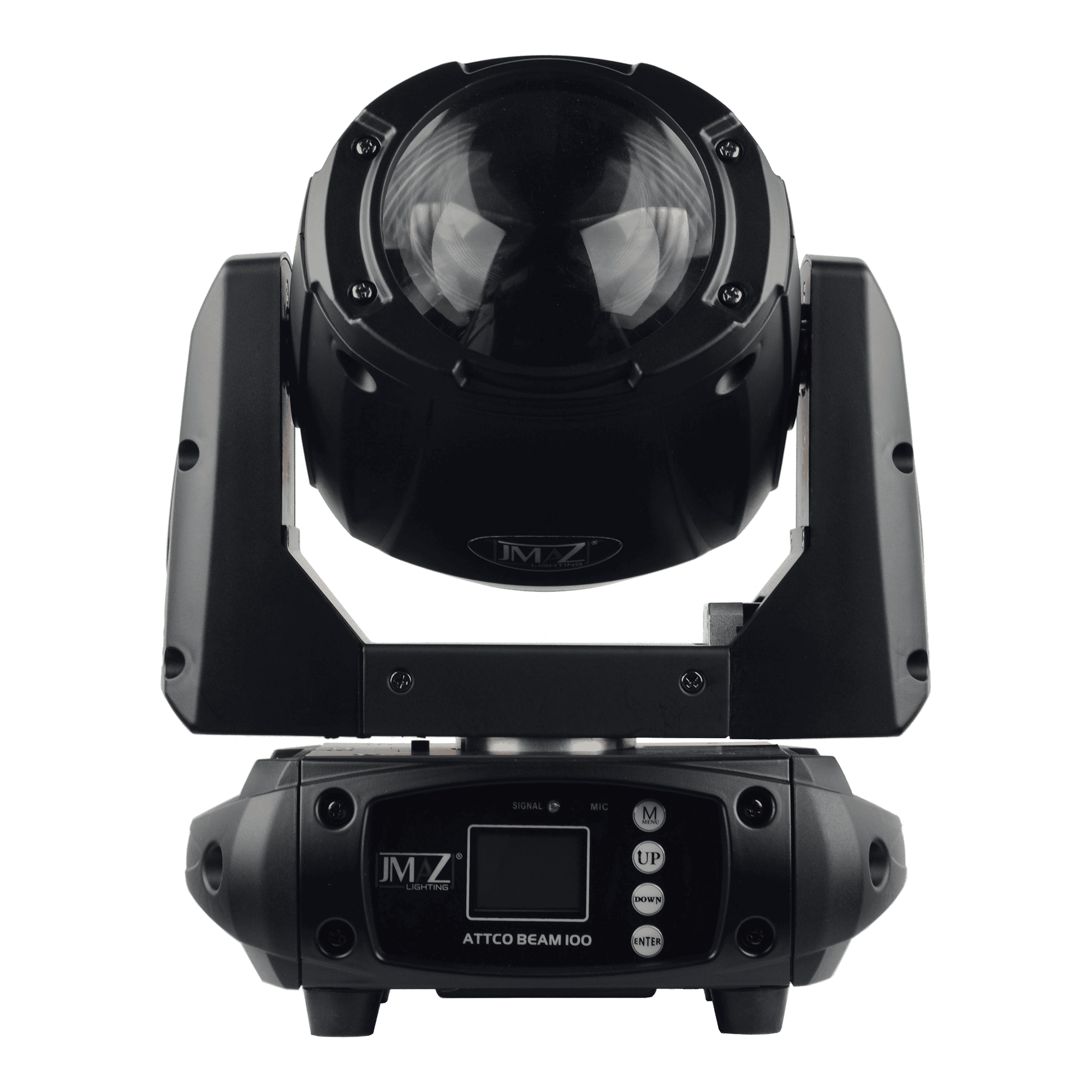

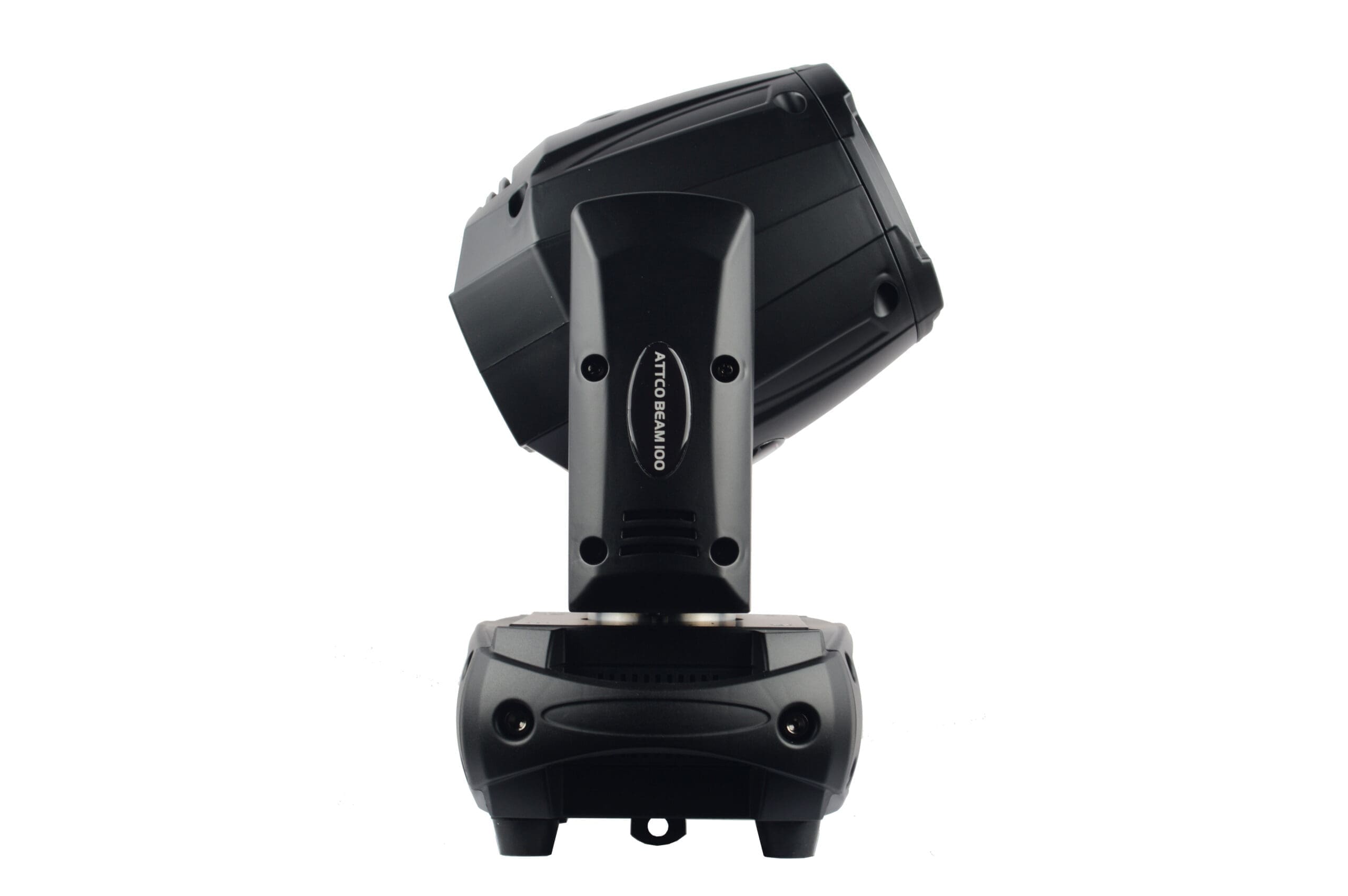

Attco Beam 100

SKU:

JZ3012

75w LED Beam Moving Head

JMAZ ATTCO BEAM 100 from JMAZ lighting is your best choice! Compact, lightweight and low power consumption will allow you to put on a great performance. Featuring a powerful 75W LED producing sharp colored beams or a wash effect with frost filter is no problem and the 17 static gobo wheel is sure to make you stand out! The ATTCO BEAM 100 also features a 8 facet prism for a more impressive show to cover larger areas. Operation modes include 10 or 12 channel DMX, AUTO with existing 9 built in light shows, SOUND ACTIVE, linked via MASTER/SLAVE or the included RF remote control. The options are endless and the light is intense, there is no doubt the ATTCO BEAM 100 is a must have! Perfect for lighting designers, DJ’s, Bands, Clubs, Bars and installations where small footprint and low weight is critical.

Main features:

  • 1 x 75W White LED
  • Color Wheel with 12 Colors Plus White
  • 17 Static Gobos Plus Open
  • 8-Facet Prism Effect
  • 4 Operating Modes: Sound Active, Show Mode, DMX Controlled and RF Remote Control

Technical specifications

Light Source

  • Source: 75W White LED

Color System

  • Color Wheel: 12 Colors + Open

Body

  • Hardware On-Board: sockets for quick-Lock Omega bracket
  • Pan Angle: 630°
  • Title Angle: 270°
  • Pan/Tilt Resolution: 8 / 16 Bit
  • Feedback: Scan position memory, auto reposition after unexpected movement
  • Body: High Temperature Engineered Plastic and Cast Aluminum Casing
  • Body Colour: Black / White

Electronics

  • Dimmer: 0-100% Linear Dimmer
  • Strobe/Shutter: 20 T/sex
  • Operating Temperature: -20° C to 45° C

Electrical

  • Mains Power Supply:AC Mains
  • Max Power Consumption: 120W
  • Input Voltage: 110-240V, 50/60Hz

UPC

654728999490

Optics

  • Beam Angle: 2°

Dynamic Effect

  • Prism: 8 Facet
  • Frost Filter
  • Variable Strobe and Dimming
  • Static Gobo Wheel: 16 Gobos + Open

Control

  • Protocols: DMX512
  • DMX Channels: 10/12 Channel Modes
  • Wireless Control: RF Remote
  • Display: 2.4″” TFT LCD Display
  • Firmware Upgrade: Yes, USB-DMX Interface, not included.

Physical

  • IP Rating: 20
  • Cooling: Fan
  • Pan/Tilt:8/16 bit smooth
  • Data Connection: DMX
  • Power Connection: Power-CON
  • Dimensions: 11.4″” x 8.3″” x 8.7″”
  • Weight: 7.7 lbs

Box Content

  • 1 x Attco Beam 100
  • 1 x User Manual
  • 2 x Omega Brackets
  • 1 x 3ft 3-pin DMX Chord
  • 1 x 3ft PowerCON Chord
  • 1 x RF Remote

Download

Product Data / Cut Sheet

File name File size Download
Letter datasheet AttcoBeam100_Catalog_sheet.PDF 500KB Letter datasheet

User Manual

File name File size Download
Letter datasheet AttcoBeam100_User_Manual.PDF 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet AttcoBeam100_DMX_Charts.PDF 500KB Letter datasheet

Profiles

File name File size Download
Attco Beam100_Profiles Folder 500KB

Photometrics

File name File size Download
Letter datasheet AttcoBeam100_Photometrics.PDF 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet AttcoBeam100_CAD_Drawings.PDF 500KB Letter datasheet

Tech / Data Sheets

File name File size Download
Letter datasheet AttcoBeam100_Full_cut_sheet.PDF 500KB Letter datasheet
