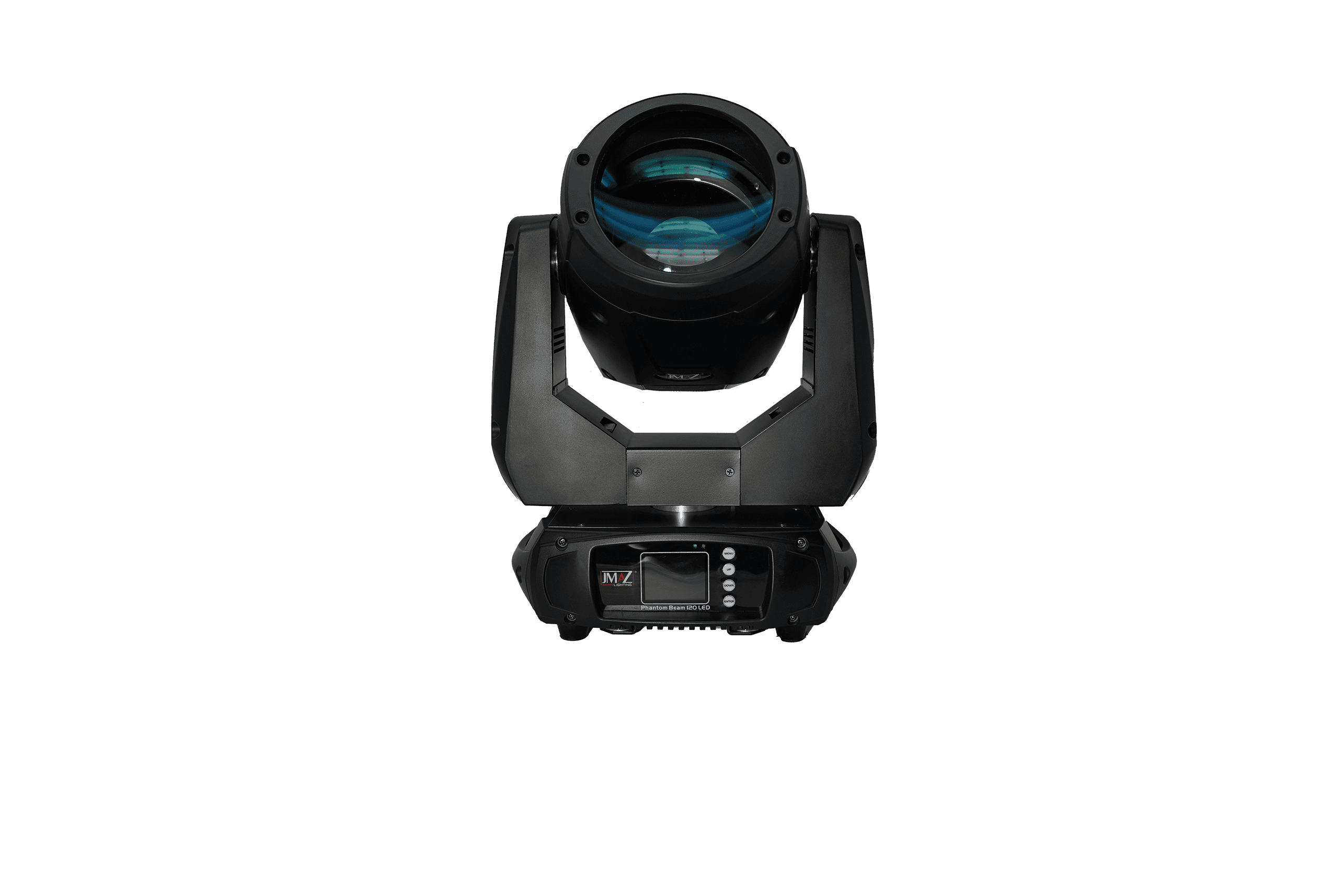

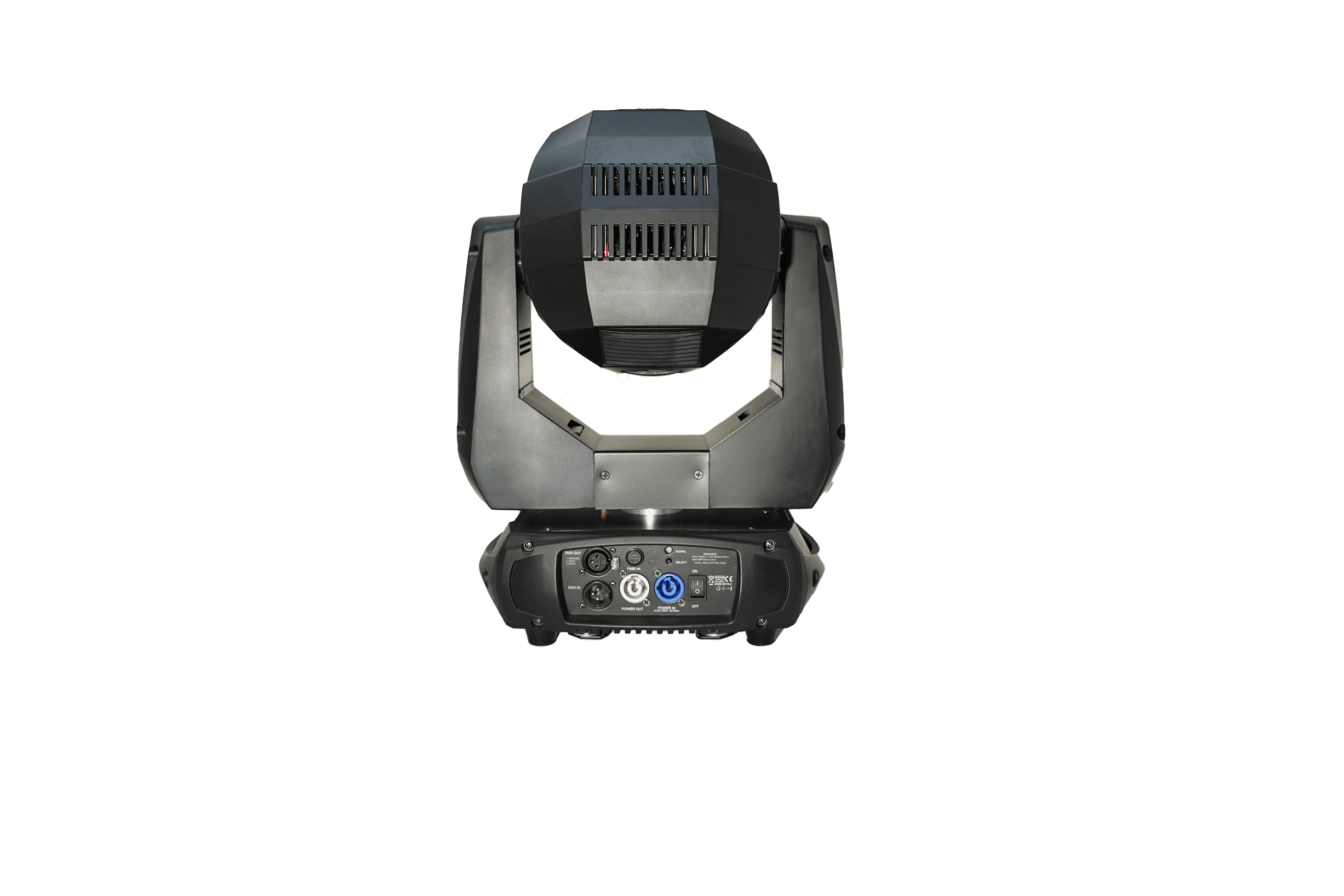

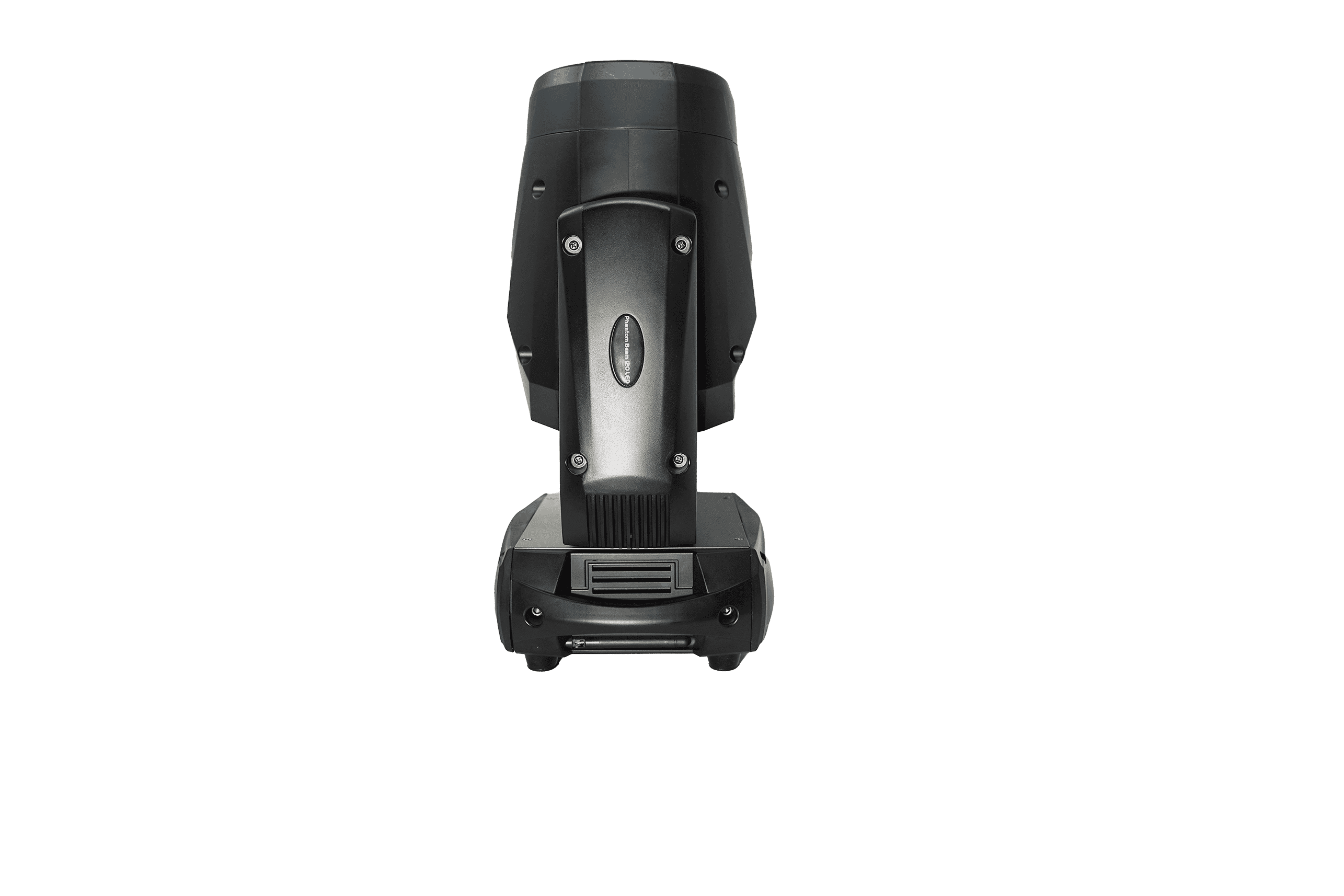

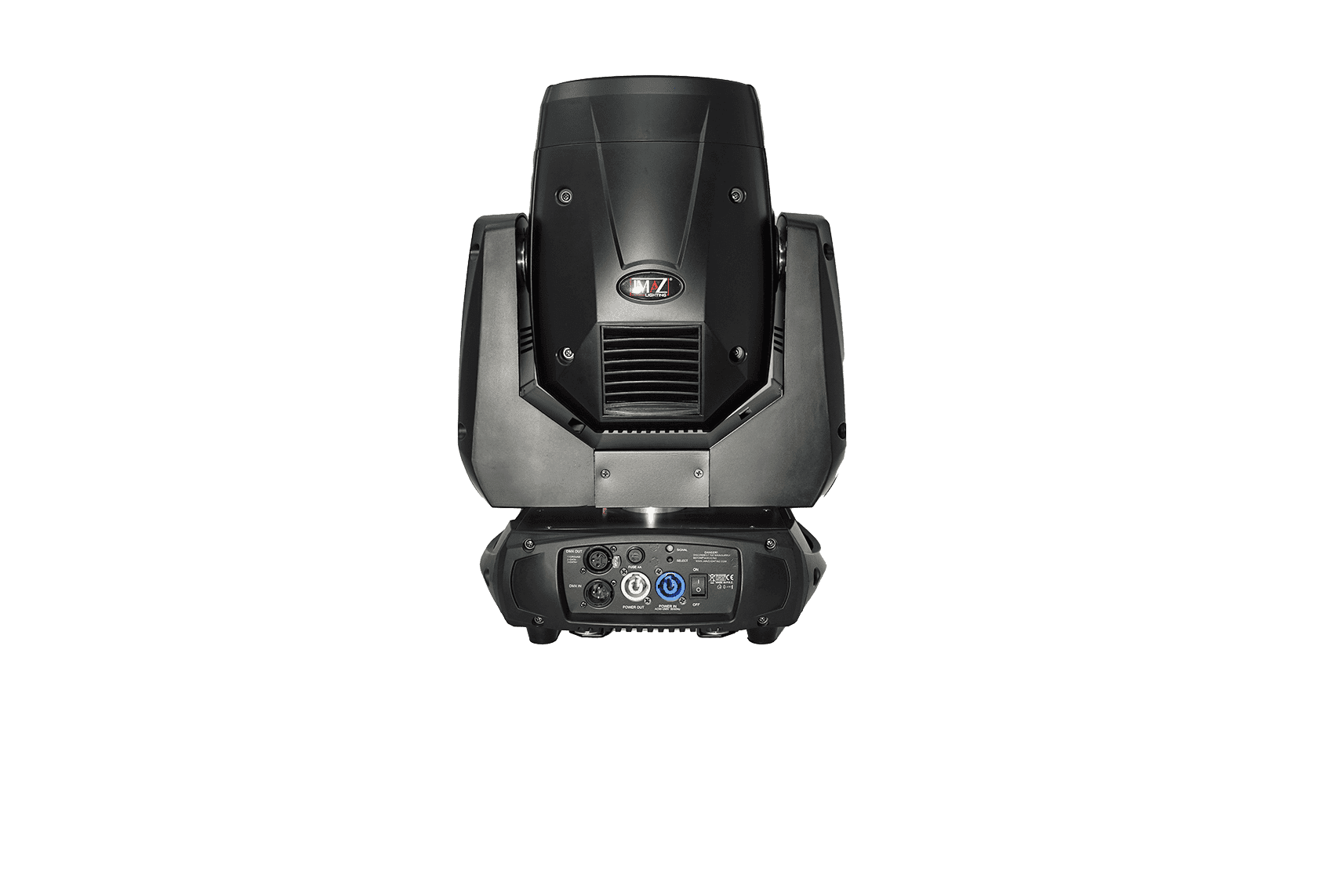

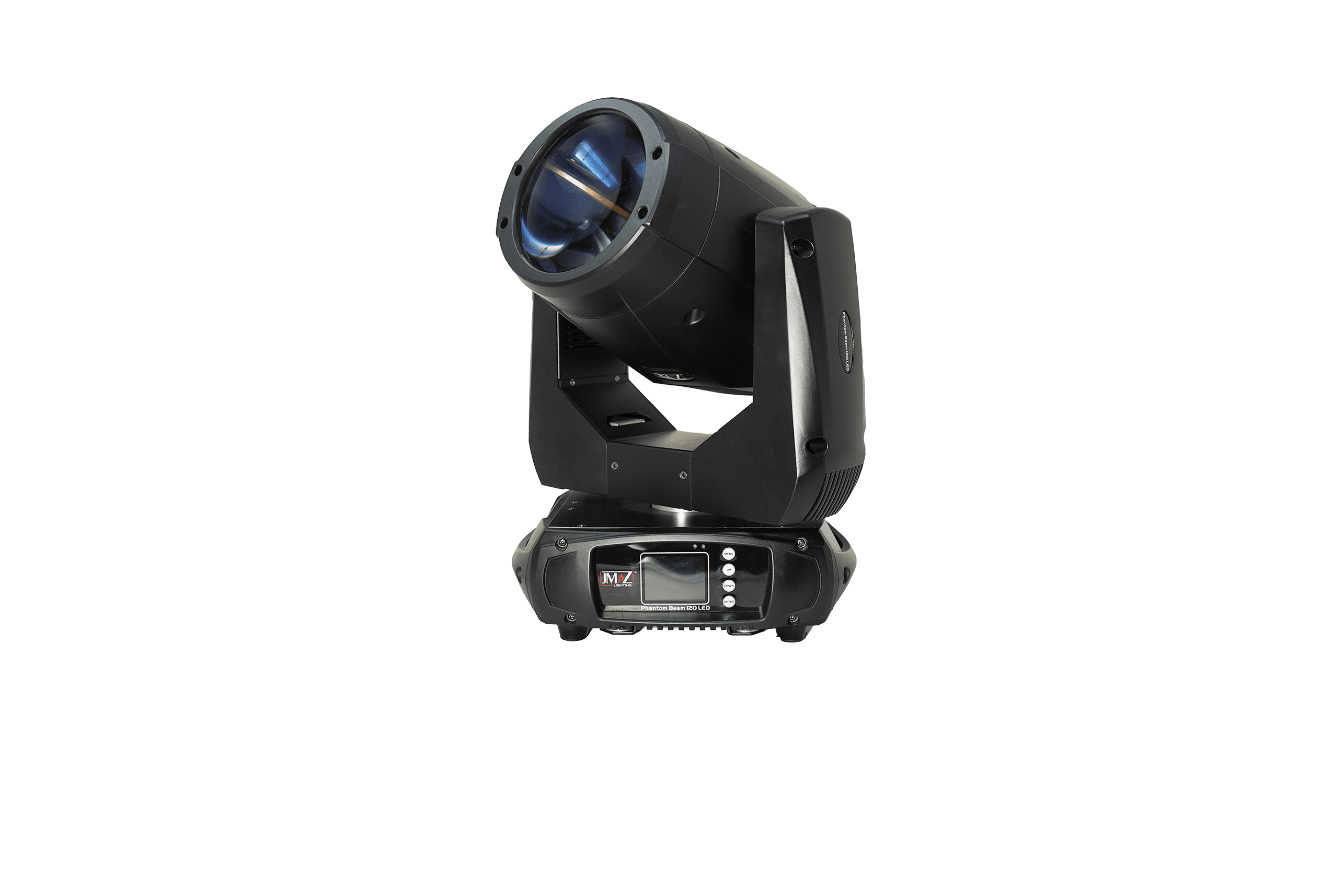

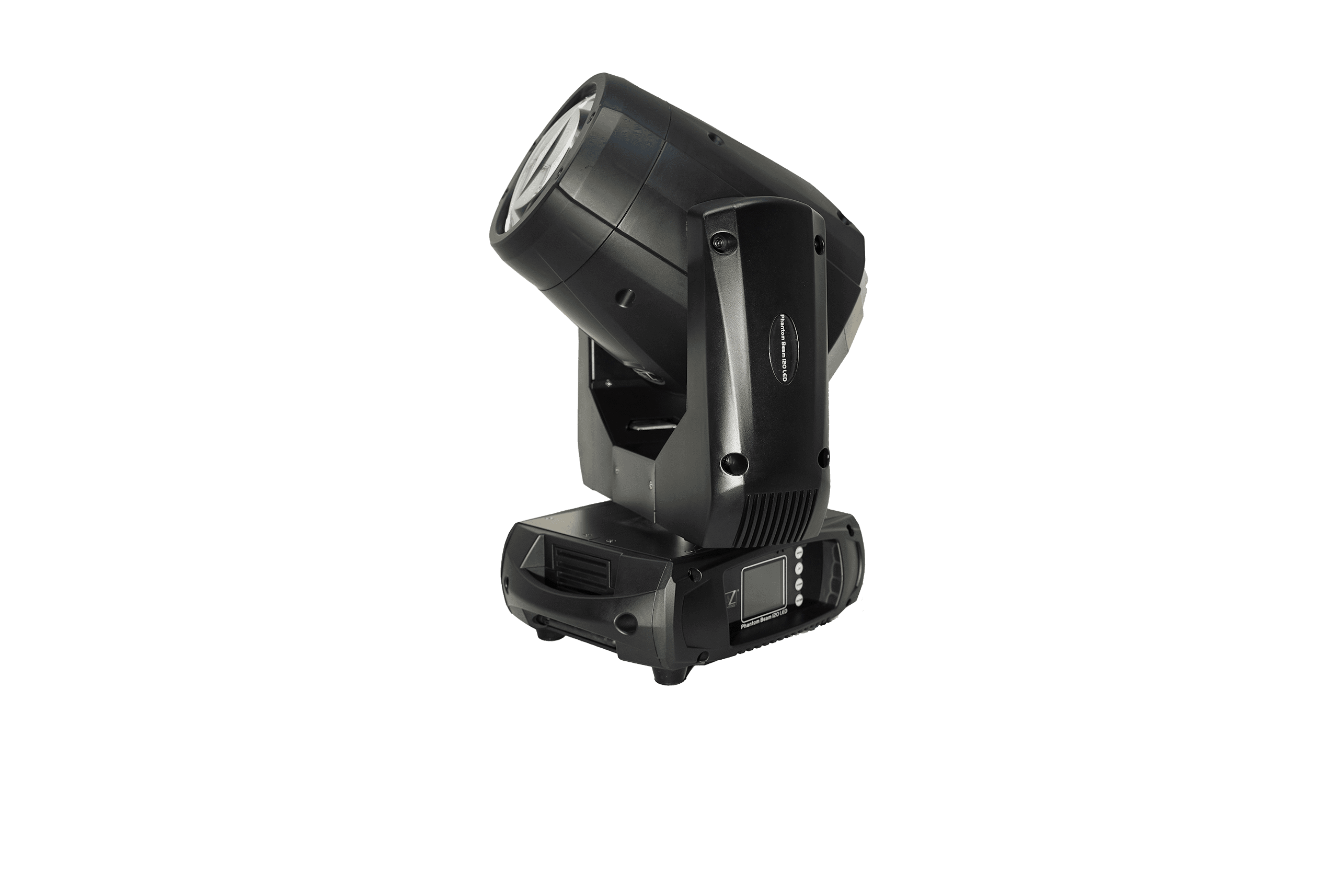

Phantom Beam 120



120w LED Beam Moving Head

Main features:

  • 1 x 120W Cool White LED
  • 1 Color Wheel with 11 Colors Plus White
  • 19 Static Gobos Plus Open
  • 8+16-Facet Circular Prism with Variable Speed and Direction
  • DMX512, Master-slave, Sound Active, and Built-in Shows
  • Built-in Wireless DMX Technology

Technical specifications

Light Source

  • Source: 120W White LED

Color System

  • Color Wheel: 11 Colors + Open


  • Hardware On-Board: sockets for quick-Lock Omega bracket
  • Pan Angle: 630°
  • Title Angle: 270°
  • Pan/Tilt Resolution: 8 / 16 Bit
  • Feedback: Scan position memory, auto reposition after unexpected movement
  • Body: High Temperature Engineered Plastic and Cast Aluminum Casing
  • Body Colour: Black


  • Dimmer: 0-100% Linear Dimmer


  • Mains Power Supply:AC Mains
  • Max Power Consumption: 180W
  • Input Voltage: 110-240V, 50HZ/60HZ




  • Beam Angle: 2°

Dynamic Effect

  • Prism: 6 Facet Linear Prism, 8+16 Facet Circular Prism
  • Gobos: 19 Static + Open


  • Protocols: DMX512, W-DMX, Wi-MAZ Wireless DMX
  • DMX Channels: 12/14 Channel Modes
  • Wireless Control: Wi-MAZ Wireless DMX, W-DMX, RF Remote
  • Firmware Upgrade: Yes, USB-DMX Interface, not included.


  • IP Rating: 20
  • Cooling: Fan
  • Pan/Tilt:8/16 bit smooth
  • Data Connection: DMX, Wireless DMX
  • Power Connection: Power-CON
  • Dimensions: 13.2″” x 8.8″” x 19.4″”
  • Weight: 31.3 lbs

Box Content

  • 1 x Phantom Beam 120
  • 1 x User Manual
  • 2 x Omega Brackets
  • 1 x 3ft 3-pin DMX Chord
  • 1 x 3ft PowerCON Chord
  • 1 x RF Remote


Product Data / Cut Sheet

File name File size Download
Letter datasheet PhantomBeam120_Catalog Sheet.PDF 500KB Letter datasheet

User Manual

File name File size Download
Letter datasheet PhantomBeam120_User_Manual.PDF 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet PhantomBeam120_DMX_Charts.PDF 500KB Letter datasheet


File name File size Download
PhantomBeam120_Profiles Folder 500KB


File name File size Download
Letter datasheet PhantomBeam120_Photometrics.PDF 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet PhantomBeam120_CAD_Drawings.PDF 500KB Letter datasheet

Tech / Data Sheets

File name File size Download
Letter datasheet PhantomBeam120_Full_data-Sheet.PDF 500KB Letter datasheet
