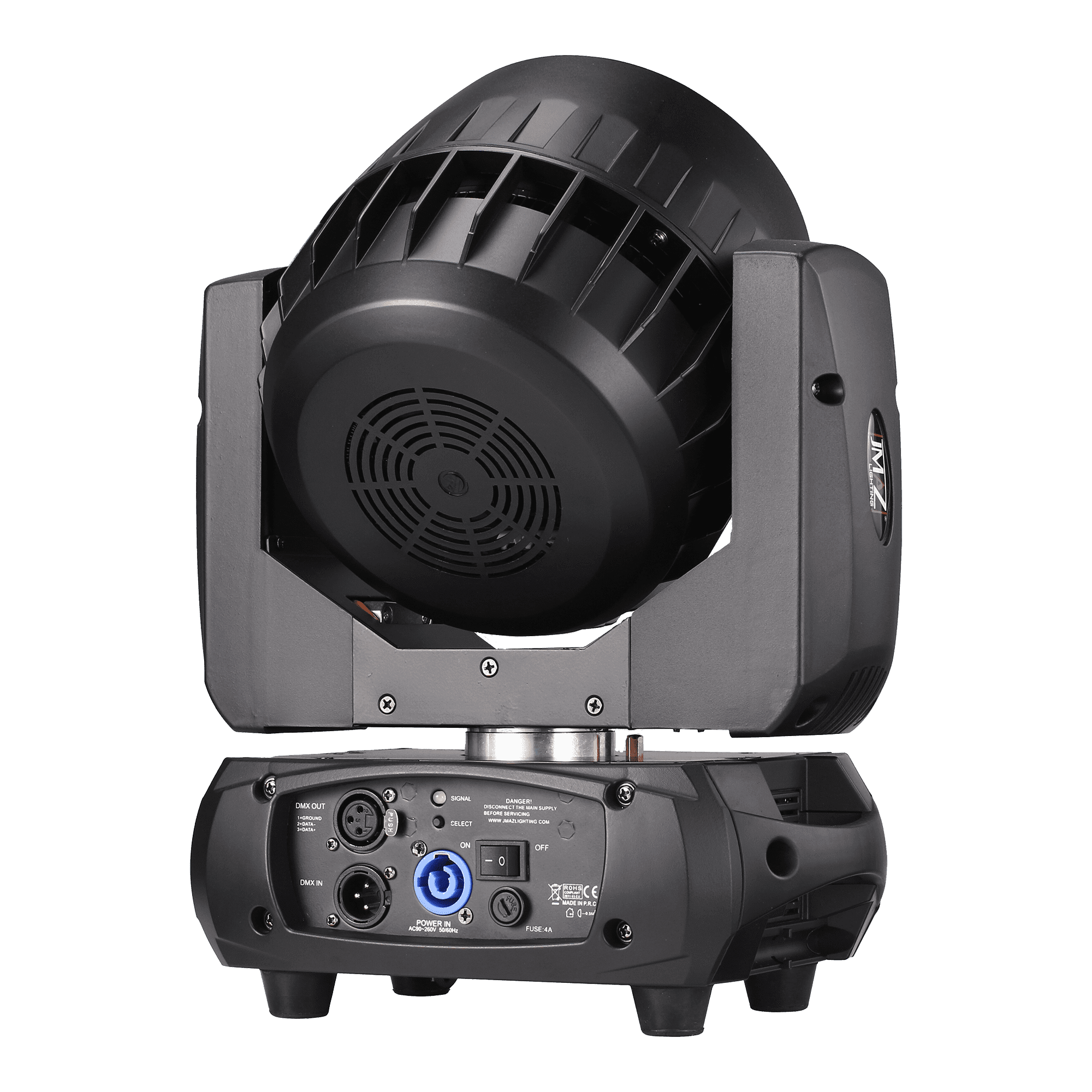

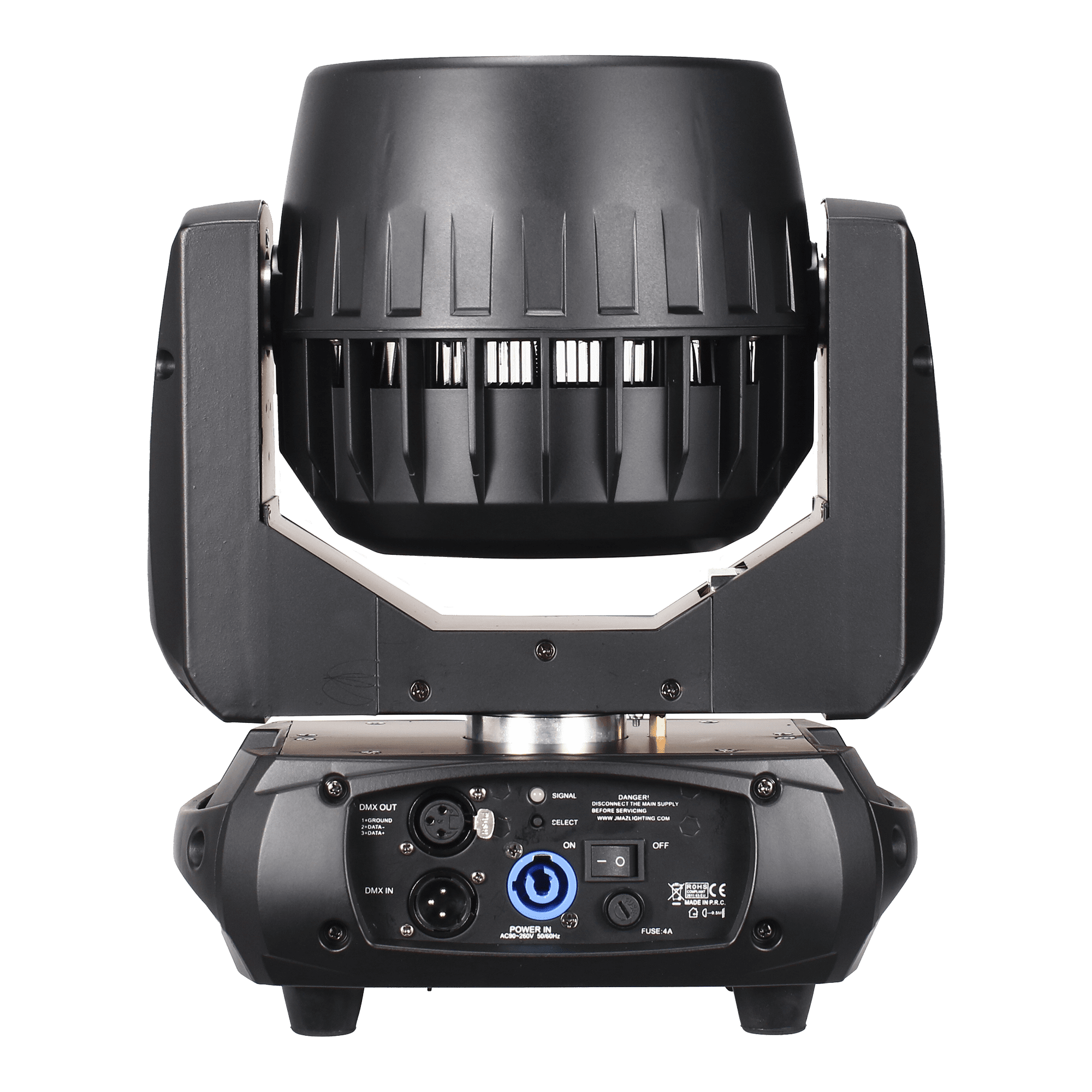

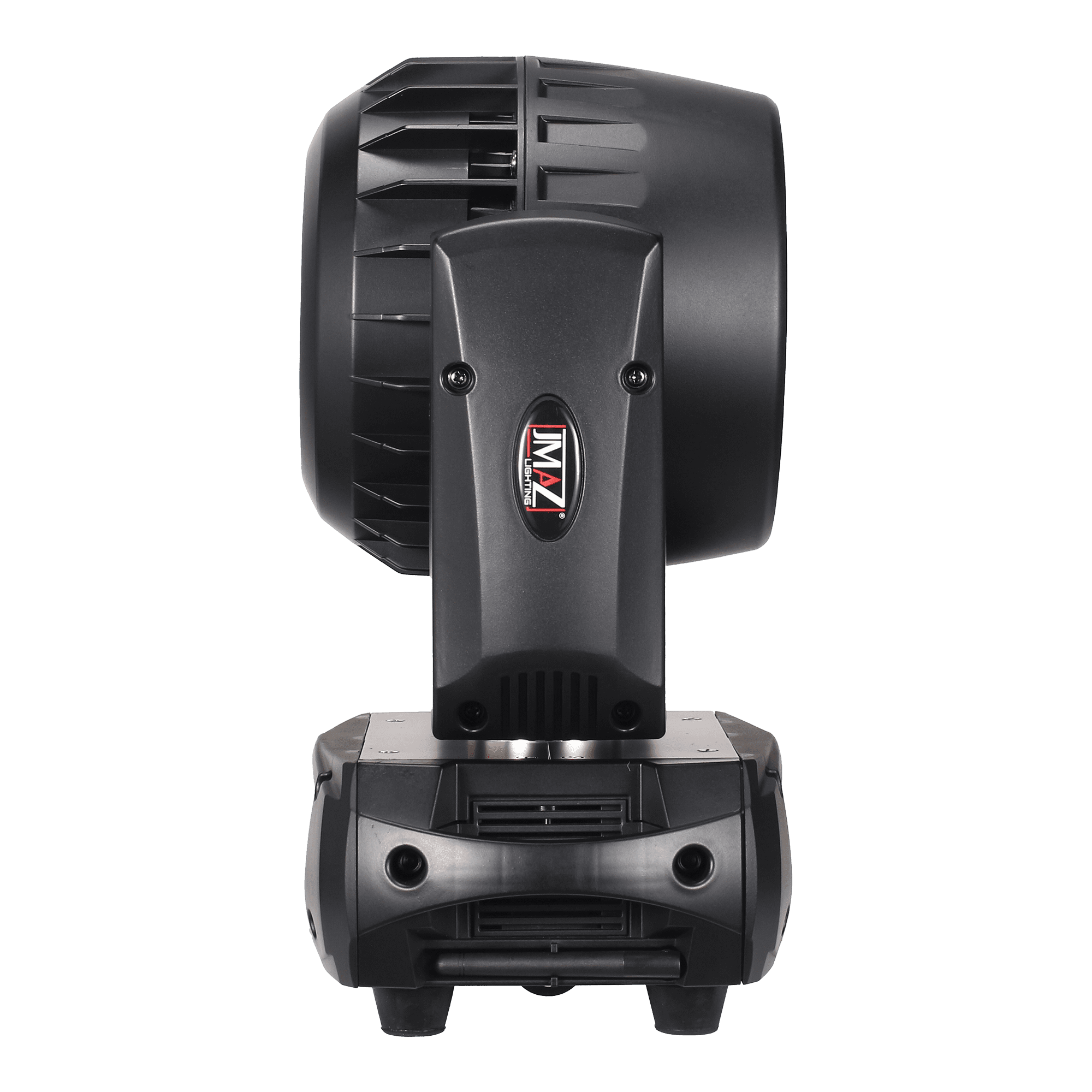

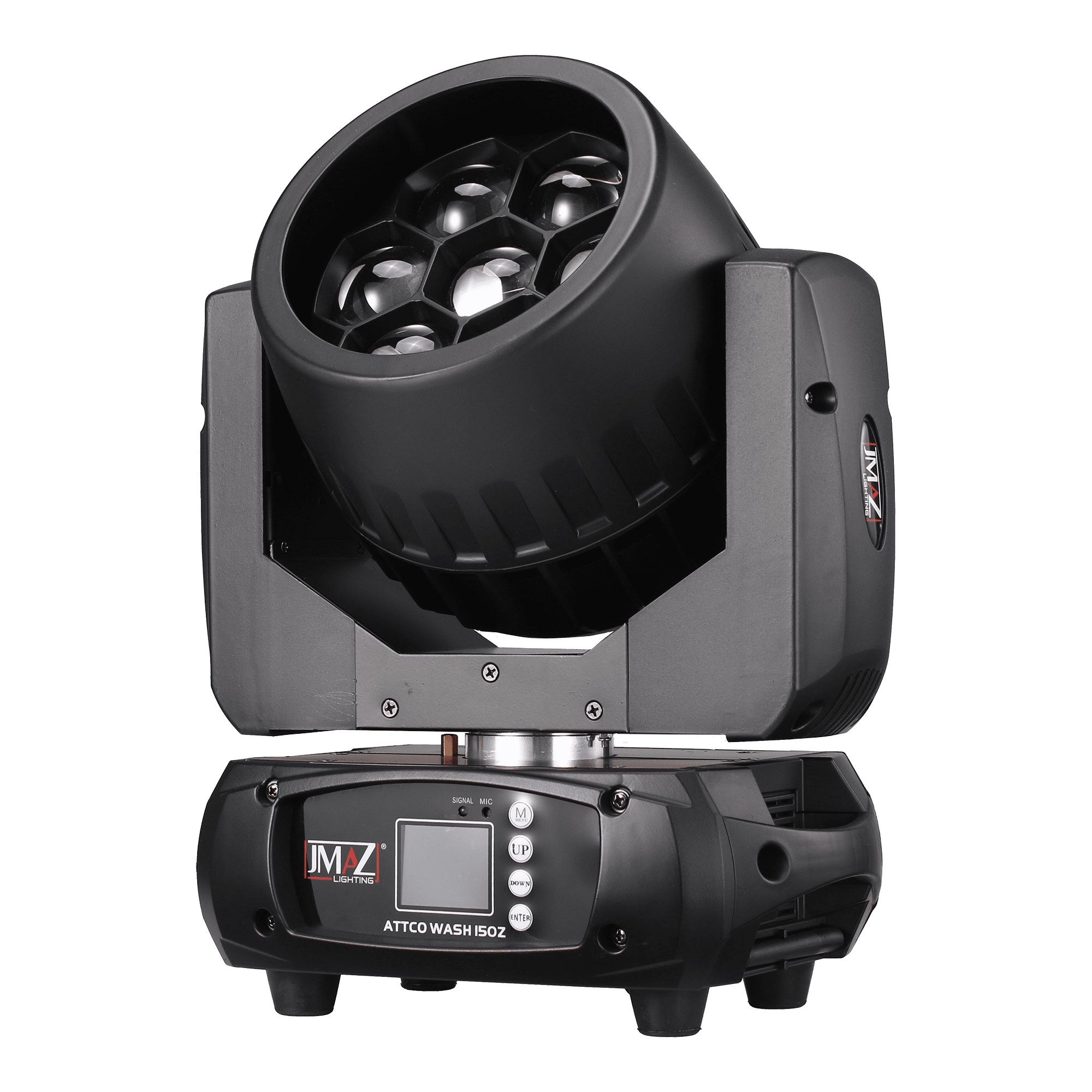

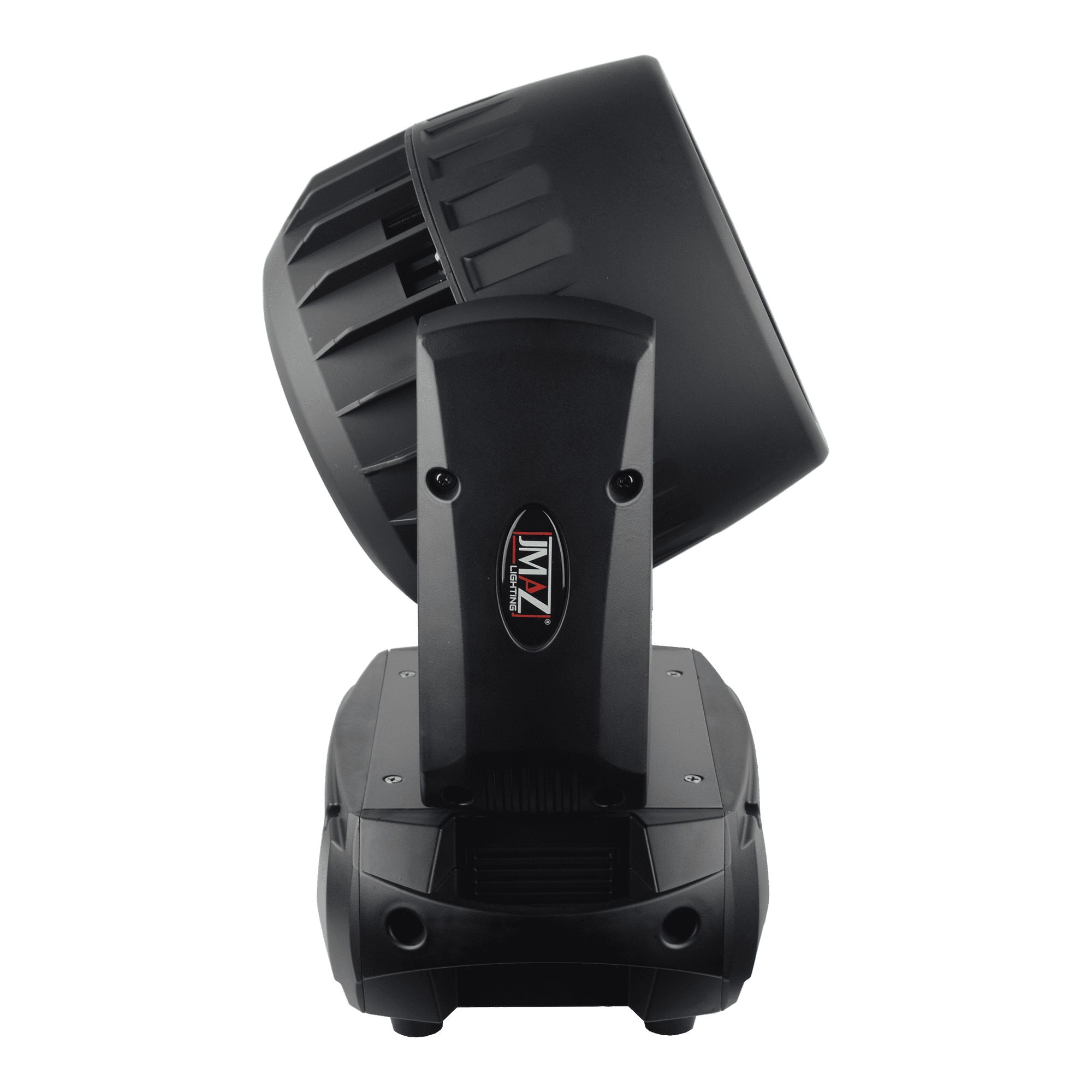

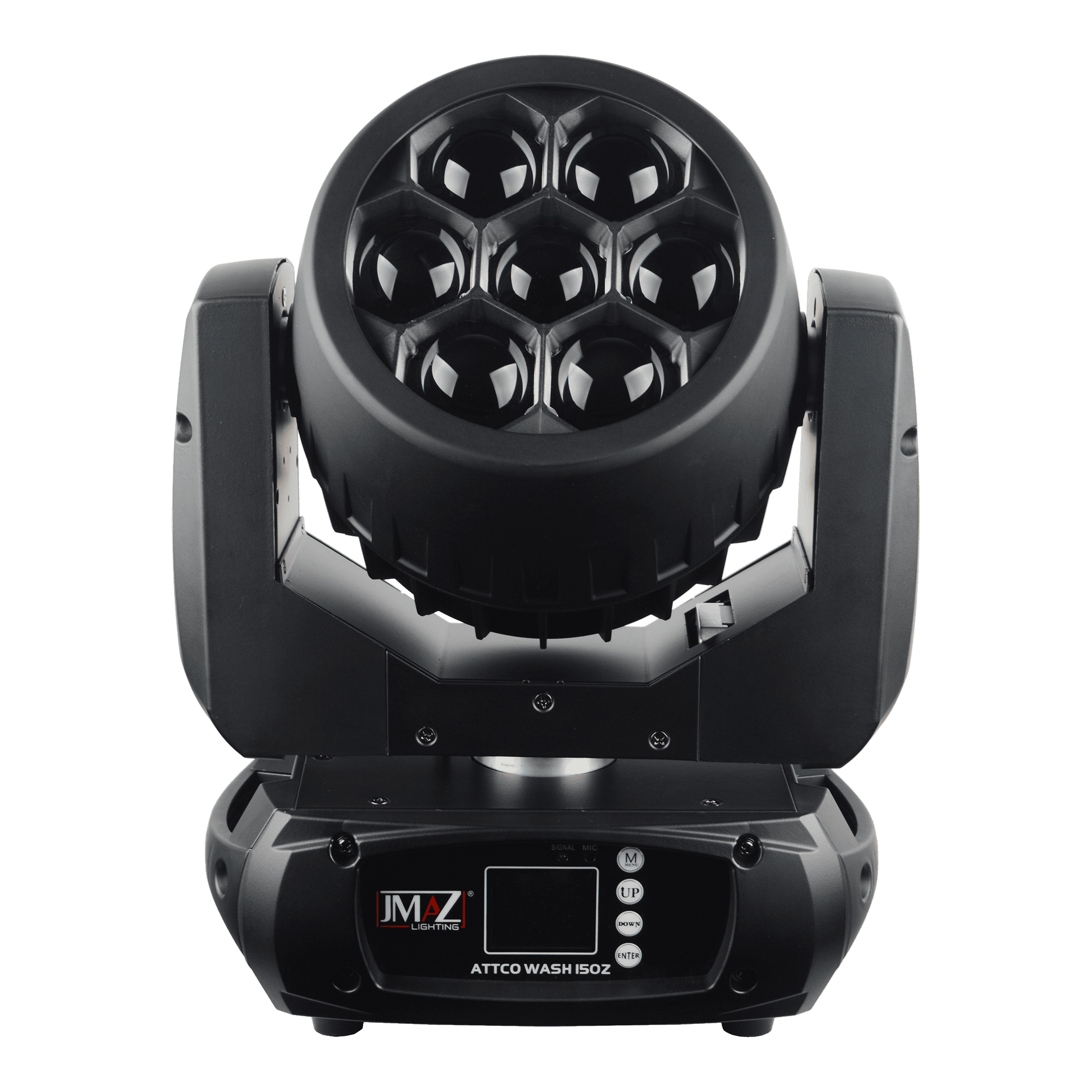

Attco Wash 150Z



210w RGBW LED Wash Moving Head w/ Zoom

The JMAZ ATTCO WASH 150Z is a compact 7×30W full pixels controlled moving head Wash stylish moving head wash fixture with a smooth, fast and quiet motorized zoom from 6°-60°range. It features 7*30W 4-in-1 RGBW LEDs. The ATTCO WASH 150Z is flicker-free based fixture with even, soft edge and pure color mixing coverage. It provides variable speed shutter/strobe effect, internal programs, virtual colors, dynamic patterns, static patterns and kinds of pre-programming color temperature options to its users for easy operation.

Main features:

  • 7 x30W 4-IN-1 RGBW LED
  • Beam angle: 6°-60°
  • 0-100% Linear LED dimmer
  • DMX512, master-slave and sound activated or auto operation (9 built-in program)

Technical specifications

Light Source

  • Source: 7 x 30W RGBW LEDs

Color System

  • Color LEDs: RGBW


  • Hardware On-Board: sockets for quick-Lock Omega bracket
  • Pan Angle: 630°
  • Title Angle: 270°
  • Pan/Tilt Resolution: 8 / 16 Bit
  • Feedback: Scan position memory, auto reposition after unexpected movement
  • Body: High Temperature Engineered Plastic and Cast Aluminum Casing
  • Body Colour: Black


  • Dimmer: 0-100% Linear Dimmer
  • Strobe/Shutter: 25 T/sec
  • Operating Temperature: -20° C to 45° C


  • Mains Power Supply:AC Mains
  • Max Power Consumption: 240W
  • Input Voltage: AC90-260V 50/60Hz




  • Zoom: 6° to 60°

Dynamic Effect

  • Flat Beam Field
  • Strobe Effect
  • Zoom Wash Effect


  • Protocols: DMX512, W-DMX, Wi-MAZ Wireless DMX
  • DMX Channels: 13/15 Channel Modes
  • Wireless Control: Wi-MAZ Wireless DMX, W-DMX, RF Remote
  • Display: 2.4″” TFT LCD Display
  • Firmware Upgrade: Yes, USB-DMX Interface, not included.


  • IP Rating: 20
  • Cooling: Fan
  • Pan/Tilt:8/16 bit smooth
  • Data Connection: DMX, Wireless DMX
  • Power Connection: Power-CON
  • Dimensions: 11.1″” x 6.7″” x 13.2″”
  • Weight: 14.6 lbs

Box Content

  • 1 x Attco Wash 150Z
  • 1 x User Manual
  • 2 x Omega Brackets
  • 1 x 3ft 3-pin DMX Chord
  • 1 x 3ft PowerCON Chord
  • 1 x RF Remote


Product Data / Cut Sheet

File name File size Download
Letter datasheet AttcoWash150Z_Catalog_Sheet.PDF 500KB Letter datasheet

User Manual

File name File size Download
Letter datasheet AttcoWash150Z_User_Manual.PDF 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet AttcoWash150Z_DMX_Charts.PDF 500KB Letter datasheet


File name File size Download
Attco Wash150Z_Profiles Folder 500KB


File name File size Download
Letter datasheet AttcoWash150Z_Photometrics.PDF 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet AttcoWash150Z_CAD_Drawings.PDF 500KB Letter datasheet

Tech / Data Sheets

File name File size Download
Letter datasheet AttcoWash150Z_Full_tech_sheet.PDF 500KB Letter datasheet
