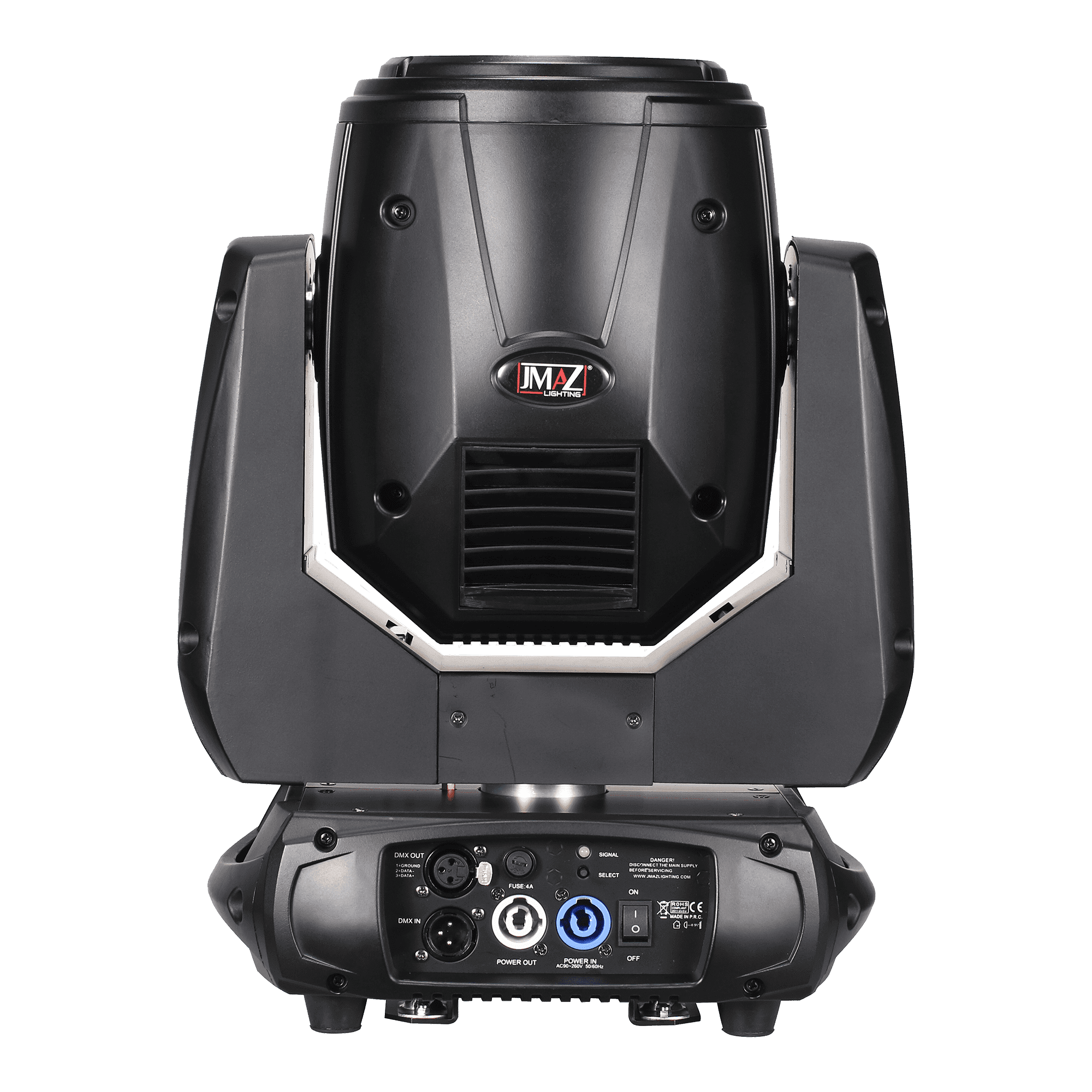

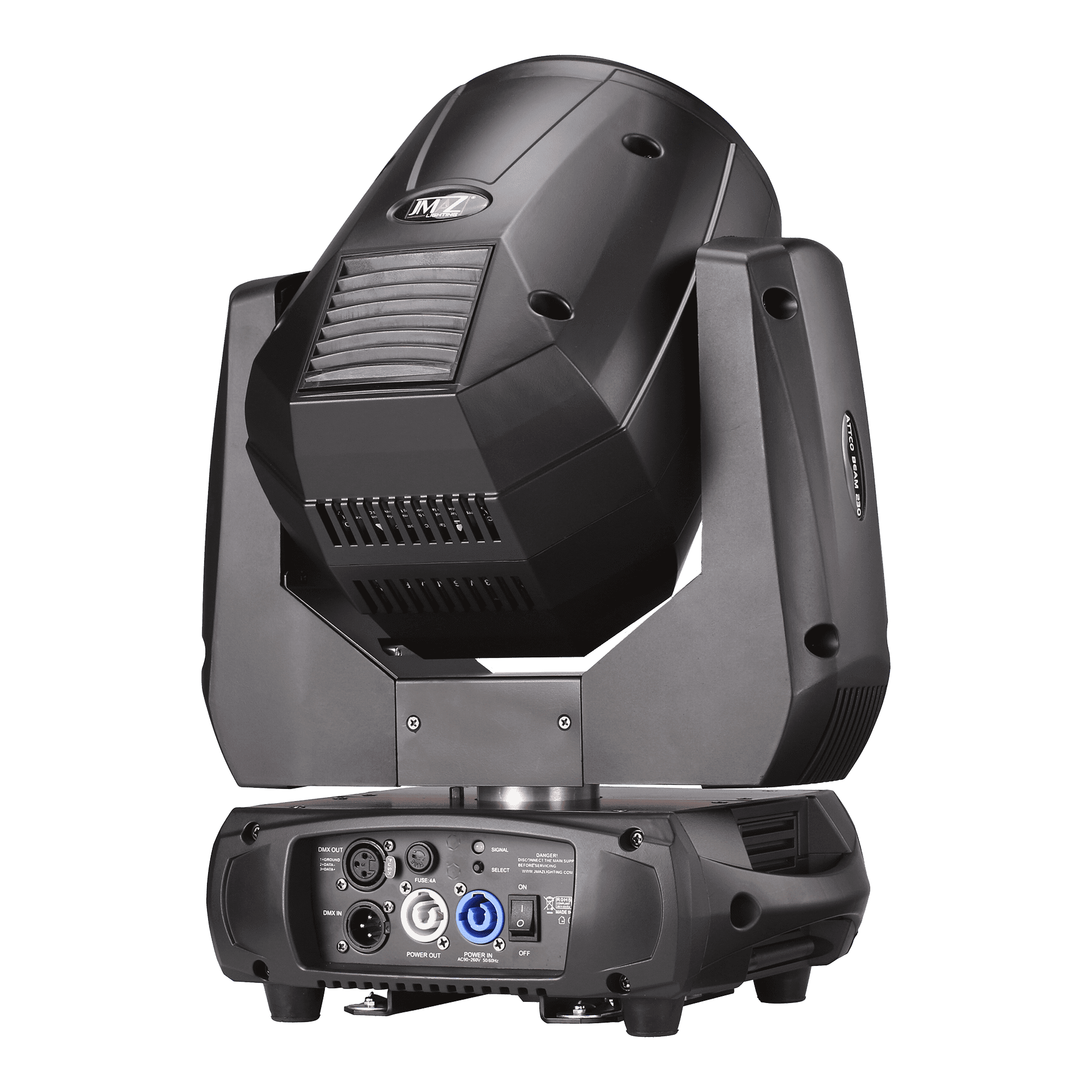

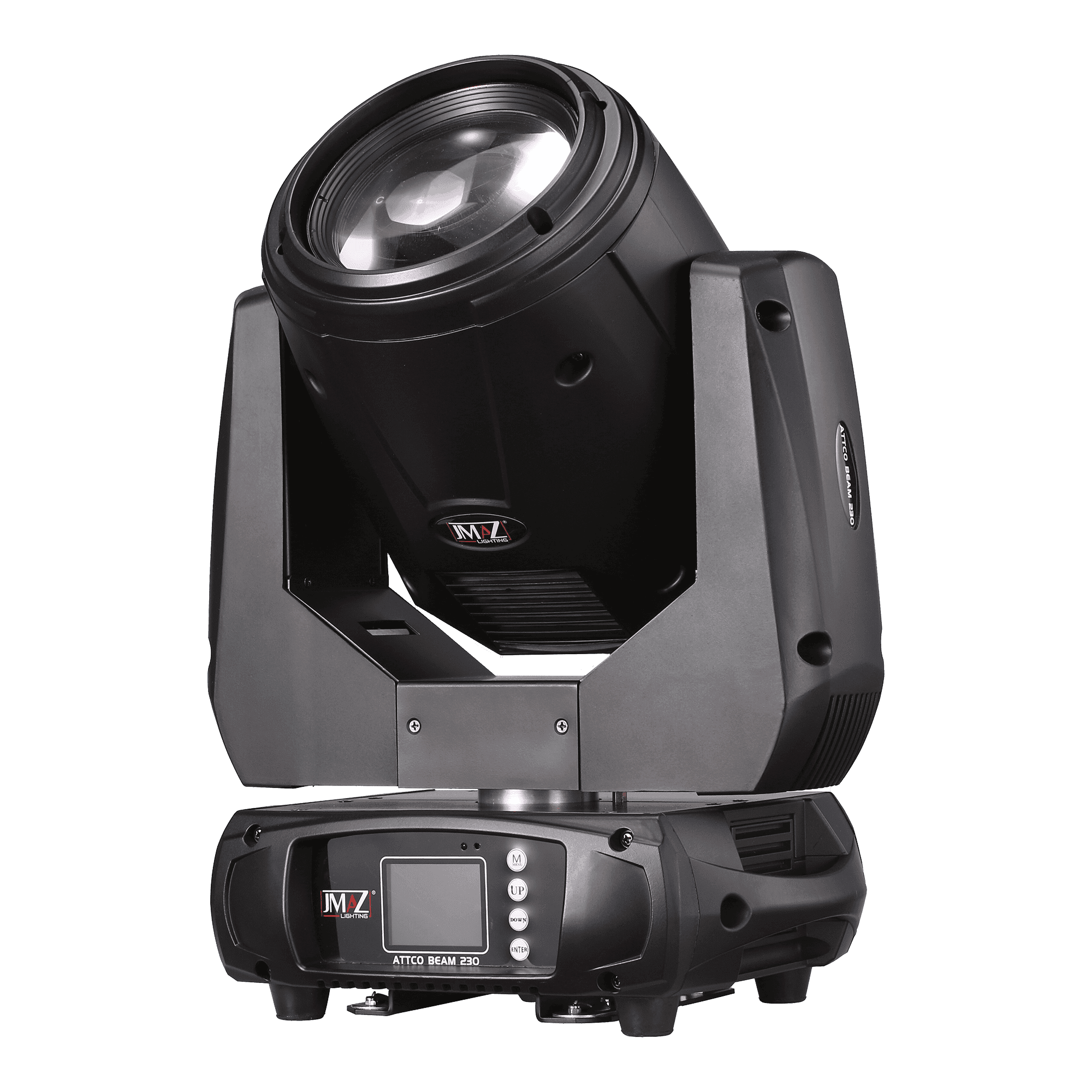

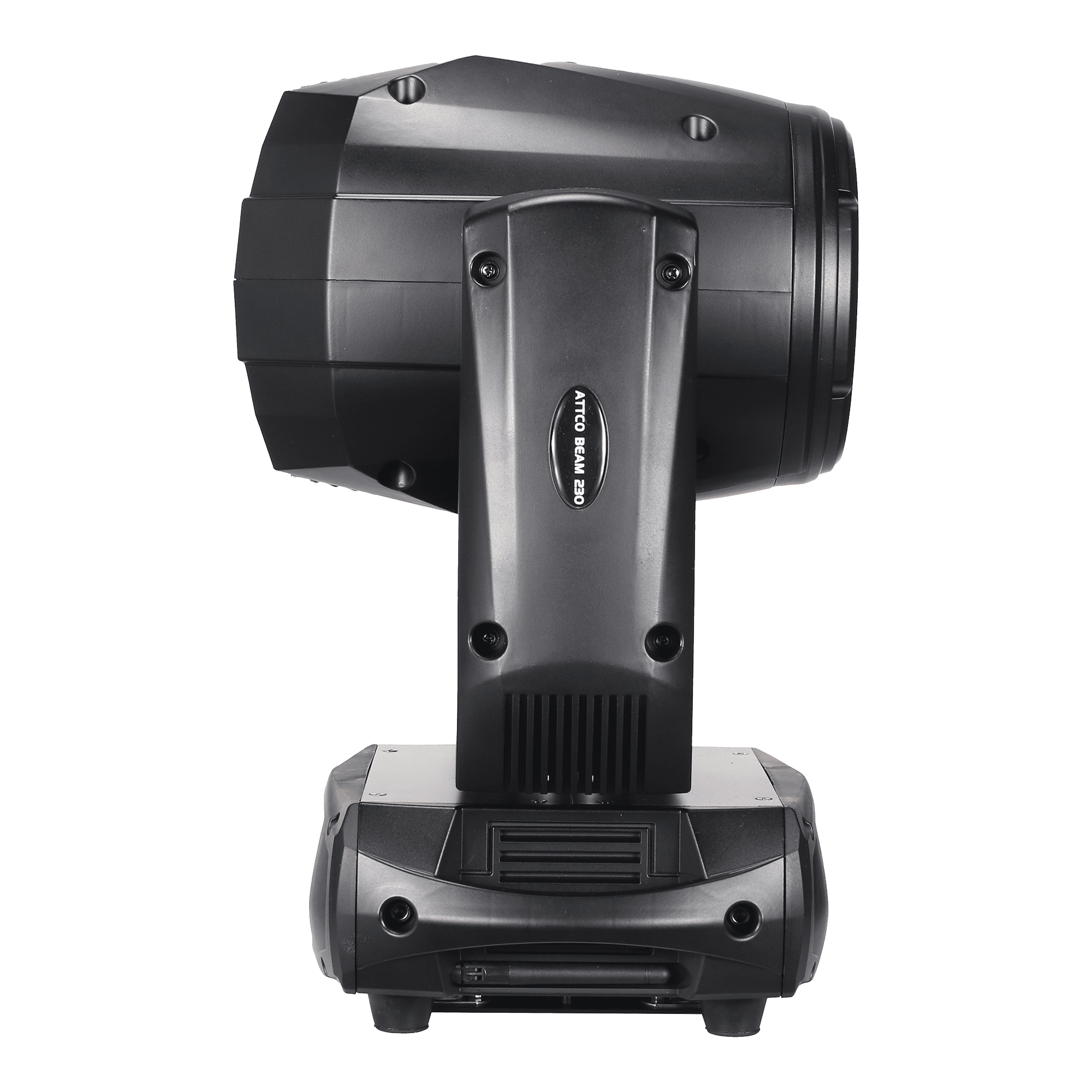

Attco Beam 230


Black: JZ3013
White: JZ3026

230w Osram Discharge Lamp

JMAZ ATTCO BEAM 230 Features with Super Prisms (16 facet+24 facet prism)and a powerful, ultra bright OSRAM 7R lamp, 3 phase motors , Solid Beam angle: 2.5° ,Anti-reflection 136mm front lenses. JMAZ ATTCO BEAM 230 is integrated with a full complement of professional characteristics including a static gobo wheel (16 gobos) ,a color wheel (11 colors), Frost filter, Motorized focus from near to far (2.5M-30M), variable speed shutter/strobe, 0-100% linear dimmer

Main features:

  • OSRAM 231 Watt
  • 11 colors & white with bicolor option
  • 16 static gobos & open, with beam reducers included
  • Motorized focus from near to far (2.5M-30M)

Technical specifications

Light Source

  • Source: OSRAM SIRIUS HRI 7R 231W Bulb
  • Lux: 164,230 lx @ 10m , 73,170 lx @ 15m
  • Life Exptancy: 2,000 hrs

Color System

  • Color Wheel: 11 colors + Open


  • Hardware On-Board: sockets for quick-Lock Omega bracket
  • Pan Angle: 630°
  • Title Angle: 270°
  • Pan/Tilt Reolsution: 8 / 16 Bit
  • Feedback: Scan position memory, auto reposition after unexpected movement
  • Body: High Temperature Engineered Plastic and Cast Aluminum Casing
  • Body Colour: Black / White


  • Dimmer:0-100% Linear Dimmer
  • Strobe/Shutter: 20 T/sex
  • Operating Temperature:-35° C to 45° C


  • Mains Power Supply: AC Mains
  • Max Power Consumption: 190W
  • Input Voltage: AC91-260V, 50/60Hz


Black: 093674449565

White: 618528606989


  • Beam Angle: 2.5°
  • Lens Diameter: 136mm
  • Lens Type: Anti-reflections
  • Focus: motorized

Dynamic Effect

  • Dual Prism Wheel: 8 Facet + 24 Facet w/ variable speed
  • Frost Filter
  • Dual Flag Mechanical Dimming
  • 20 T/sec High Speed Strobe/Shutter Effect
  • Vairable Strobe and Dimming
  • Satic Gobo Wheel: 16 Gobos + Open


  • Protocols: DMX512, W-DMX, Wi-MAZ Wireless DMX
  • DMX Channels: 14/16 Channel Modes
  • Wireless Control: Wi-MAZ Wireless DMX, W-DMX, RF Remote


  • IP Rating: 20
  • Cooling: Fan
  • Pan/Tilt:8/16 bit smooth
  • Data Connection: DMX, Wireless DMX
  • Power Connection:Power-CON
  • Dimensions: 15.2″” x 15″” x 8.7″”
  • Weight: 30.6 lbs

Box Content

  • 1 x Attco Beam 230 B
  • 1 x User Manual
  • 2 x Omega Brackets
  • 1 x 3ft 3-pin DMX Chord
  • 1 x 3ft PowerCON Chord
  • 1 x RF Remote


Product Data / Cut Sheet

File name File size Download
Letter datasheet Attcobeam230_Catalog_Cut_Sheet.PDF 500KB Letter datasheet

User Manual

File name File size Download
Letter datasheet Attco Beam 230 User Manual (Revised).pdf 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet Attcobeam230_DMX_Charts.PDF 500KB Letter datasheet


File name File size Download
Attcobeam230_Profiles Folder 500KB


File name File size Download
Letter datasheet Attcobeam230_Photometrics.PDF 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet Attcobeam230_CAD_Drawings.PDF 500KB Letter datasheet

Tech / Data Sheets

File name File size Download
Letter datasheet Attcobeam230_Tech_sheet.PDF 500KB Letter datasheet
