Vision Cool White Profile 300Z

SKU:

JZ1031

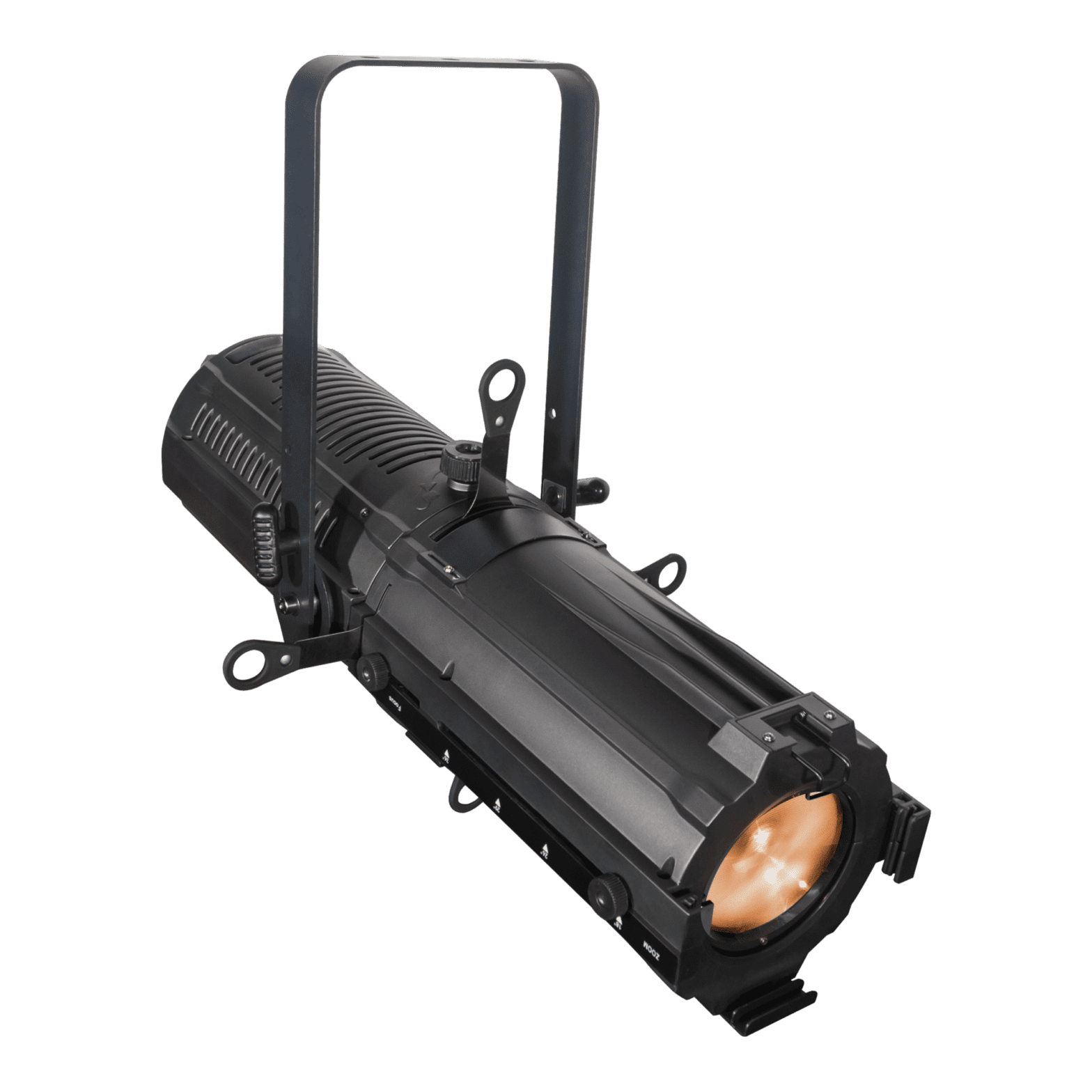

300W Cool White LED Ellipsoidal Profile Light w/ Zoom

Vision Profile 300Z CW is a super high output ellipsoidal profile fixture. It comes available in either a 300-watt Cool White (5600K) option. JMAZ Designed to replace the 1K Tungsten Halogen fixture, the Vision Profile 300Z CW projects a soft yet bright field of light and its high CRI (Color Rendering Index) of 97, makes this fixture ideal for television and film. With a zoom range of 18-38 degrees (manually adjustable) and 4-leaf framing system, this fixture lets you control the shape and the location of where the light shines. The Vision Profile 300Z CW is light-weight, compact, and has rotary, key, and DMX dimmer control. Installation and patching is fast and easy with RDM protocol. These features and more make the Vision Profile 300Z CW the ideal replacement for traditional ellipsoidal fixtures.

Main features:

  • 1 x 300-watt LED
  • Color Temperature: Either 5600K
  • Color Rendering Index: CRI 97, R9≥90, TLCI up to 98
  • Beam Angle: Manual Zoom from 18-38 degrees
  • Dimming: Smooth 16 bit Flicker Free Dimming w/ Adjustable Dimming Curve
  • Lens Barrel: Compatible with Industry Standard
  • Control: Master/Slave, DMX in/through, Standalone, RDM
  • Housing: Aluminum

Technical specifications

Light Source

  • Source: 300W CW LED

Body

  • ABS die-cast plastic w/ aluminum structure

Electronics

  • Dimmer: 0-100% Linear Dimmer
  • Strobe/Shutter: 25 T/sec
  • Color Temperature: 3200K

Electrical

  • Mains Power Supply:AC Mains
  • Max Power Consumption: 250W
  • Input Voltage: AC 100-240V, 50HZ/60HZ

UPC

618528607092

Optics

  • Zoom: 18-38°

Dynamic Effect

  • Profile/Spot Effect

Control

  • Protocols: DMX512
  • DMX Channels: 1/2/3 Channel Modes
  • Manual Framing
  • Manual Zoom

Physical

  • IP Rating: 20
  • Cooling: Fan

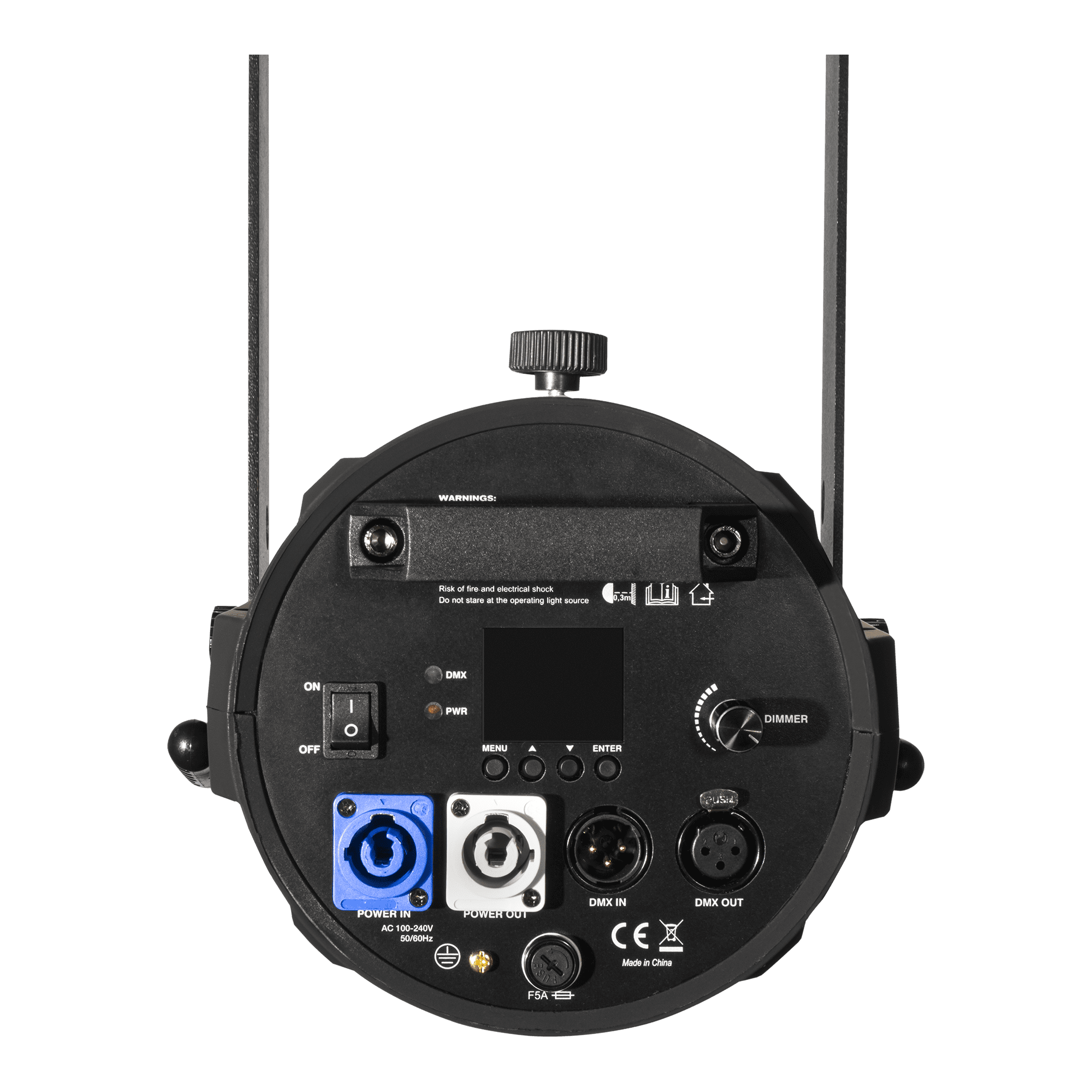

  • Data Connection: 3-PinDMX
  • Power Connection: Power-CON
  • Dimensions: 31″” x 14″” x 14″”
  • Weight: 25.4 lbs

Download

User Manual

File name File size Download
Letter datasheet Vision_Warm_White_User_Manual.pdf 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet Vision_Warm_White_Profile_300Z_DMX_Charts.PDF 500KB Letter datasheet

Photometrics

File name File size Download
Letter datasheet Vision_Cool_White_.pdf 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet Vision_Cool_White_CAD_Drawings.pdf 500KB Letter datasheet

Tech / Data Sheets

File name File size Download
Letter datasheet Vision_Cool_White_PRODUCT_DATA/CUT_SHEET.pdf 500KB Letter datasheet
