MAD PAR RB

SKU:

JZ1037

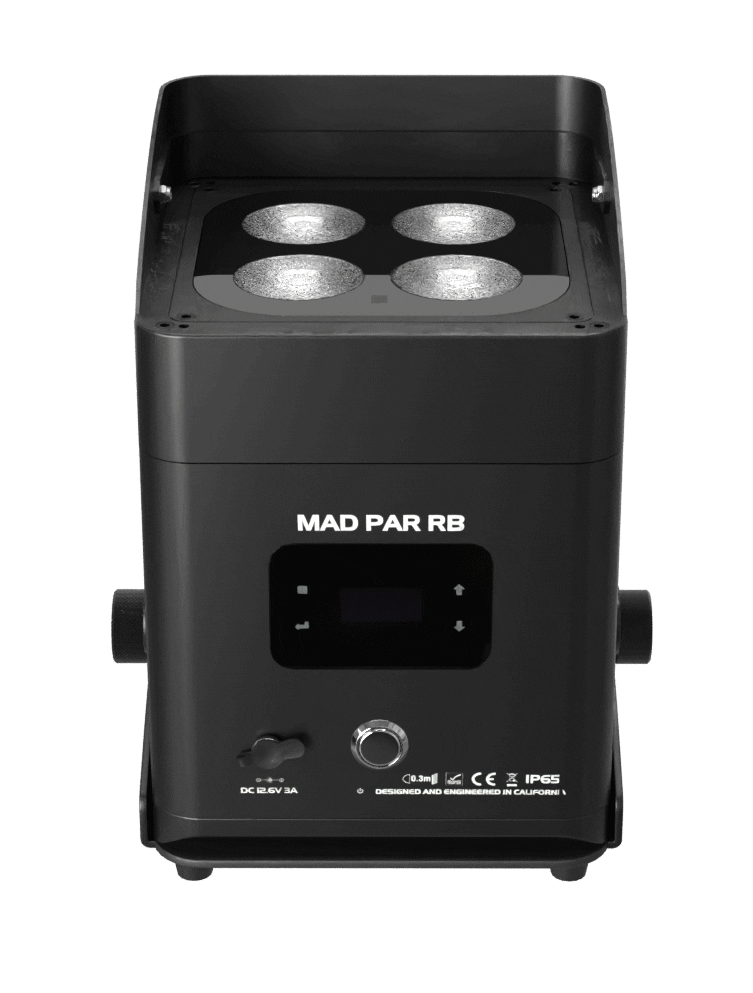

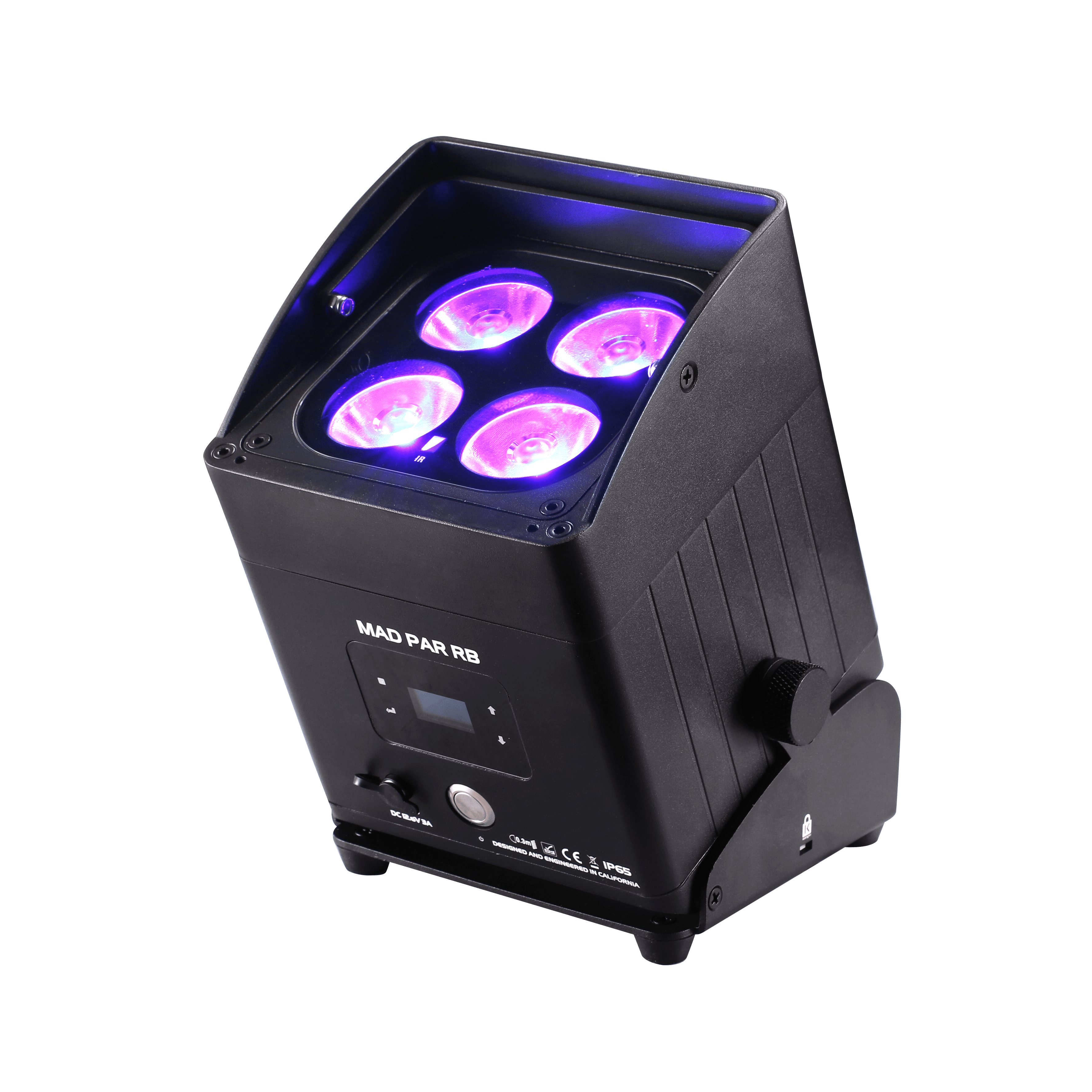

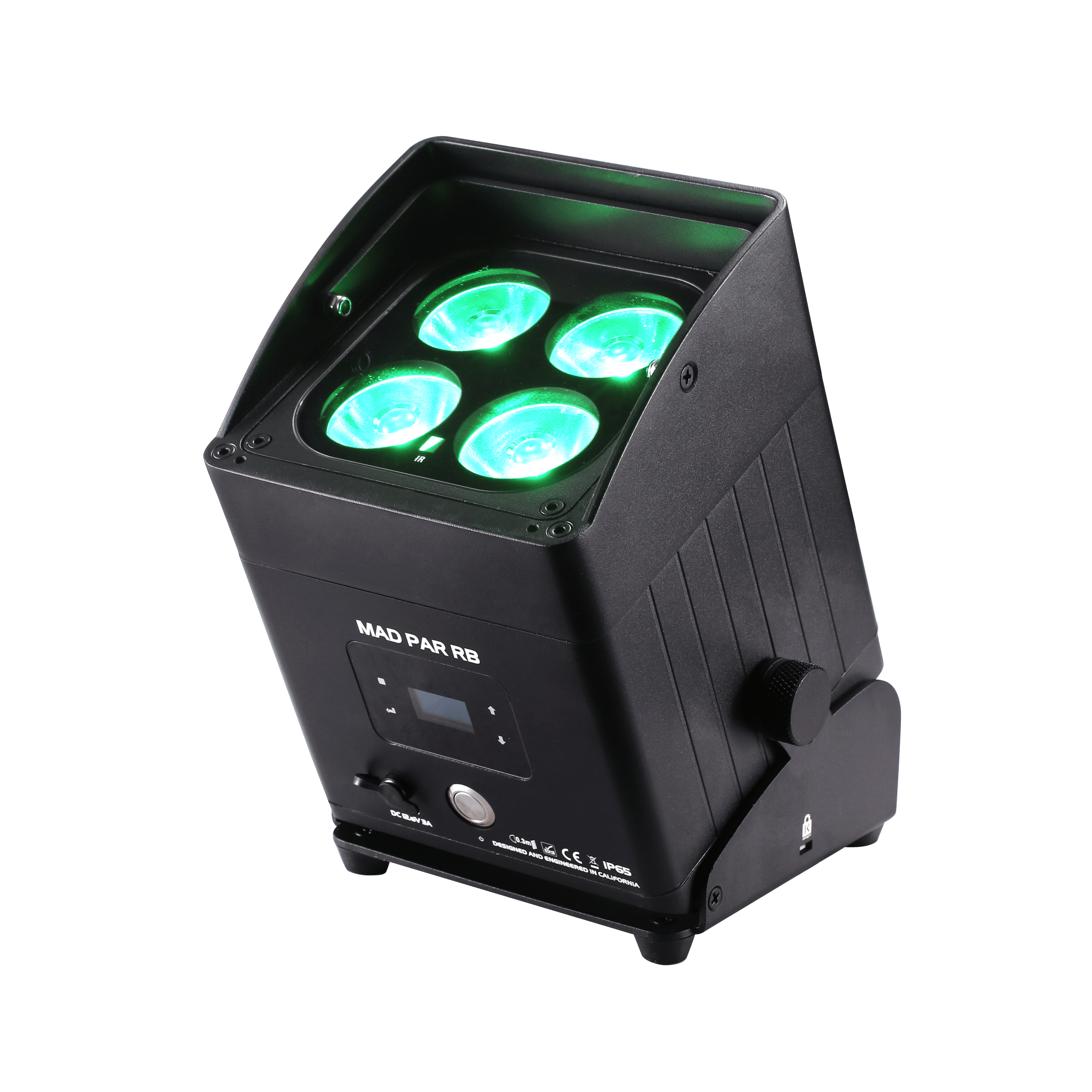

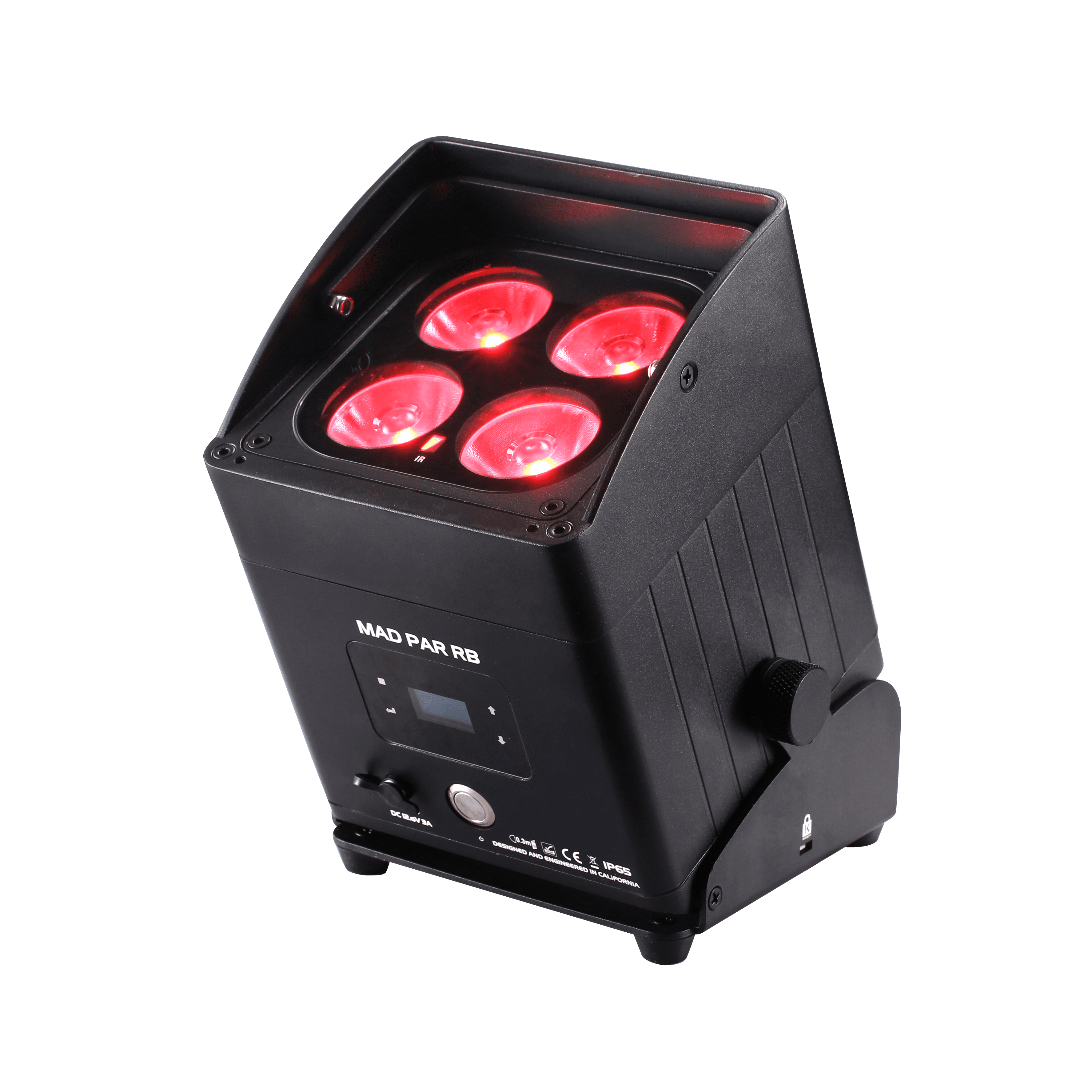

MAD PAR RB Wireless IP65 80W RGBAL+C Battery LED Event Uplight with Swappable Battery

Battery Icon MADPAR4IP  IP65-Black_2  WIRELSS

Main features:

  • Powerful 80W RGBAL+C LED engine featuring four 20W LEDs delivers exceptional brightness, rich saturated colors, superior pastel reproduction, and adjustable white light with a color temperature range from 2300K–8500K.
  • Professional optics feature a 20° native beam angle for smooth, powerful uplighting, while the included 30° frost filter provides softer, more even wash coverage for greater application flexibility.

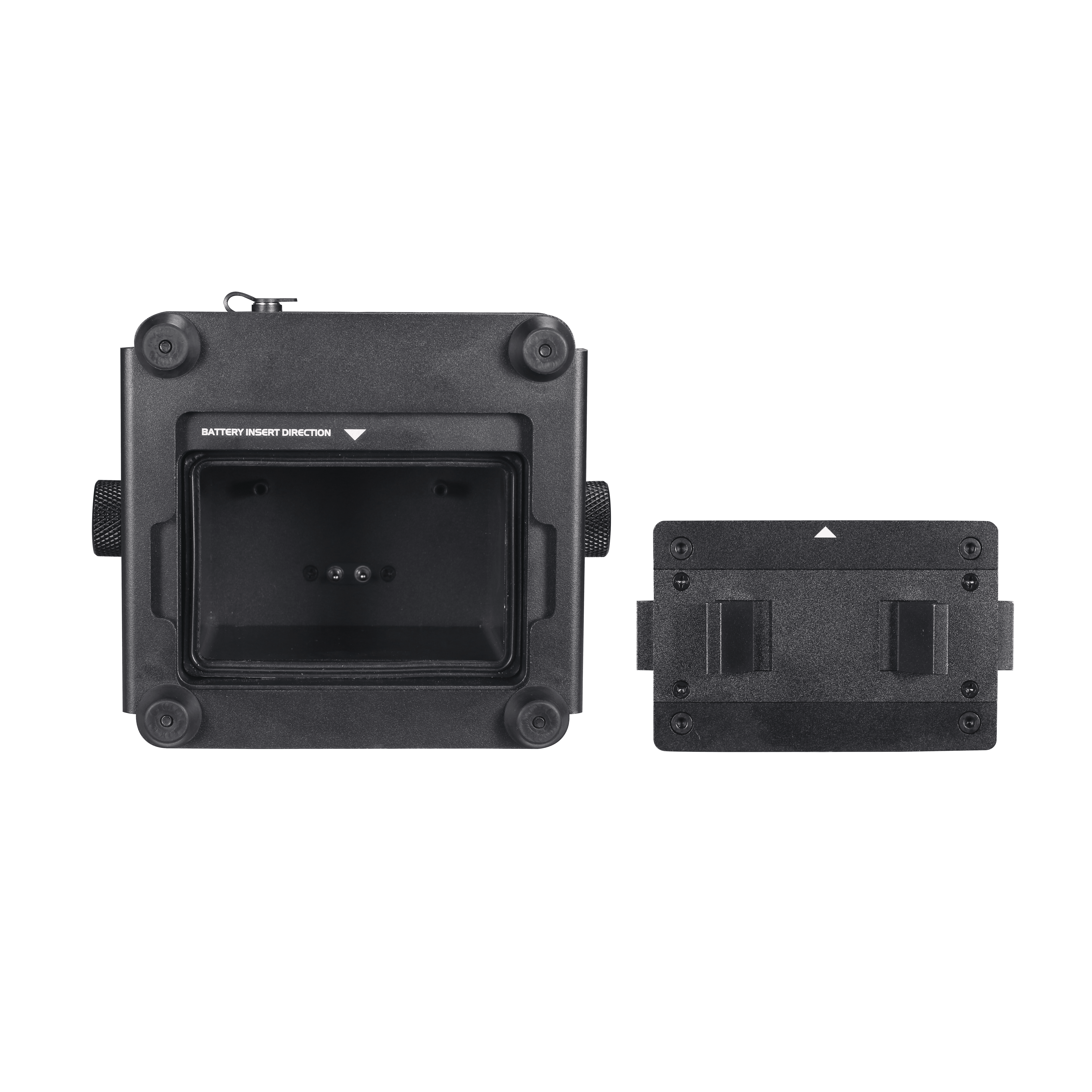

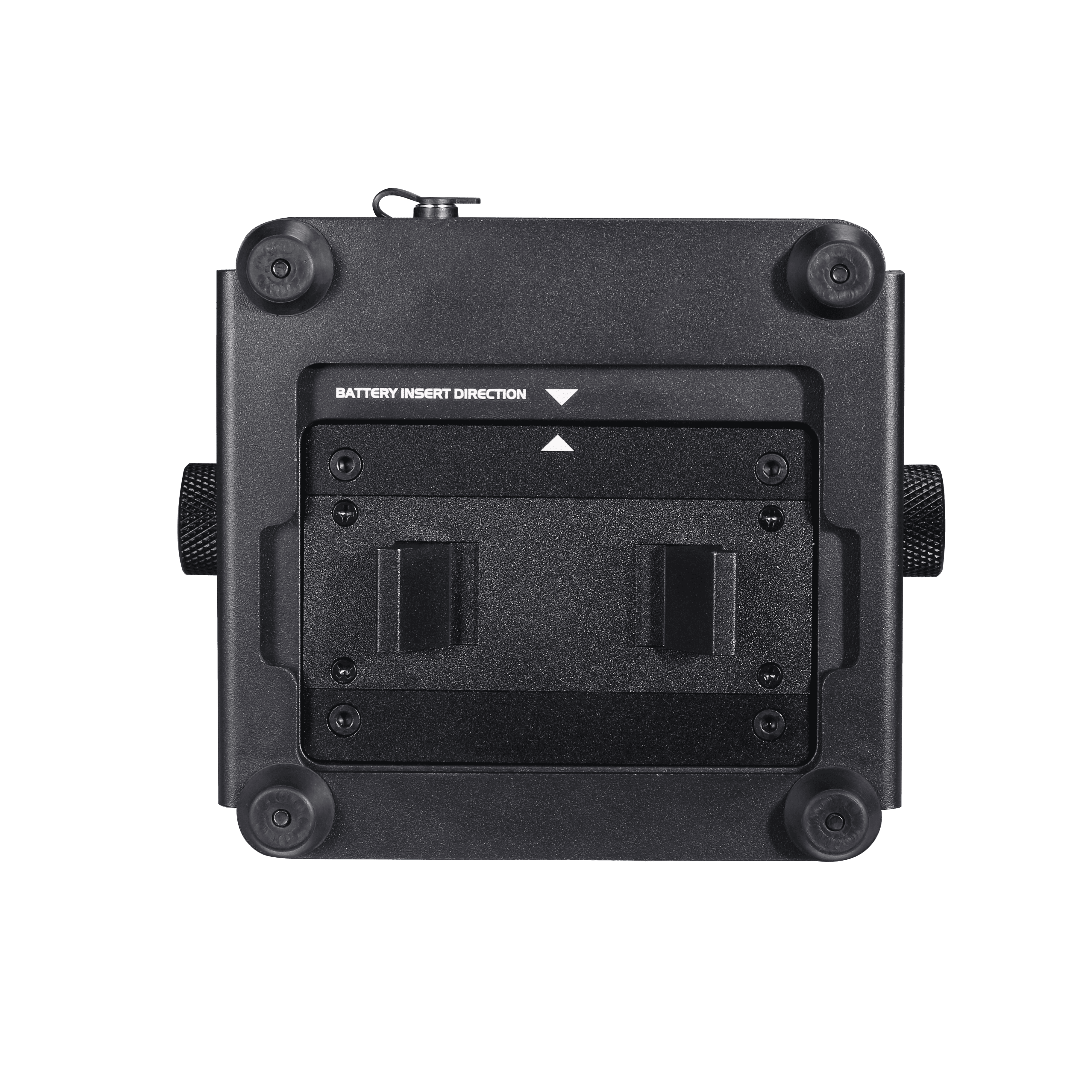

  • Hot-swappable lithium-ion battery system delivers up to 16 hours of runtime on a single charge, or up to 48 hours in battery saver mode, allowing continuous operation with quick battery replacement between events.
  • IP65-rated die-cast aluminum housing, fanless cooling, adjustable 0–40° tilt base, and integrated Kensington security slot provide reliable outdoor performance, silent operation, and added security for rental and permanent installations.

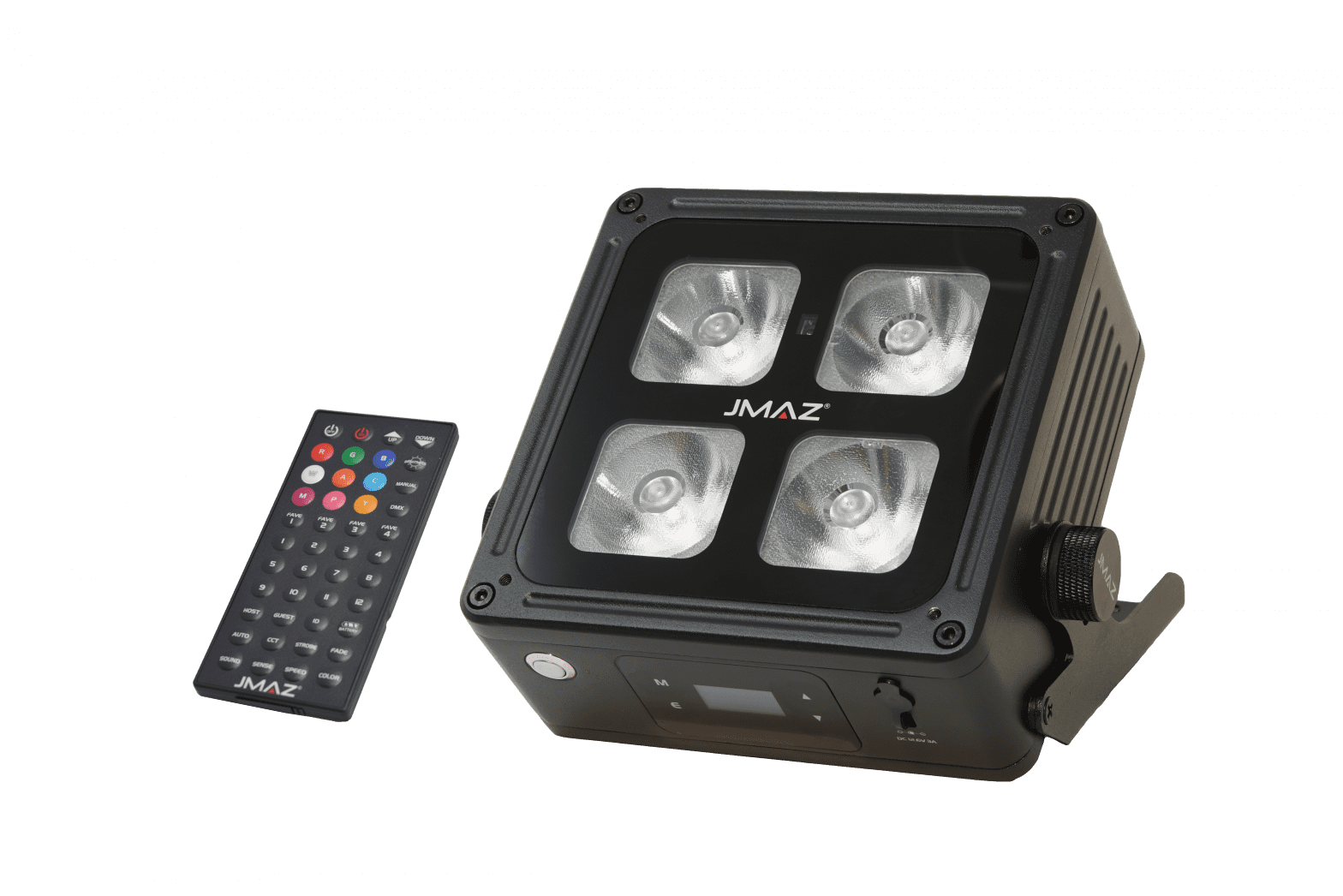

  • Wireless DMX and IR remote control, combined with 72 preset color programs, 72 built-in auto/fade programs, 50 sound-active modes, and smooth electronic dimming, provide flexible programming for live events and architectural lighting.
  • Designed for professional productions, touring, weddings, and architectural applications, the MAD PAR RB combines high-output performance, rugged construction, and a hot-swappable battery system in a compact, road-ready fixture.

Product Description

The MAD PAR RB was designed for event professionals, production companies, rental houses, DJs, and installers who need a high-output battery-powered uplight that can perform throughout extended productions without interruption. Combining an 80W RGBAL+C LED engine with a hot-swappable lithium-ion battery system, the MAD PAR RB allows lighting professionals to replace batteries in seconds, minimizing downtime and keeping productions running while delivering exceptional color quality in both indoor and outdoor environments.

Powered by an 80W RGBAL+C LED engine (4 × 20W LEDs), the MAD PAR RB produces rich, saturated colors, beautifully balanced pastel tones, and adjustable white light from 2300K to 8500K with smooth 8/16-bit color mixing. Its 20° beam angle provides clean, controlled uplighting, while the included frost filter expands coverage to 30° for a softer and wider wash. Featuring 73 preset color programs, 72 built-in auto programs, 50 advanced sound-active modes, Wireless DMX, IR remote control, multiple DMX personalities, and up to 16 hours of battery operation (up to 48 hours in battery-saving mode), the MAD PAR RB delivers exceptional versatility for demanding productions. The fanless IP65-rated housing, hot-swappable rechargeable battery, and integrated Kensington® security lock provide the durability, security, and uninterrupted performance professionals require for touring, rentals, permanent installations, and outdoor events.

Whether illuminating architectural features, enhancing wedding venues, accenting stages, transforming ballrooms, or creating impactful outdoor lighting displays, the MAD PAR RB delivers powerful output, professional color reproduction, and the continuous operation made possible by its innovative hot-swappable battery system.



Technical specifications

Light Source

  • 80W (4 x 20w) RGBAL+C LEDs
  • LED Life Expectancy: 50,000 hrs

Color System

  • RGBAL+C Color Mixing 8/16 bit
  • CCT: 2300K – 8500K

Optics

  • Install Optic: 10 Degree
  • Diffuser Angle (included):  20 Degree

Dynamic Effect

  • Max 16 Hour Battery Life / 48 Hour In Battery Saving Mode
  • Charging Time: 4 Hours
  • Selectable Battery Saving Mode: 50%, 75%, 100%
  • 72 Preset Color Programs
  • 50 Advanced Sound Active Mode
  • 72 Auto / Fade Bulit In Programs
  • Stand Alone Color Mixing
  • Electronic Dimming
  • Fading/Jumping Macros
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0-25 Hz

Control

  • Control Protocol: Wireless DMX, IR Remote
  • Personalities: 5/6/8/16 CH DMX Modes
  • OLED Graphical Display

Electronics

  • Linear LED Dimmer: 0-100% Smooth
  • Strobe Shutter: 1-25Hz

Body

  • Die-Cast Aluminum and Steel Structure
  • IP65 Outdoor Rated

Physical

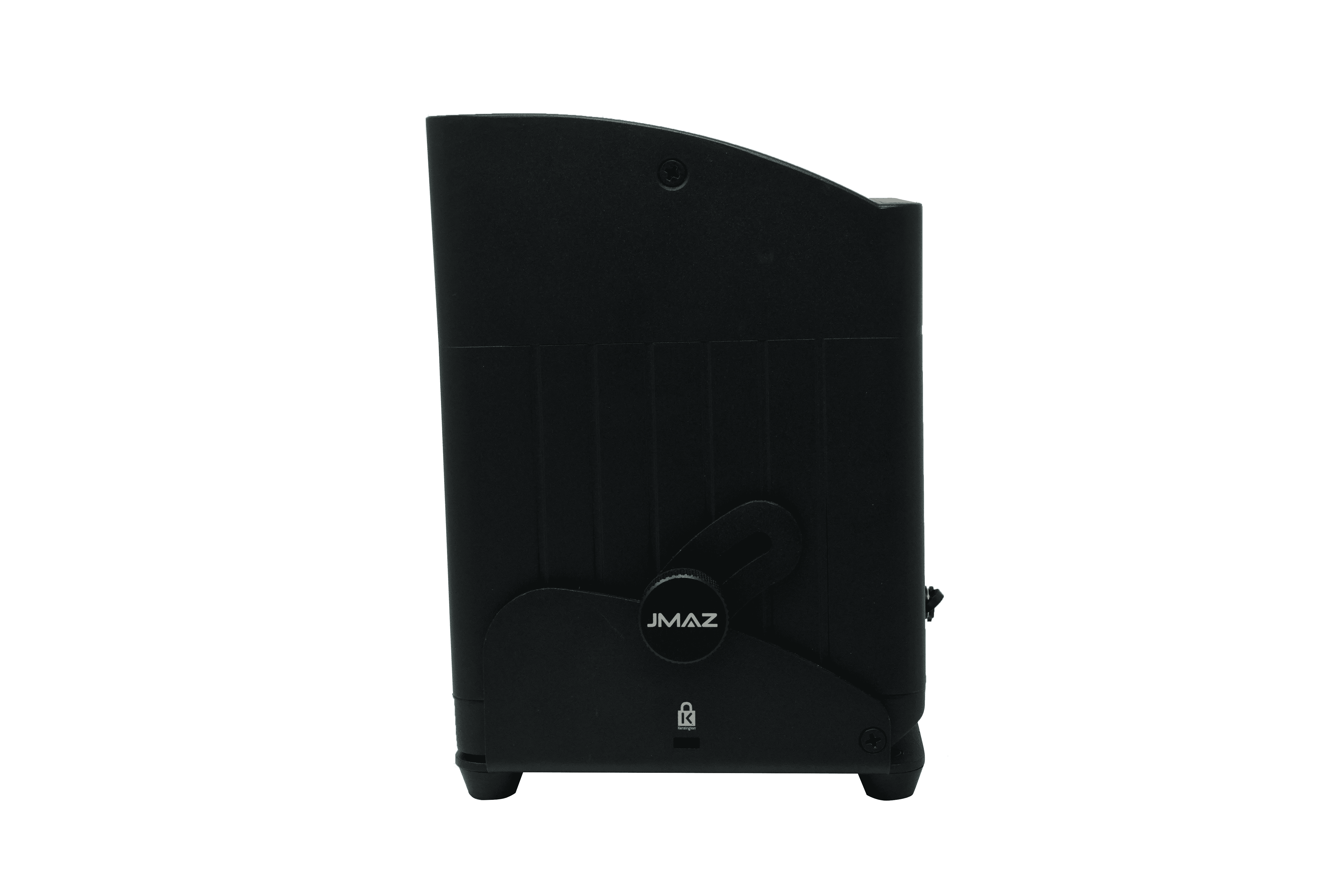

  • Kensington Lock Theft Protection
  • Adjustable Tilt Base: 0-40 Degree
  • Cooling: Fanless

Certification / Qualifications

  • RoHS, CE, FCC
  • IP Rating: IP 65
  • Operating Temperature: –10 ° C ( 14 ° F) To 60 ° C ( 140 ° F)



Electrical

  • Input Voltage: 100 V – 240 V AC, 50/60 Hz
  • Power Consumption: 80W

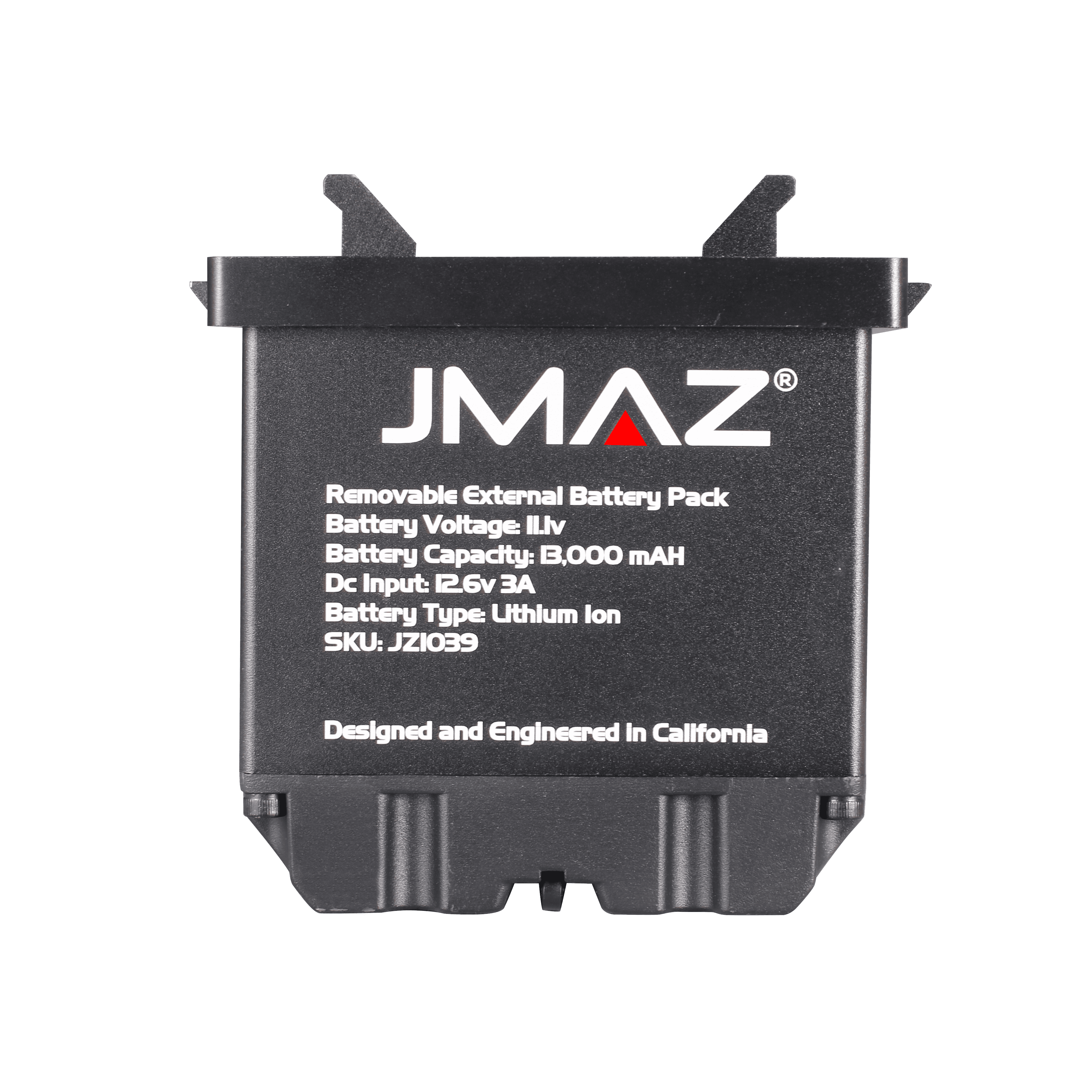

  • Rechargeable Battery Type: Lithium Ion
  • Battery Voltage: 11.1V
  • Battery Capacity: 13,000 mAH, 144.3 Wh/hour
  • Charger: 12.6V, 3A

Box Content

  • 1 x A/C Charger
  • 1 x External Rechargeable Battery
  • 1 x 20 Degree Diffuser
  • 1 x User Manual
  • 1 x IR Remote

Item Dimensions & Weight

  • Dimensions: 6.8″ x 5.5″ x 7.”9
  • Weight: 10 lb

UPC

618528598734

Video

Download

Product Data / Cut Sheet

File name File size Download
Letter datasheet MAD PAR RB Product Data Sheet 500KB Letter datasheet

User Manual

User Manual File size Download
Letter datasheet MADPAR_RB_Manual.PDF 500KB Letter datasheet
Quick Start Guide File size Download
Letter datasheet MADPAR_RB_Quick_Start_Guide.PDF 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet MAD PAR RB DMX Chart 500KB Letter datasheet

Profiles

File name File size Download
MAD PAR RB Profiles Folder 500KB

Photometrics

File name File size Download
Letter datasheet MADPAR_RB_Photometrics_sheet.PDF 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet MADPAR_RB_CAD_Drawing_sheet.PDF 500KB Letter datasheet
