AERO WASH 710Z
SKU:
JZ3001
7 x 10w RGBW LED Battery Powered Wash Moving Head
JMAZ Don’t just give your next gig a light show, make it interesting with the world’s first battery-powered moving head fixture. Introducing the AERO WASH 710Z by JMAZ Lighting! Featuring a smooth, fast and quiet motorized zoom from 6-60 degree range, 7 x 10-watt QUAD (RGBW) flicker-free LEDs, and even, soft edge, and pure color mixing coverage. With over 2 years in development, vigorous testing in various environments, and UL certified battery cells, the Aero Wash 710Z is a safe alternative to the traditional plug and play fixtures. With 8 hours of runtime, the 70w LED will make your show stand out no matter where it is. Creativity can run wild as you are no longer restricted on the placement of the fixture when using the built-in Wi-MAZ wireless DMX technology. And if you’re looking to keep it even more simple, the Aero Wash 710Z comes with 9 built-in show modes that can be triggered with the included RF Remote Control. Easy and fast to setup, the built-in shows including totem-mode make it a breeze to get started. Leave the power cables, DMX cables, and frustration at home. The Aero Wash 710Z is here to save your show, exclusively from JMAZ Lighting! Need more battery life?
Main features:
- 7x 10W 4-IN-1 RGBW LEDS
- Battery charge time: 0% to 100% charge 5.5 hours
- Max-endurance:8 hours(Full power), 12 hours(built-in program)
- 7 Built-in default programs w/ IR Remote Control
Gallery
Technical specifications
Light Source
- Source: 7 x 10W RGBW LEDs
- Life Span: 50,000 hrs
Color System
- Color LEDS: RGBW LEDs
Body
- Hardware On-Board: sockets for quick-Lock Omega bracket
- Pan Angle: 630°
- Title Angle: 270°
- Pan/Tilt Resolution: 8 / 16 Bit
- Feedback: Scan position memory, auto reposition after unexpected movement
- Body: High Temperature Engineered Plastic and Cast Aluminum Casing
- Body Colour: Black
Electronics
- Dimmer: 0-100% Linear Dimmer
- Strobe/Shutter: 20 T/sex
- Operating Temperature: -20° C to 45° C
- Battery Type: Lithium Ion
- Charge: 5.5 hrs
- Battery Life: 8-12 hrs
Electrical
- Mains Power Supply:Battery or AC Mains
- Max Power Consumption: 190W
- Input Voltage: AC91-260V, 50/60Hz
UPC
93674449596Optics
- Zoom Angle: 6-60°
Dynamic Effect
- LEDs: Individual LEDs control/ Pixel Control
- Flat Beam Field
- Strobe Effect
- Zoom Wash Effect
Control
- Protocols: DMX512, W-DMX, Wi-MAZ Wireless DMX
- DMX Channels: 13/15 Channel Modes
- Wireless Control: Wi-MAZ Wireless DMX, W-DMX, RF Remote
- Display: 2.4″ TFT LCD Display
Physical
- IP Rating: 20
- Cooling: Fan
- Pan/Tilt:8/16 bit smooth
- Data Connection: DMX, Wireless DMX
- Power Connection: Battery, Power-CON
- Dimensions: 15.2″” x 15″” x 8.7″”
- Weight: 30.6 lbs
Box Content
- 1 x Aero Wash 710Z
- 1 x User Manual
- 2 x Omega Brackets
- 1 x 3ft 3-pin DMX Chord
- 1 x 3ft PowerCON Chord

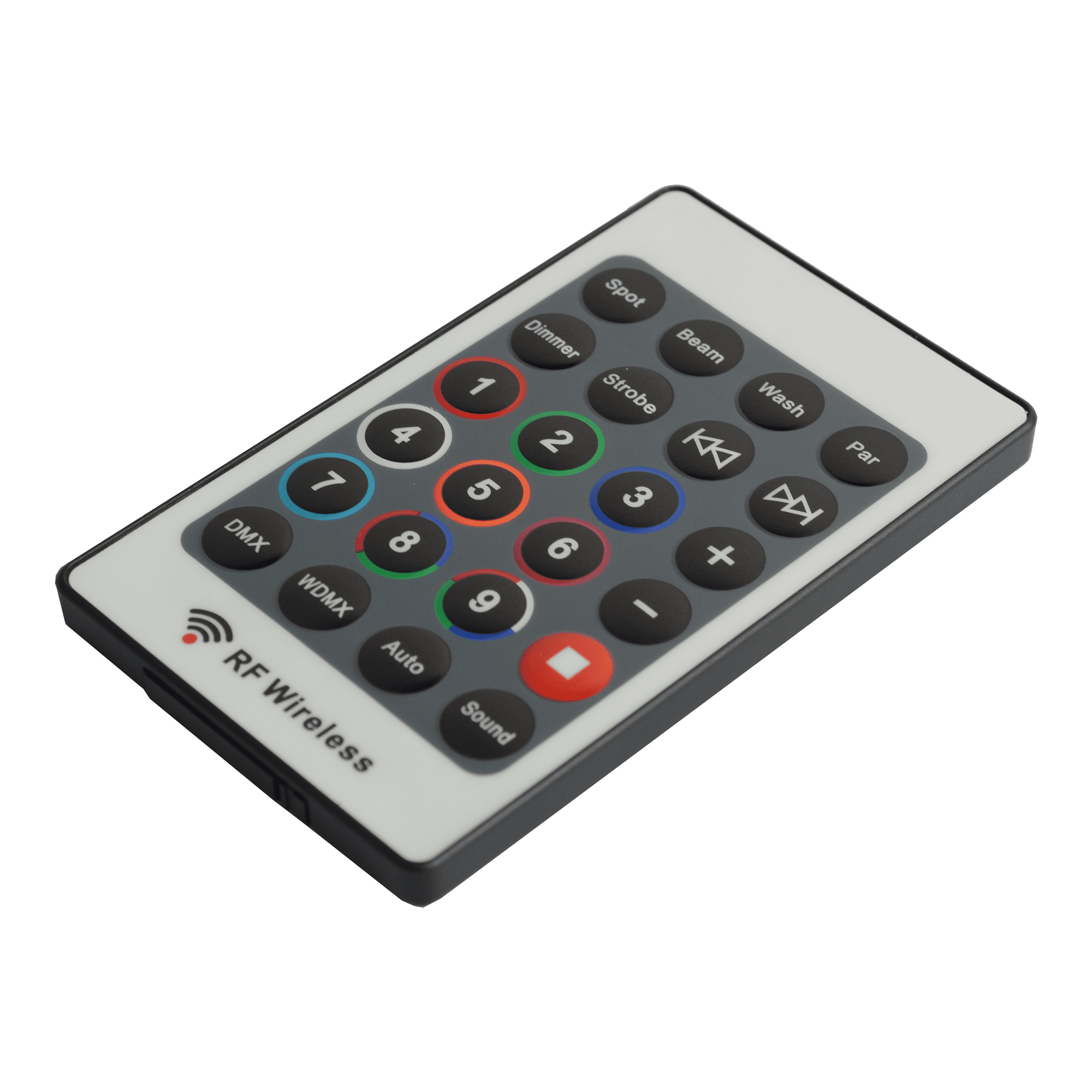

- 1 x RF Remote
