AERO SPOT 60
SKU:
JZ3003

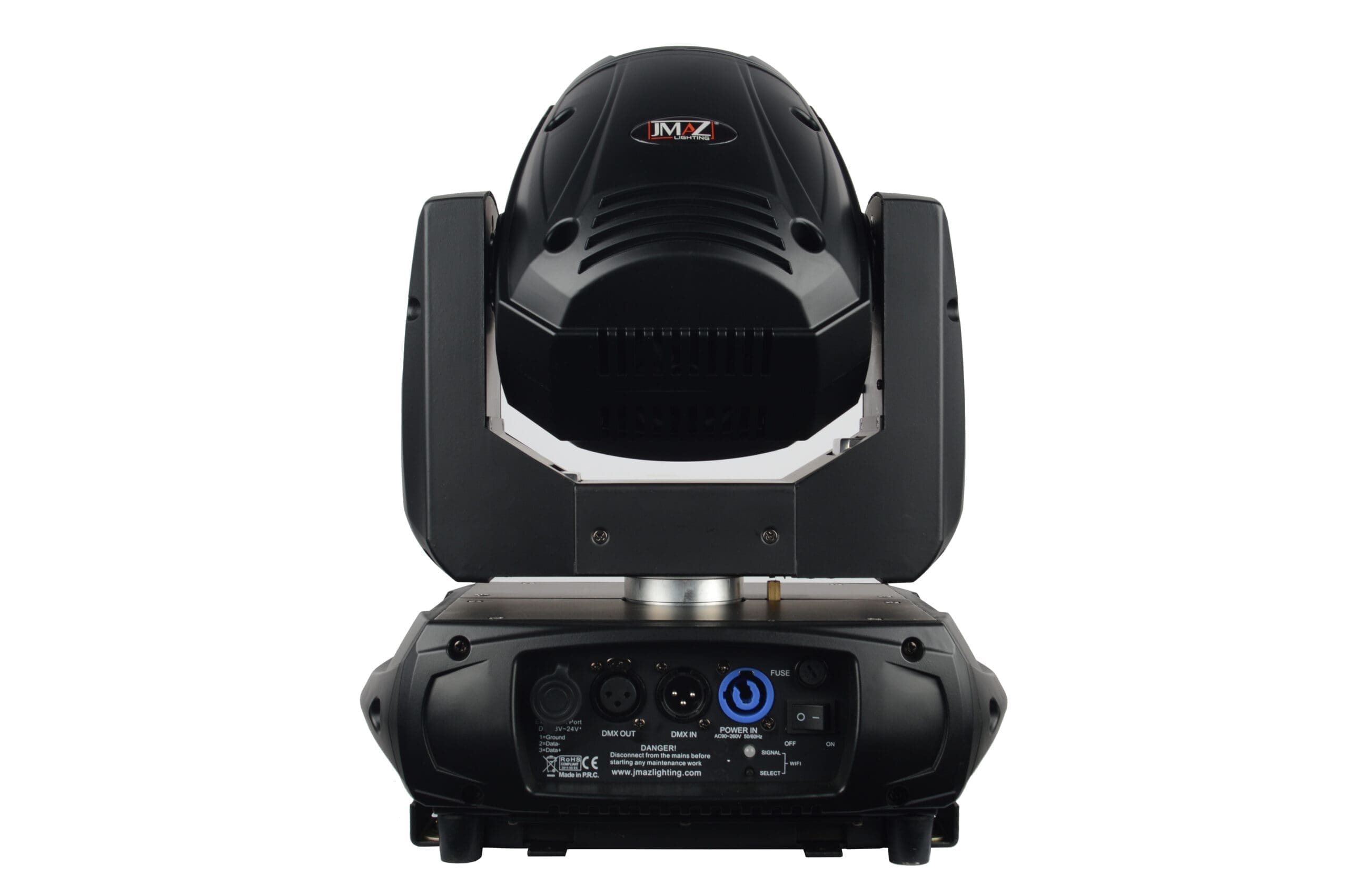

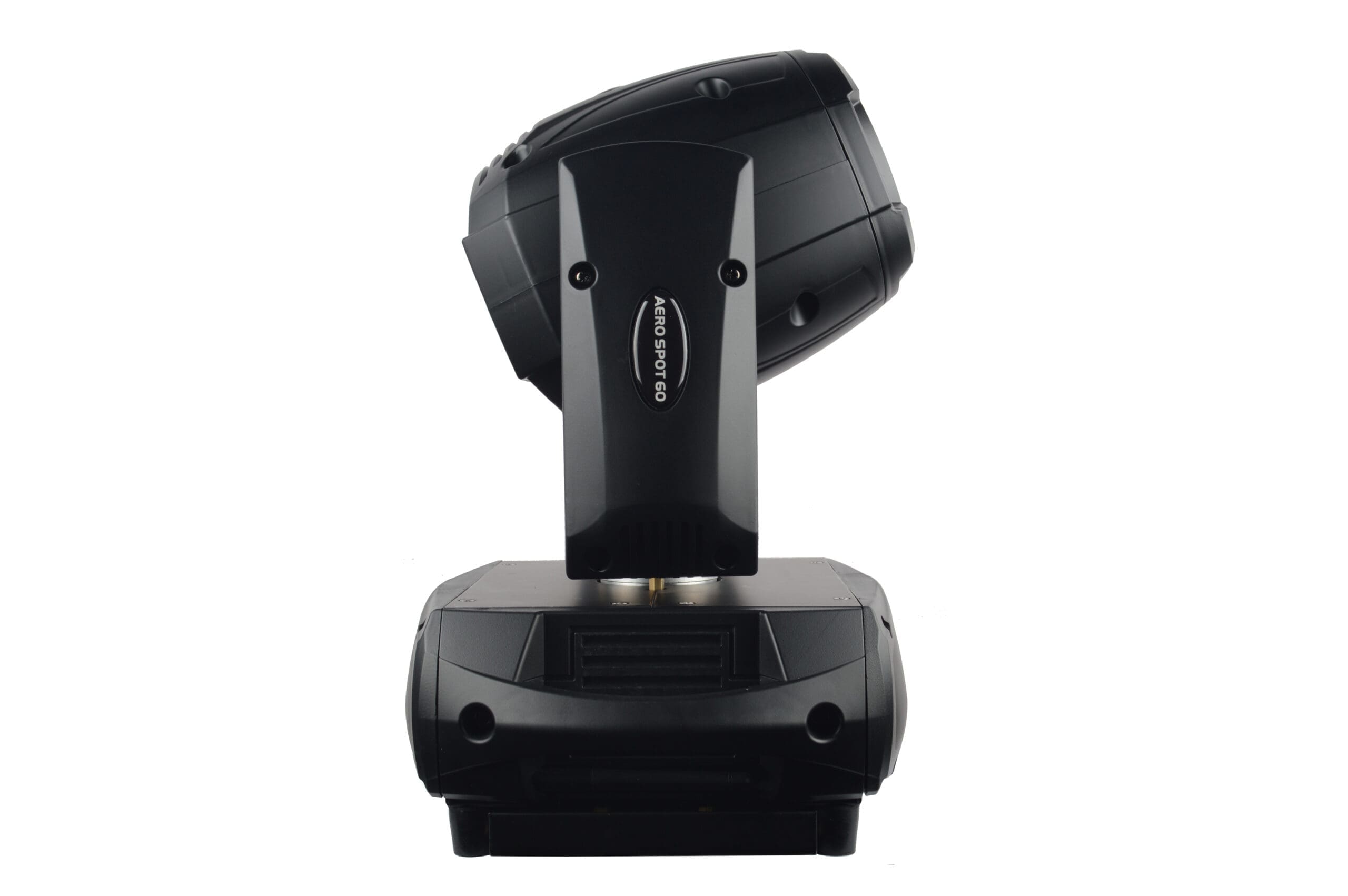

AERO SPOT 60W Battery Powered LED Moving Head
Main features:
- 60W 7500K White LED
- 8 Hour Battery Life / 10 Hour In Battery Saving Mode
- Beam Angle: 12°
- Electronic Focus
- Color Wheel: 7 Colors + Open
- 6 Interchangeable Rotating Gobos + Open w/3-Facet Prism
- Protocols: 3-Pin In/Out DMX512, Wireless DMX
- 9 Built-In Auto/Sound Programs
- Eternal Battery Port (for SKU JZ3005 Not Included)
- powerCON IN
- Included: RF Remote, Omega Bracket, powerCON Cable, DMX Cable, Safety Cable, Manual
Gallery
Product Description
The JMAZ AERO SPOT 60 Battery Powered LED Moving Head provides a powerful 60W 7500K white LED with a 12° beam angle and electronic focus. It features an 8-hour battery life (10 in saving mode), 7 colors, 6 rotating gobos with a 3-facet prism, and 9 auto/sound programs. Compatible with DMX512, wireless DMX, and RF remote control. Includes an RF remote, Omega bracket, powerCON cable, and DMX cable for versatile setup options.
Technical specifications
Light Source
- 60W 7500K White LED
- Life Span: 50,000 hrs
Color System
- Color Wheel: 7 Colors + Open
Optics
- Beam Angle: 12°
Dynamic Effect
- 6 Interchangeable Rotating Gobos + Open
- 9 Built-In Auto/Sound Programs
- Prism: 3 Facet
- Electronic Focus
- Dimmer: 0-100% Linear Dimmer
Control
- Protocols: 3-Pin In/Out DMX512, Wireless DMX
- Personalities: 2 Modes 13/15
- Wireless Control: RF Remote
- Display: 2.4″ TFT LCD Display
Electronics
- Operating Temperature: -20° C to 45° C
- Battery Type: Lithium Ion
- Charging Time: 5.5 Hours
- Battery Life: 8-10 hrs
Body
- Quick-Lock Omega Bracket
- Pan Angle: 630°
- Title Angle: 270°
- High Temperature Engineered Plastic and Cast Aluminum Casing
Physical
- Cooling: Fan
- Pan/Tilt: 8/16 bit smooth
- powerCON In
Electrical
- Max Power Consumption: 190W
- Input Voltage: AC91-260V, 50/60Hz
Box Content
- 2 x Omega Brackets
- 1 x DMX Cable
- 1 x powerCON Cable

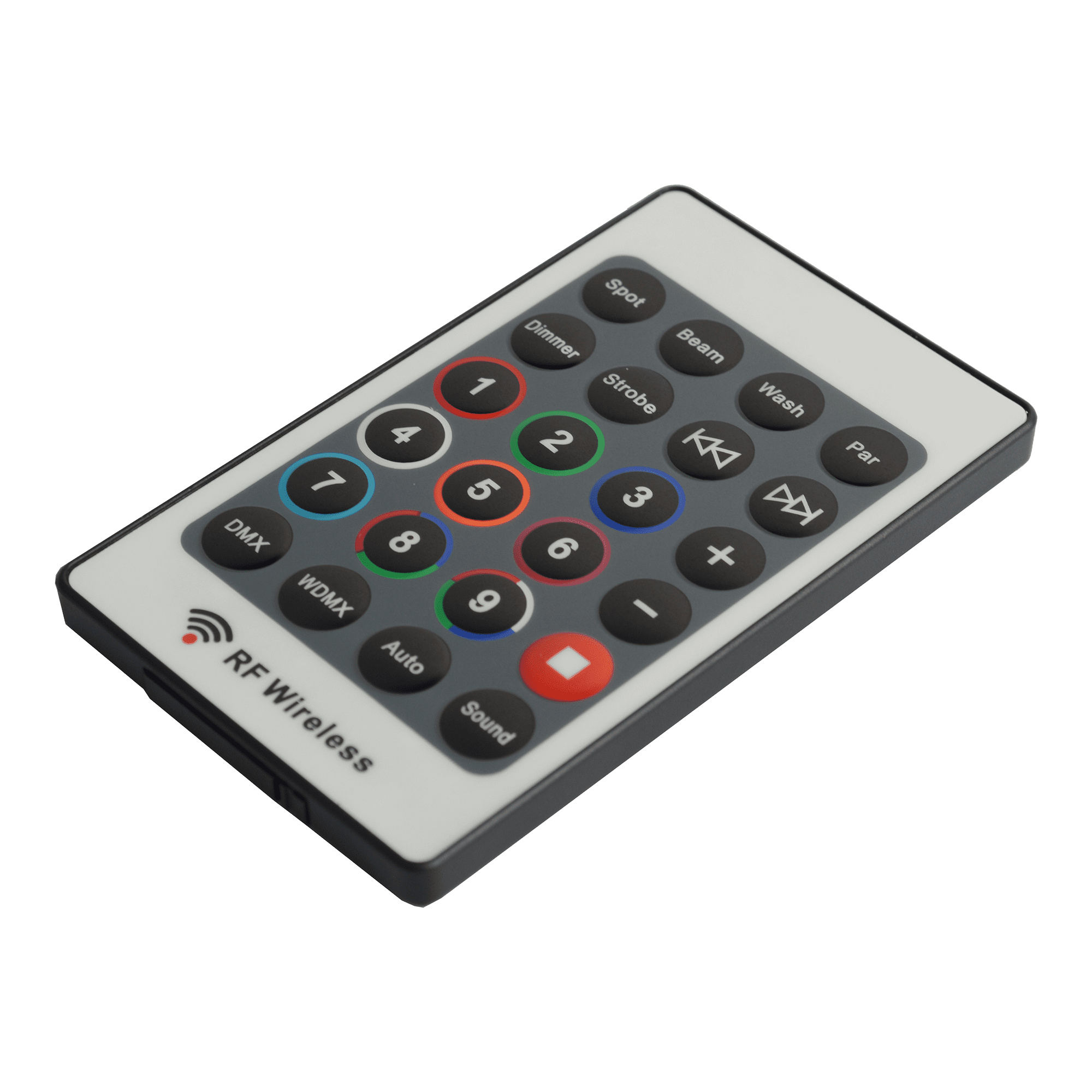

- 1 x RF Remote
- 1 x Safety Cable
- 1 x User Manual
Item Dimensions & Weight
Dimensions: 15.2″ x 15″ x 8.7″
Weight: 30.6 lbs
UPC
93674449589Warranty
2 Years *6 Month Warranty on BatteryVideo
Download
Product Data / Cut Sheet
| File name | File size | Download | |
|---|---|---|---|
 |
AEROSPOT60_Catalog_sheet.PDF | 500KB |  |
User Manual
| File name | File size | Download | |
|---|---|---|---|
|
AEROSPOT60_User_Manual.PDF | 500KB | |
DMX Charts
| File name | File size | Download | |
|---|---|---|---|
|
AEROSPOT60_DMX_Charts.PDF | 500KB | |
Profiles
| File name | File size | Download | |
|---|---|---|---|
 |
Aero Spot60_Profiles Folder | 500KB |  |
Photometrics
| File name | File size | Download | |
|---|---|---|---|
|
AEROSPOT60_Photometrics.PDF | 500KB | |
CAD Drawings
| File name | File size | Download | |
|---|---|---|---|
|
AEROSPOT60_CAD_Drawings.PDF | 500KB | |
Tech / Data Sheets
| File name | File size | Download | |
|---|---|---|---|
|
AEROSPOT60_Full_tech_sheet.PDF | 500KB | |
