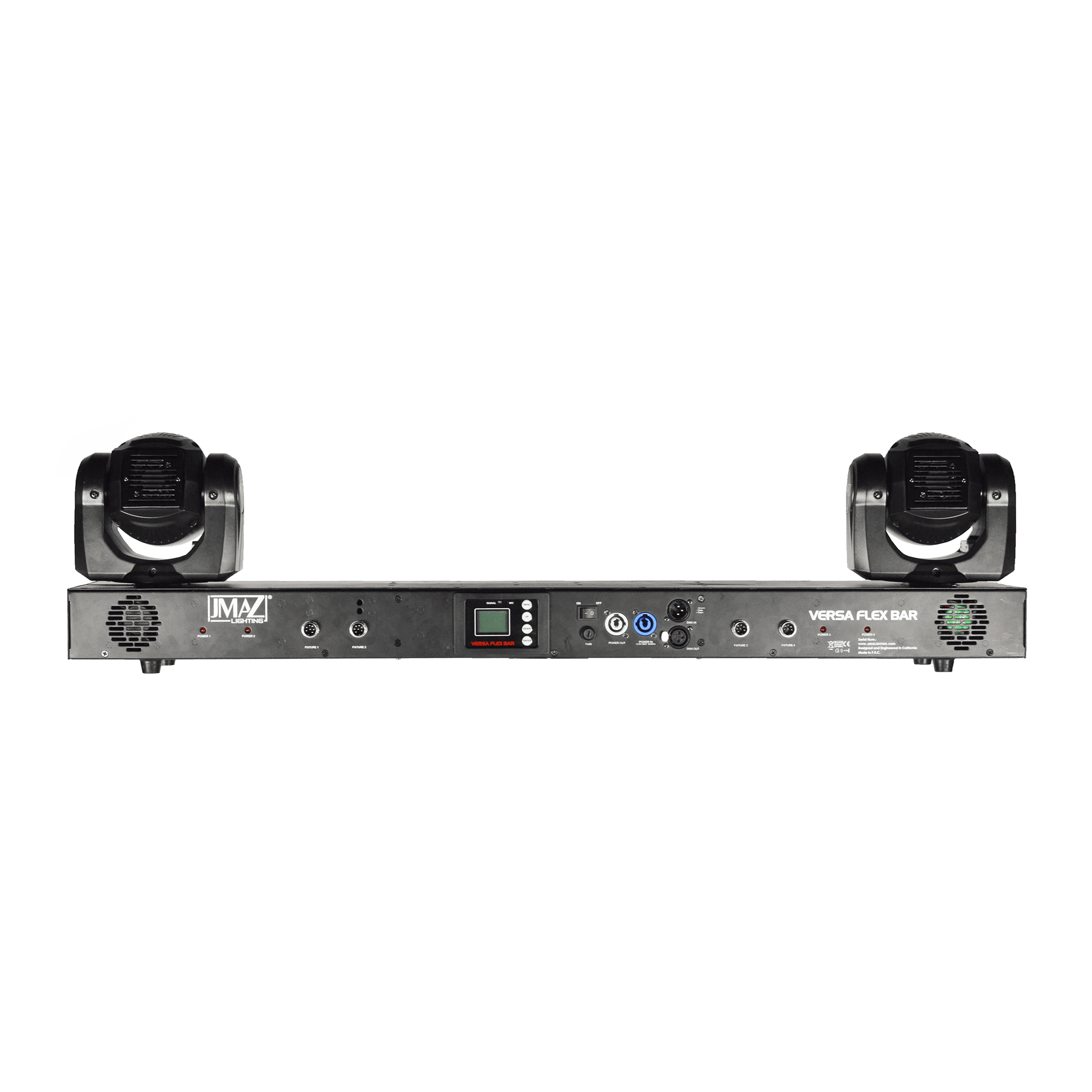

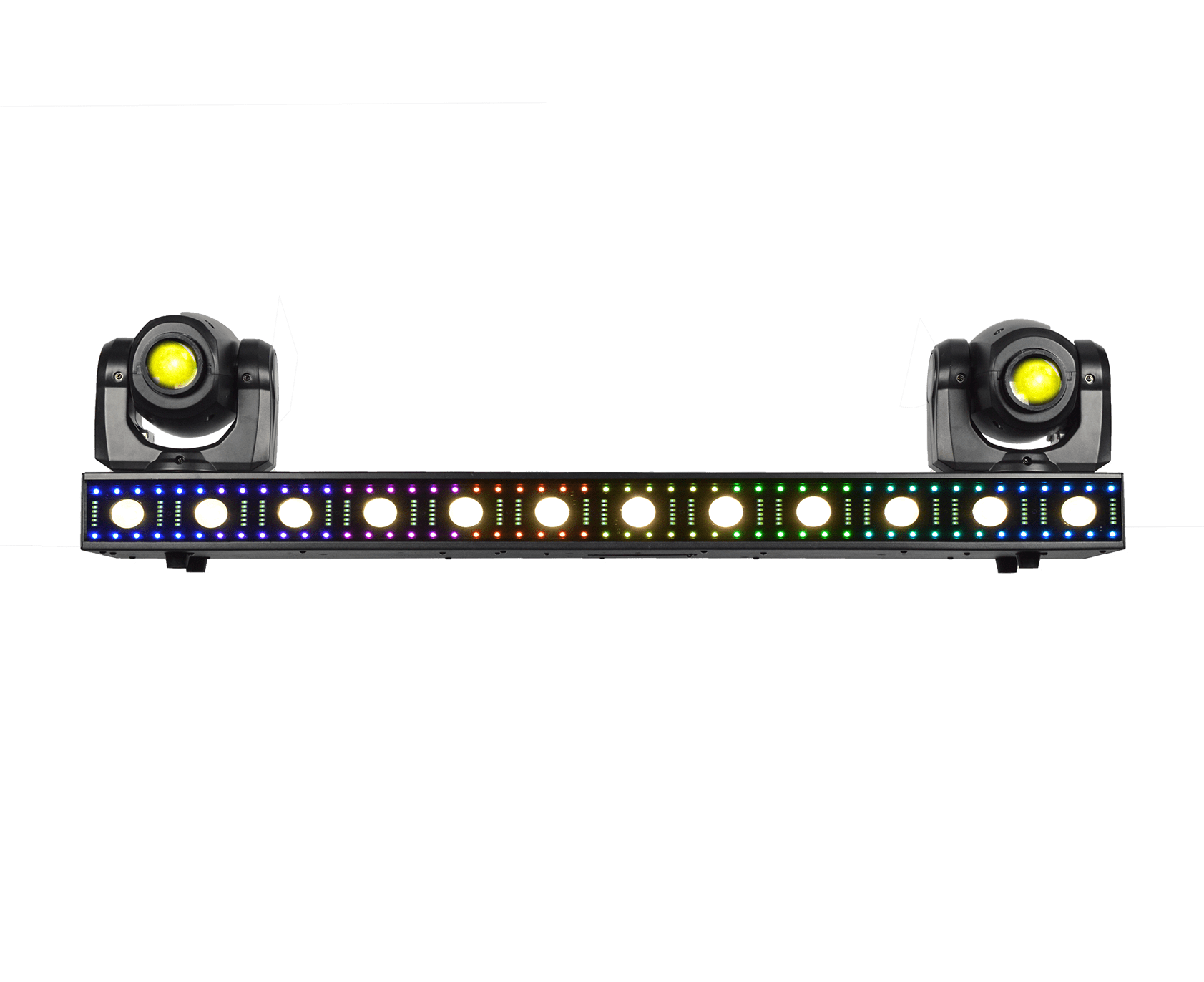

Versa Flex Bar



All-in-one Lighting System w/ 2 x 25W Spot Moving Heads and FX Bar 5050.

JMAZ Super sleek and versatile, the VERSA FLEX BAR allows you to fully customize its look. Control options include functional built in shows easily accessible via the RF remote, DMX, and sound active. Equipped with 96 RGB SMD’s, 144 cool-white SMD’s, 12 warm white LEDs, dual 25W moving heads, and endless ways to flex with a full line of pars and effects fixtures. Added flexibility with mounting options like no other, the VERSA FLEX BAR is the ultimate all in one lighting solution for your next event.

Main features:

  • 12 x 5W Warm White LED
  • 96 x 3in1 (RGB) Outer Wash SMD LED
  • 144 x Ultra White Inner Strobe SMD LED
  • DMX, Master/Slave, Stand Alone, Sound Activated, RF Remote
  • 5W White LED Per Mover, 7 Static Gobos + Open Wheel, 7 Colors + Open Wheel

Technical specifications

Light Source

  • Source: 96 x 0.5W RGB SMDs, 144 x 0.5 CW SMDs, 12 x 5W WW LEDs, 2 x 25W White LEDs

Color System

  • Warm White LEDs
  • Color LEDs: RGB
  • Color Wheel: 6 + Open


  • Die-cast aluminum alloy


  • Dimmer: 0-100% Linear Dimmer
  • Strobe/Shutter: 25 T/sec


  • Mains Power Supply:AC Mains
  • Input Voltage: 110-240V, 50HZ/60HZ




  • WW LEDs: 26° Beam Angle
  • Moving Heads: 14° Beam Angle

Dynamic Effect

  • RGB Wash Effect
  • Strobe
  • Beam Effect
  • Dynamic RGB
  • Zone Control
  • Moving Head Totem s


  • Protocols: DMX512
  • DMX Channels: 25/35/45/83 Channel Modes


  • IP Rating: 20
  • Cooling: Fan
  • Data Connection: DMX
  • Power Connection: Power-CON
  • Dimensions: 39.8″” x 5.9″” x 23.2″”
  • Weight: 41.3 lbs

Box Content

  • 1 x Versa Flex Bar
  • 1 x User Manual
  • 1 x Tripod Mount
  • 1 x 3ft 3-pin DMX Chord
  • 1 x 3ft PowerCON Chord
  • 1 x RF Remote



User Manual

File name File size Download
Letter datasheet VersaFlexBar_Quick_Start_Guide_Manual1.PDF 500KB Letter datasheet
Letter datasheet VersaFlexBar_User_Manual.PDF 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet VersaFlexBar_DMX_Charts.PDF 500KB Letter datasheet


File name File size Download
Letter datasheet VersaFlexBar_.PDF 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet VersaFlexBar_CAD_Drawings.PDF 500KB Letter datasheet

Tech / Data Sheets

File name File size Download
Letter datasheet VersaFlexBar_.PDF 500KB Letter datasheet
