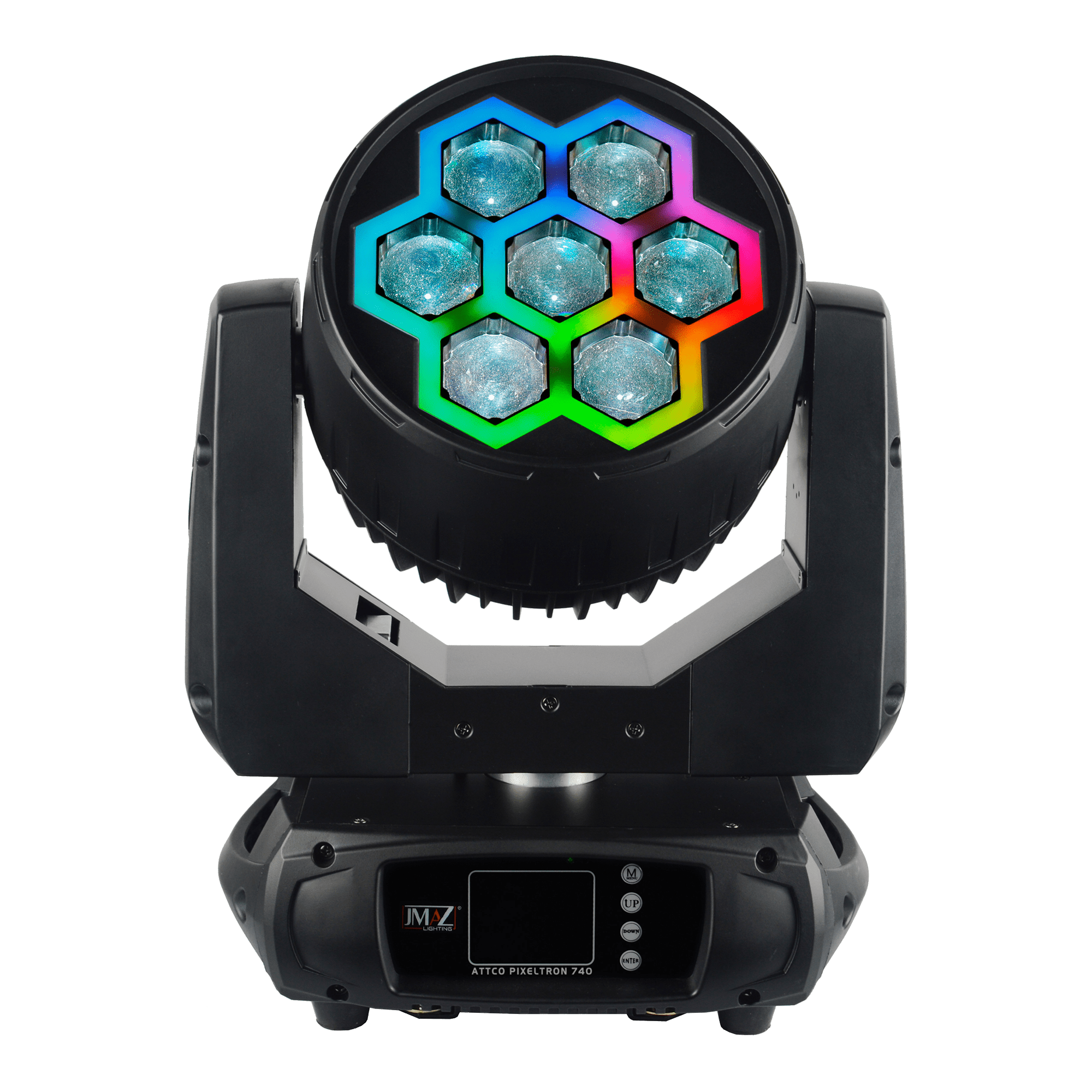

PIXL TRON 740Z

SKU:

JZ3017

7 x 30W RGBW LED Wash Moving Head w/ Zoom and Tron effects

MAZ PIXL TRON 740Z LED Wash Moving Head. Give your performance the best stage presence and amazing “eye candy”. Wow your crowd with 280 Watts of brightness, 7 RGBW pixelated LED’s, and a graphic overlay with TRON-like effects. The endless control capabilities range from built-in Wi-Maz wireless DMX technology, wired DMX, Sound mode, and even built-in Auto/shows. With all these features and functions the PIXL Tron 740 is a must have for your next event. Perfect for on-the-go performers, professional stages, night clubs and super attractive for music video productions.

Main features:

  • 7 x 40W 4-IN-1 Quad RGBW LEDS & 90 x 0.2W RGB LEDs
  • DMX512, Master-slave, Sound Active and Built-in Shows
  • Individually Pixel Control on Each led, and Pixel Control Rings
  • Built-in Wireless DMX Technology

Technical specifications

Light Source

  • Source: 7 x 40W RGBW LEDs, 90 x 0.2W RGB SMDs

Color System

  • Color LEDs: RGBW
  • Color SMDs: RGB

Body

  • Hardware On-Board: sockets for quick-Lock Omega bracket
  • Pan Angle: 630°
  • Title Angle: 270°
  • Pan/Tilt Resolution: 8 / 16 Bit
  • Feedback: Scan position memory, auto reposition after unexpected movement
  • Body: High Temperature Engineered Plastic and Cast Aluminum Casing
  • Body Colour: Black

Electronics

  • Dimmer: 0-100% Linear Dimmer

Electrical

  • Mains Power Supply:AC Mains
  • Max Power Consumption: 350W
  • Input Voltage: 110-240V, 50HZ/60HZ

UPC

093674449916

Optics

  • Zoom: 6° to 60°

Dynamic Effect

  • Honeycomb Tron Effect Overlay
  • Strobe Effect
  • Wash Effect

Control

  • Protocols: DMX512, W-DMX, Wi-MAZ Wireless DMX
  • DMX Channels: 25/31/59 Channel Modes
  • Wireless Control: Wi-MAZ Wireless DMX, W-DMX, RF Remote
  • Display: 2.4″” TFT LCD Display
  • Firmware Upgrade: Yes, USB-DMX Interface, not included.

Physical

  • IP Rating: 20
  • Cooling: Fan
  • Pan/Tilt:8/16 bit smooth
  • Data Connection: DMX, Wireless DMX
  • Power Connection: Power-CON
  • Dimensions: 12″” x 15.6 x 15.6″”
  • Weight: 21 lbs

Box Content

  • 1 x PIXL Tron 740Z
  • 1 x User Manual
  • 2 x Omega Brackets
  • 1 x 3ft 3-pin DMX Chord
  • 1 x 3ft PowerCON Chord
  • 1 x RF Remote

Download

Product Data / Cut Sheet

File name File size Download
Letter datasheet PIXLTRON740Z_Product_Data / Cut_Sheet.PDF 500KB Letter datasheet

User Manual

File name File size Download
Letter datasheet PIXLTRON740Z_User_Manual.PDF 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet PIXLTRON740Z_DMX_Charts.PDF 500KB Letter datasheet

Profiles

File name File size Download
PIXL TRON740Z_Profiles Folder 500KB

Photometrics

File name File size Download
Letter datasheet PIXLTRON740Z_Photometrics.PDF 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet PIXLTRON740Z_CAD_Drawings.PDF 500KB Letter datasheet

Tech / Data Sheets

File name File size Download
Letter datasheet PIXLTRON740Z_Full_Cut_Sheet.PDF 500KB Letter datasheet
