WI-MAZ BP
SKU:
JZ6004

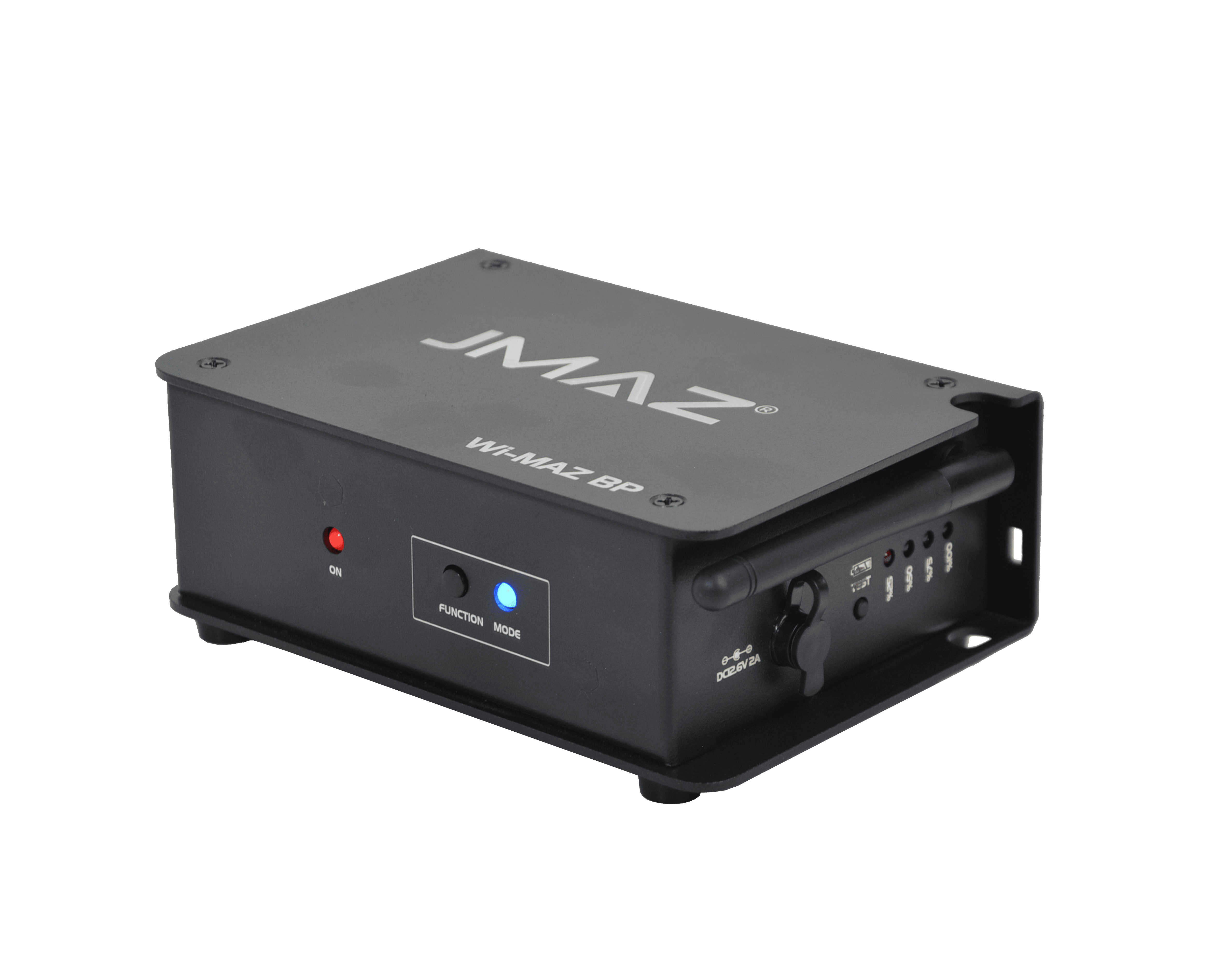

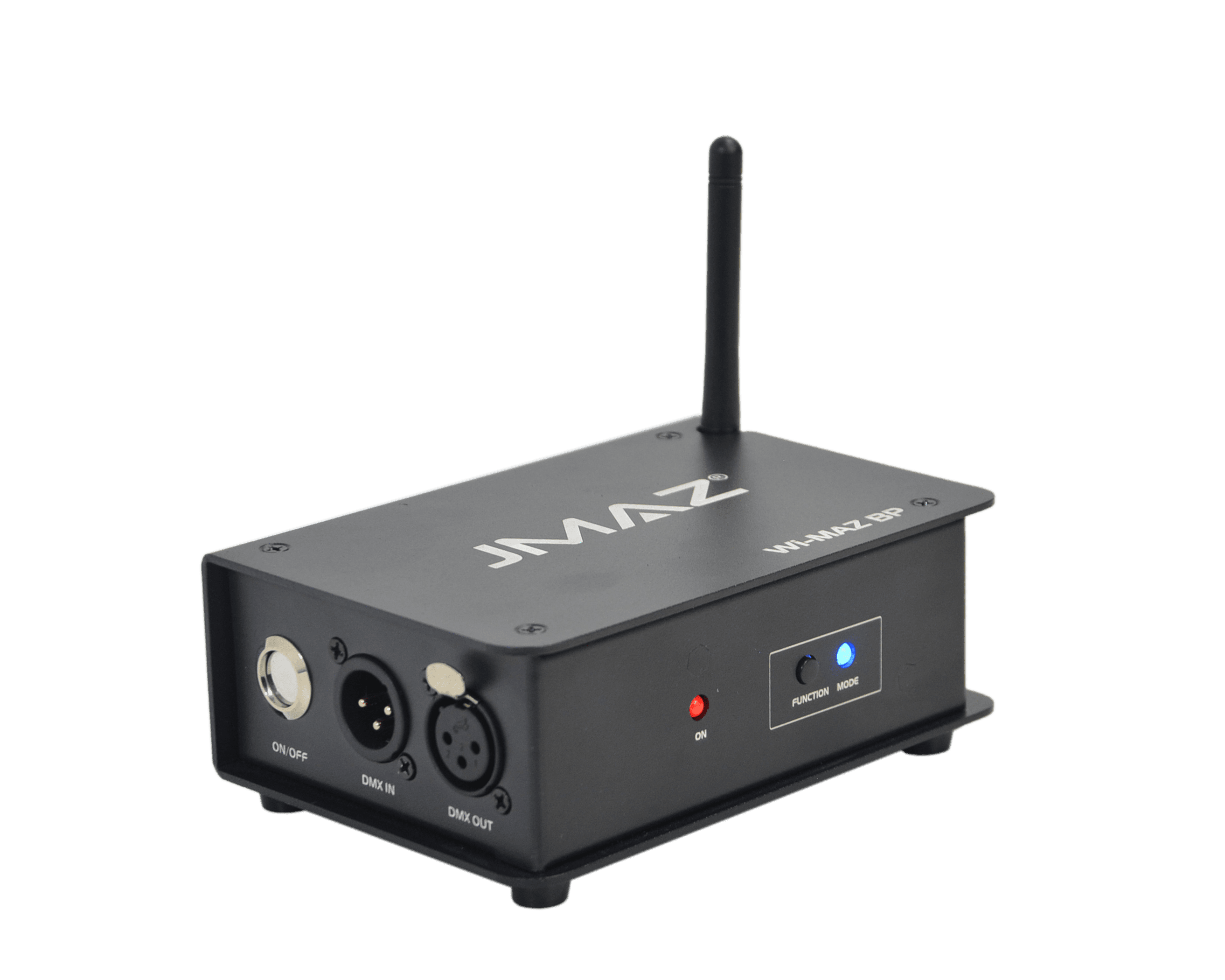

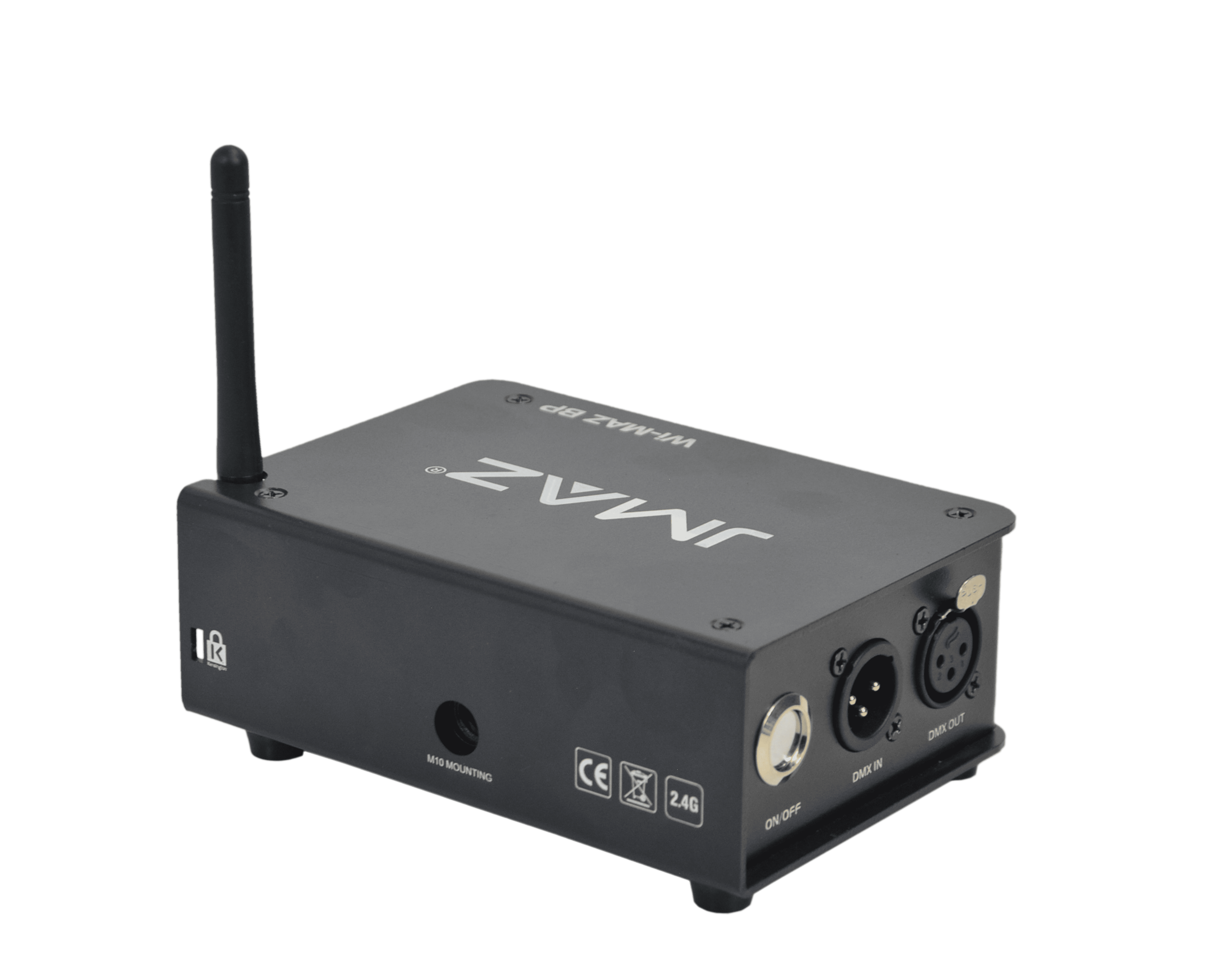

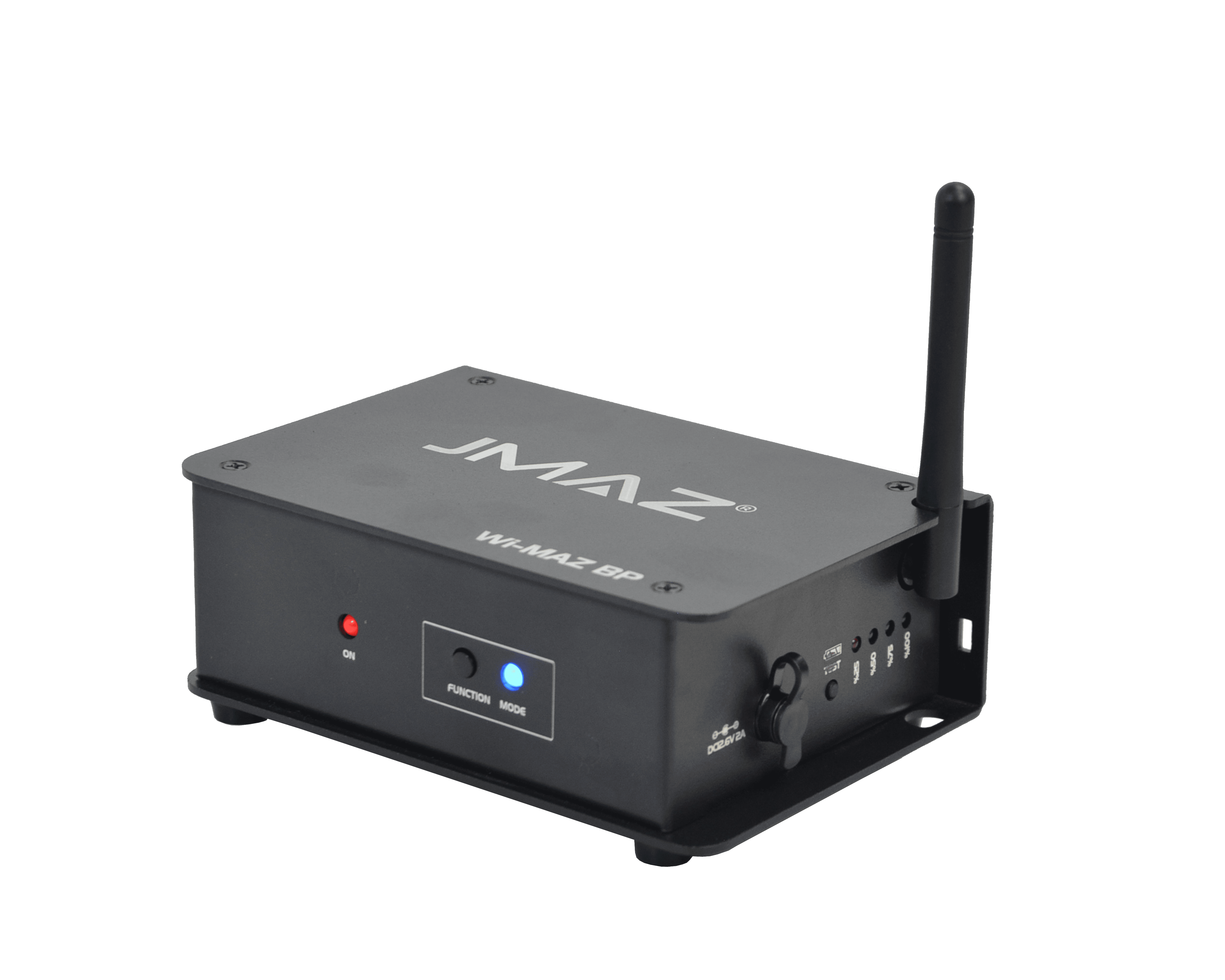

Wi-MAZ Battery Powered Wireless DMX Transreceiver
Main features:
- Extended Wireless Range: Transmit DMX signals up to
1600 feet (500 meters) with ultra-stable wireless
technology. (Line of Sight) - 2.4GHz Wireless DMX: Utilizes the reliable 2.4GHz
frequency for smooth and consistent performance. - Multi-Protocol Compatibility: Easily switch between
multiple wireless DMX protocols, including Wi-DMX, WTRN, W-RCV, and Generic Protocol. - True Wireless Operation: Battery-Powered design with
no data or power cables required-delivers up to 80 hours
of runtime in receiver mode, and 20 hours in transmitter
mode. - 3-Pin DMX I/O: Includes 3-pin DMX Input and Output
ports for versatile system integration. - Auto Transmit/Receive Switching: Seamlessly switch
between transmit and receive modes with a single device. - Includes: USB Power Cable, Transmit/Receive Converter, A/C to USB Power Adaptor, Manual
- Battery Type: Lithium Ion **UL LISTED**
Product Description
The JMAZ Wi-MAZ BP is a versatile, battery-powered wireless DMX transceiver built for professional lighting setups on the go. Designed to operate as either a transmitter or receiver, it supports Wireless DMX512 over a stable 2.4GHz frequency with auto-select frequency hopping for interference-free performance. With 7 selectable DMX ID groups, multiple units can run simultaneously without signal overlap.
This compact unit features a quick 2-hour charging time and offers exceptional battery life—up to 80 hours in receiver mode and 20 hours in transmitter mode—making it ideal for all-day or multi-day events. The included 3-pin DMX in/out converter allows for seamless integration with wired DMX systems.
Housed in a durable, travel-friendly form factor, the Wi-MAZ BP includes a USB power cable, AC to USB power adapter, transmit/receive converter, and manual. Its UL-listed lithium-ion battery ensures both safety and reliability in demanding environments.
Whether you’re a mobile DJ, lighting tech, or installer, the JMAZ Wi-MAZ BP provides a simple and powerful solution for wireless DMX control anywhere.
Technical specifications
Control
- Wired: 3-Pin DMX IN/OUT
- Wireless DMX Protocol: WiDMX, W-TRN, W-RCV, Generic
- Range: 1600ft (500 Meters) Line of Sight
Electronics
- Input Voltage: 100V – 240V AC, 50/60Hz
- Power Consumption: 2W
- Battery Voltage: 11.1V
- Battery Capacity: 2500mAh, 28.86 Wh/Hour
- Rechargeable Battery Type: Lithium Ion **UL LISTED**
- Charging Time: 2 Hours
- Battery Time (Receiver): 80 Hours
- Battery Time (Transmitter): 20 Hours
- Antenna Gain: 3dBi
- Carrier Frequency: 2.4GHz
- Modulation: GFSK
- Sensitivity: -93dBm
Body
- Aluminum
Physical
- Cooling: Fanless
- Theft Protection: Kensington Lock
- Attachment System: M10 Thread for Clamp Connection
- IP Rating: IP20
- RoHS, CE, FCC
- Operating Temperature: -10° °C (14° F) to 60° C (140° F)
Box Content
- 1 x A/C to USB Power Adaptor
- 1 x Manual
Item Dimensions & Weight
- Dimensions: 5.5″ x 3.8″ x 2.2″
- Weight: 1.8lbs (0.8kg)
UPC
618528599045Download
