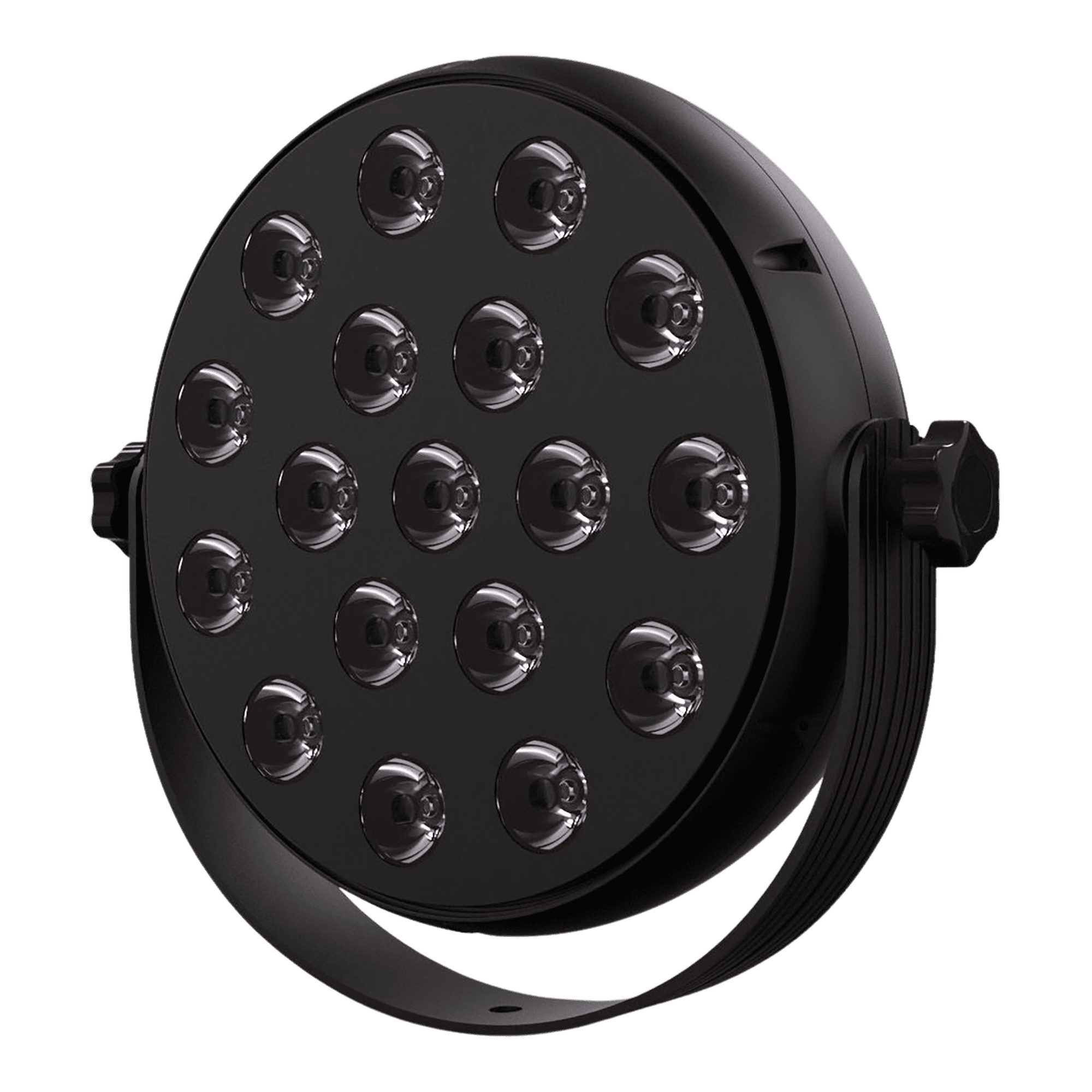

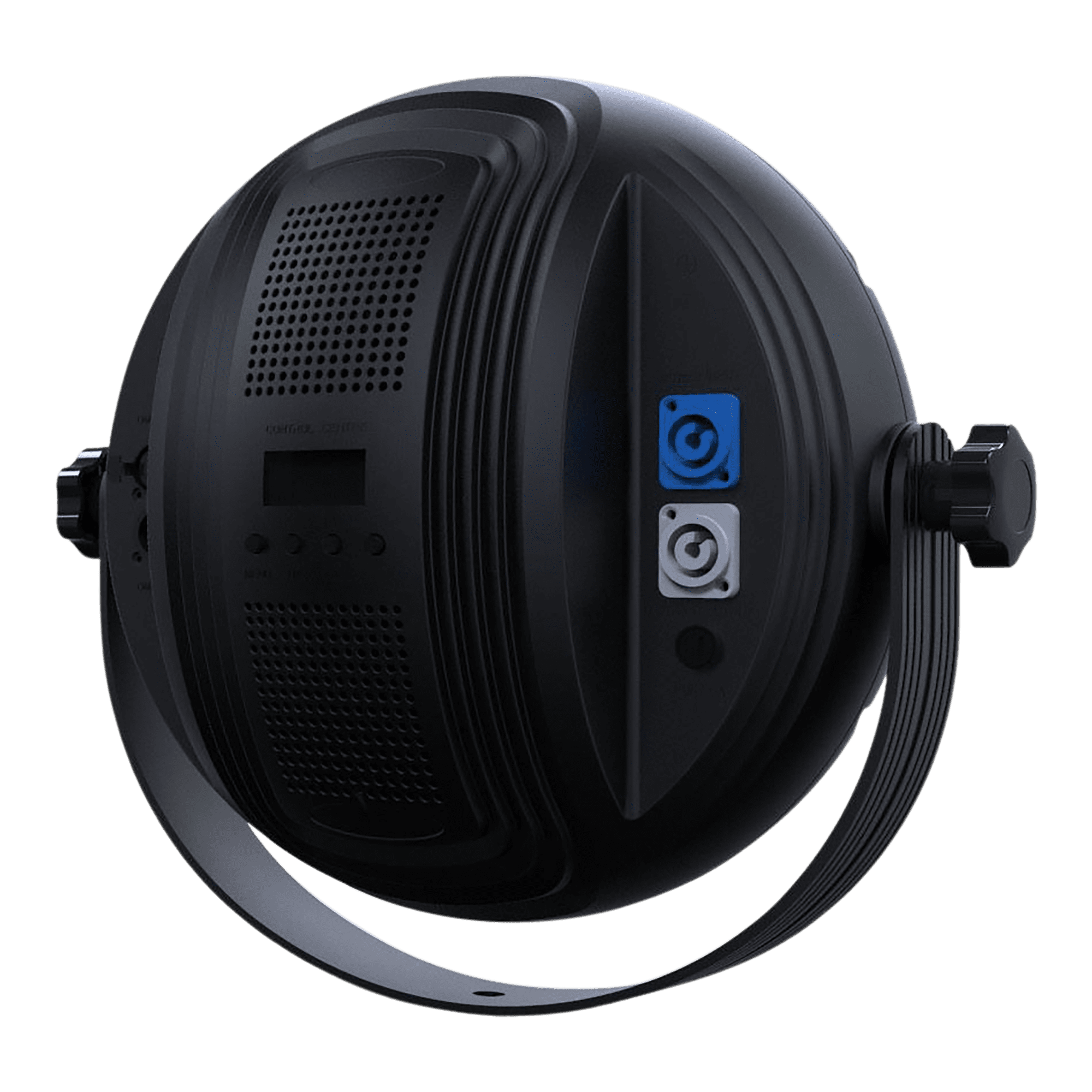

HALO H6 Wash

SKU:

JZ1020

HALO H6 WASH 216W RGBWA+UV LED

Main features:

  • 216W (18 x 12W) RGBWA+UV LEDs
  • CCT: 2800K – 8000K
  • Wash Beam Angle: 25°
  • Strobe 25Hz Effect
  • 6 Preset Color Programs
  • 15 Auto Bulit In Programs
  • 15 Advanced Sound Active Mode
  • Protocols: 3-Pin In/Out DMX512
  • powerCON In/Out
  • Included: powerCON Cable, DMX Cable

Product Description

The JMAZ HALO H6 WASH 216W RGBWA+UV LED features 216W (18 x 12W) RGBWA+UV LEDs with a 25° wash beam angle, providing vibrant color mixing with CCT from 2800K to 8000K. Equipped with a 25Hz strobe effect, 6 preset color programs, 15 auto-built-in programs, and 15 advanced sound active modes, this light offers flexible options. Control via 3-pin DMX512 and powerCON In/Out. Includes powerCON and DMX cables for easy setup.

Technical specifications

Light Source

  • 18 x 12W RGBWA+UV LEDs
  • CCT: 2800K – 8000K

Color System

  • RGBWA+UV LEDs

Optics

  • Beam Angle: 25°

Dynamic Effect

  • 6 Preset Color Programs
  • 15 Auto Bulit In Programs
  • 15 Advanced Sound Active Mode
  • Strobe 25Hz Effect
  • Wash Effect

Control

  • Protocols: 3-Pin In/Out DMX512
  • Personalities: 4 Modes 8/10/14/26

Electronics

  • Dimmer: 0-100% Linear Dimmer

Body

  • ABS Die-Cast Plastic w/ Aluminum Structure

Physical

  • Cooling: Fan
  • 3-Pin In/Out DMX512
  • powerCON In/Out

Electrical

  • Max Power Consumption: 250W
  • Input Voltage: AC 100-240V, 50HZ/60HZ

Box Content

  • 1 x User Manual
  • 1 x 3-pin DMX Cable
  • 1 x powerCON Cable

Item Dimensions & Weight

  • Dimensions: 16.1″ x 15″ x 7.5″
  • Weight: 10.5 lbs

UPC

93674449756

Warranty

2 Years

Download

User Manual

File name File size Download
Letter datasheet HALOH6Wash_User_Manual.pdf 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet HALOH6Wash_DMX_Charts.PDF 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet HALOH6Wash_CAD_Drawings.PDF 500KB Letter datasheet

Tech / Data Sheets

File name File size Download
Letter datasheet HALOH6Wash_Full_cut_sheet.PDF 500KB Letter datasheet
