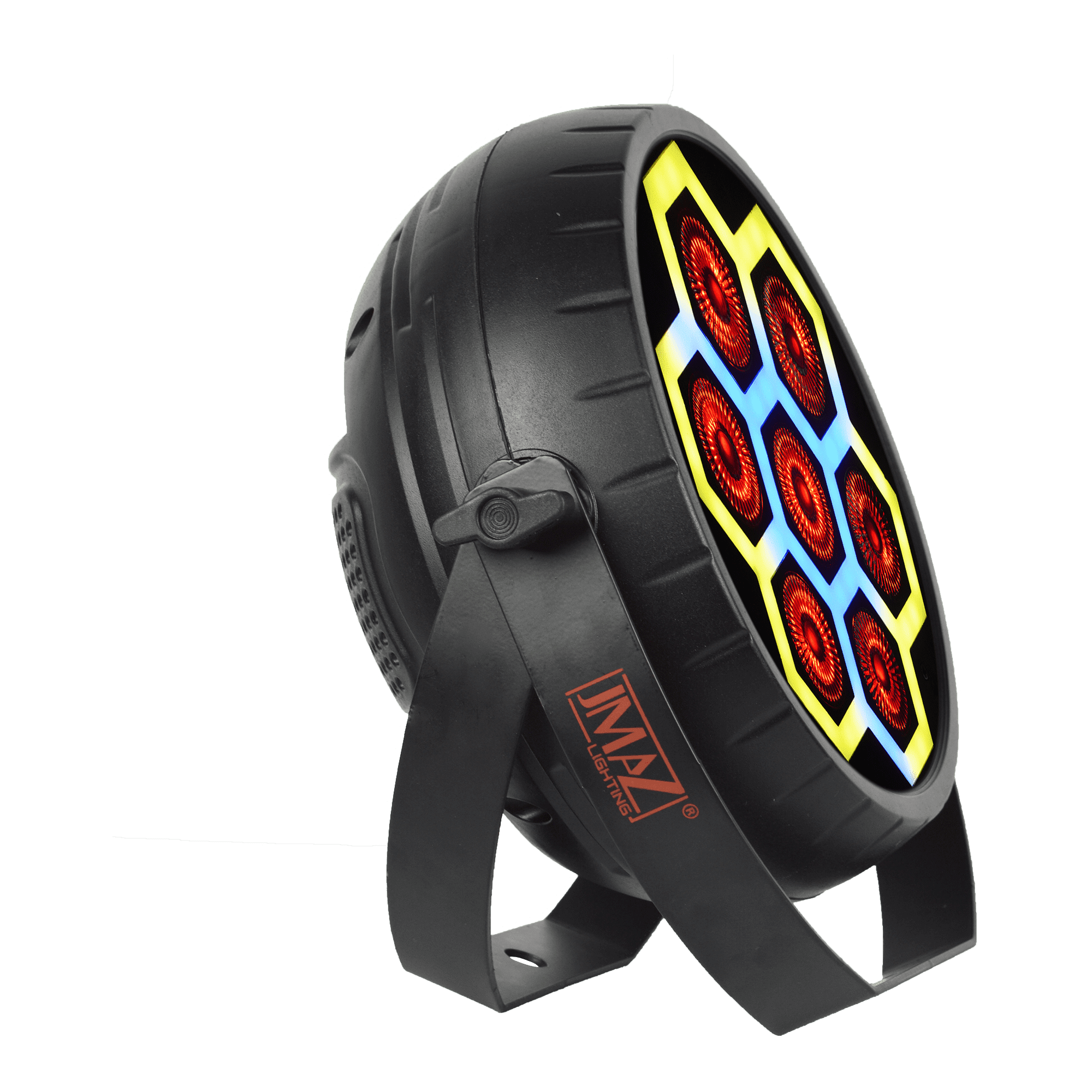

Radiant Par TRON7



7 x 12W RGBW LED Wash Par w/ 60 x 0.2W RGB SMD Tron effect overlay

JMAZ RADIANT PAR TRON7 delivers eye catching light shows. Controls include DMX and sound active. Powered by 7 x 12W HEX color (RGBWA-UV) LED’s and 60 x 0.2W RGB LED’s to create graphic overlay and color macros ranging from 2800K to 8000k. Measuring 10.4” in diameter, the RADIANT PAR TRON7 will add character to any event.

Main features:

  • 7 x 12 Watt HEX (RGBWA+UV) LED + 60 x 0.2 Watt RGB LED
  • DMX, Master/Slave, Stand Alone, Sound Activated, IR Remote Control
  • Power-con In/Out, 5-Pin DMX In/Out
  • Color Temperature Macros from 2800K~8000K

Technical specifications

Light Source

  • Source: 7 x 12W RGBW LEDs & 0.2W RGB SMDs

Color System

  • Color LEDs: RGBWA+UV
  • Color SMDs: RGB


  • ABS die-cast plastic w/ aluminum structure


  • Dimmer: 0-100% Linear Dimmer
  • Strobe/Shutter: 25 T/sec
  • Color Temperature: 2800 – 8000k


  • Mains Power Supply:AC Mains
  • Max Power Consumption: 110W
  • Input Voltage: AC 90-260V, 50HZ/60HZ




  • Beam Angle: 20°

Dynamic Effect

  • Honeycomb Overlay
  • Wash Effect
  • Strobe Effect


  • Protocols: DMX512
  • DMX Channels: 8/10/14/26 Channel Modes
  • Wireless Control: IR Remote
  • Firmware Upgrade: Yes, USB-DMX Interface, not included.


  • IP Rating: 20
  • Cooling: Fan
  • Data Connection: 5-PinDMX
  • Power Connection: Power-CON
  • Dimensions: 10.4″” x 8.3″” x 4.6″”
  • Weight: 5.2 lbs

Box Content

  • 1 x Radiant Par TRON7
  • 1 x User Manual
  • 2 x Mounting Brackets
  • 1 x 3ft 5-pin DMX Chord
  • 1 x 3ft PowerCON Chord
  • 1 x IR Remote


User Manual

File name File size Download
Letter datasheet RadiantParTRON7_User_Manual.PDF 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet RadiantParTRON7_DMX_Charts.PDF 500KB Letter datasheet


File name File size Download
RadiantParTron7_Profiles Folder 500KB


File name File size Download
Letter datasheet RadiantParTRON7_Photometrics.PDF 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet RadiantParTRON7_CAD_Drawings.PDF 500KB Letter datasheet
