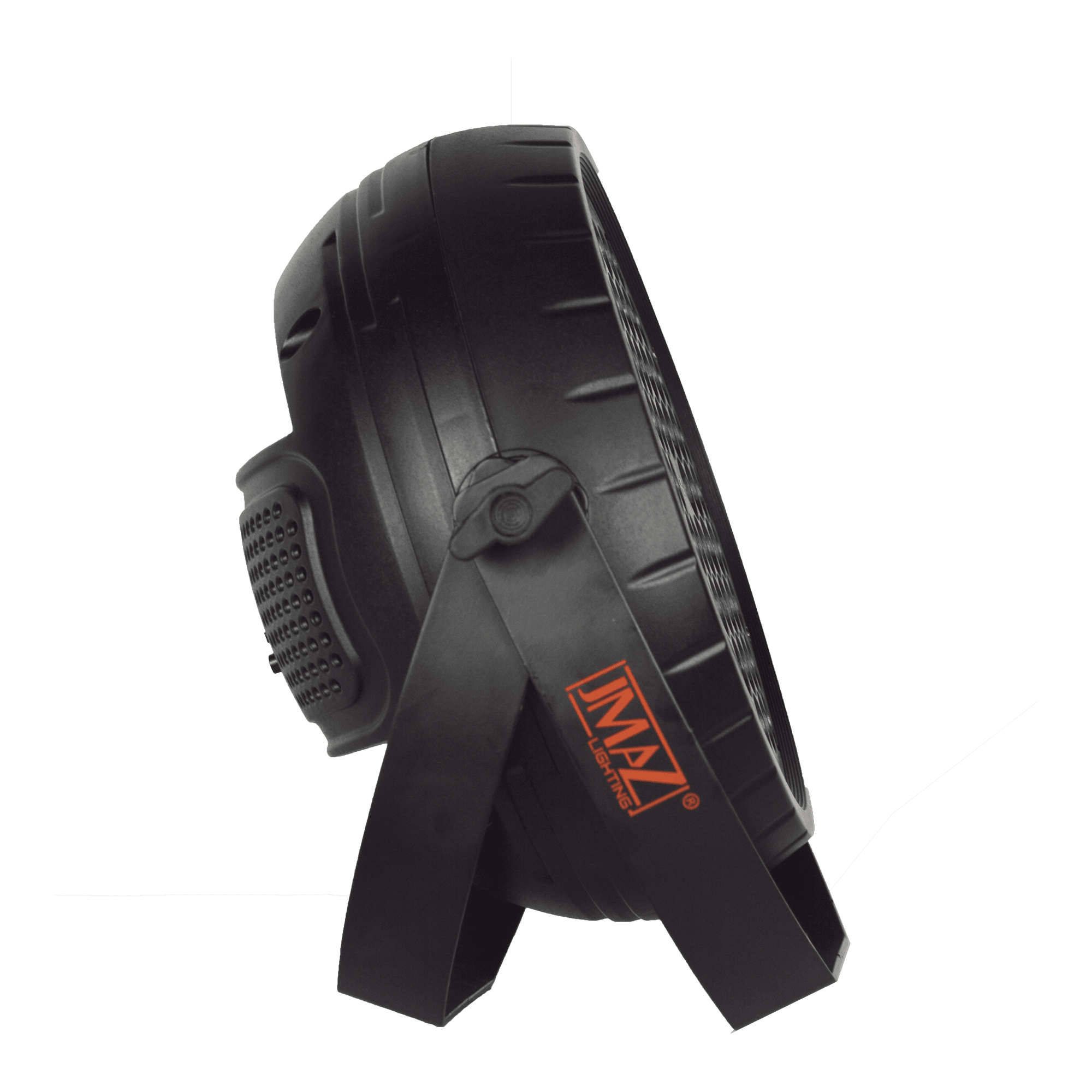

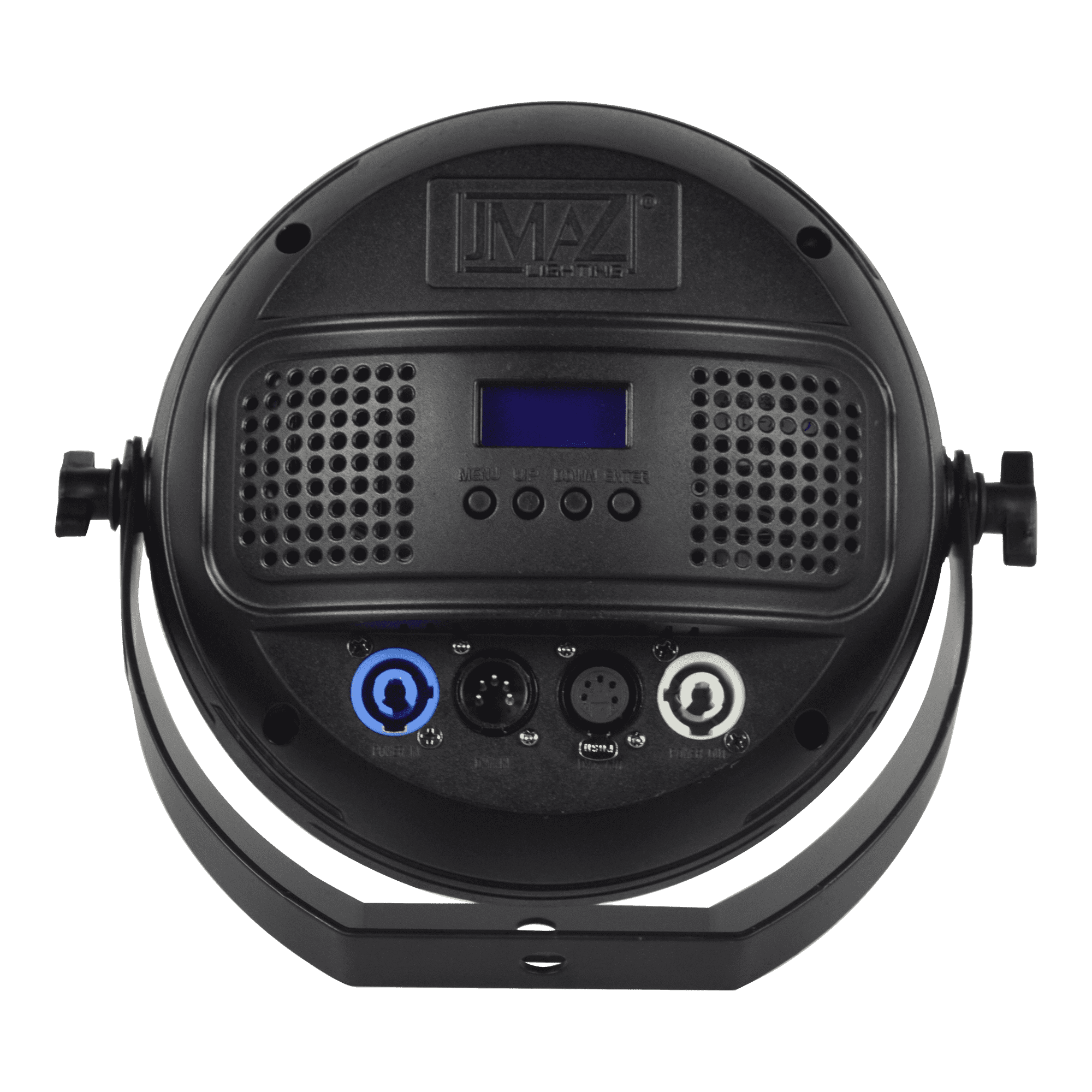

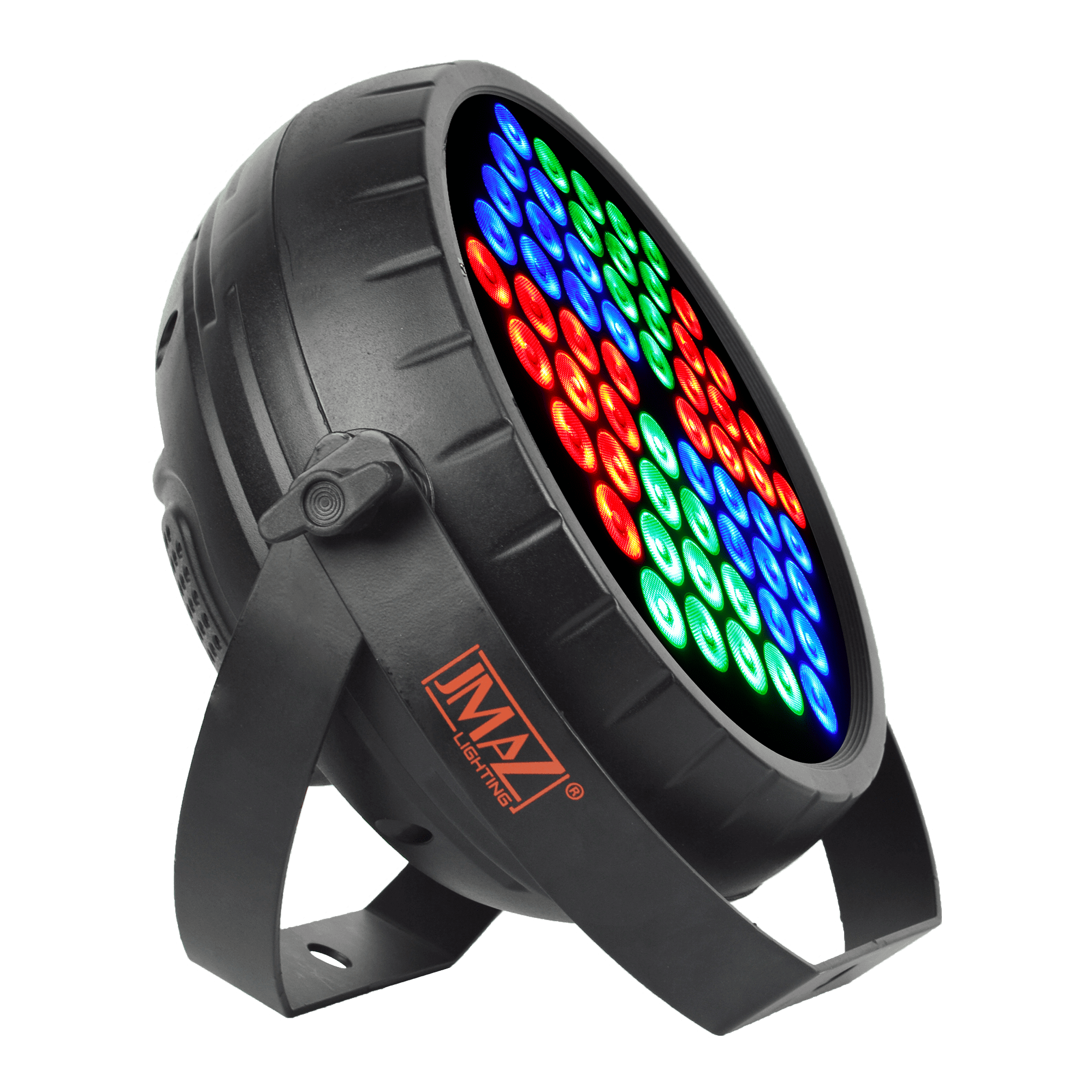

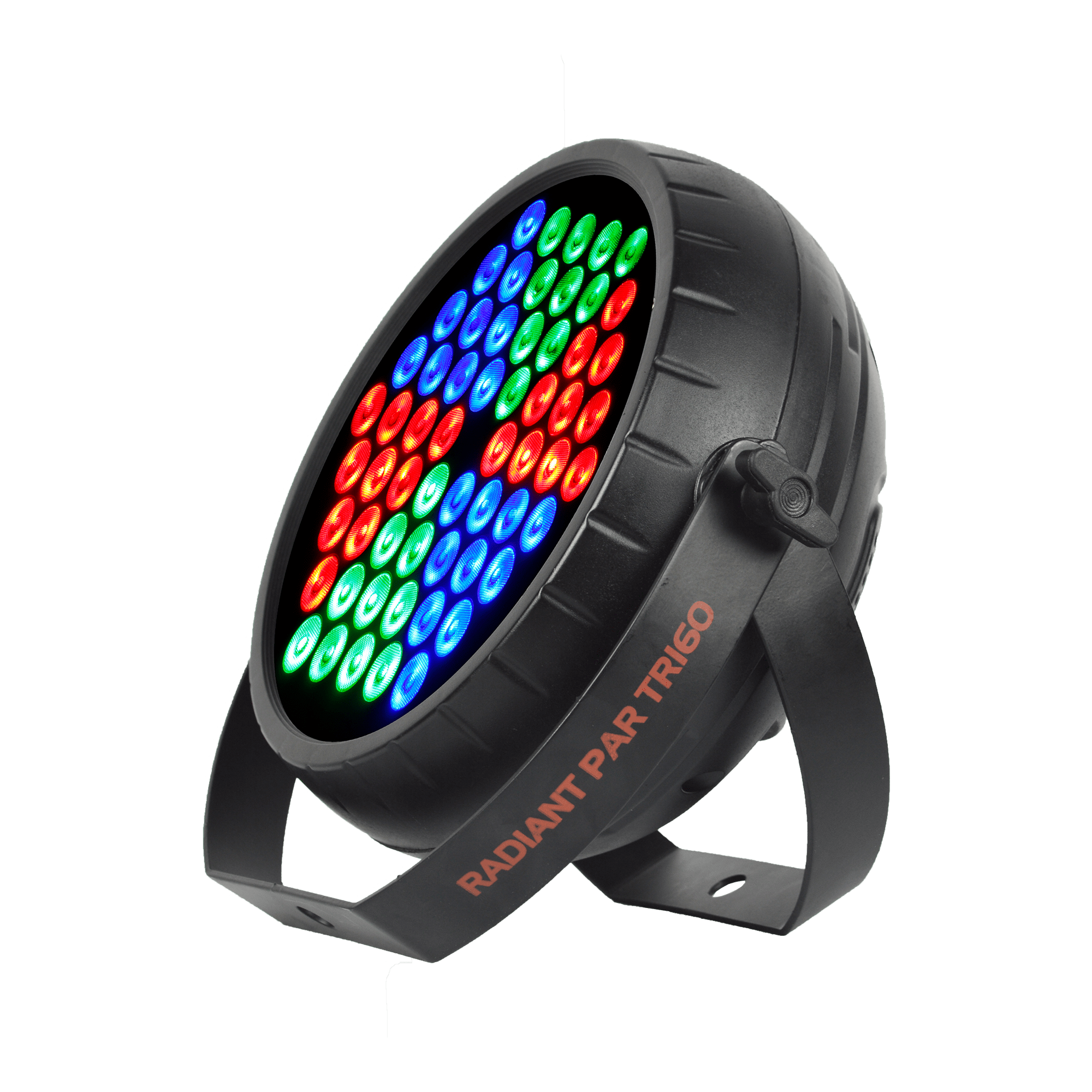

Radiant Par TRI60



60 x 3W RGB LED Parcan

JMAZ RADIANT PAR TRI60 delivers unbelievable brightness. Controls include DMX and sound active. Powered by 60 x 3W (RGB) LED’s to create amazing color combinations. Measuring 10.4” in diameter, the RADIANT PAR TRI60 will deliver ultimate brightness to any event.

Main features:

  • 60 x 3 Watt TRI (RGB) LED
  • DMX, Master/Slave, Stand Alone, Sound Activated, IR Remote Control
  • Power-con In/Out, 5-Pin DMX In/Out

Technical specifications

Light Source

  • Source: 60 x 3W RGB LEDs

Color System

  • Color LEDs: RGB


  • ABS die-cast plastic w/ aluminum structure


  • Dimmer: 0-100% Linear Dimmer
  • Strobe/Shutter: 25 T/sec
  • Color Temperature: 2800 – 8000k


  • Mains Power Supply:AC Mains
  • Max Power Consumption: 200W
  • Input Voltage: AC 90-260V, 50HZ/60HZ




  • Beam Angle: 26°

Dynamic Effect

  • Wash Effect
  • Vectorized Rotating Effect
  • Virtual Gobo Wheel
  • Zone Control


  • Protocols: DMX512
  • DMX Channels: 3/11/31 Channel Modes
  • Wireless Control: IR Remote
  • Firmware Upgrade: Yes, USB-DMX Interface, not included.


  • IP Rating: 20
  • Cooling: Fan
  • Data Connection: 5-PinDMX
  • Power Connection: Power-CON
  • Dimensions: 10.4″” x 8.3″” x 4.6″”
  • Weight: 5.2 lbs”

Box Content

  • 1 x Radiant Par TRI60
  • 1 x User Manual
  • 2 x Mounting Brackets
  • 1 x 3ft 5-pin DMX Chord
  • 1 x 3ft PowerCON Chord
  • 1 x IR Remote


User Manual

File name File size Download
Letter datasheet RadiantParTRI60_User_Manual.PDF 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet RadiantParTRI60_DMX_Charts.PDF 500KB Letter datasheet


File name File size Download
RadiantParTri60_Profiles Folder 500KB


File name File size Download
Letter datasheet RadiantParTRI60_Photometrics.PDF 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet RadiantParTRI60_CAD_Drawings.PDF 500KB Letter datasheet
