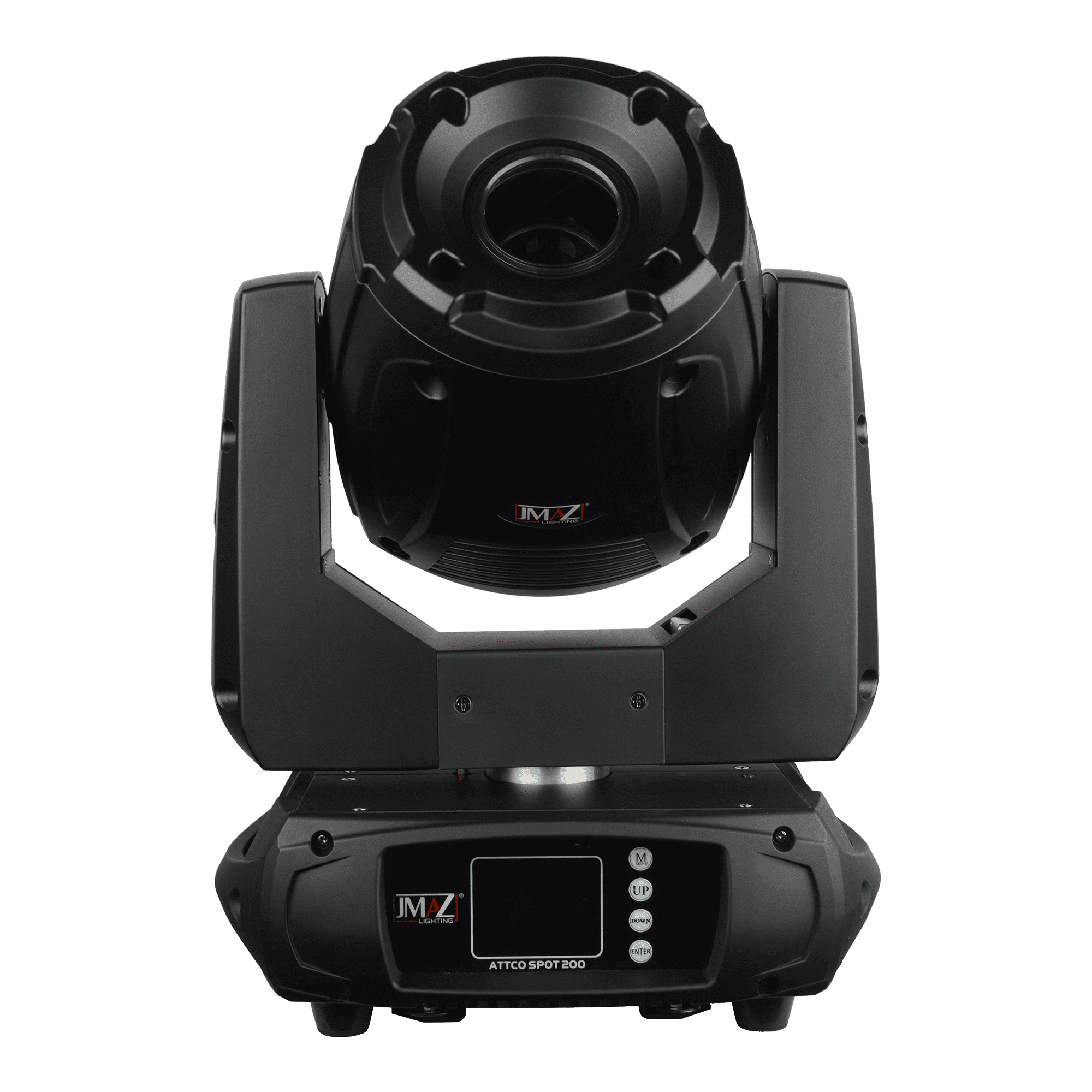

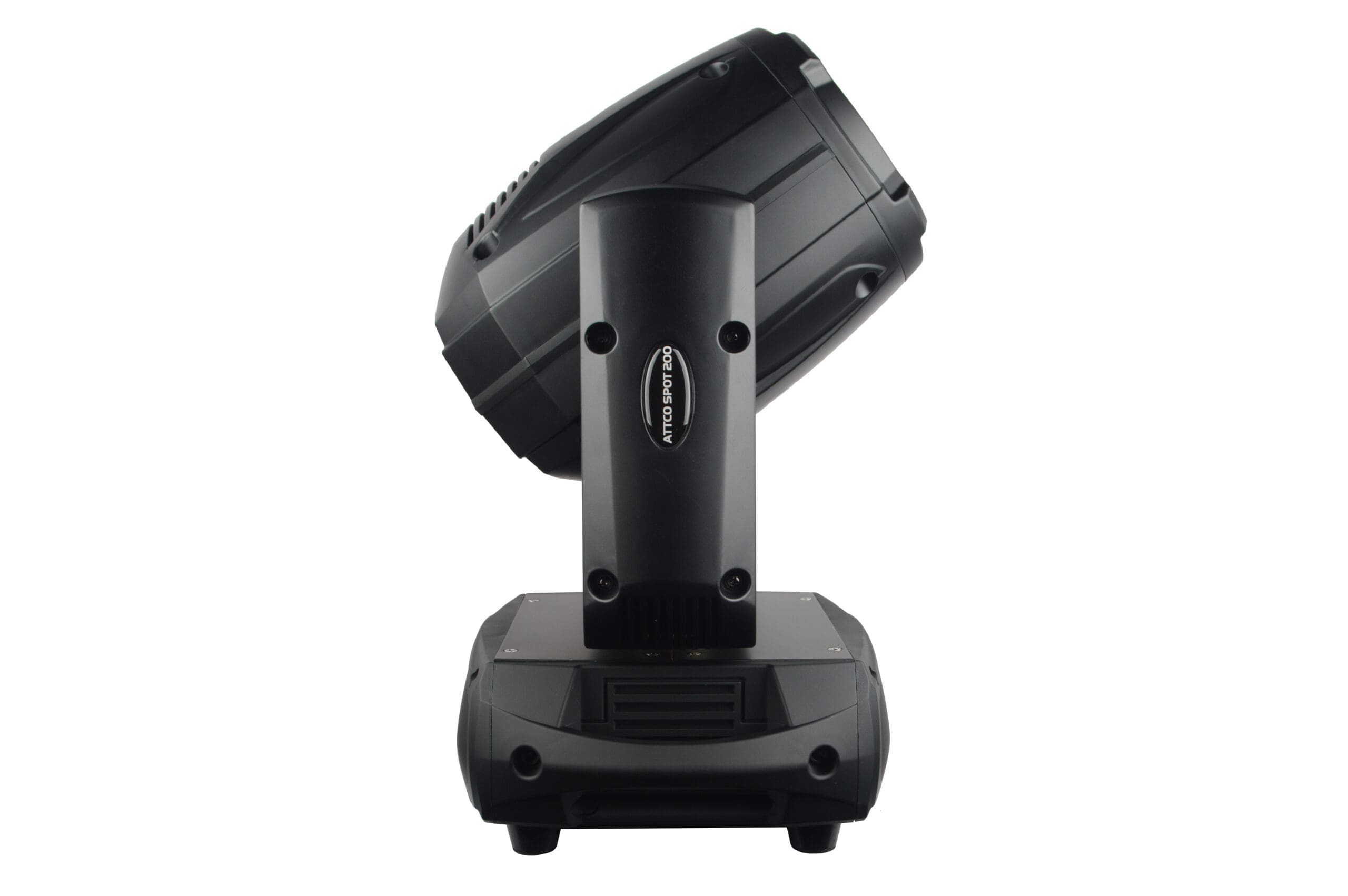

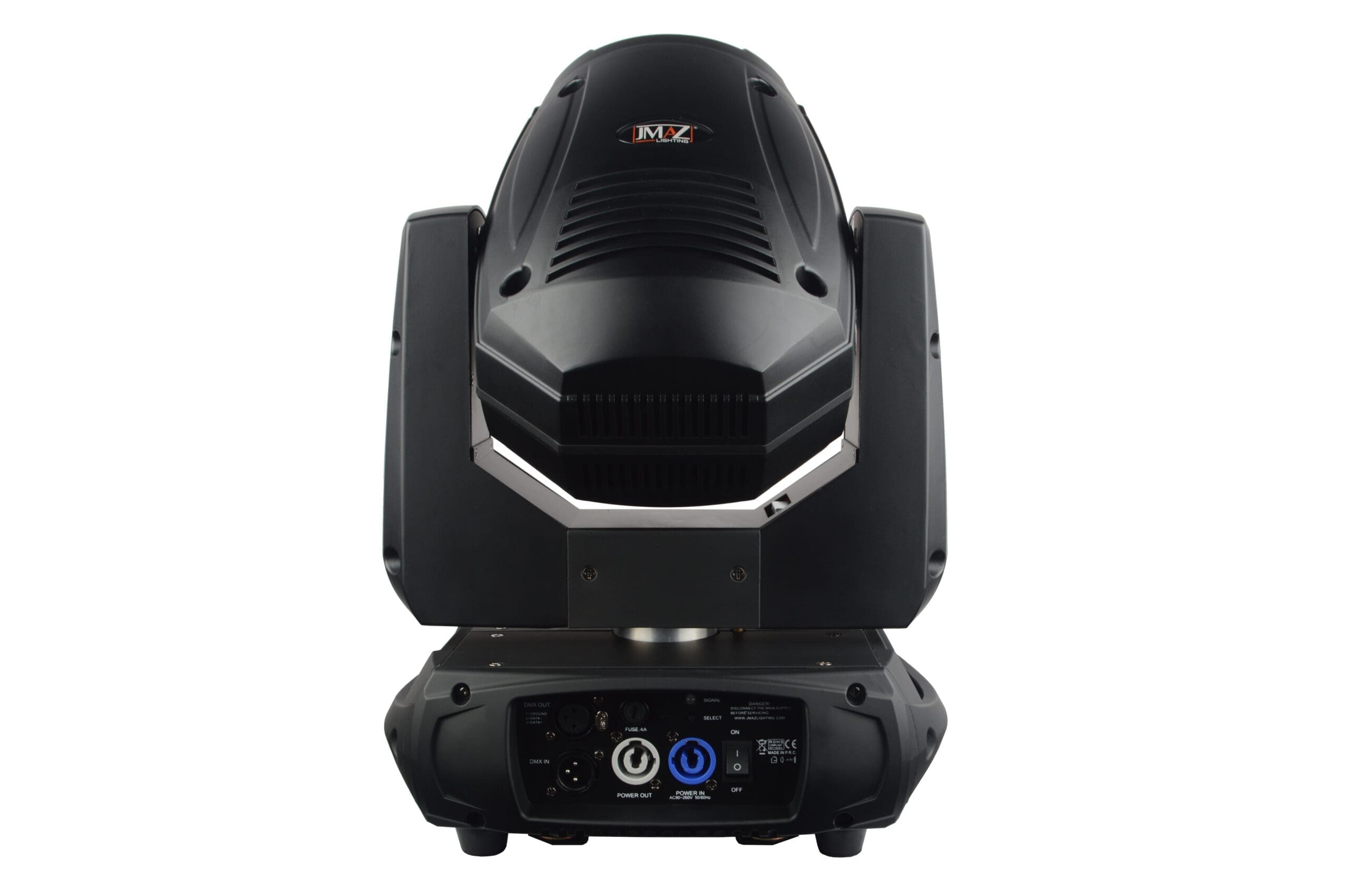

Attco Spot 200



200w LED Moving Head Spot

The JMAZ ATTCO SPOT 200 is a compact size, light weight, full function and high brightness moving head with built-in Wi-MAZ wireless DMX technology, using a 200W LED, optical angle 16 degrees. Fast PAN/TILT scanning, low noise, high accuracy. It has rotating gobo wheel, static gobo wheel, color wheel, 3 facet prism, electronic focusing, 0-100% linear LED dimming and strobe effect at different speeds. Suitable for large-scale concerts, TV studios, mobile performances, night shows, weddings, etc.

Main features:

  • 1 x 200W White LED
  • 1 Color wheel with 7 colors plus open
  • 1 Rotatable gobo wheel with 6 rotatable and interchangeable gobosplus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
  • DMX512, master-slave and sound activated or auto operation (9 built-in program)
  • Built-in wireless DMX technology

Technical specifications

Light Source

  • Source: 200W White LED

Color System

  • Color Wheel: 7 Colors + Open


  • Hardware On-Board: sockets for quick-Lock Omega bracket
  • Pan Angle: 630°
  • Title Angle: 270°
  • Pan/Tilt Resolution: 8 / 16 Bit
  • Feedback: Scan position memory, auto reposition after unexpected movement
  • Body: High Temperature Engineered Plastic and Cast Aluminum Casing
  • Body Colour: Black


  • Dimmer: 0-100% Linear Dimmer
  • Strobe/Shutter: 25 T/sex
  • Operating Temperature: -35° C to 45° C


  • Mains Power Supply: AC Mains
  • Max Power Consumption: 250W
  • Input Voltage: AC90-260V 50/60Hz




  • Beam Angle: 16°

Dynamic Effect

  • Prism: 3 Facet
  • Rotating Gobos: 6 + Open
  • Static Gobos: 8 + Open


  • Protocols: DMX512, W-DMX, Wi-MAZ Wireless DMX
  • DMX Channels: 13/15 Channel Modes
  • Wireless Control: Wi-MAZ Wireless DMX, W-DMX, RF Remote
  • Display: 4″” TFT LCD Display
  • Firmware Upgrade: Yes, USB-DMX Interface, not included.


  • IP Rating: 20
  • Cooling: Fan
  • Pan/Tilt:8/16 bit smooth
  • Data Connection: DMX, Wireless DMX
  • Power Connection: Power-CON
  • Dimensions: 12.1″” x 8.8″” x 16.5″”
  • Weight: 22.9 lbs”

Box Content

  • 1 x Attco Spot 200
  • 1 x User Manual
  • 2 x Omega Brackets
  • 1 x 3ft 3-pin DMX Chord
  • 1 x 3ft PowerCON Chord
  • 1 x RF Remote


Product Data / Cut Sheet

File name File size Download
Letter datasheet AttcoSpot200_Catalog_Sheet.PDF 500KB Letter datasheet

User Manual

File name File size Download
Letter datasheet AttcoSpot200_User_Manual.PDF 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet AttcoSpot200_DMX_Charts.PDF 500KB Letter datasheet


File name File size Download
AttcoSpot200_Profiles Folder 500KB


File name File size Download
Letter datasheet AttcoSpot200_Photometrics_sheet.PDF 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet AttcoSpot200_CAD_Drawings.PDF 500KB Letter datasheet

Tech / Data Sheets

File name File size Download
Letter datasheet AttcoSpot200_Full_Cut_Sheet.PDF 500KB Letter datasheet
