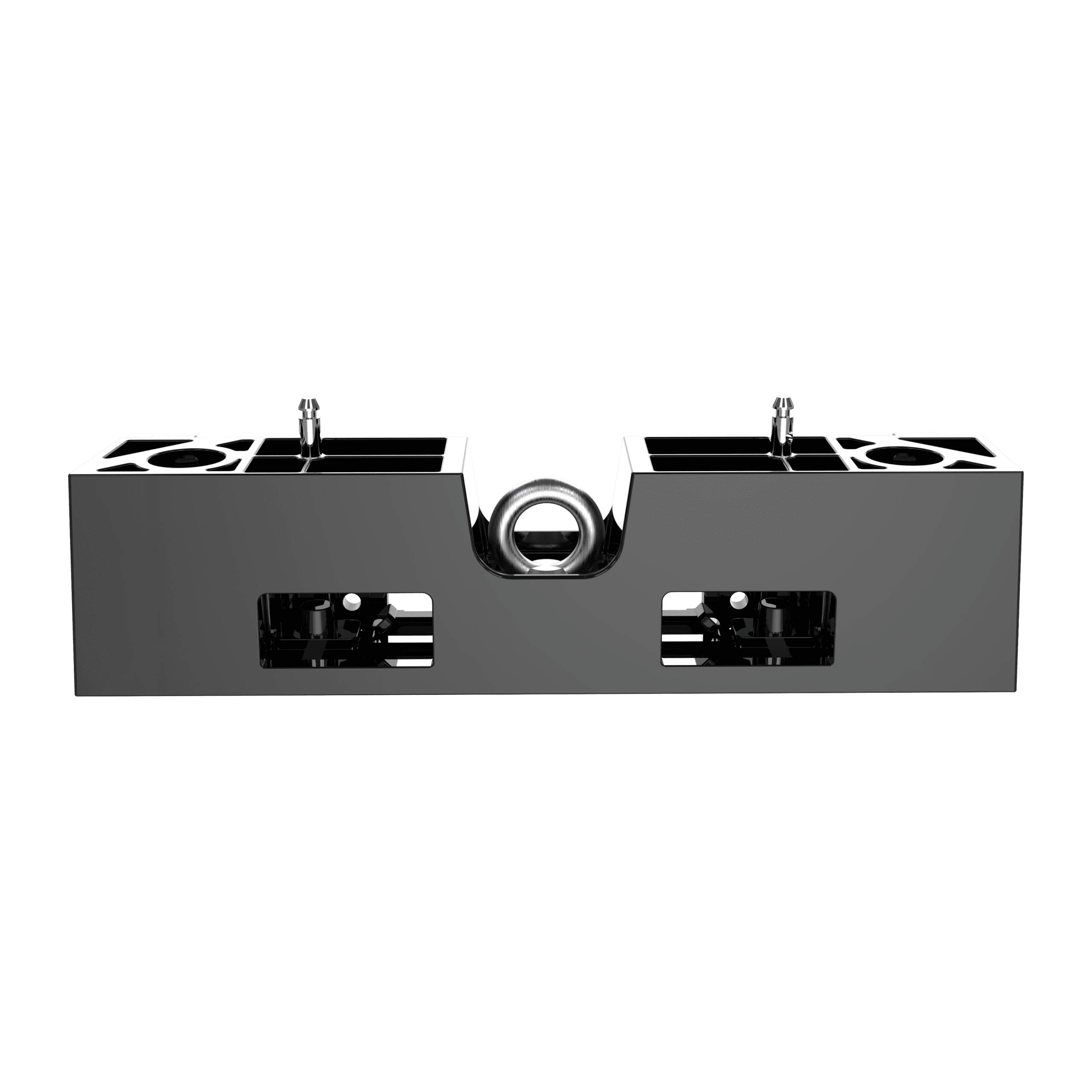

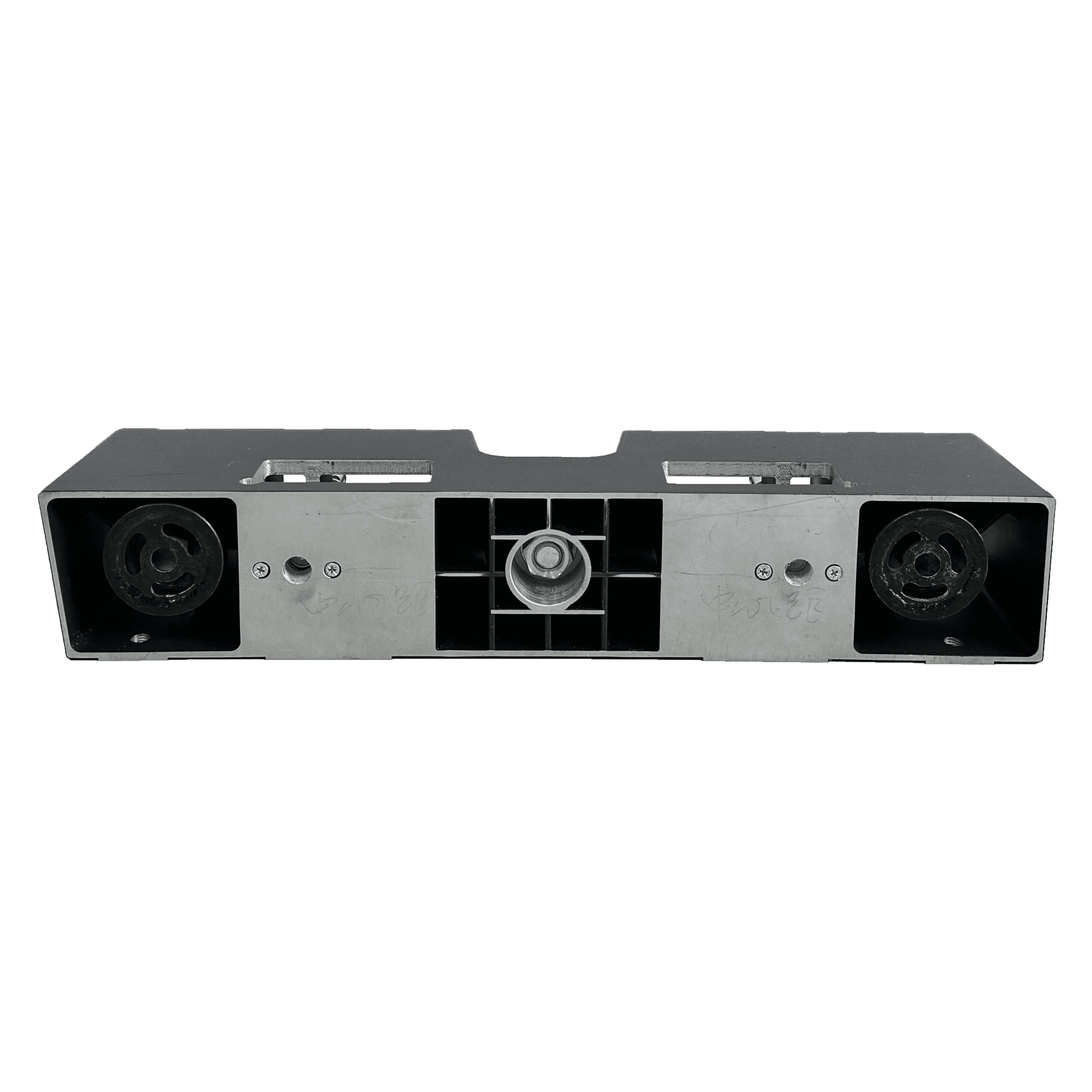

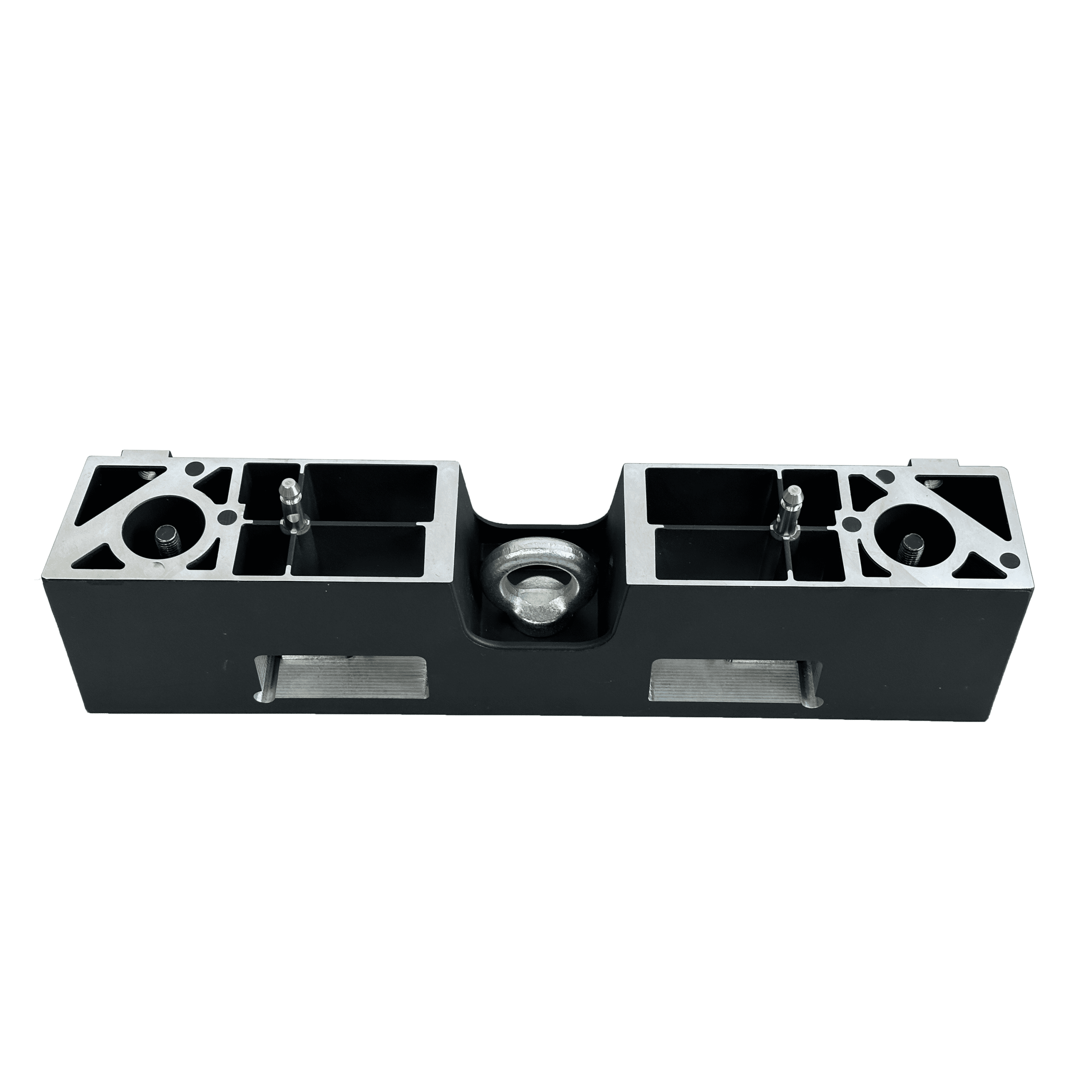

Single Panel Rigging Bar for OSIRIS Indoor and Outdoor Panels

SKU:

BB3001

Buy Now

Main features:

Die-Cast Aluminum
Rigging Bar to vertically hang up to 20 500×500 Osiris Panels, or 10 500×1000 Osiris Panels (Hanging Weight Capacity: 771lbs/350kg)
Ground stack vertically up to 8 panels. (Stacking Weight Capacity: 771lbs/350kg)
Built in Level Adjustable Indicator
Dimensions: 19.5″ x 3.5″ x 5.9″ / 497.1 x 88.7 x 151.4mm
Compatible with: BB1026, BB1035, BB1031, BB1032, BB10036, BB1037

Technical specifications

Body

Die-Cast Aluminum

Item Dimensions & Weight

Dimensions: 19.5″ x 3.5″ x 5.9″ / 497.1 x 88.7 x 151.4mm
Weight: 11.7lbs / 5.3kg

UPC

618528598642
