Osiris 3.9 Outdoor LED Video Wall (500×500)
SKU:
BB1031
Osiris 3.9 Outdoor 500x500m LED Video Wall Panel
.
Main features:
- Pixel Pitch: 3.9mm
- Panel Dim: 19.6″ x 19.6″ x 3.2″ / 500 x 500 x 83mm / 17.6 lbs
- 4500 Nit Brightness
- IP65 (Front) / IP54 (Rear)
- Pixel Resolution: 128 x 128
- Curvature: +/- 5°
- LED Type: SMD1921
- Refresh Rate: ≥3,840 HZ
- Serviceable: Front / Back
- Certified: ETL / FCC / ROHS / CE
- Corner Protection
- Swappable All-in-One Power Box
*Ships In Road Case
Product Description
The BrightBox Osiris Outdoor 3.9 LED Video Wall (500×500) is built for high-impact outdoor applications, offering a 3.9mm pixel pitch, 128 x 128 resolution, and an impressive 4500-nit brightness for vivid visibility even in direct sunlight. With a rugged IP65 front / IP54 rear rating, it withstands demanding environments while supporting +/- 5° curvature for creative configurations. Each 500x500mm panel (17.6 lbs.) features SMD1921 LEDs, a ≥3,840Hz refresh rate, and front/back serviceability. Designed for durability with corner protection and a swappable all-in-one power box, it ships in a road case and is certified to ETL, FCC, ROHS, and CE standards for professional reliability.

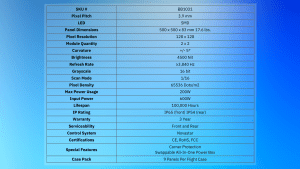

Technical specifications
Item Dimensions & Weight
- Dimensions: 19.6″ x 19.6″ x 3.2″ / 500 x 500 x 83mm
- Weight: 17.6 lbs
UPC
618528598550Download
Product Data / Cut Sheet
| File name | File size | Download | |
|---|---|---|---|
 |
Osiris Outdoor 3.9 LED _Tech_Sheet.PDF | 500KB |  |
