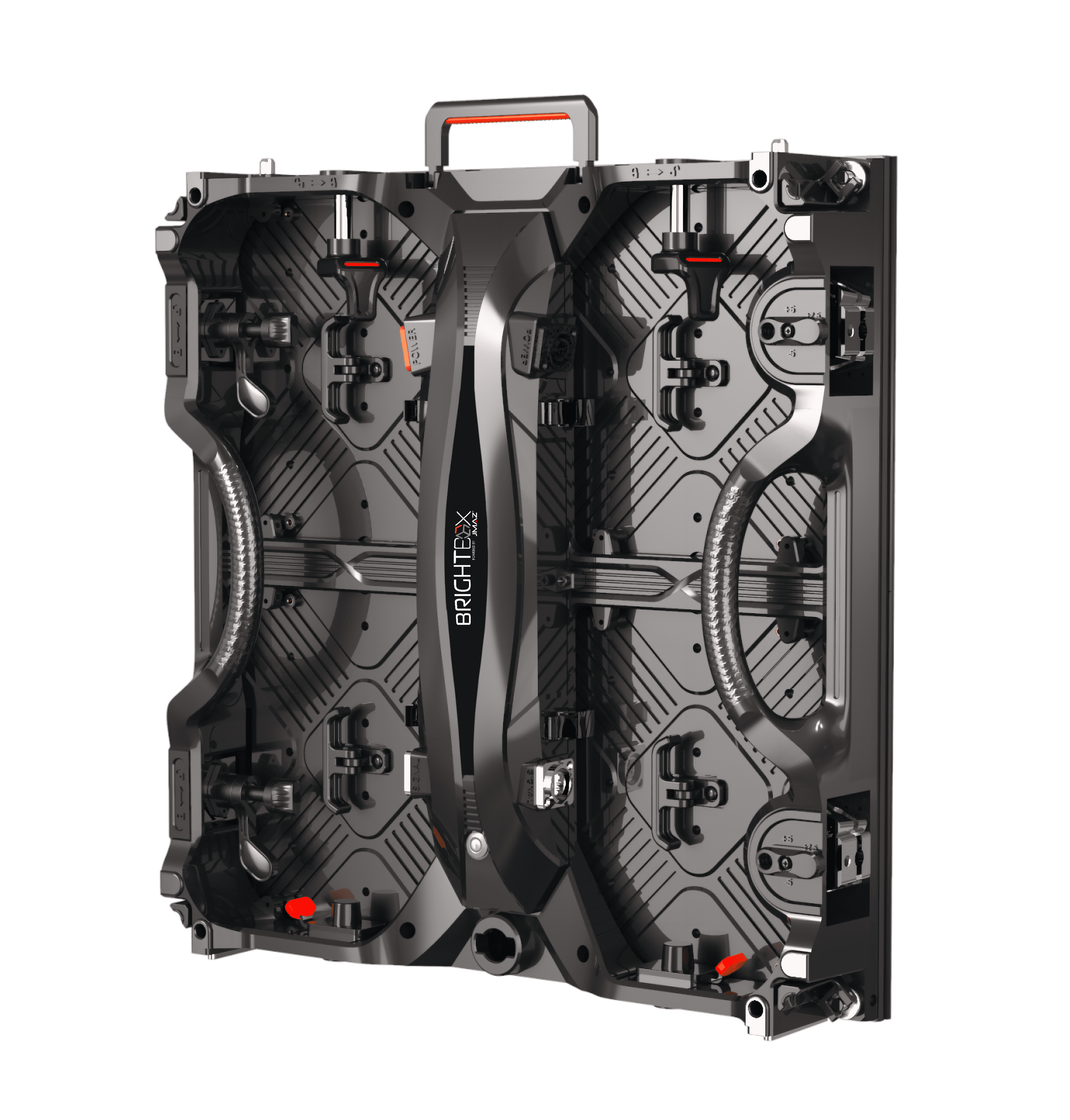

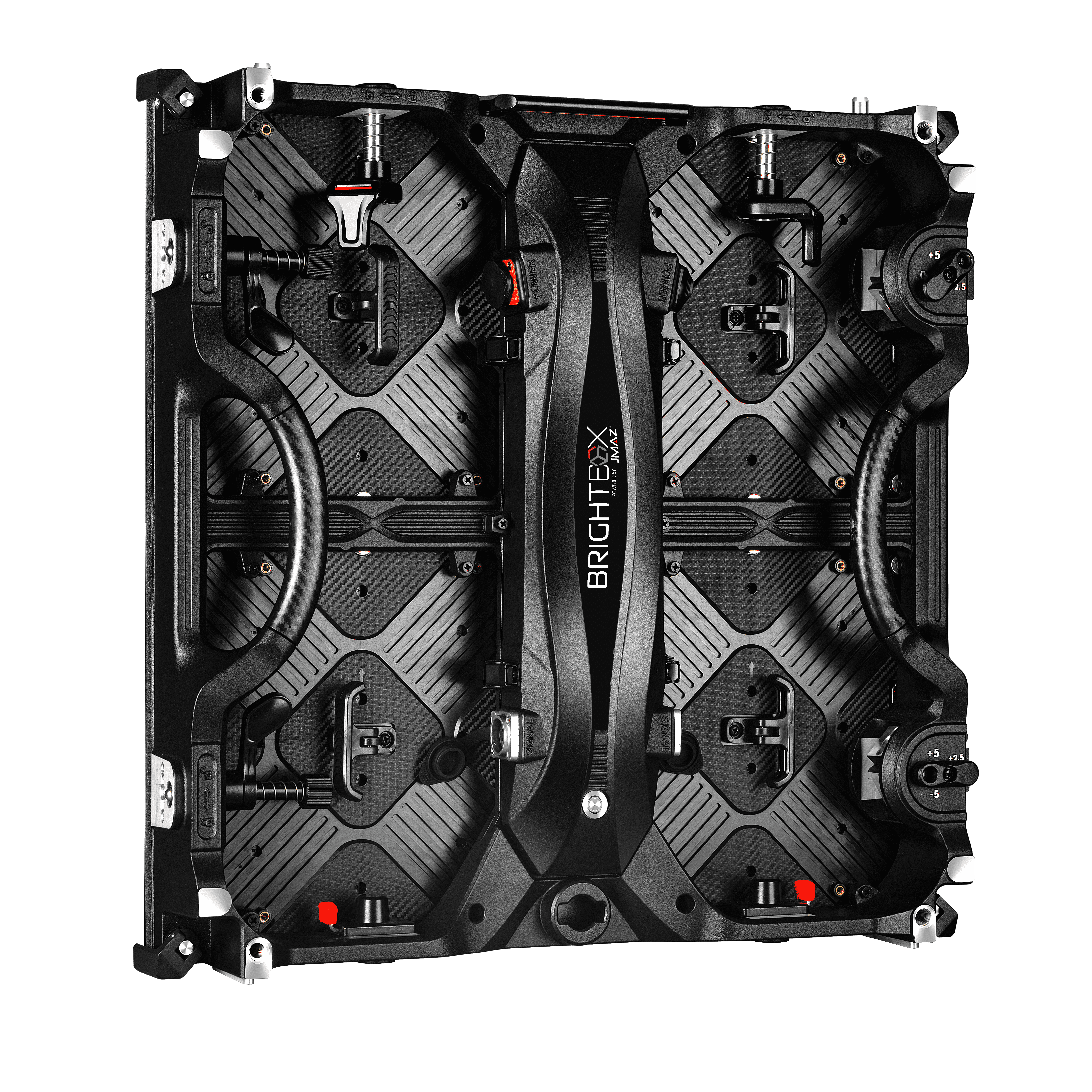

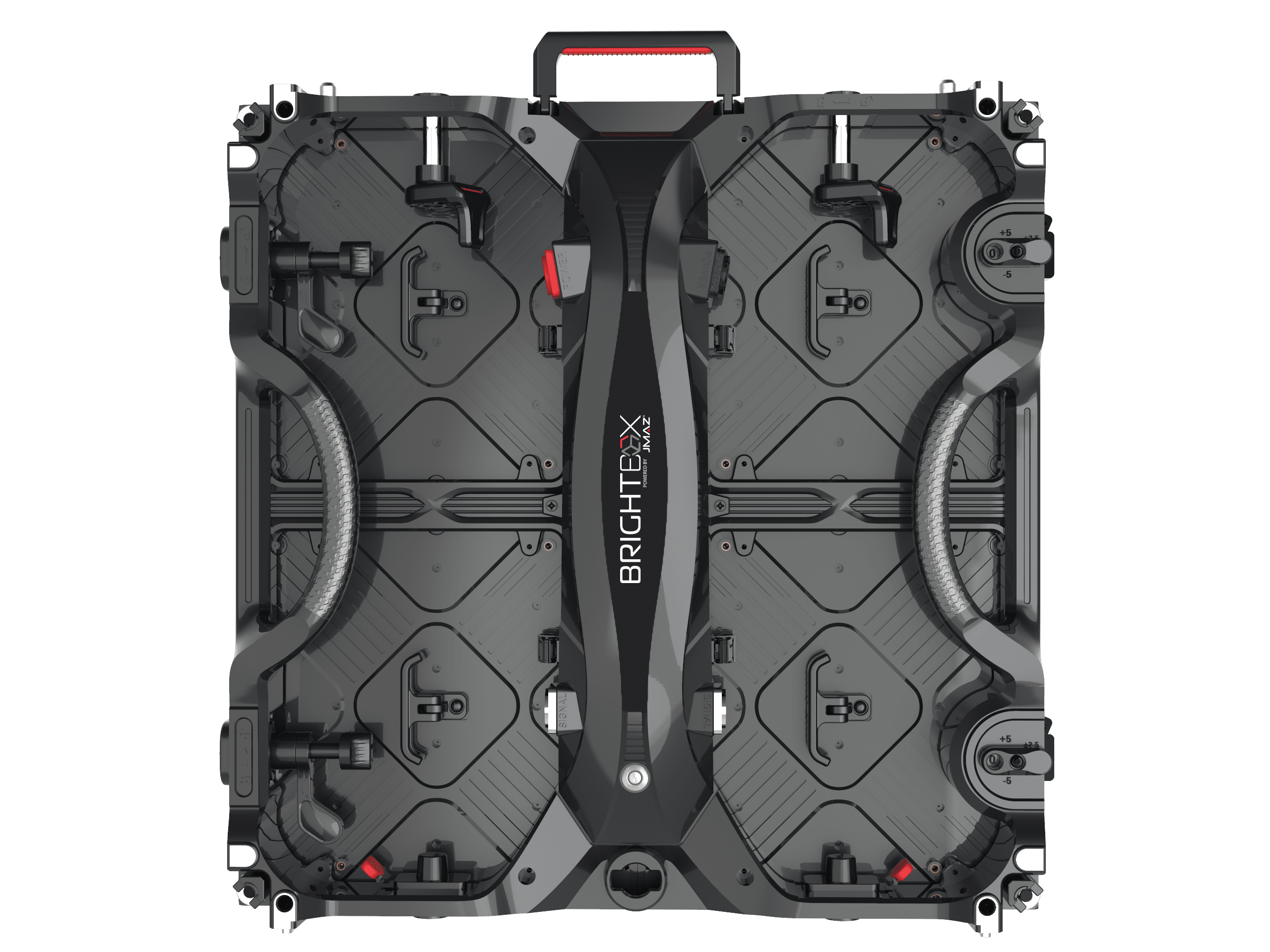

Osiris 2.9 Outdoor LED Video Wall (500×500)
SKU:
BB1036
Osiris 2.9 Outdoor 500x500m LED Video Wall Panel
.
Main features:
- Pixel Pitch: 2.9mm
- Panel Dim: 19.6″ x 19.6″ x 3.2″ / 500 x 500 x 83mm / 17.6 lbs
- 4500 Nit Brightness
- IP65 (Front) / IP54 (Rear)
- Pixel Resolution: 168 x 168
- Curvature: +/- 5°
- LED Type: SMD1415
- Refresh Rate: ≥7,680 HZ
- Serviceable: Back
- Certified: ETL / FCC / ROHS / CE
- Corner Protection
- Swappable All-in-One Power Box
*Ships In Road Case
Product Description
The BrightBox Osiris Outdoor 2.9 LED Video Wall (500×500) delivers sharp, high-resolution visuals with a 2.9mm pixel pitch, 168 x 168 resolution, and ultra-bright 4500 nits for outstanding visibility in outdoor environments. Built with a durable IP65 front / IP54 rear rating, it withstands demanding conditions while offering +/- 5° curvature for flexible display setups. Featuring SMD1415 LEDs, an ultra-smooth ≥7,680Hz refresh rate, and back serviceability, each lightweight 500x500mm panel (17.6 lbs.) ensures professional-grade performance. With corner protection, a swappable all-in-one power box, and certifications from ETL, FCC, ROHS, and CE, it ships in a road case for reliable mobile applications and events.
Technical specifications
Item Dimensions & Weight
- Dimensions: 19.6″ x 19.6″ x 3.2″ / 500 x 500 x 83mm
- Weight: 17.6 lbs
UPC
618528599564Download
Product Data / Cut Sheet
| File name | File size | Download | |
|---|---|---|---|
 |
Osiris Outdoor 3.9 LED _Tech_Sheet.PDF | 500KB |  |
