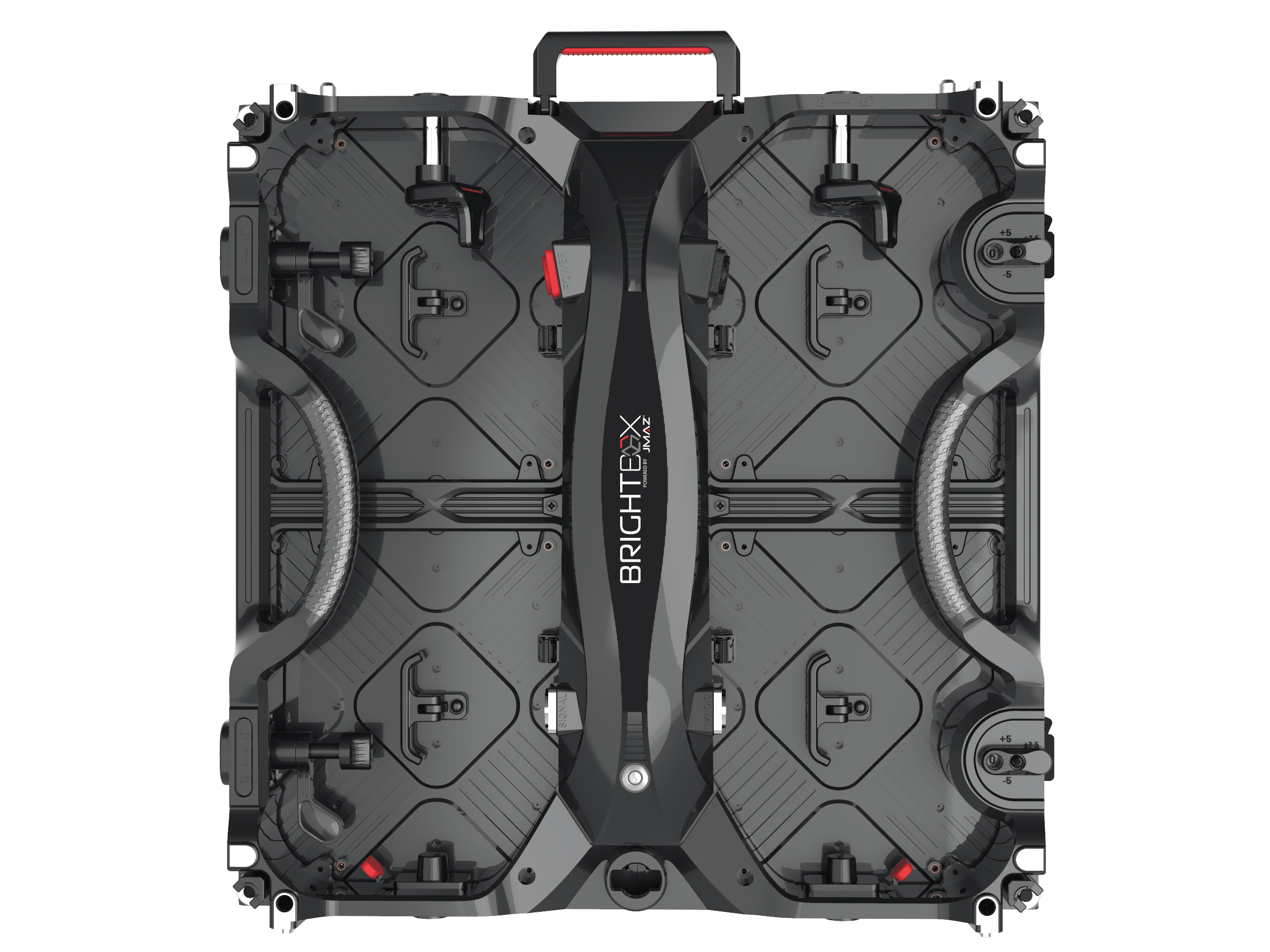

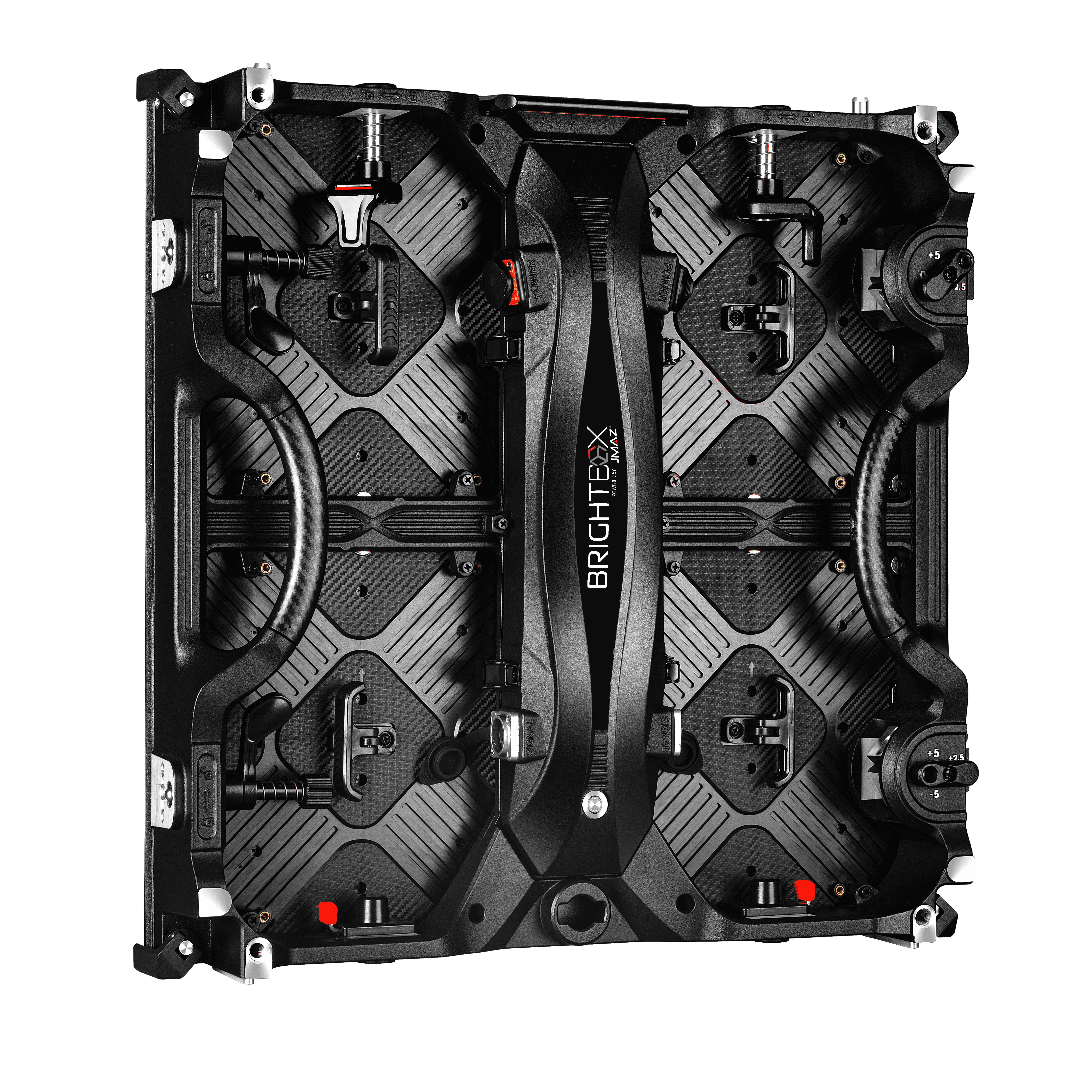

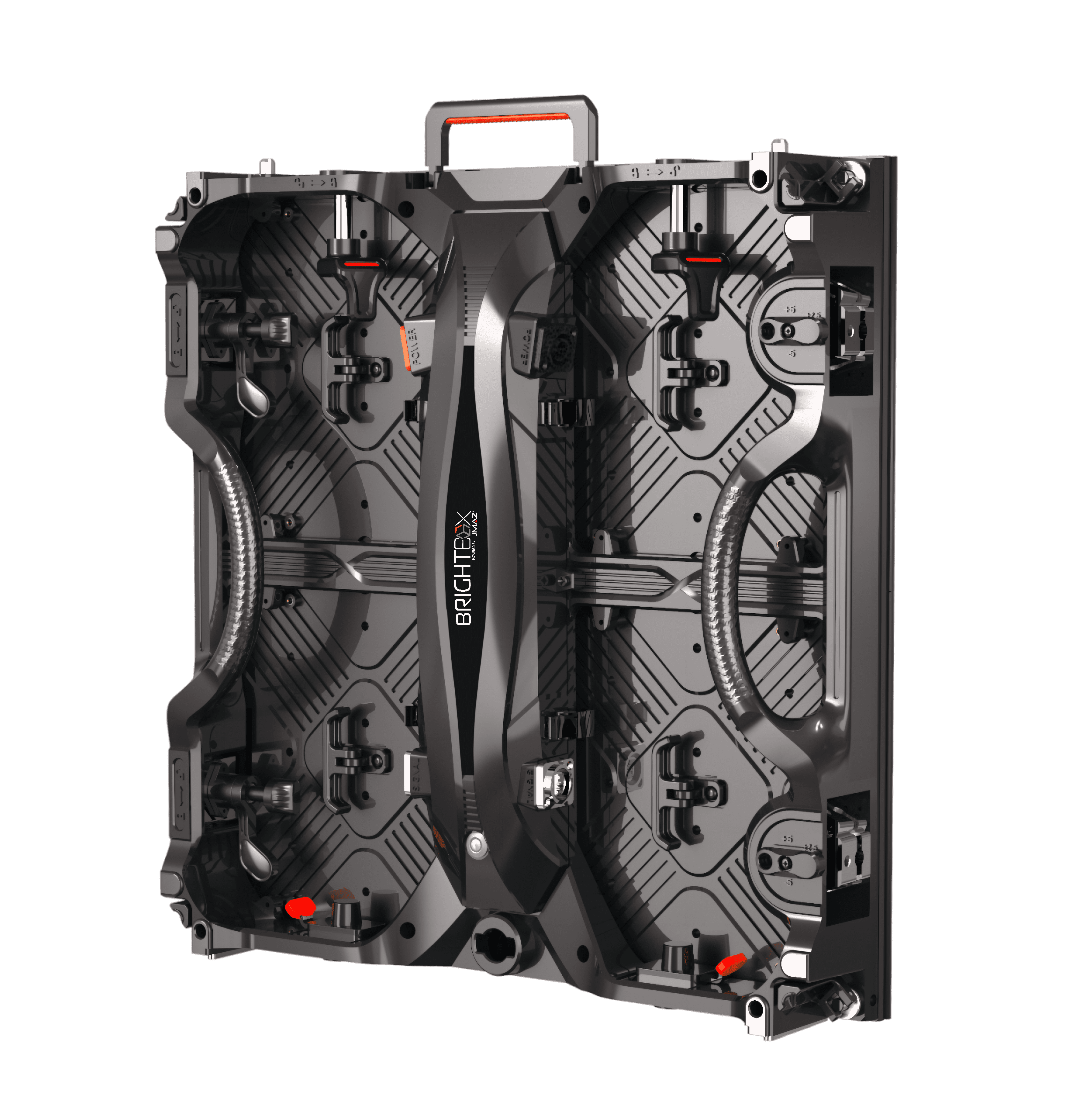

Osiris Curve 2.6 Mobile LED Video Wall
SKU:
BB1026
Osiris Curve 2.6 Mobile 500x500mm LED Video Wall Panel
Main features:
- Pixel Pitch: 2.6 mm
- Panel Dim: 500 x 500 x 83mm / 17.6 lbs.
- 800 Nit Brightness
- IP30 (Front) / IP20 (Rear)
- Pixel Resolution: 192 x 192
- Curvature: +/- 5°
- LED Type: SMD1515
- Refresh Rate: ≥3,840 HZ
- Serviceable: Front / Back
Product Description
The BrightBox Osiris Curve 2.6 Mobile LED Video Wall is engineered for flexibility and stunning visual performance, featuring a 2.6mm pixel pitch, 192 x 192 resolution, and 800-nit brightness. With a +/- 5° curvature design, it enables creative curved displays while maintaining sharp, vibrant visuals. Built for durability and convenience, it includes corner protection, a swappable all-in-one power box, and front/back serviceability. Each 500x500mm panel (17.6 lbs.) is certified to ETL, FCC, ROHS, and CE standards, ships in a road case, and delivers professional reliability for mobile installations and live events.

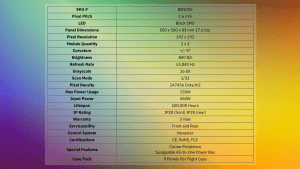

Technical specifications
Item Dimensions & Weight
- Dimensions: 19.6″ x 19.6″ x 2.4″ / 500 x 500 x 63mm
- Weight: 17.6 lbs
UPC
618528598543Download
Product Data / Cut Sheet
| File name | File size | Download | |
|---|---|---|---|
 |
Osiris Curve 2.6_Tech_Sheet.PDF | 500KB |  |
