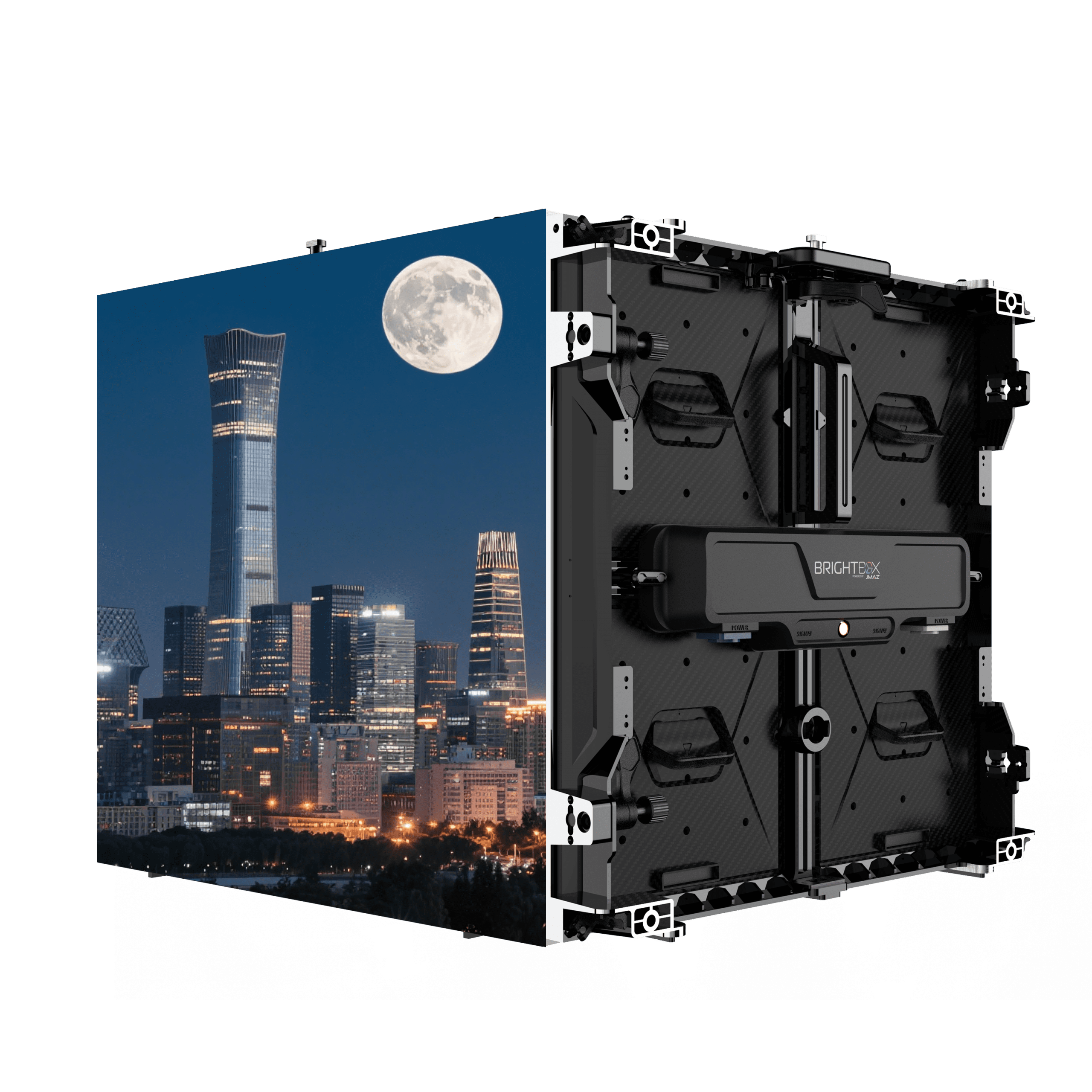

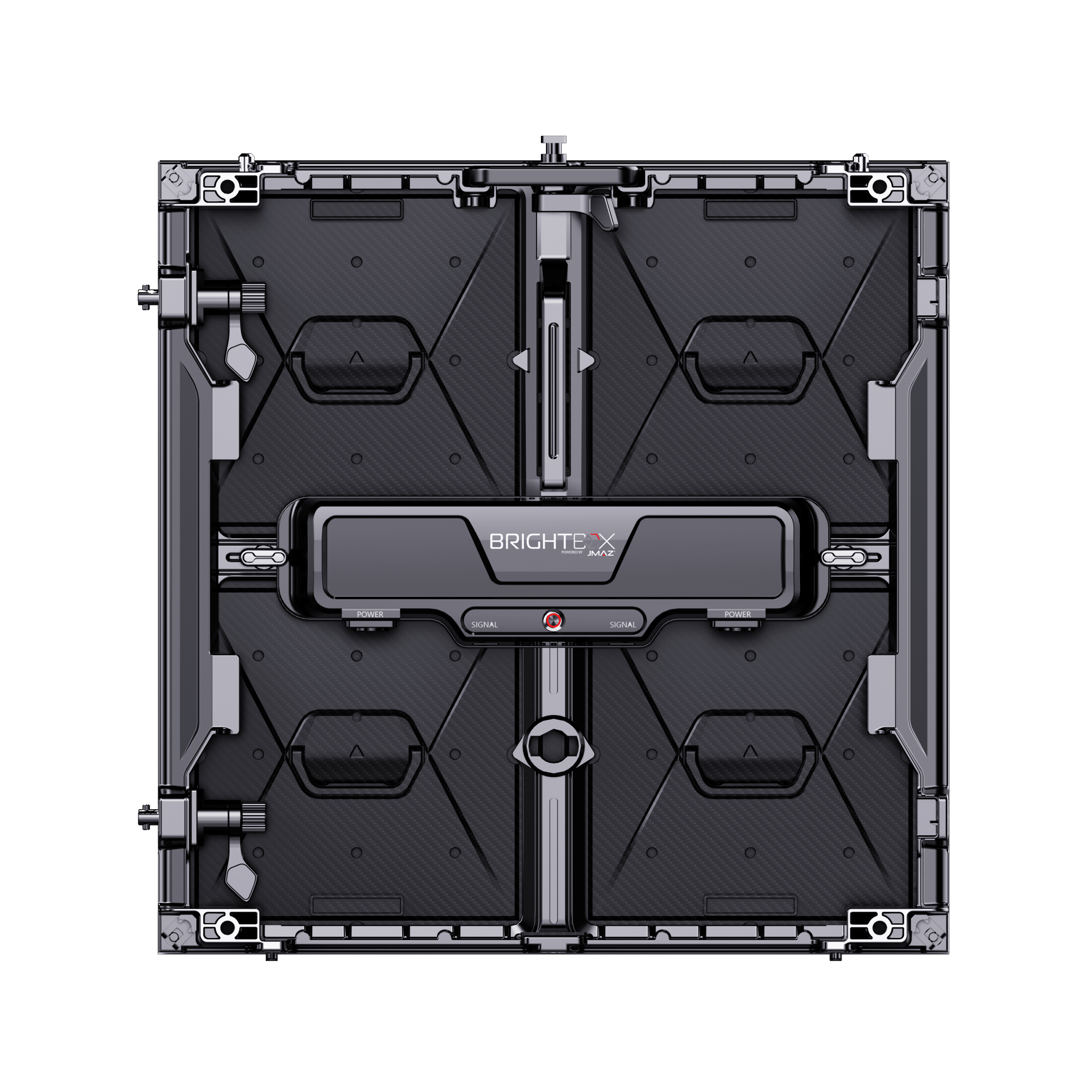

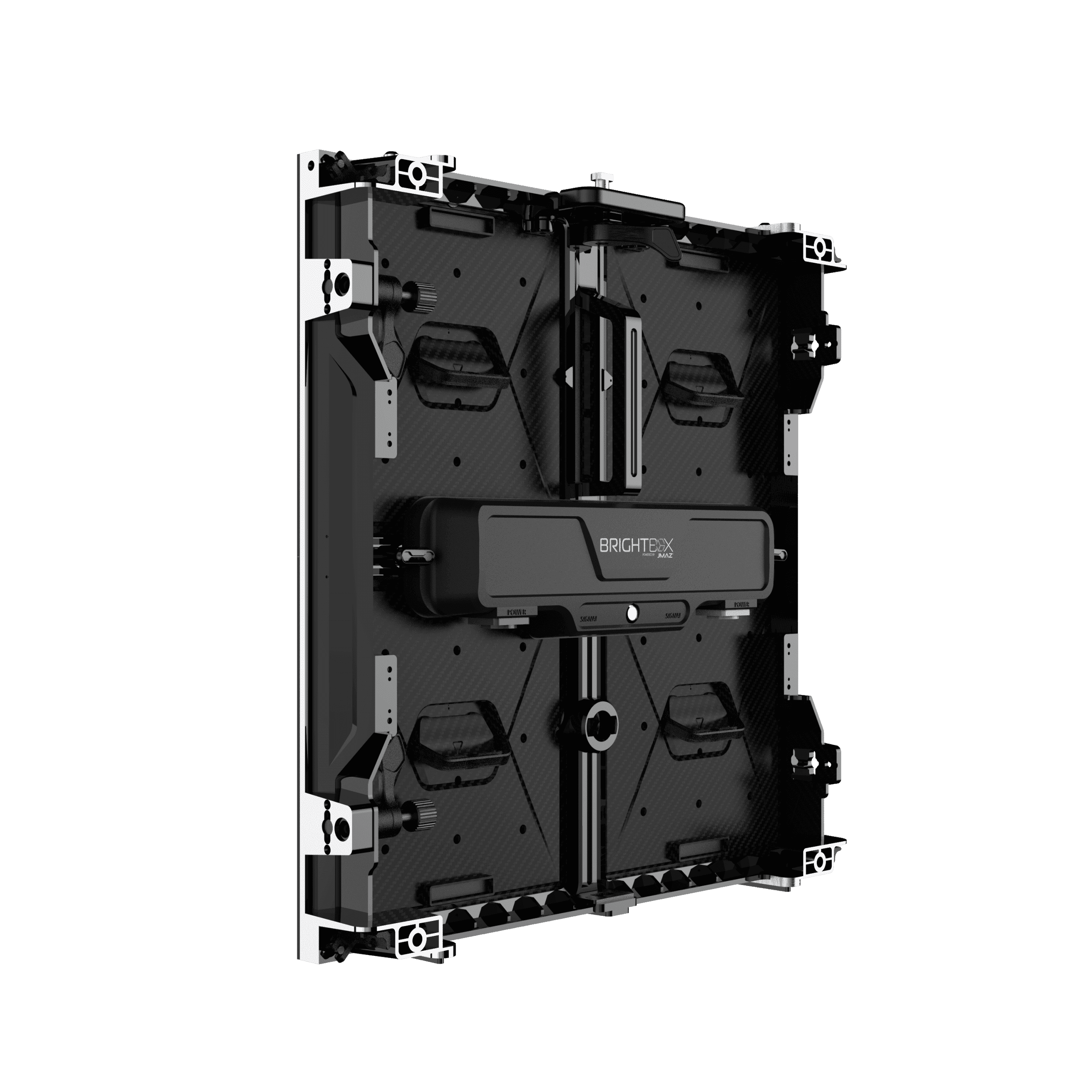

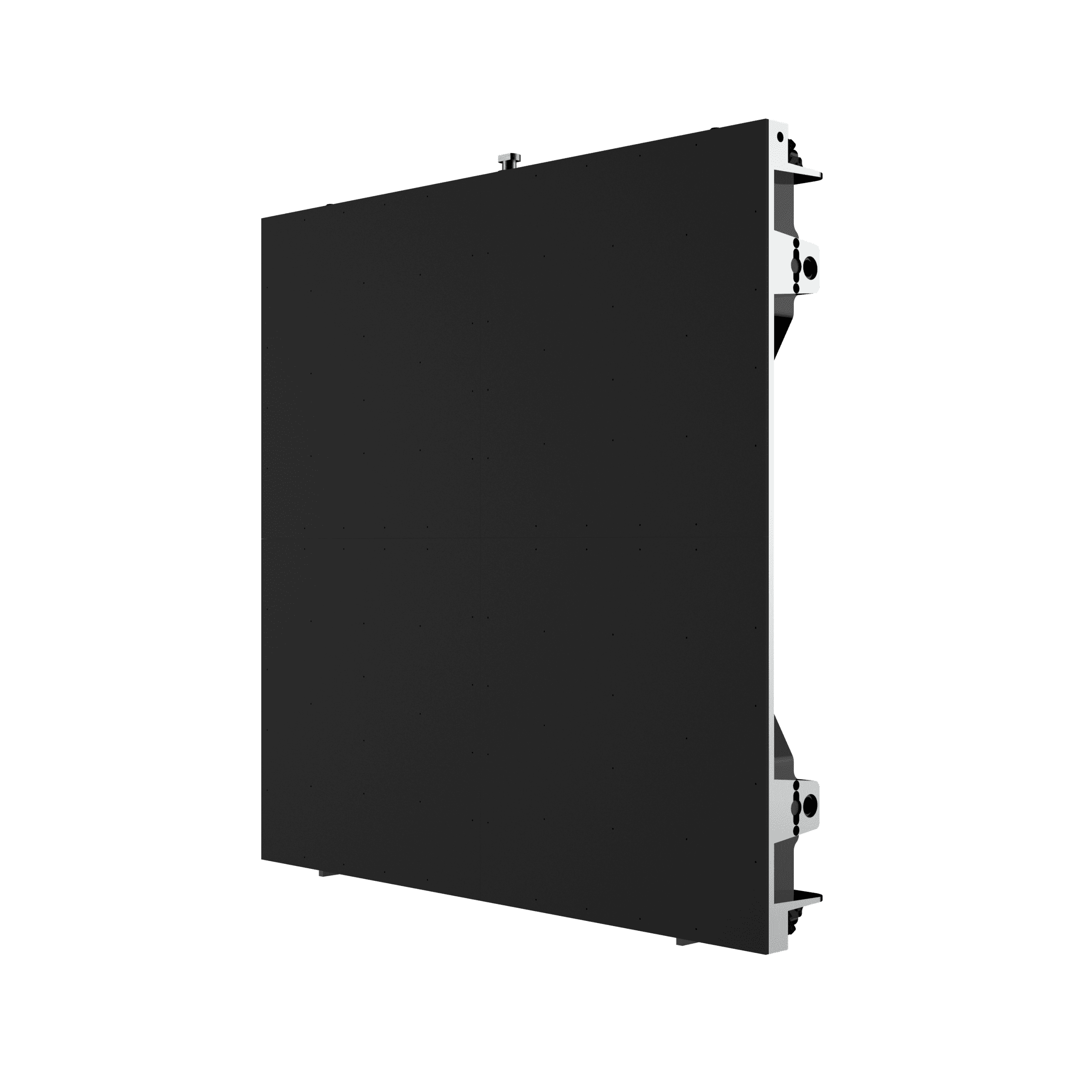

Osiris 1.9 GOB Fixed/Mobile Hybrid LED Video Wall
SKU:
BB1038
Main features:
- Pixel Pitch: 1.9mm GOB
- Panel Dim: 19.6″ x 19.6″ x 2.4″ / 500 x 500 x 64mm / 11lbs.
- 800 Nit Brightness
- IP30 (Front) / IP20 (Back)
- Pixel Resolution: 256 x 256
- Direct Wall Mountable or Hanging Mountable
- LED Type: SMD1515 Black
- Refresh Rate: ≥7680 HZ
- Serviceable: Front & Back
- Corner Protection
- Swappable All-in-One Power Box
- Certified: FCC / ROHS / CE
Technical specifications
Color System
- Pixel Pitch: 1.9mm GOB
- LED Type: SMD1515 Black
- Pixel Resolution: 256 x 256
- Refresh Rate: ≥7680 HZ
- Grayscale: 16-bit
- Scan Mode: 1/32 Scanning
- Pixel Density: 262144 Dots/m2
- Brightness: 800 Nit
Body
- Corner Protection
- Swappable All-in-One Power Supply
- Installation Type:
- Mobile
- Fixed Installation
- Installation Method:
- Hanging
- Stacking
- Direct Wall Mounted
- Module Quantity: 2 x 2
- Serviceable: Front and Rear
- IP30 (Front) / IP20 (Back)
- Control System: Novastar A8s-N
Electrical
- Max Power Usage: 150W
- Input Power: 450W
- Lifespan: 100,000 Hours
Item Dimensions & Weight
- Dimensions: 500 x 500 x 64mm
- Weight: 11lbs / 5kg
UPC
618528599946Download
Product Data / Cut Sheet
| File name | File size | Download | |
|---|---|---|---|
 |
BB1038 – 1.9 GOB Mobile/Fixed Hybrid LED Panel | 500KB |  |
