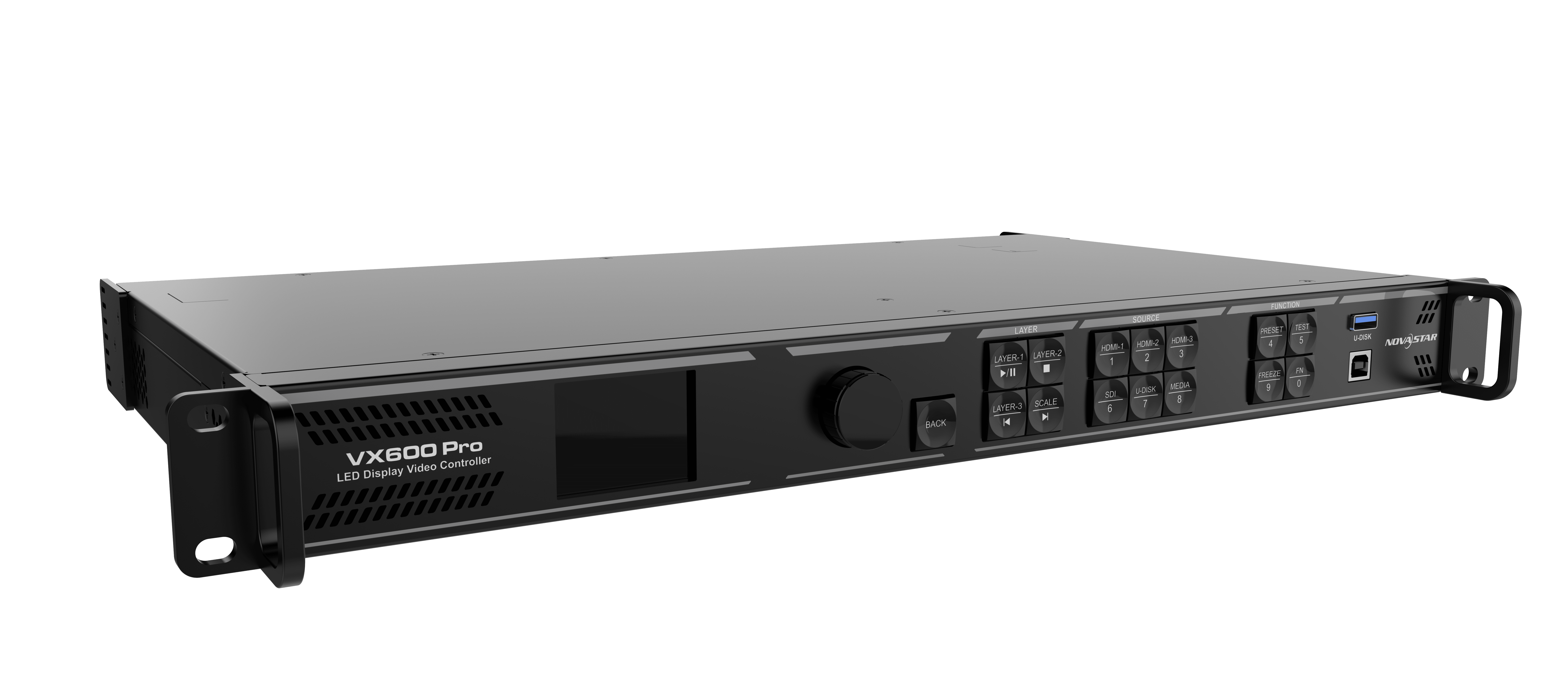

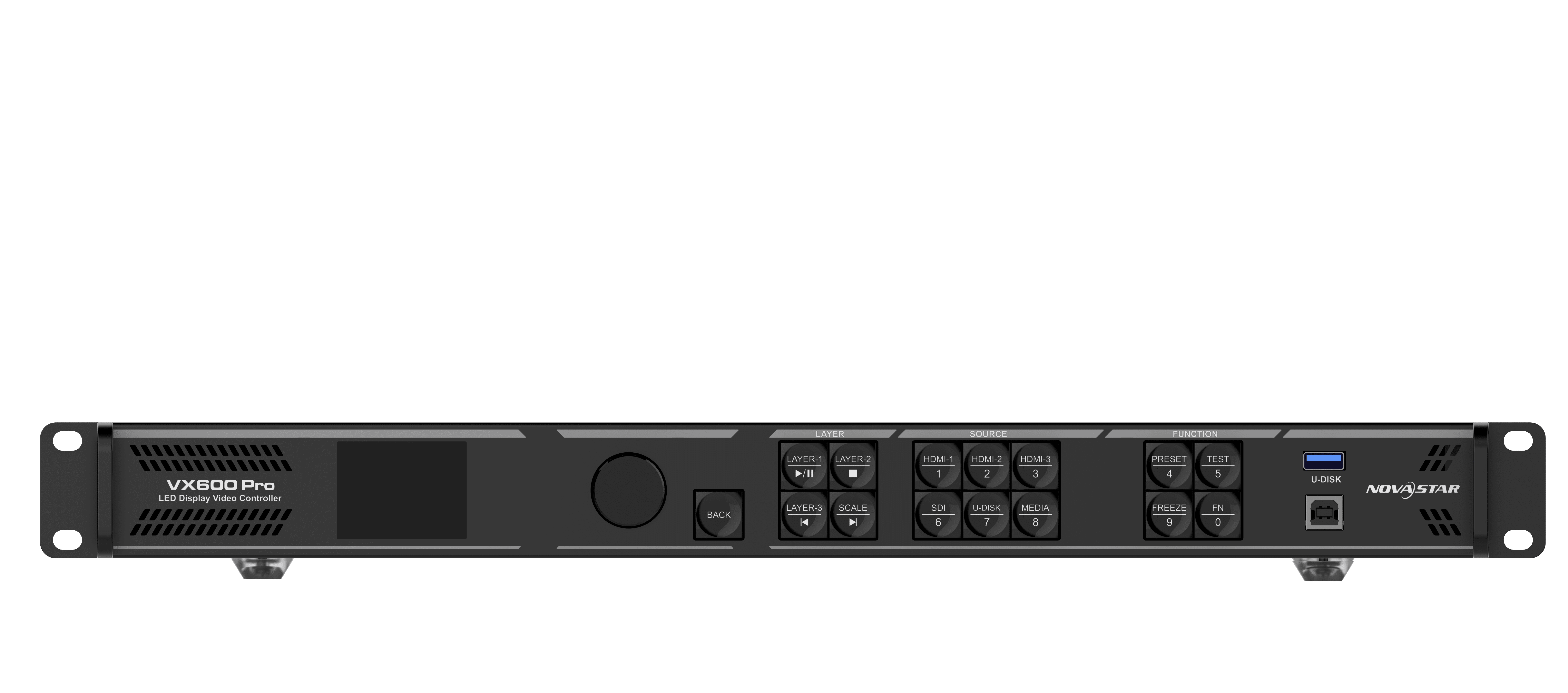

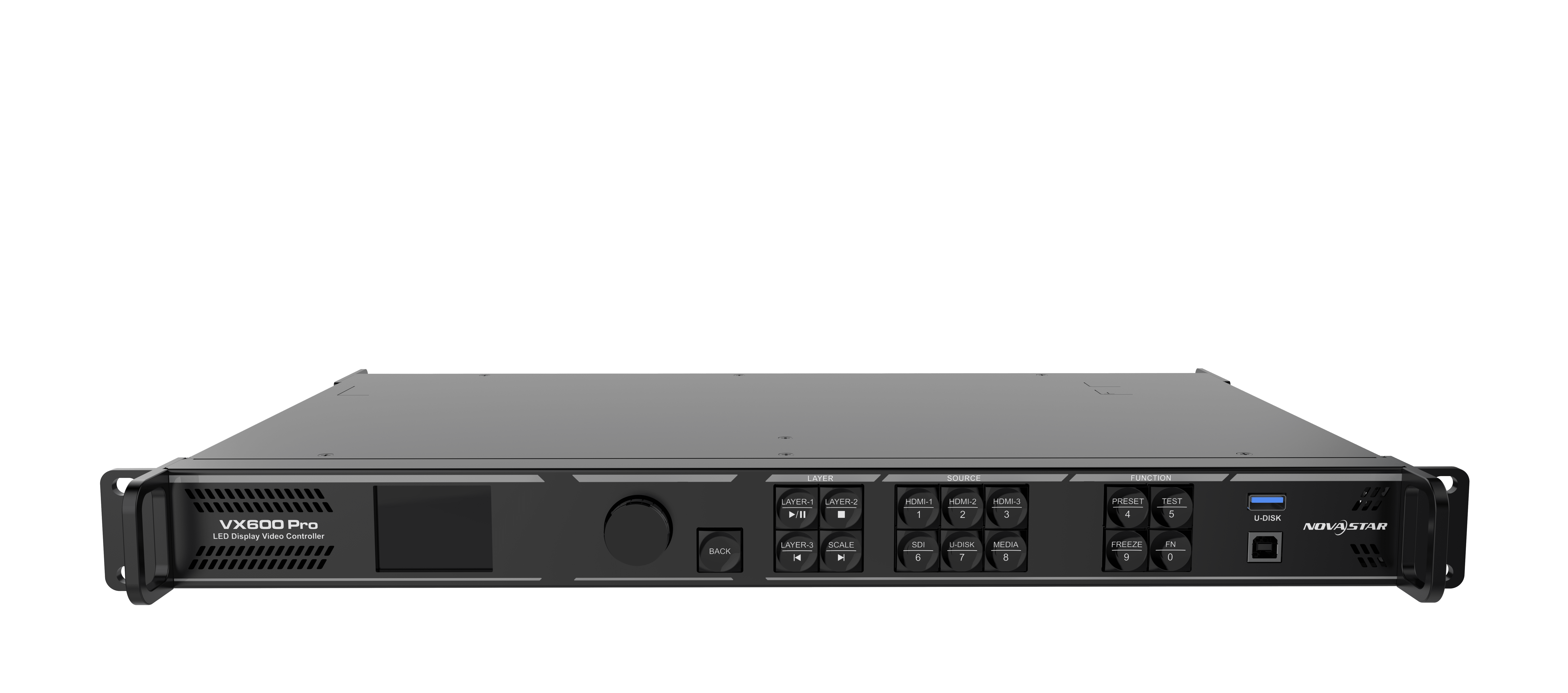

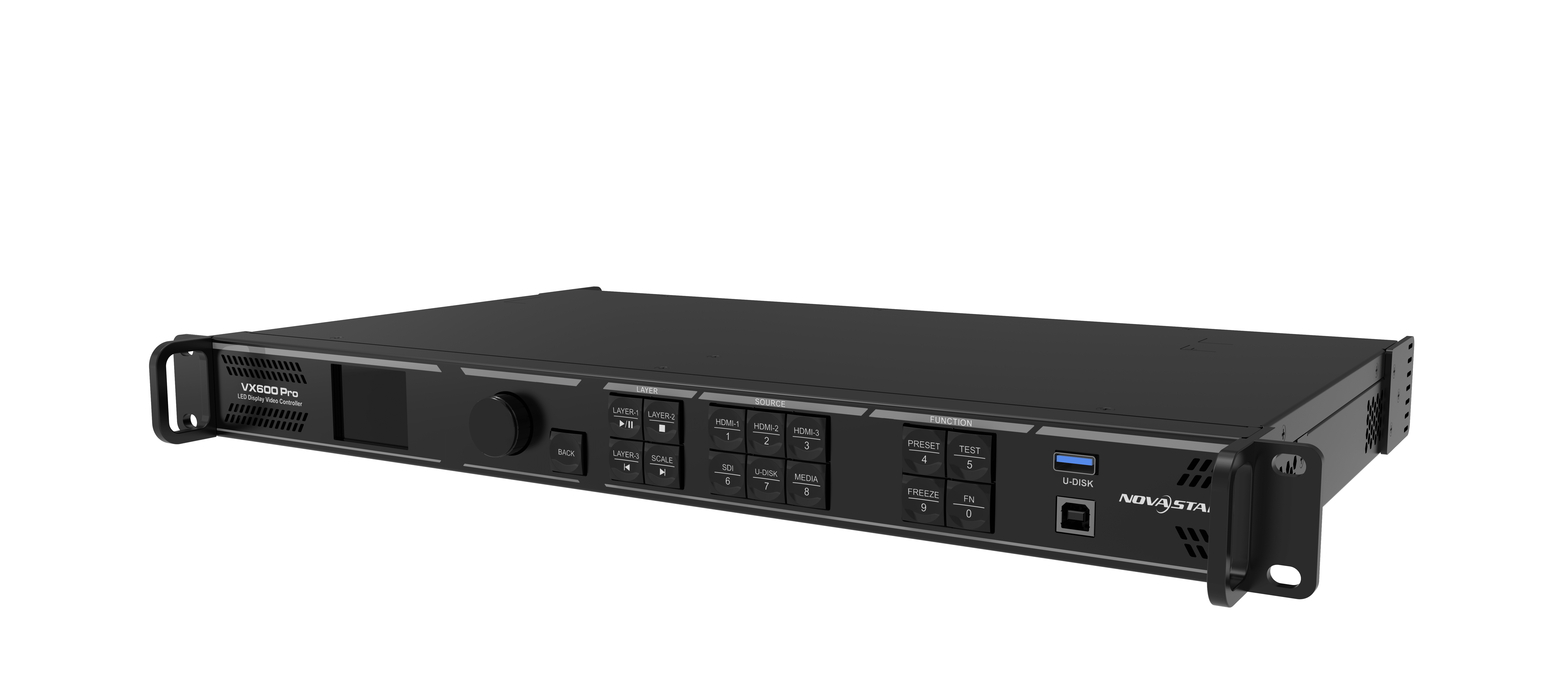

Novastar VX600 Pro LED Display Controller
SKU:
BB4012
Novastar VX600 Pro LED Display Controller
Main features:
- Capacity: 3.9m Pixels
- Max Width (pixels): 10,240
- Max Height (pixels): 8192
- Layers: 6 *2K×1K
- Input Connectors: 1x HDMI 2.0 (IN &LOOP), 2x HDMI 1.3, 1x 3G-SDI (IN & LOOP)

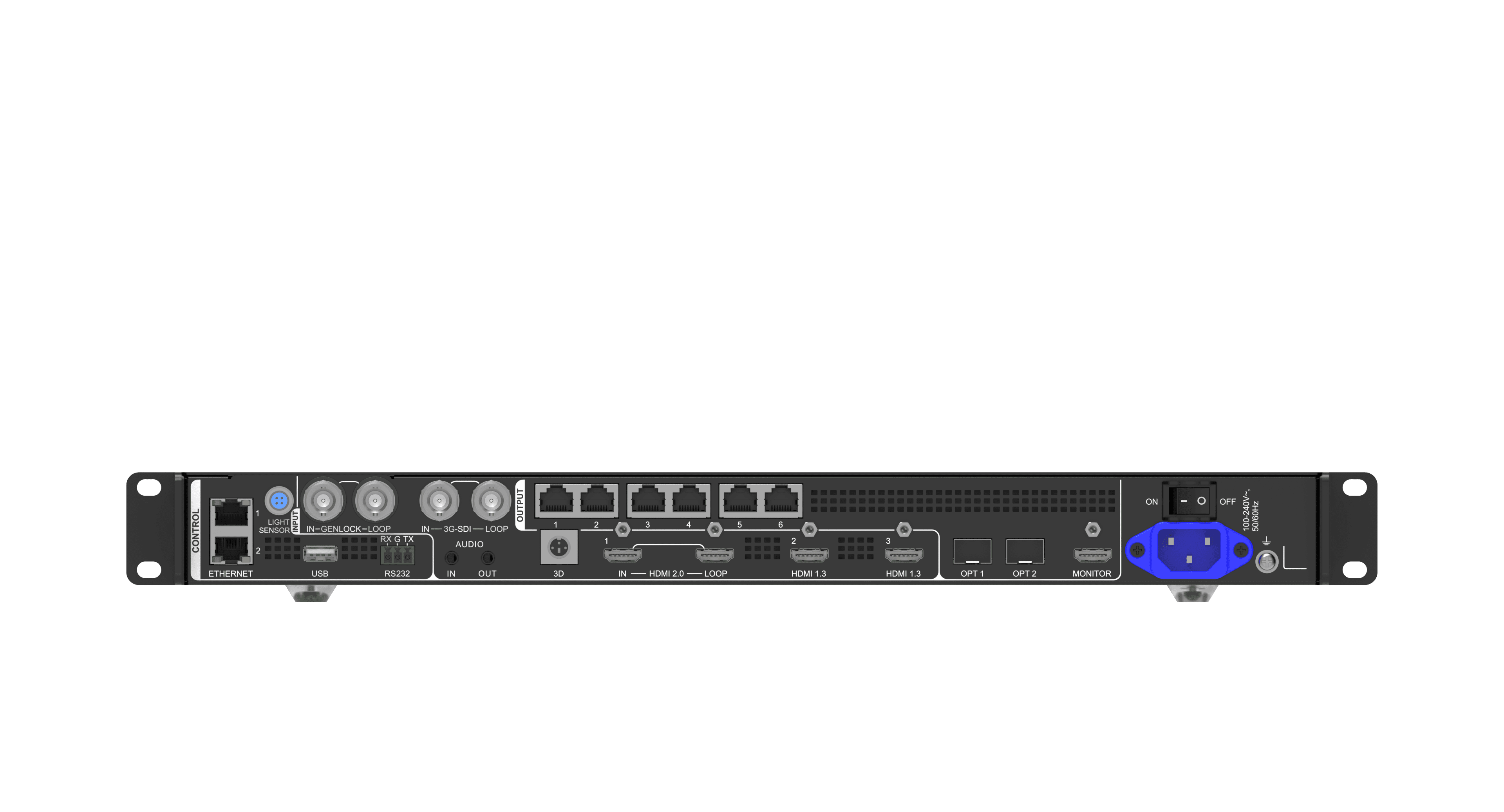

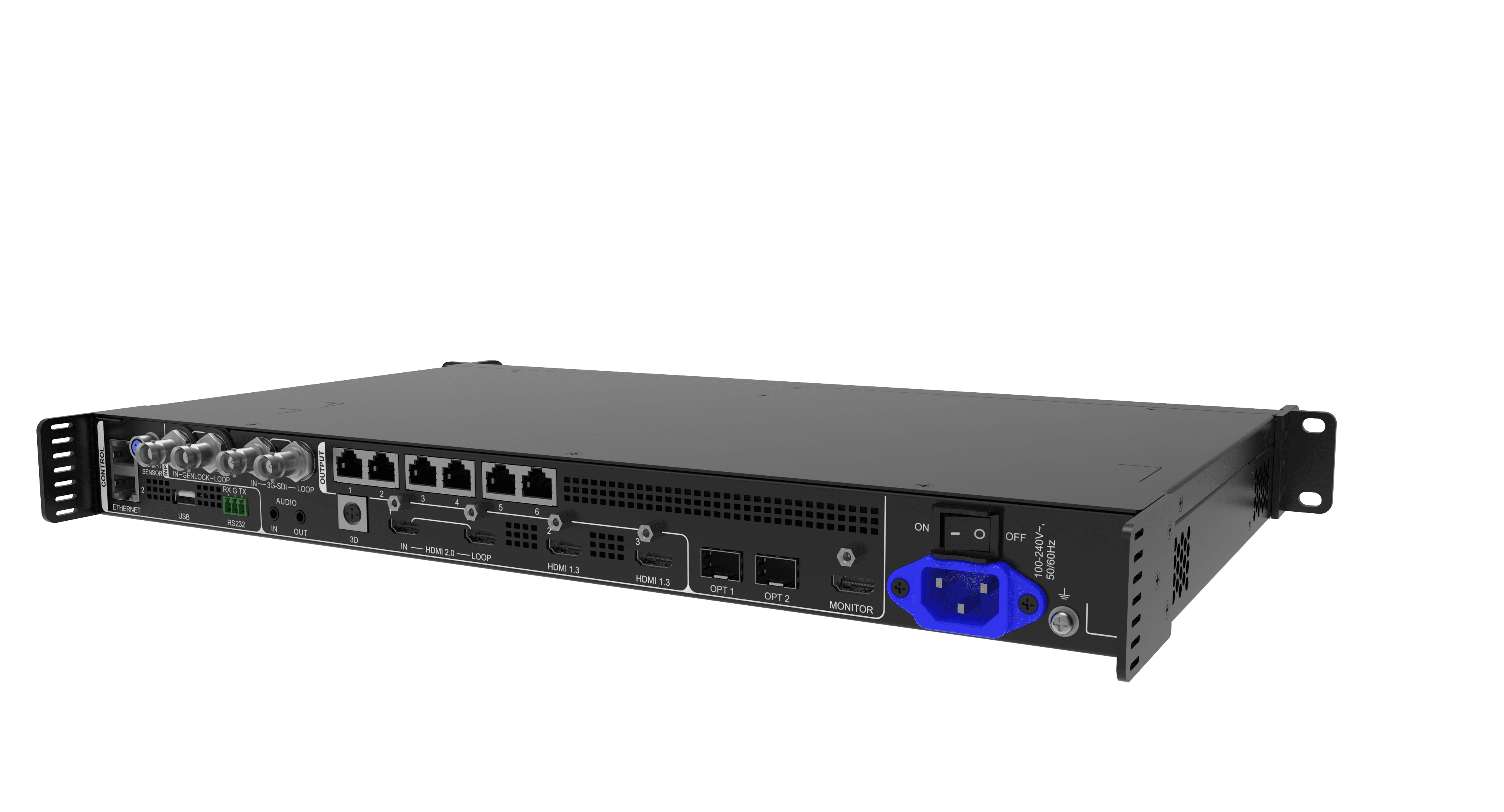

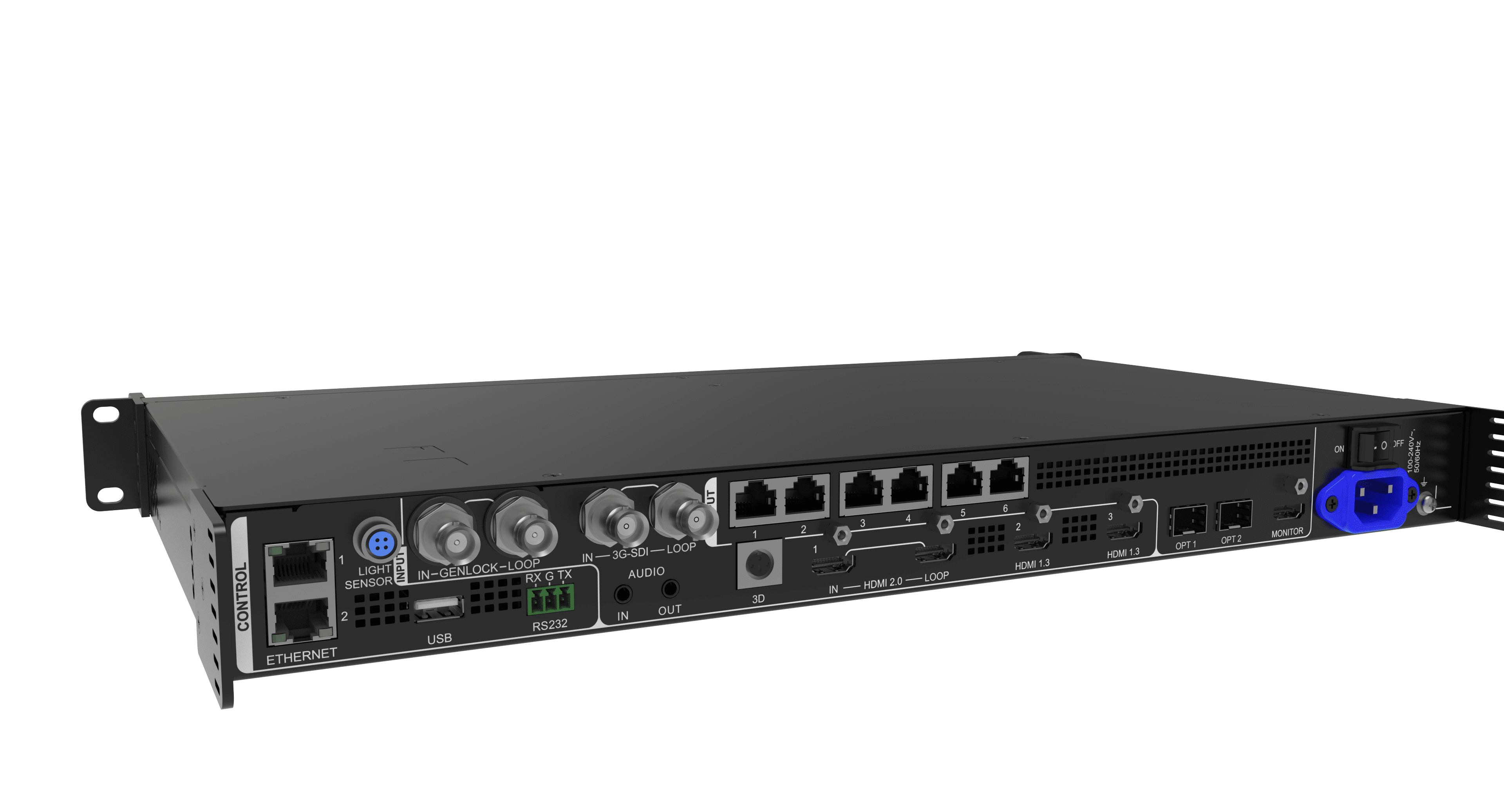

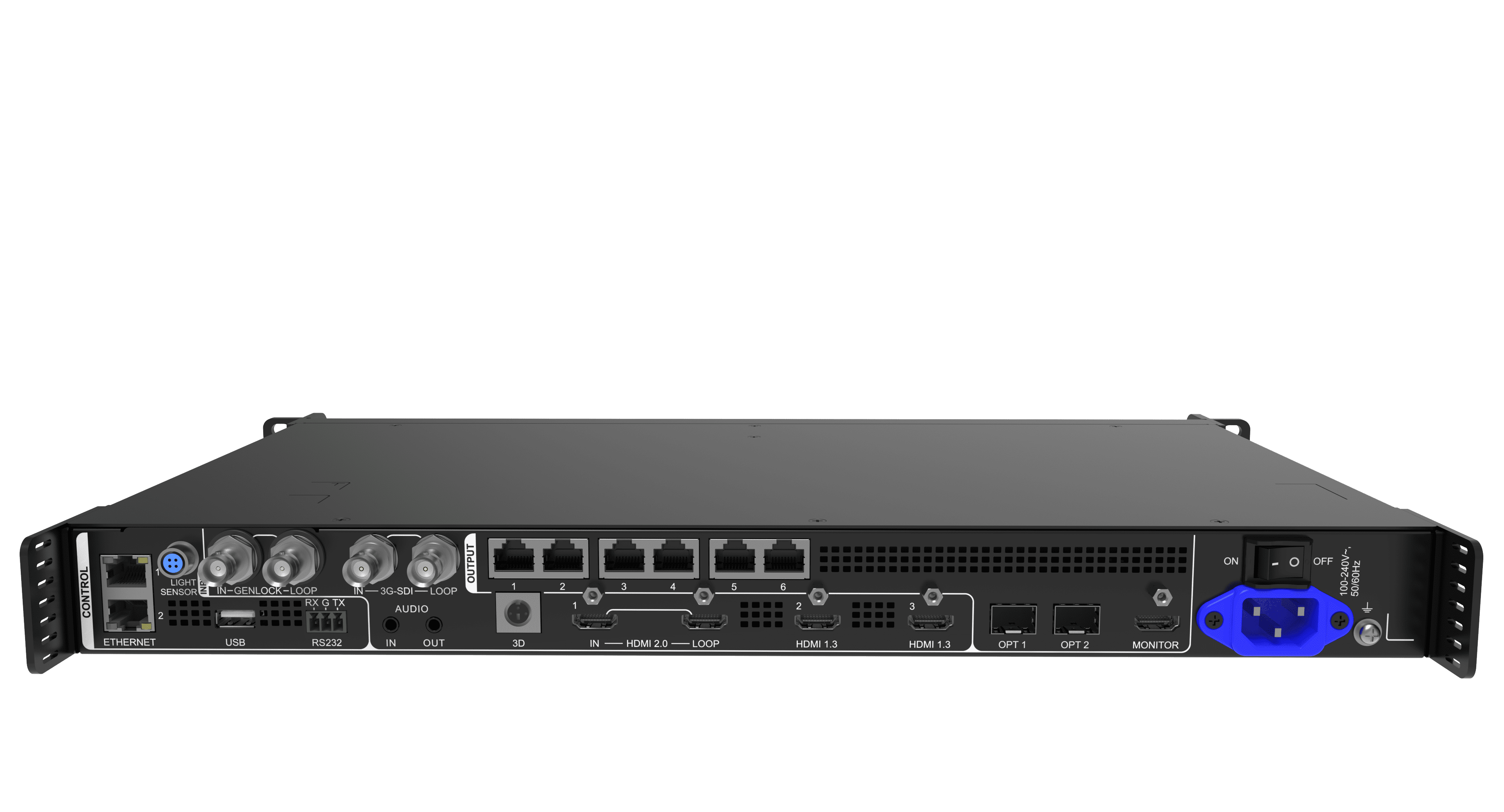

- Output Connectors: 6x Ethernet Ports, 1x HDMI 1.3, 1x 3D Connector
- Optical Connectors: 1x 10G Optical Fiber Port
- Control Connectors: 2x Ethernet Port, 1x USB
- Presets: 256
- Chassis Height: 1U
- Product Dimensions: 19″ x 11.89″ x 1.97″ (482.6 x 302.2 x 50.1mm)
- Product Weight: 8.6lbs (3.9kg)
Technical specifications
UPC
618528599489Download
User Manual
| File name | File size | Download | |
|---|---|---|---|
 |
NovastarVX600Pro_User_Manual.PDF | 500KB |  |
Tech / Data Sheets
| File name | File size | Download | |
|---|---|---|---|
|
NovastarVX600Pro_Tech_Sheet.PDF | 500KB | |
