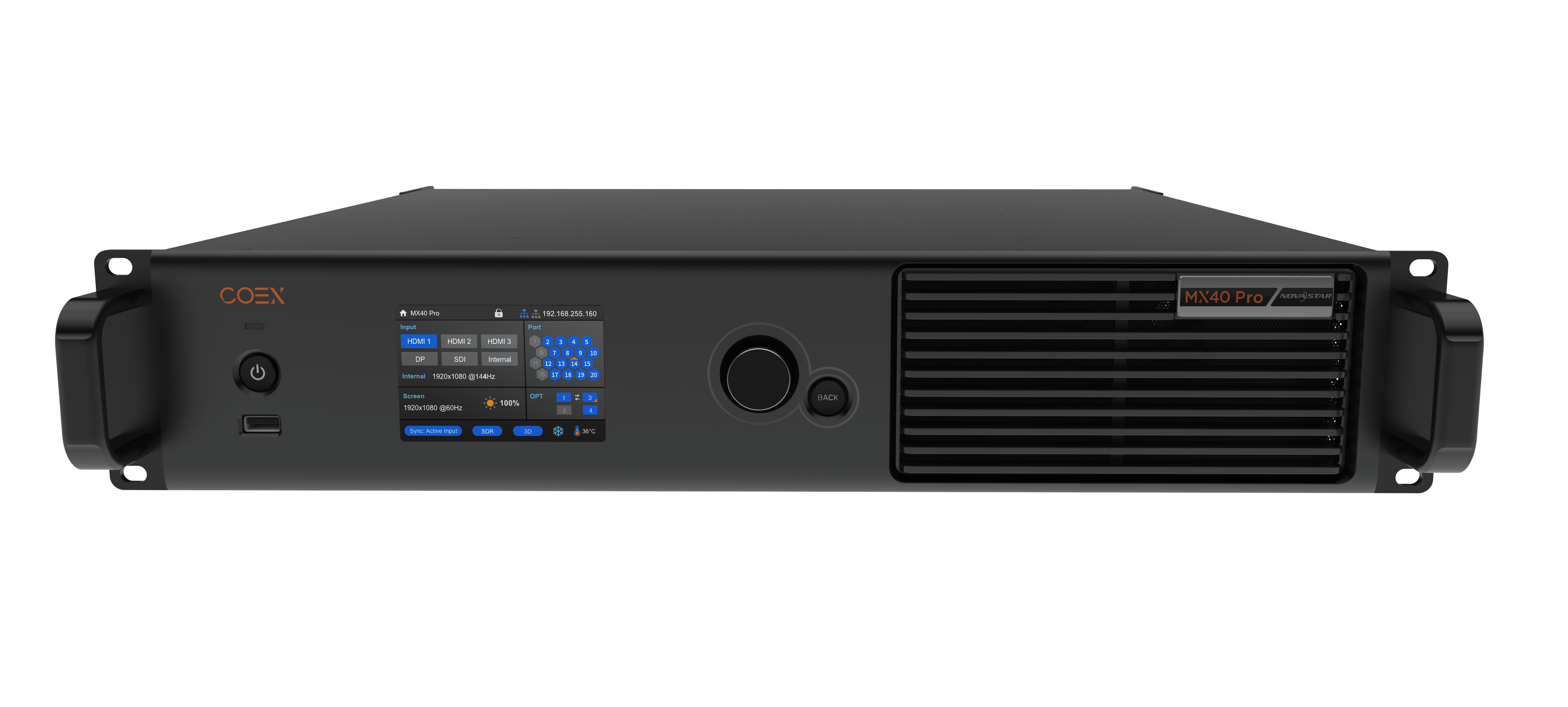

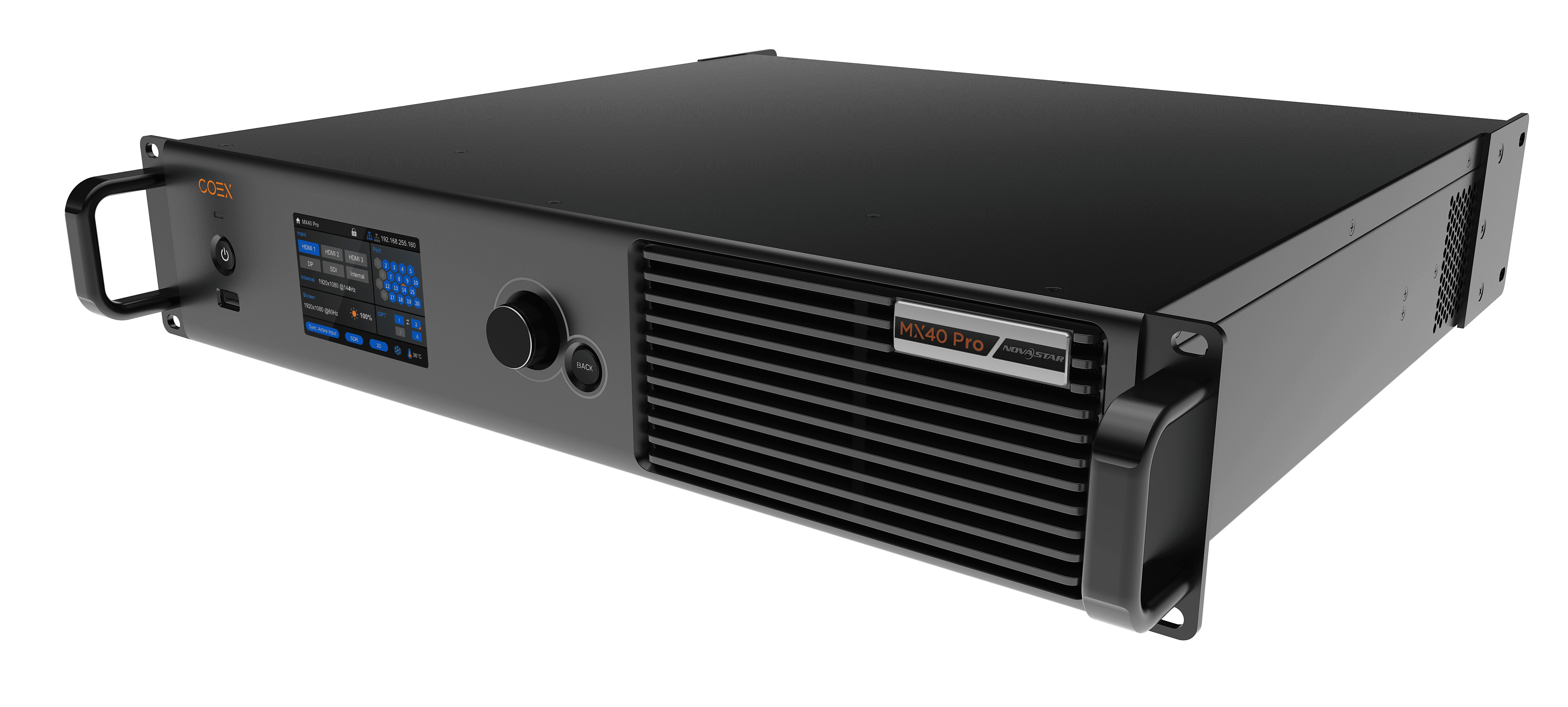

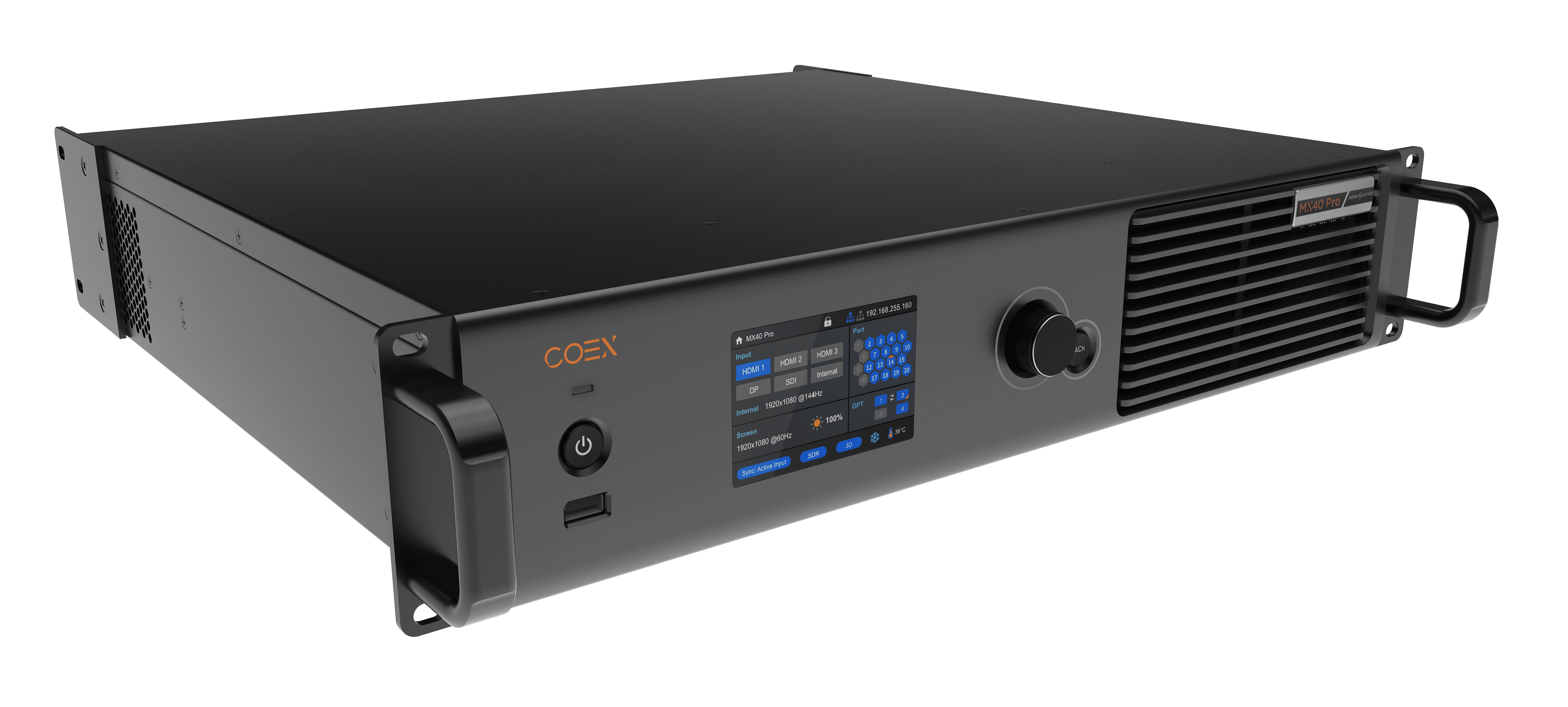

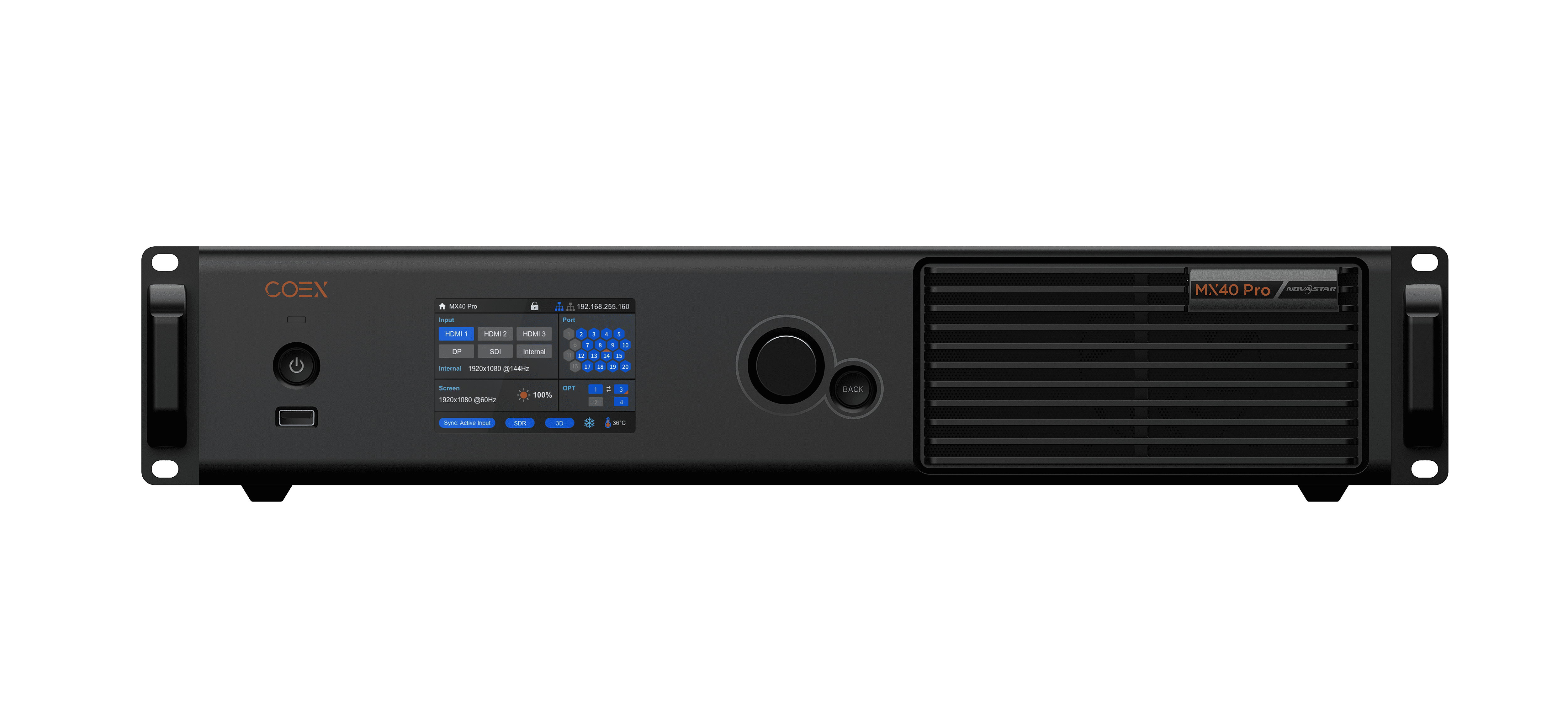

Novastar MX40 Pro LED Display Controller
SKU:
BB4009
Novastar MX40 Pro LED Display Controller
Main features:
- Capacity: 9m Pixels
- Max Width (pixels): 8192
- Max Height (pixels): 8192
- Layers: 4x 4K
- Input Connectors: 1x HDMI2.0-1 IN, 1x HDMI2.0-2 IN, 1x HDMI2.0-3, 1x DP1.2, 1x 12G-SDI IN

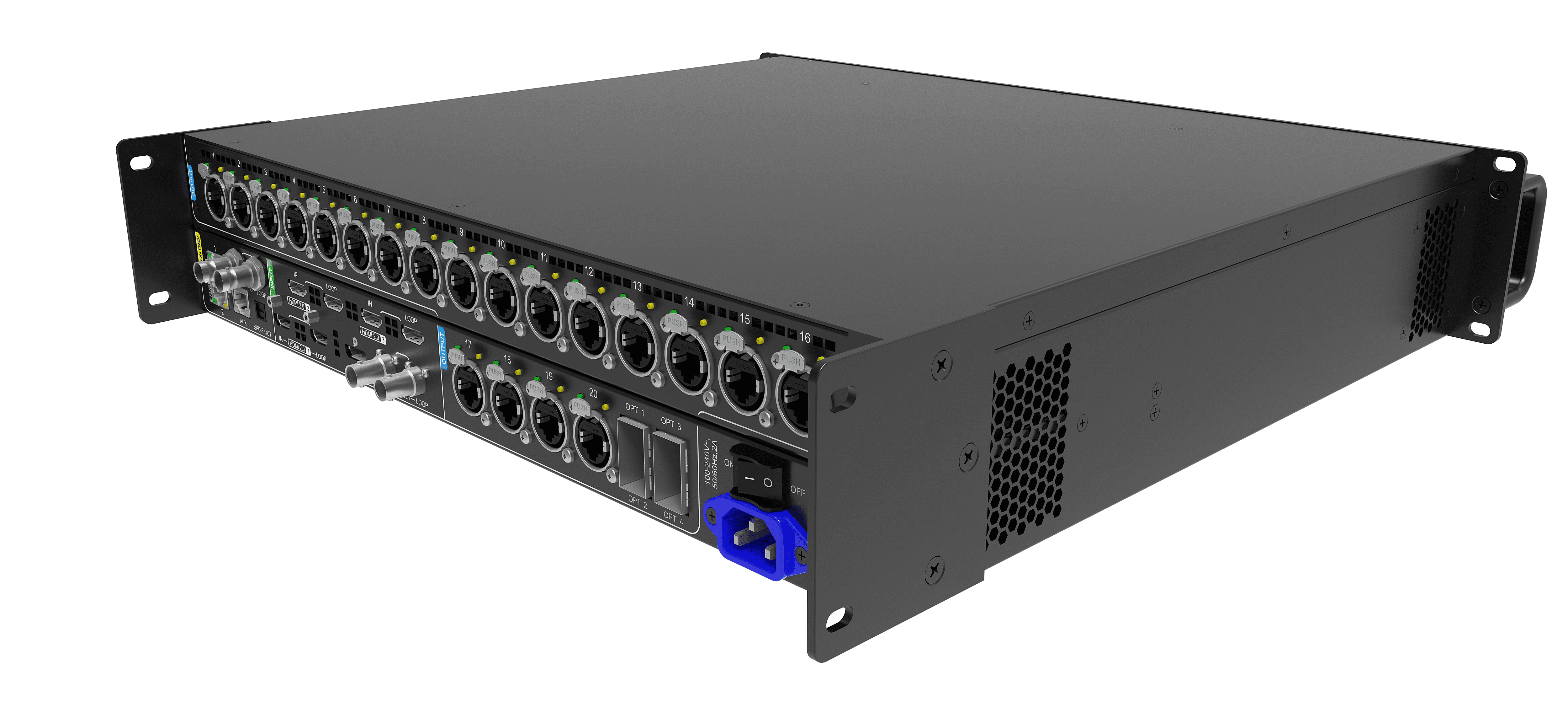

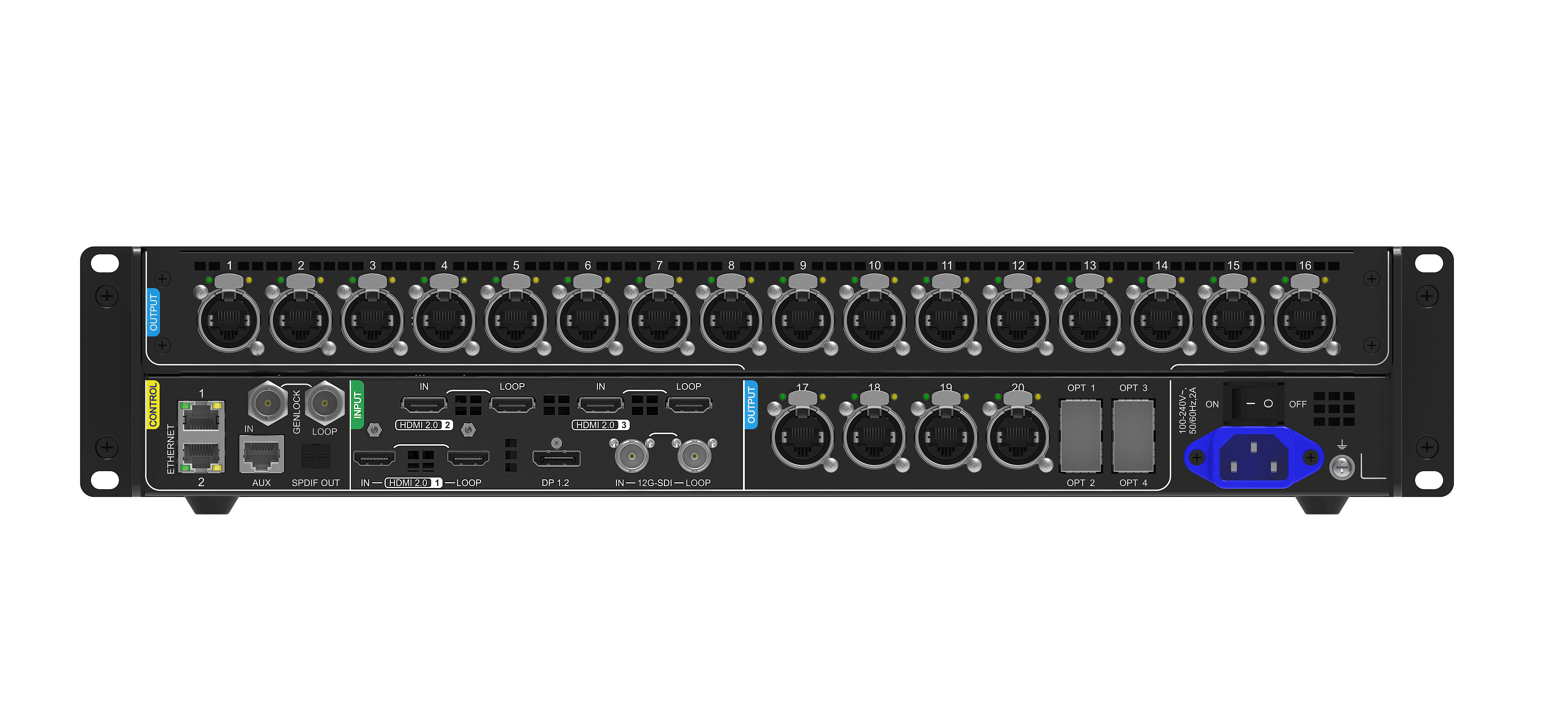

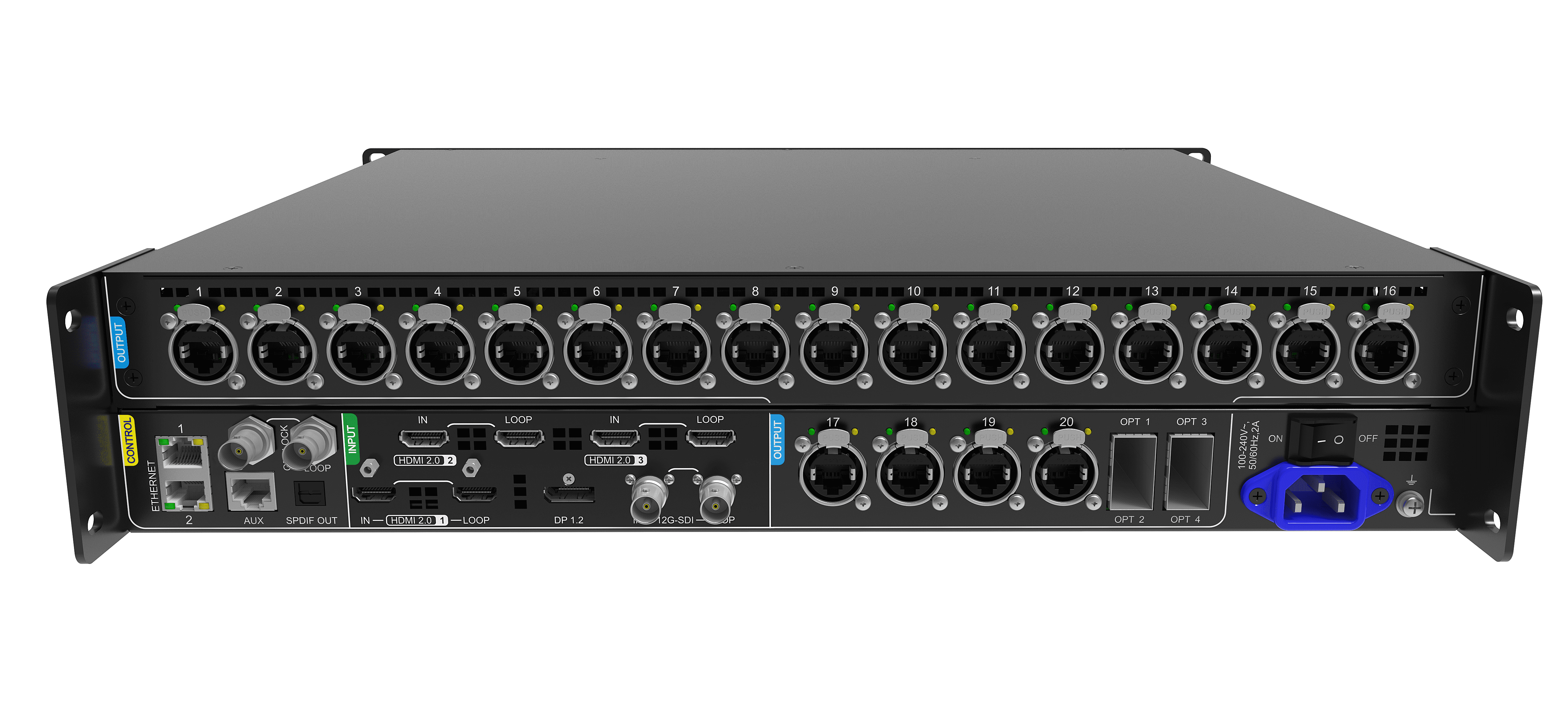

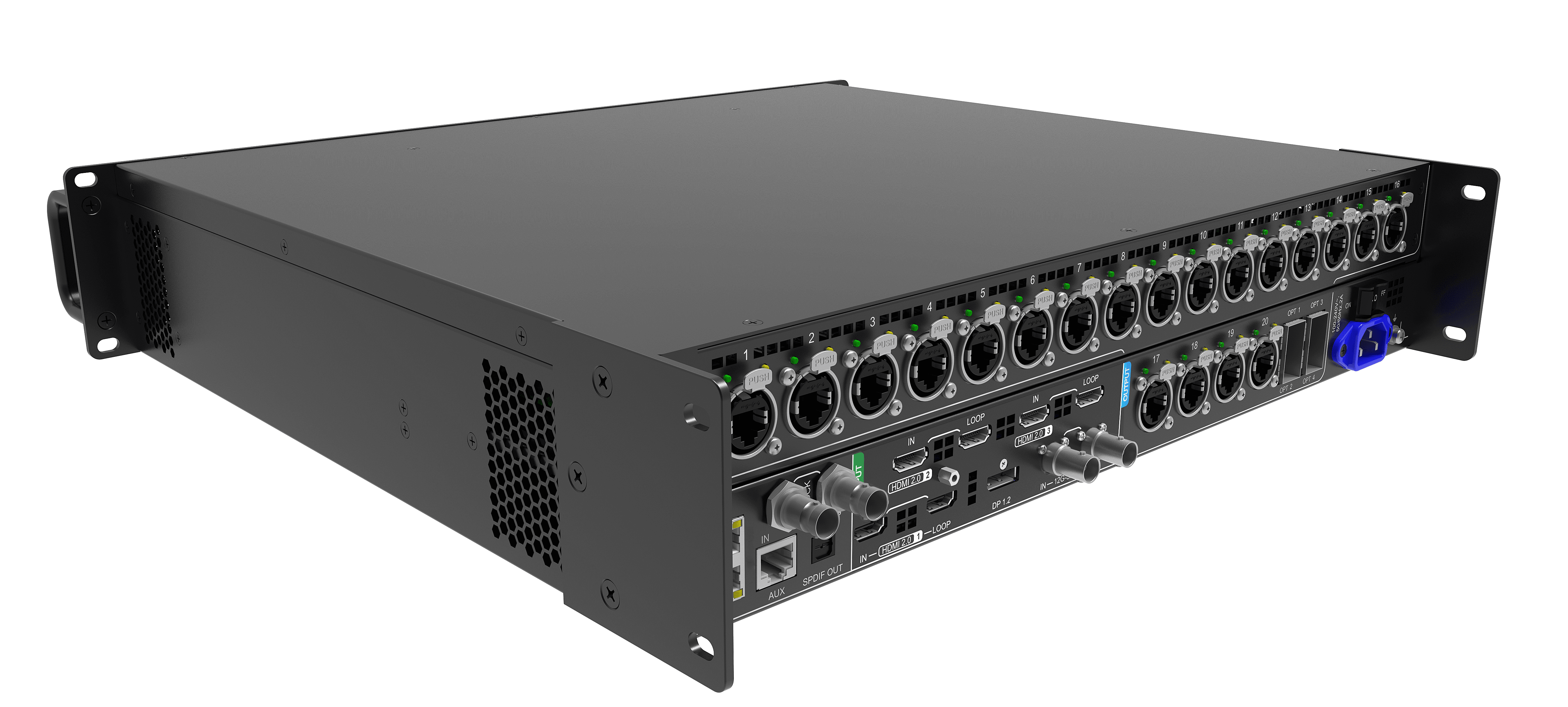

- Output Connectors: 20x Ethernet Ports (For Maximum Load per Ethernet Port, please refer to Novastar Website), 1x HDMI 2.0-1 LOOP, 1x HDMI 2.0-2 LOOP, 1x HDMI 2.0-3 LOOP, 1x 12G-SDI LOOP, 1x SPDIF OUT
- Optical Connectors: 4x 10G OPT Ports
- Control Connectors: 2x Ethernet Ports, 1x Genlock, 1x AUX (RS232)
- Chassis Height: 2U
- Product Dimensions: 19″ x 3.7″ x 18.38″ (482.6 x 94.2 x 467mm)
- Product Weight: 16.53lbs (7.5kg)
Technical specifications
UPC
618528599366Download
User Manual
| File name | File size | Download | |
|---|---|---|---|
 |
Novastar MX40 Pro_User_Manual.PDF | 500KB |  |
Tech / Data Sheets
| File name | File size | Download | |
|---|---|---|---|
|
NovastarMX40 Pro_Tech_Sheet.PDF | 500KB | |
