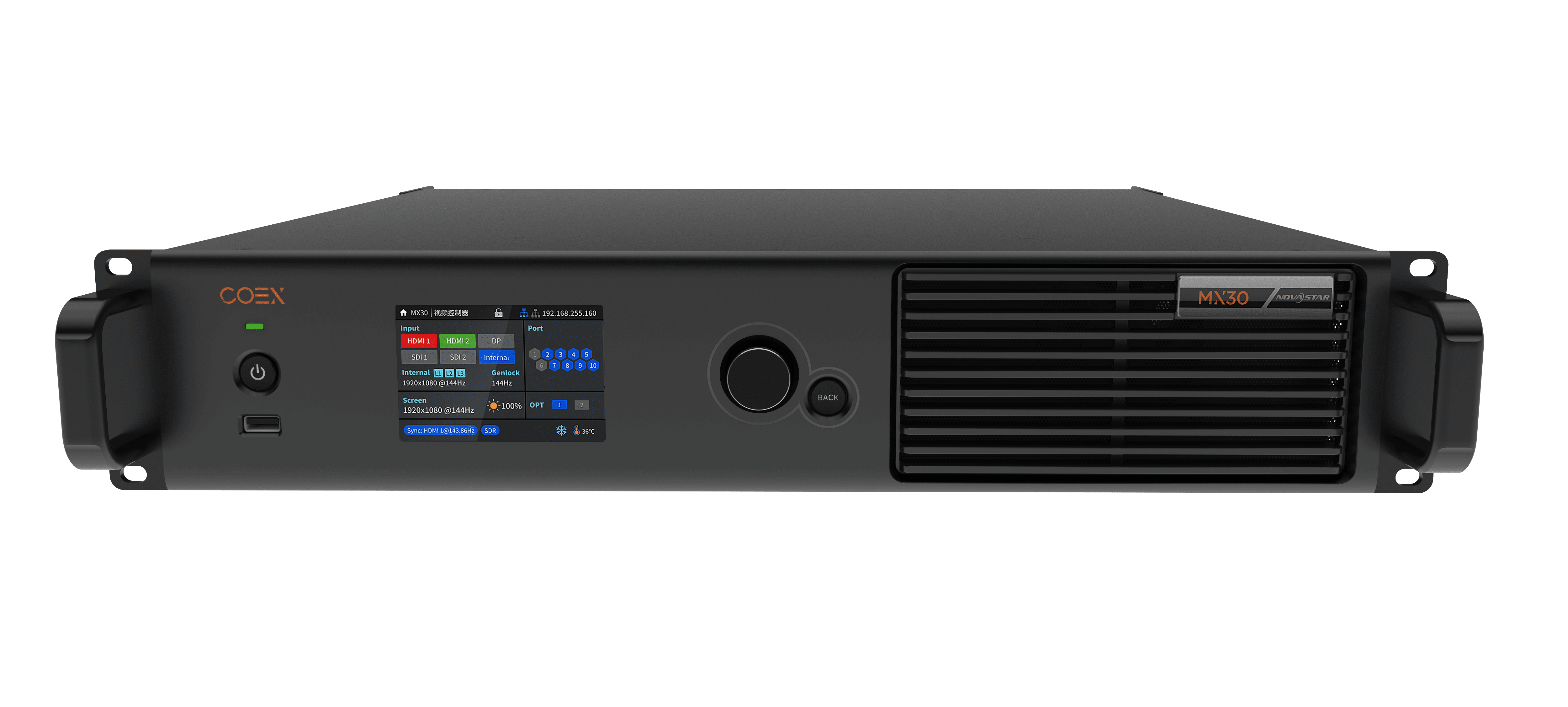

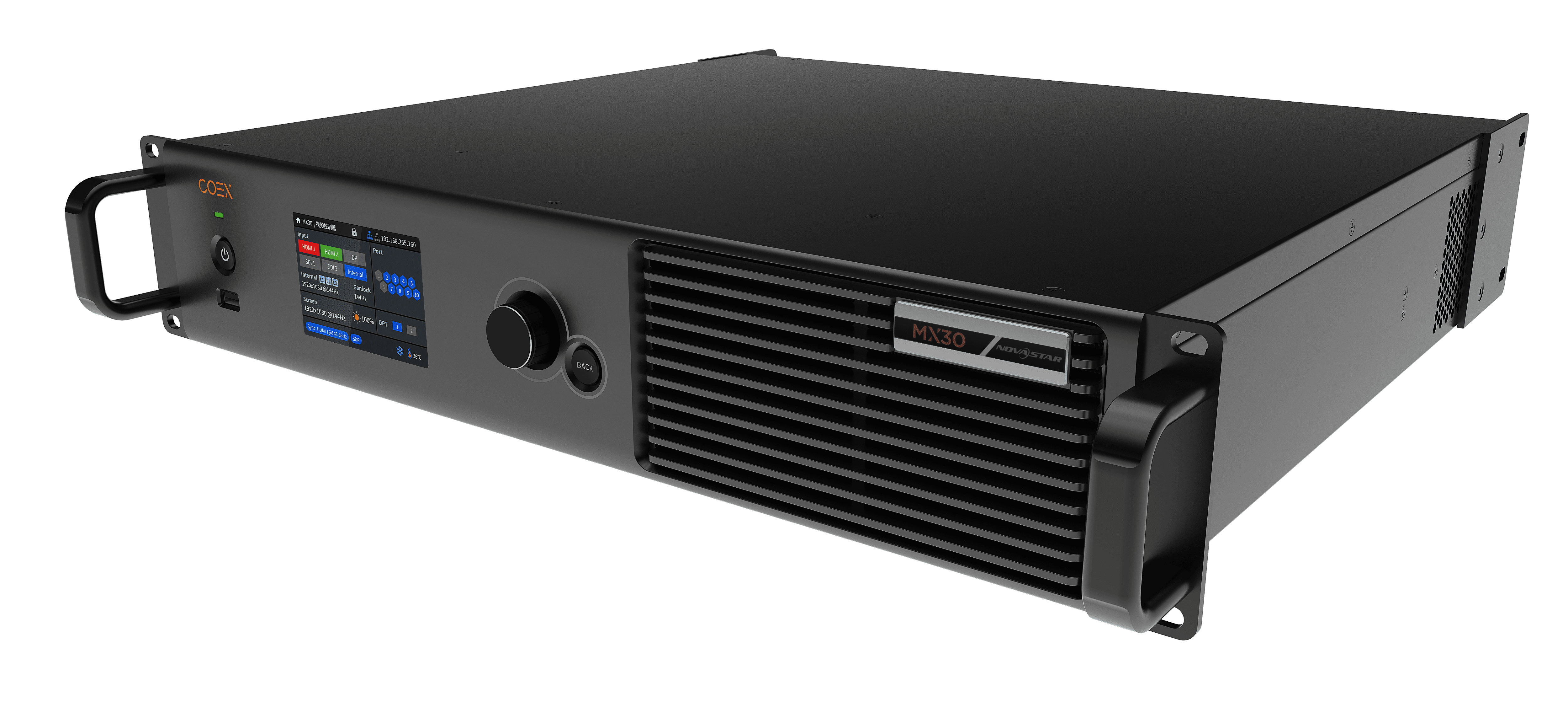

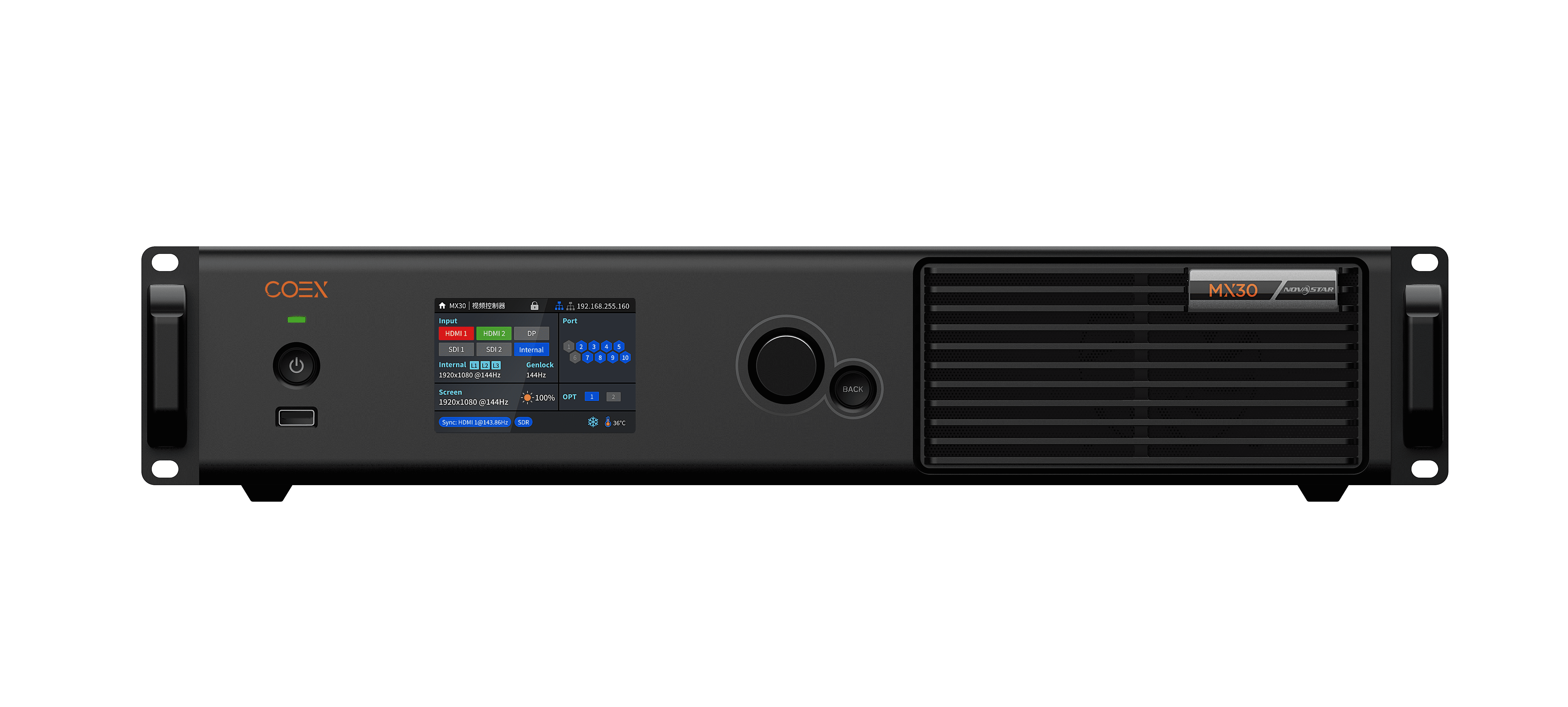

Novastar MX30 LED Display Controller
SKU:
BB4008
Novastar MX30 LED Display Controller
Main features:
- Capacity: 6.5m Pixels
- Max Width (pixels): 8192
- Max Height (pixels): 7680
- Layers: 3
- Input Connectors: 1x HDMI 2.0 (IN & LOOP), 1x HDMI 1.4 (IN & LOOP), 1x DP1.1, 2x 3G-SDI (IN & LOOP)

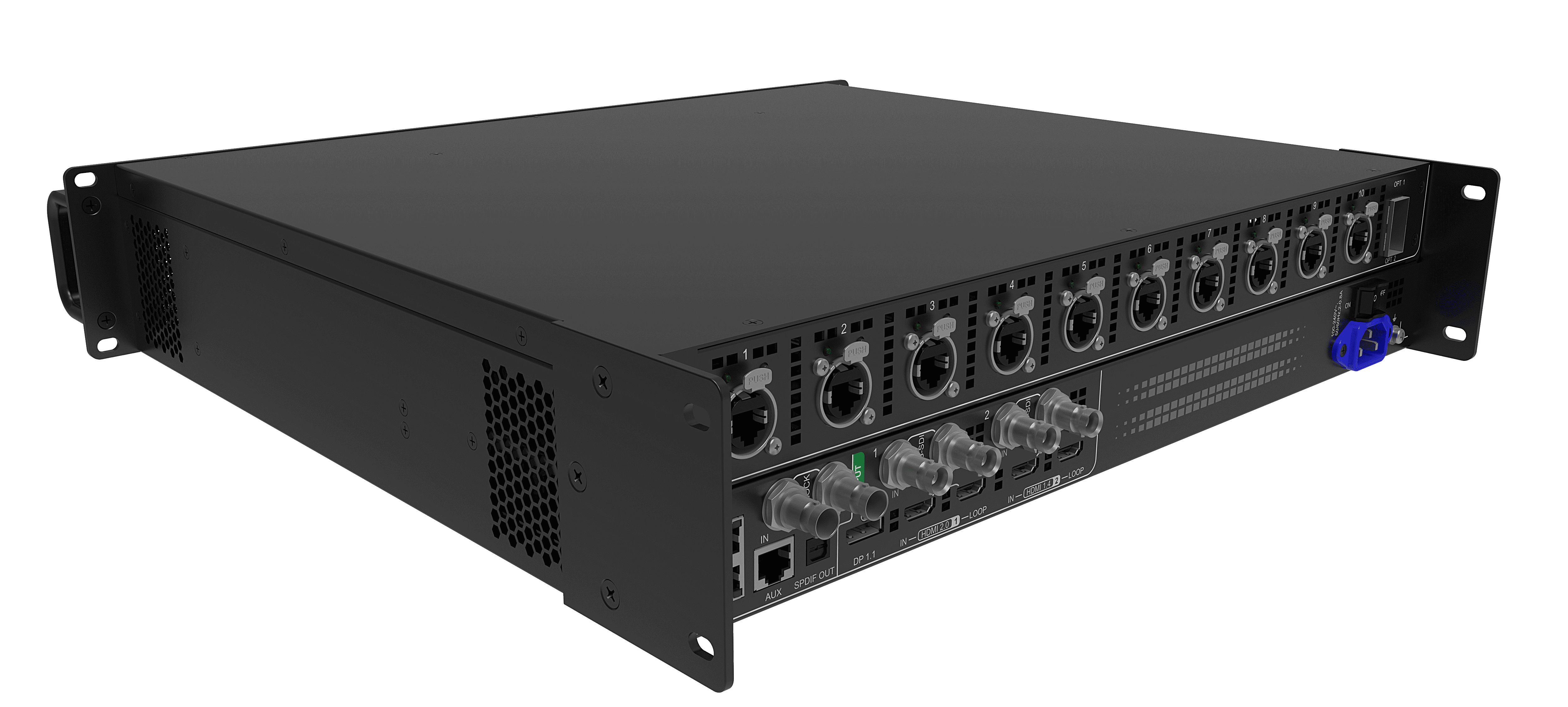

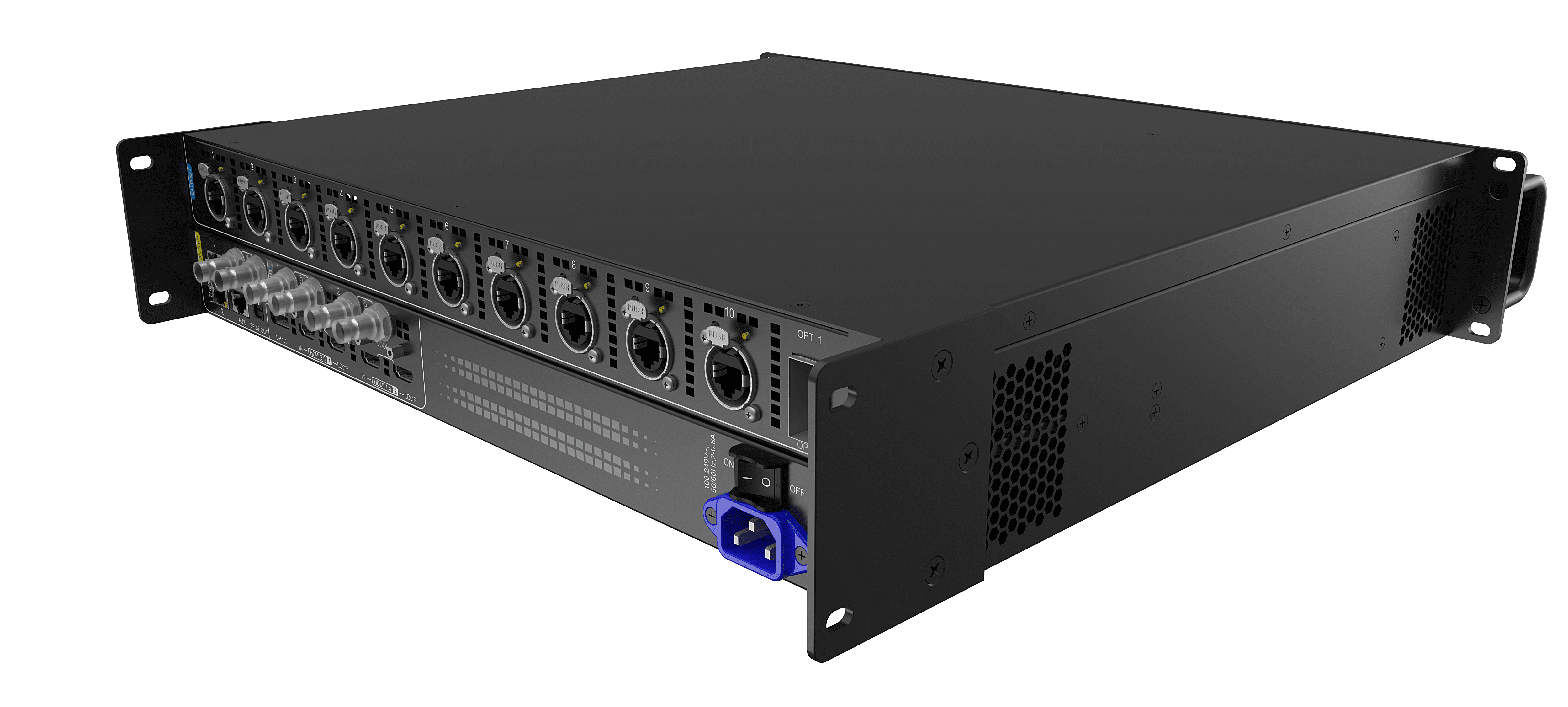

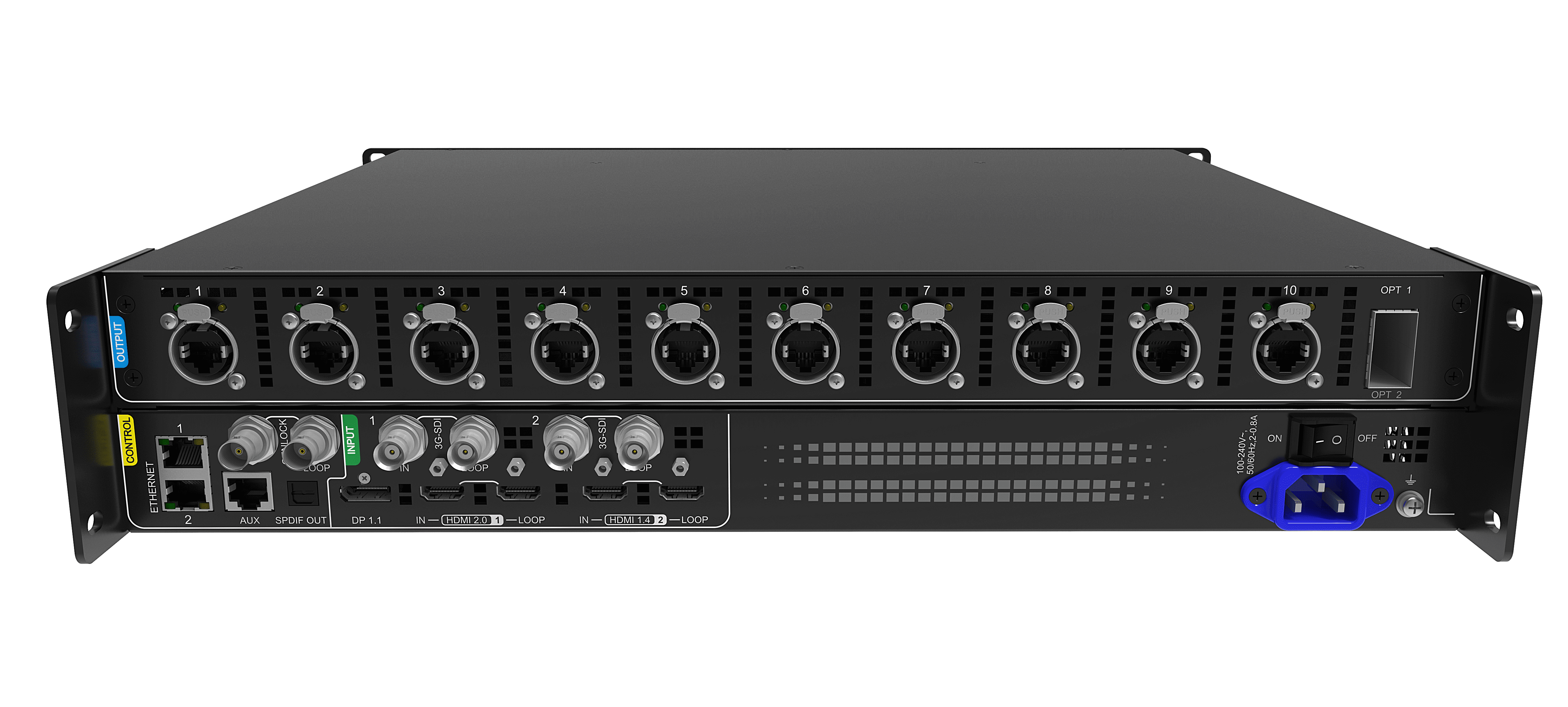

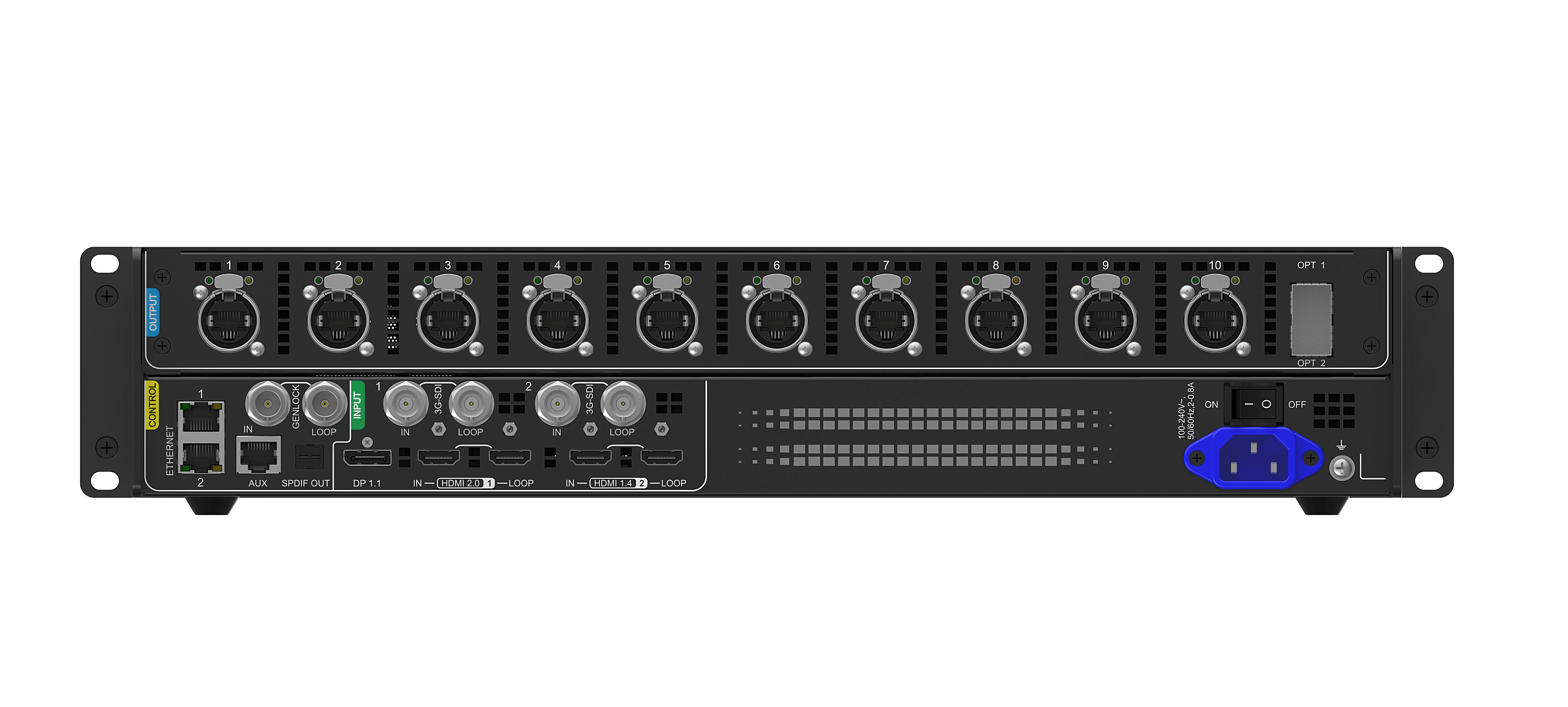

- Output Connectors: 10x Ethernet Ports (For Maximum Load per Ethernet Port, please refer to Novastar website), 1x HDMI 2.0-1 LOOP, 1x HDMI 1.4-2 LOOP, 1x 3G-SDI LOOP, 1x SPDIF OUT
- Optical Connectors: 2x 10G OPT Ports
- Control Connectors: 2x Ethernet, 1x Genlock, 1x AUX (RS232)
- Chassis Height: 2U
- Product Dimensions: 19″ x 3.7″ x 18.37″ (482.6 x 94.2 x 466.7mm)
- Product Weight: 15.87lbs (7.2kg)
Technical specifications
UPC
618528599359Download
User Manual
| File name | File size | Download | |
|---|---|---|---|
 |
Novastar MX30_User_Manual.PDF | 500KB |  |
Tech / Data Sheets
| File name | File size | Download | |
|---|---|---|---|
|
NovastarMX30_Tech_Sheet.PDF | 500KB | |
