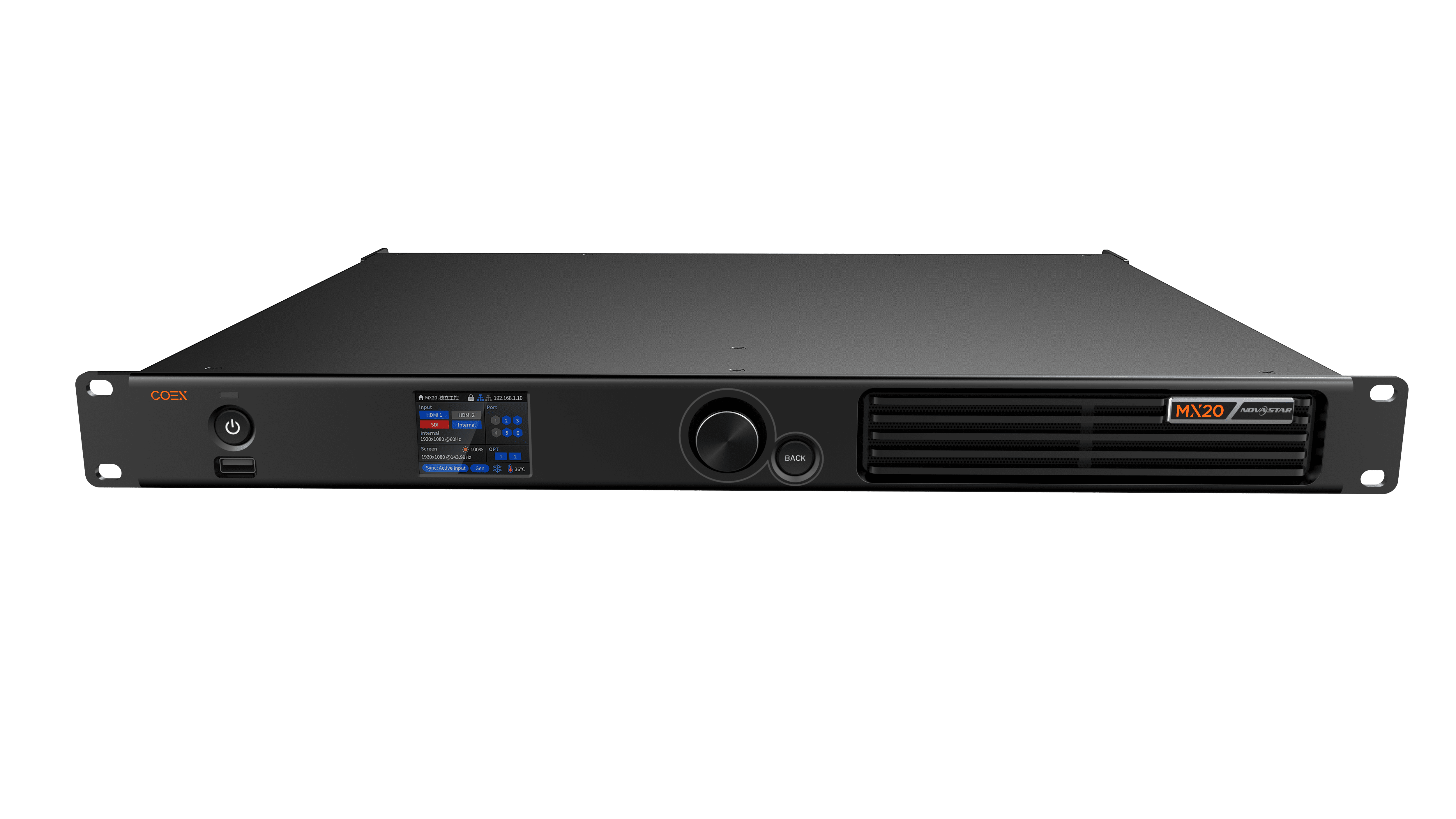

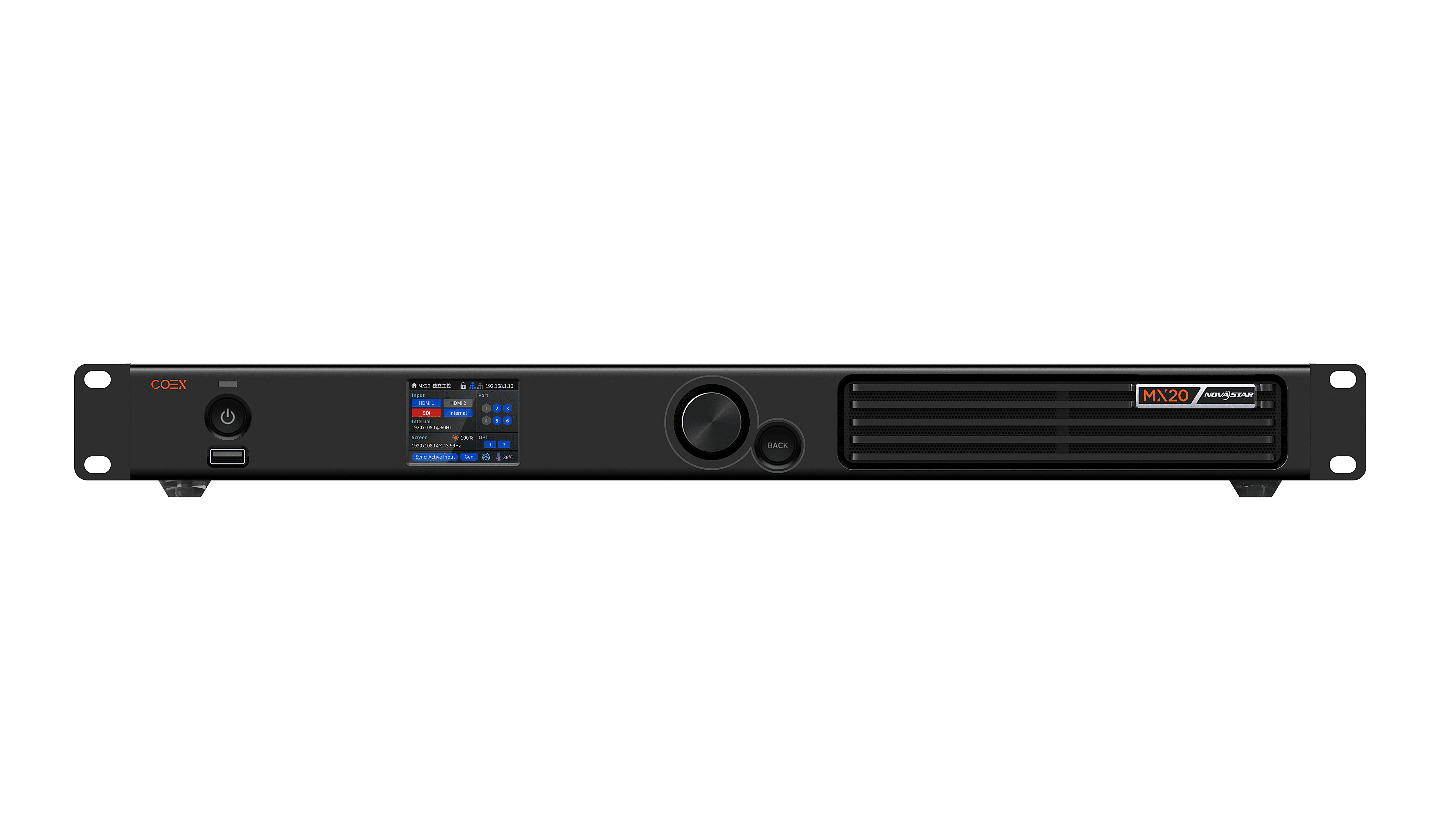

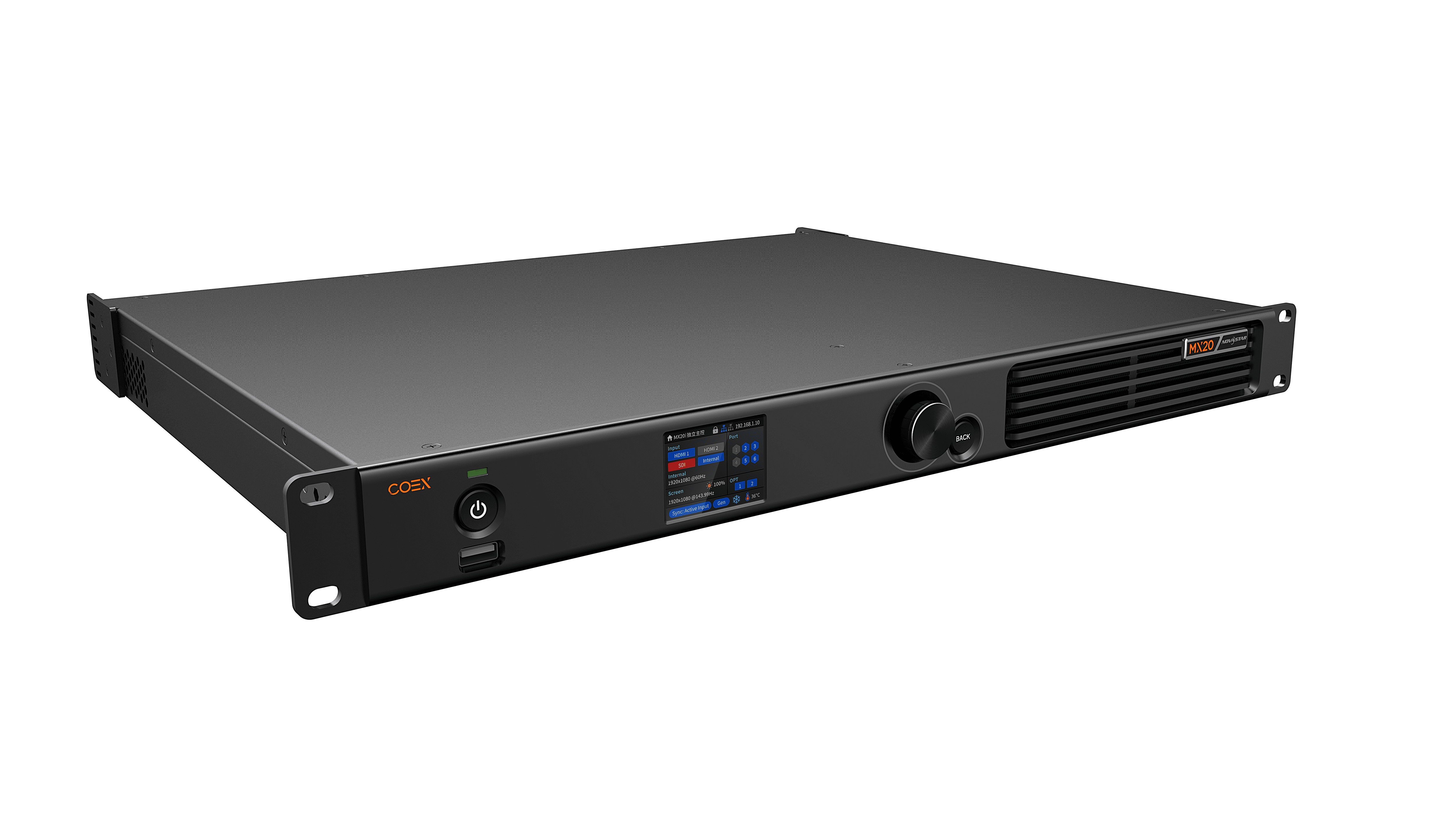

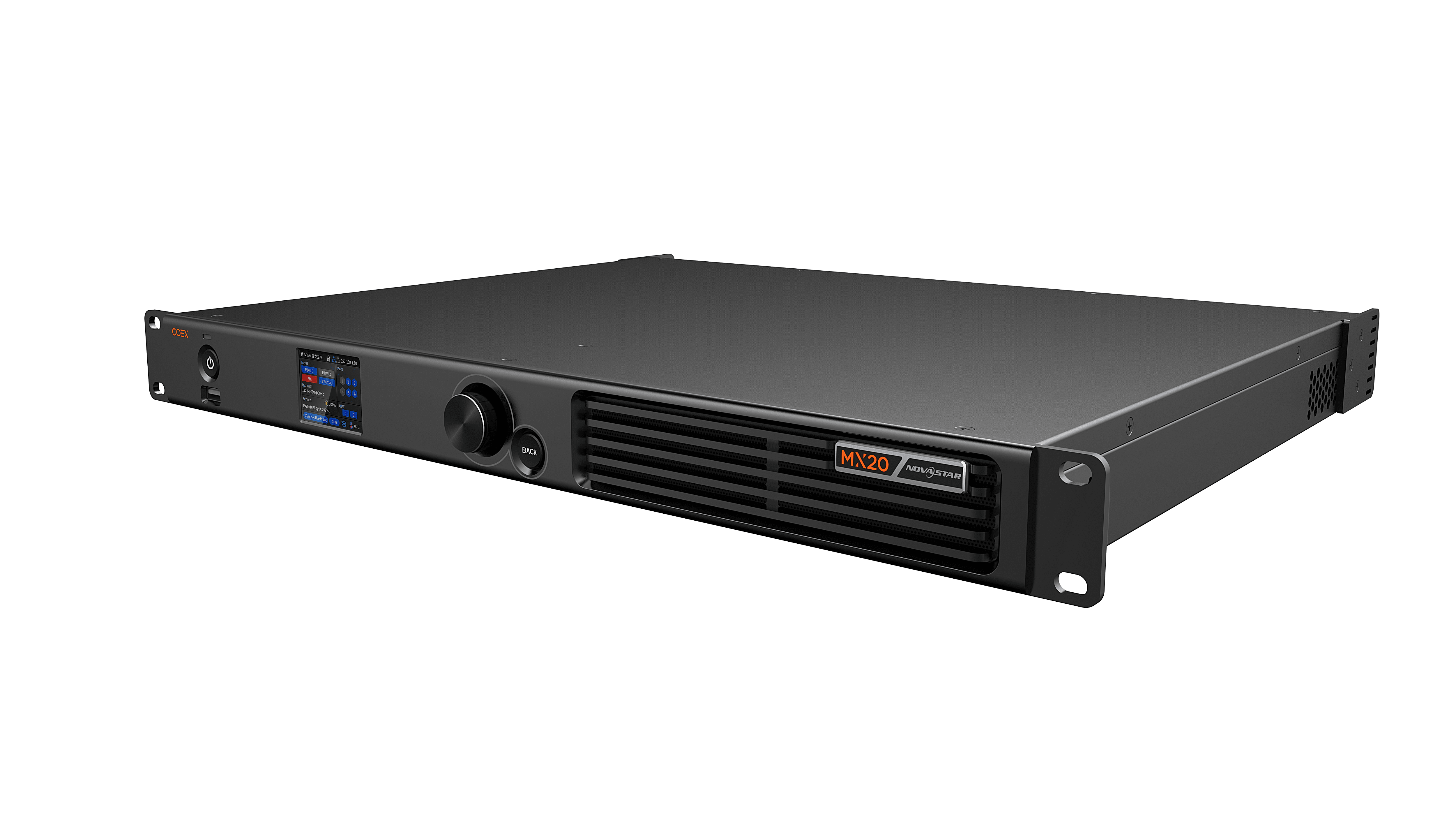

Novastar MX20 LED Display Controller
SKU:
BB4007
Novastar MX20 LED Display Controller
Main features:
- Capacity: 3.9m Pixels
- Max Width (pixels): 3840
- Max Height (pixels): 2560
- Layers: 3
- Input Connectors: 2x HDMI 1.3 (IN & LOOP)

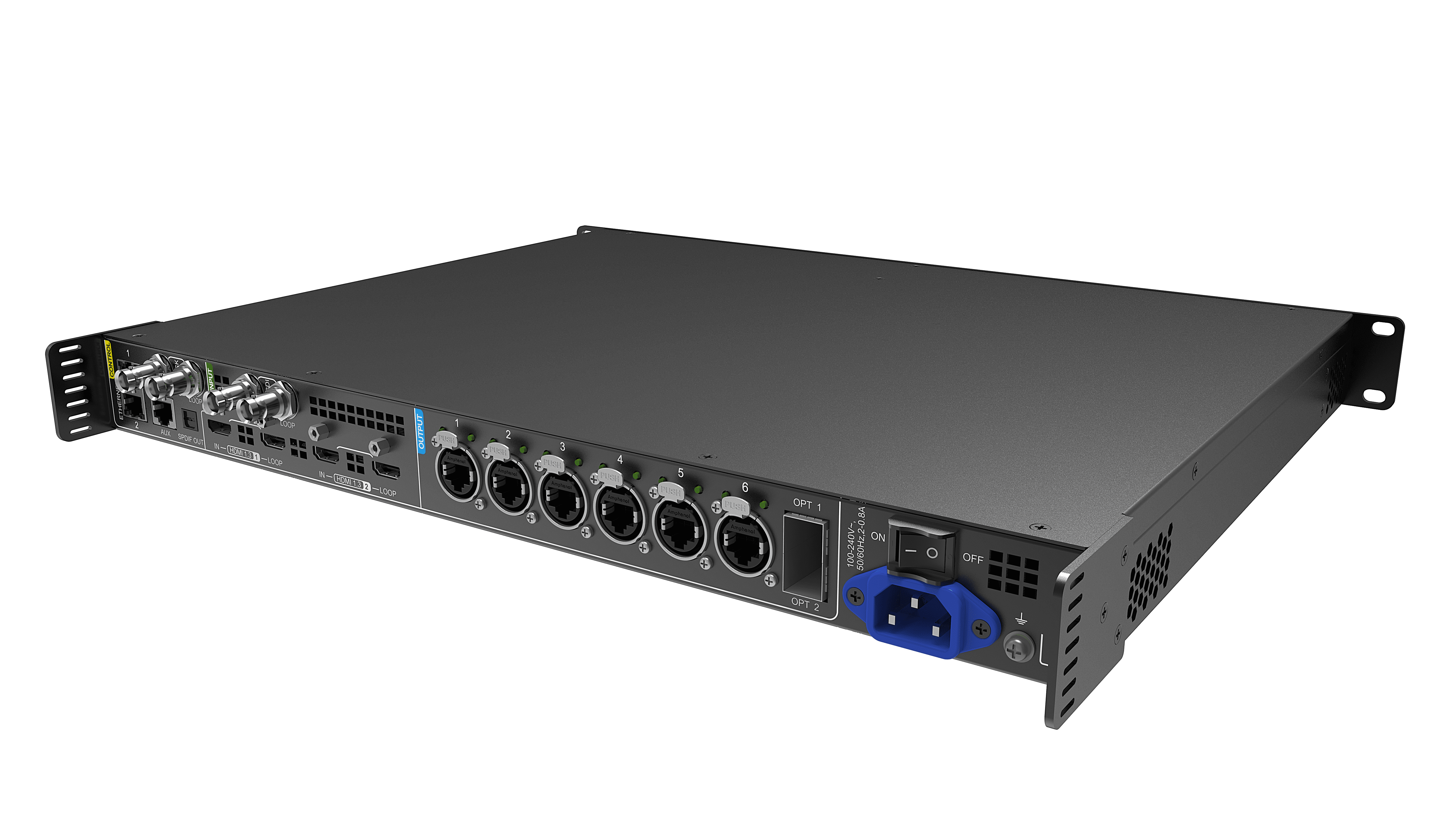

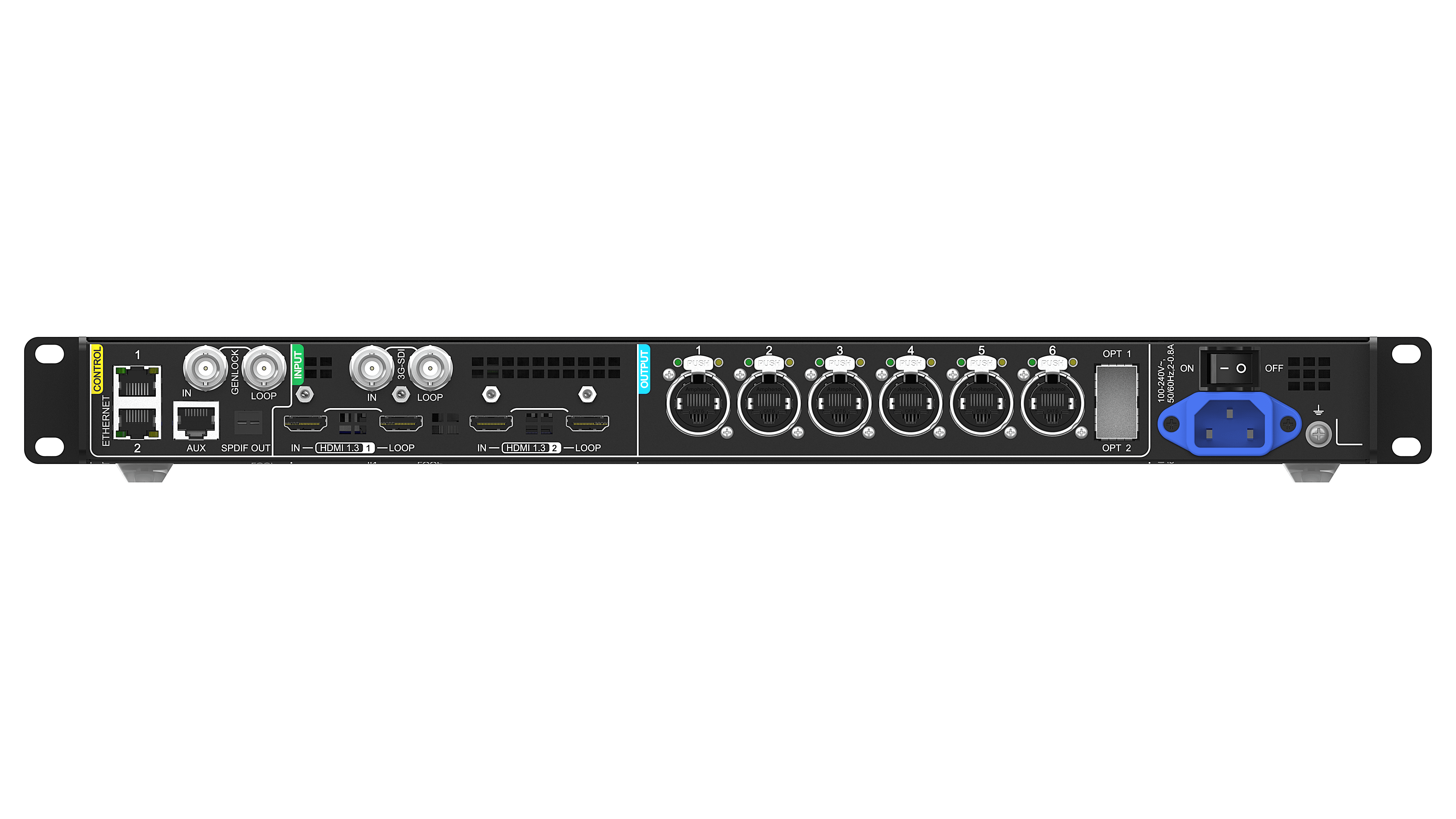

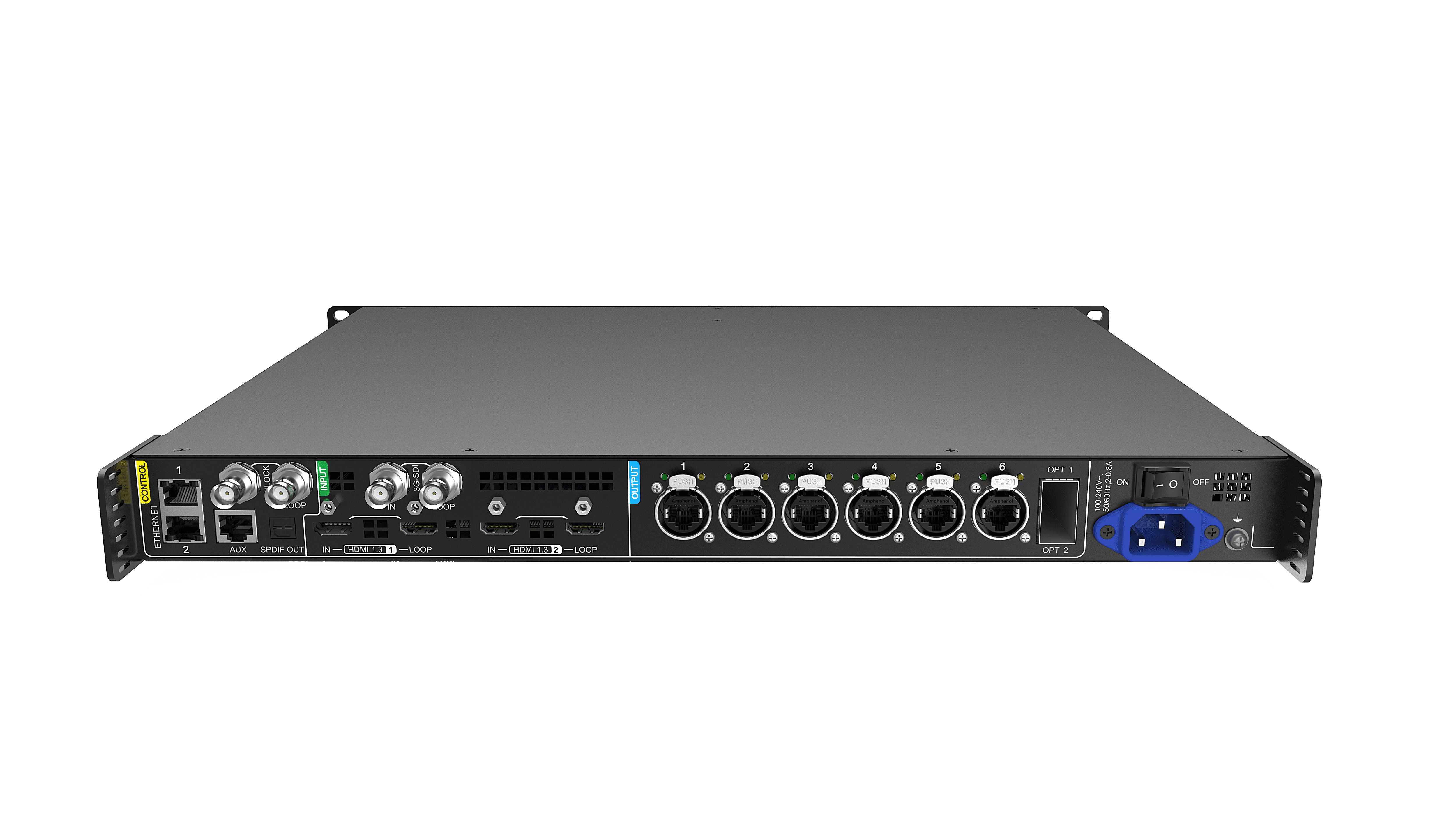

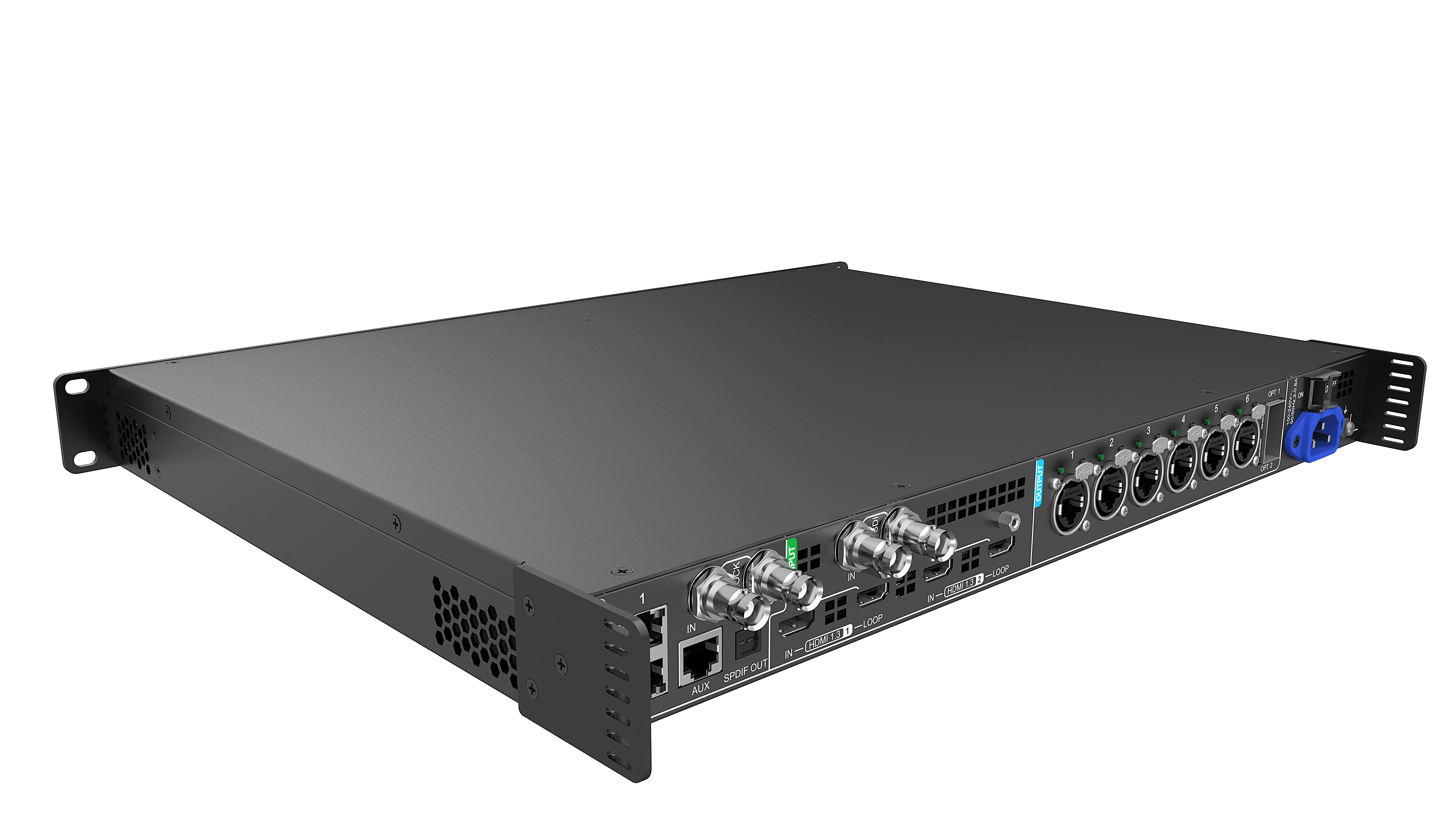

- Output Connectors: 6x Ethernet Ports (For Maximum Load per Ethernet Port, please refer to Novastar website), 2x HDMI 1.3 LOOP, 1x 3G-SDI LOOP, 1x SPDIF OUT
- Optical Connectors: 2x 10G OPT Ports
- Control Connectors: 2x Ethernet, 1x Genlock, 1x AUX (RS232)
- Chassis Height: 1U
- Product Dimensions: 19″ x 1.96″ x 15.11″ (482.6 x 49.9 x 384mm)
- Product Weight: 9.92lbs (4.5kg)
Technical specifications
UPC
618528599342Download
User Manual
| File name | File size | Download | |
|---|---|---|---|
 |
Novastar MX20_User_Manual.PDF | 500KB |  |
Tech / Data Sheets
| File name | File size | Download | |
|---|---|---|---|
|
NovastarMX20_Tech_Sheet.PDF | 500KB | |
