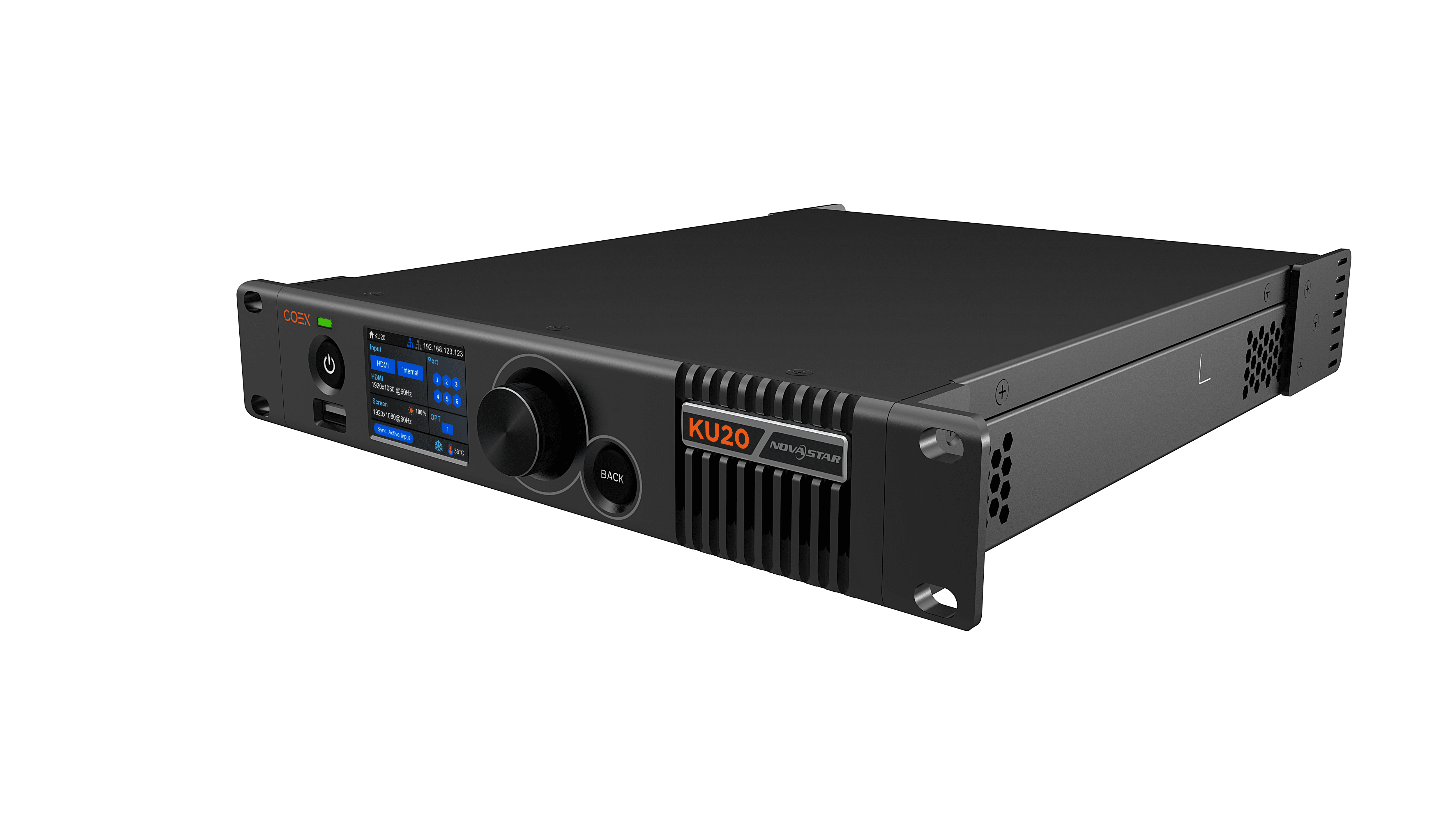

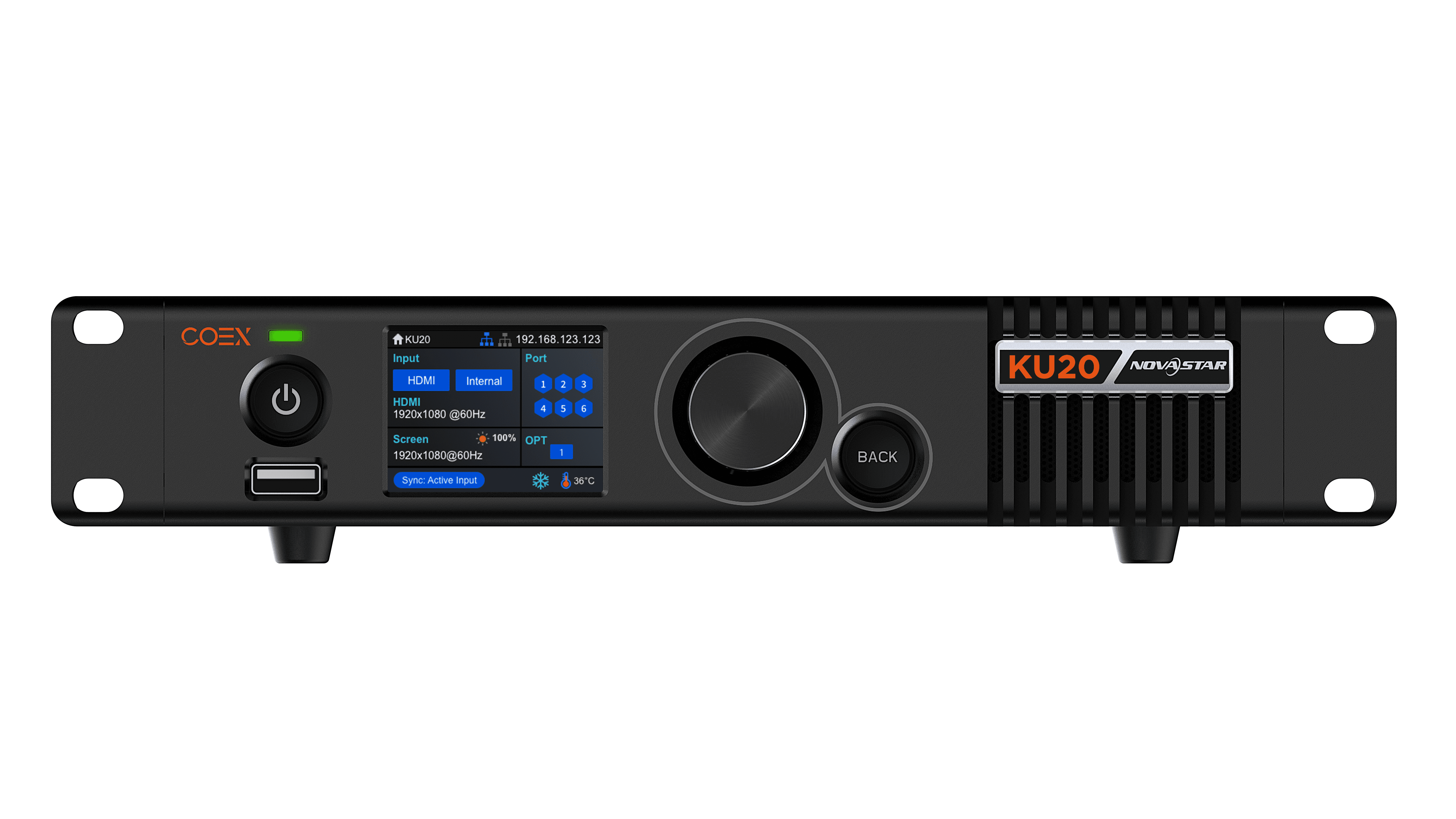

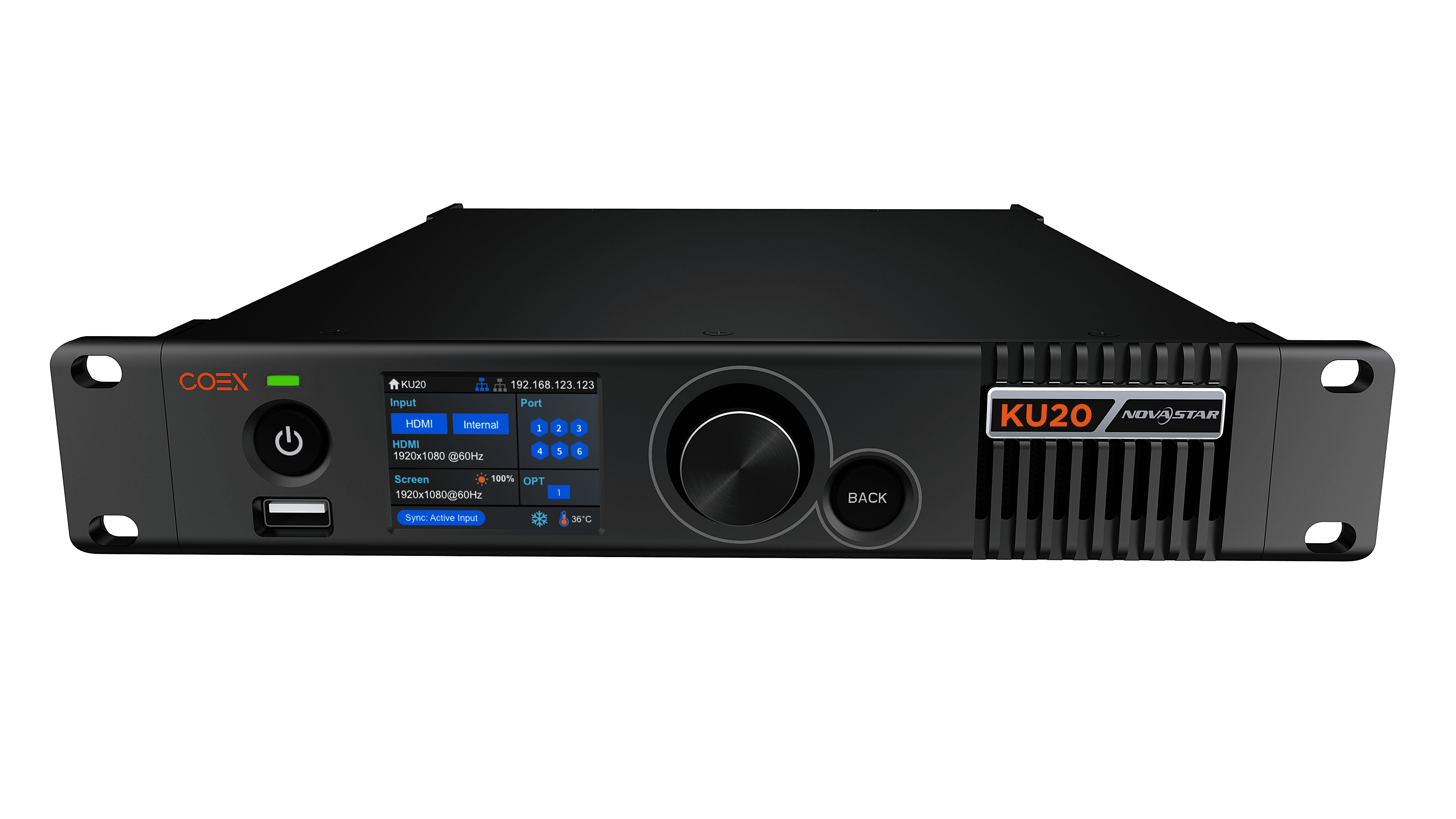

Novastar KU20 LED Display Controller
SKU:
BB4006
Novastar KU20 LED Display Controller
Main features:
- Capacity: 3.9m Pixels
- Max Width (pixels): 3840
- Max Height (pixels): 2560
- Layers: 1 *4Kx2K
- Input Connectors: 1x HDMI 1.3 (IN & LOOP)

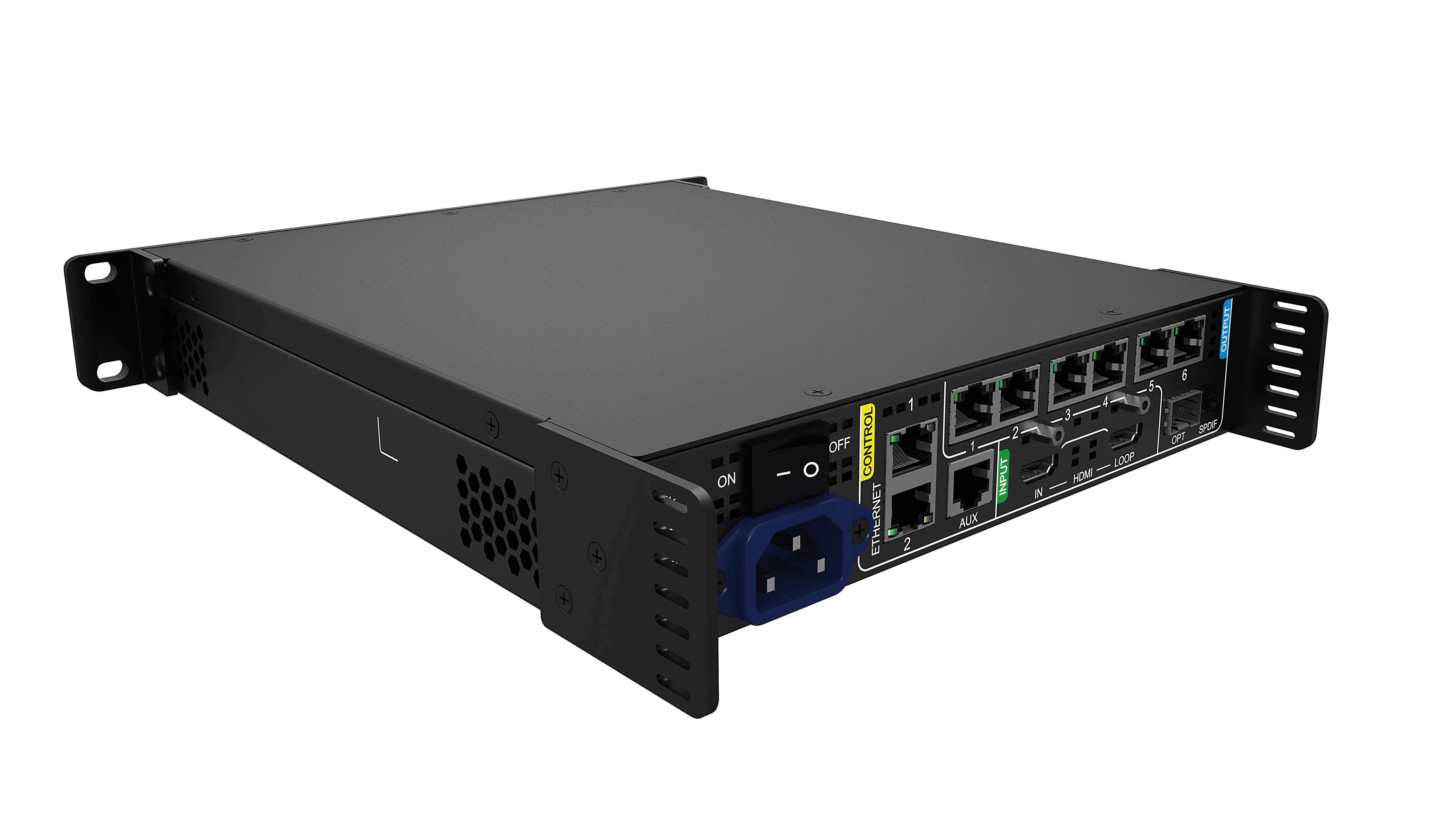

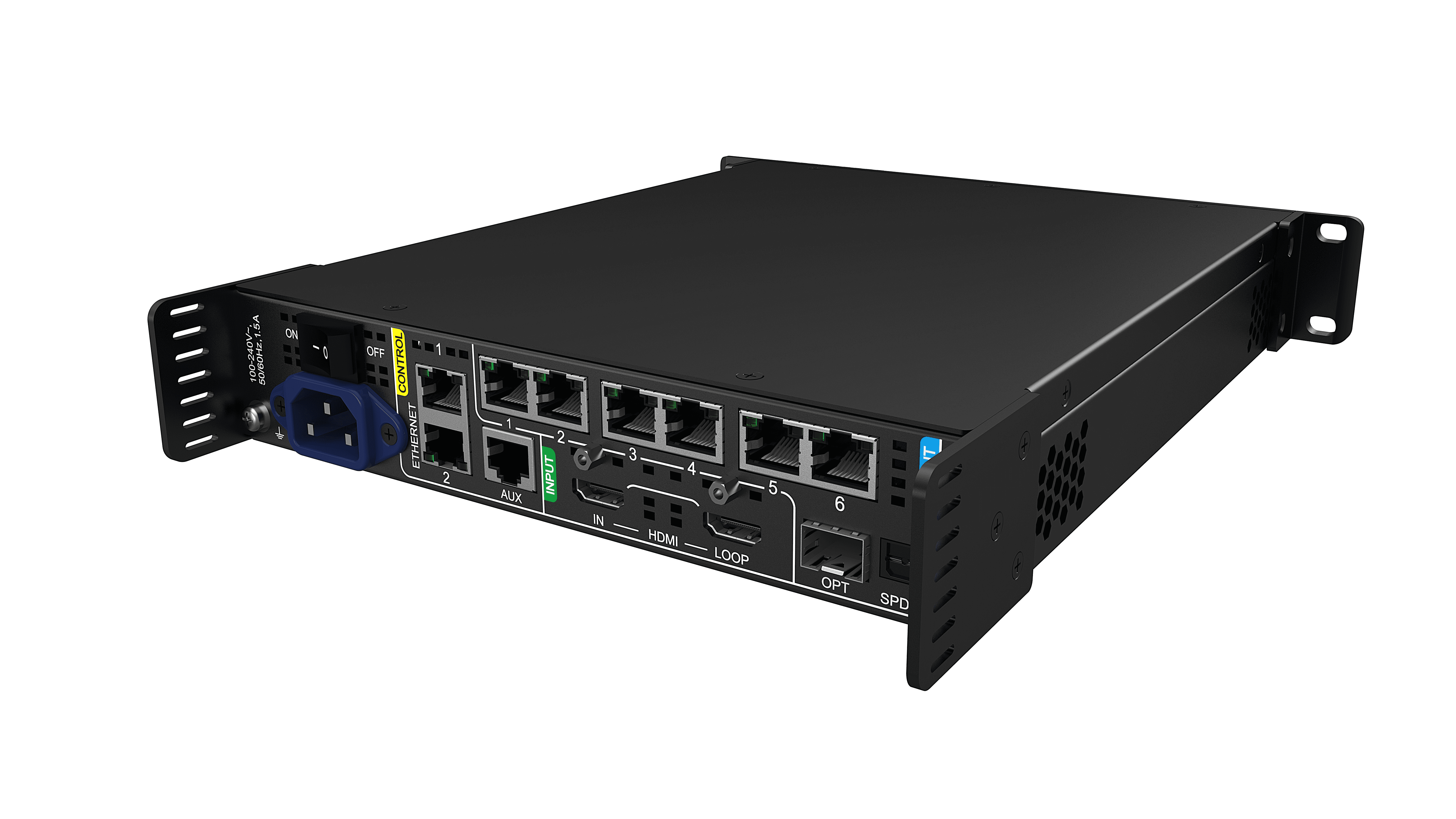

- Output Connectors: 6x Ethernet Ports (For Maximum Load per Ethernet Port, please refer to Novastar website) 1x HDMI LOOP, 1x SPDIF
- Optical Connectors: 1x 10G OPT Port
- Control Connectors: 2x Ethernet, 1x AUX (RS232)
- Chassis Height: 0.5U (1U w/ Included Connecting Piece)
- Product Dimensions: 10.01″ x 1.99″ x 11.41″ (254.3 x 50.6 x 290mm)
- Product Weight: 4.62lbs (2.1kg)
Technical specifications
UPC
618528599335Download
User Manual
| File name | File size | Download | |
|---|---|---|---|
 |
Novastar KU20_User_Manual.PDF | 500KB |  |
Tech / Data Sheets
| File name | File size | Download | |
|---|---|---|---|
|
NovastarKU20_Tech_Sheet.PDF | 500KB | |
