GRIDLYNE H5
SKU:
JZ2101
GRIDLYNE H5
Main features:
- Outer LEDs: 45W (2 x 17.5W) RGB LEDs
- Center LEDs:
- 1 x 45W 1600K Amber LEDs
- 1 x 90W 6000K Cool White LEDs
- CCT: 2300K – 8500K
- Inner LED Beam Angle: 100°
- Outer LED Beam Angle: 180°
- Protocols: 5-Pin DMX512, RDM
- Personalities: 3 Modes 8CH / 14CH / 20CH
- Includes: PowerCon Cable, 5-Pin DMX Cable, Manual
Technical specifications
Light Source
- Outer LEDs: 45W (2 x 17.5W) RGB LEDs
- Center LEDs:
- 1 x 45W 1600K Amber LEDs
- 1 x 90W 6000K Cool White LEDs
- LED Life Expectancy: 50,000 Hrs
Color System
- RGB Color Mixing 8/16 bit
- CCT: 2300K to 8500K
Optics
- Inner LED Beam Angle: 100°
- Outer LED Beam Angle: 180°
Dynamic Effect
- 8 Pixel-Control & Multi-Layer Control
- Dynamic Pattern Generation
- High-Speed Dimming & Bit-Depth
- Seamless Fixture Linkage with Different Angles
- Invert Installation & Pattern Adaptability
- Powerful Warm-White and Cool-White Strobe for Bold High-Impact Visual Effects
- Built-In Color and Effect Macros
Control
- Protocols: 5-Pin DMX512, RDM
- Personalities: 3 Modes 8CH / 14CH / 20CH
- LED Graphical Display
Body
- Steel Body Structure
Physical
- Cooling: Fan
- Certification / Qualifications
- IP Rating: IP20
- Operating Temperature: –30 ° C (-22° F) To 70° C (158° F)
Electrical
- Inpute Voltage: 100-240V – 50/60Hz
- Power Consumption: 150W

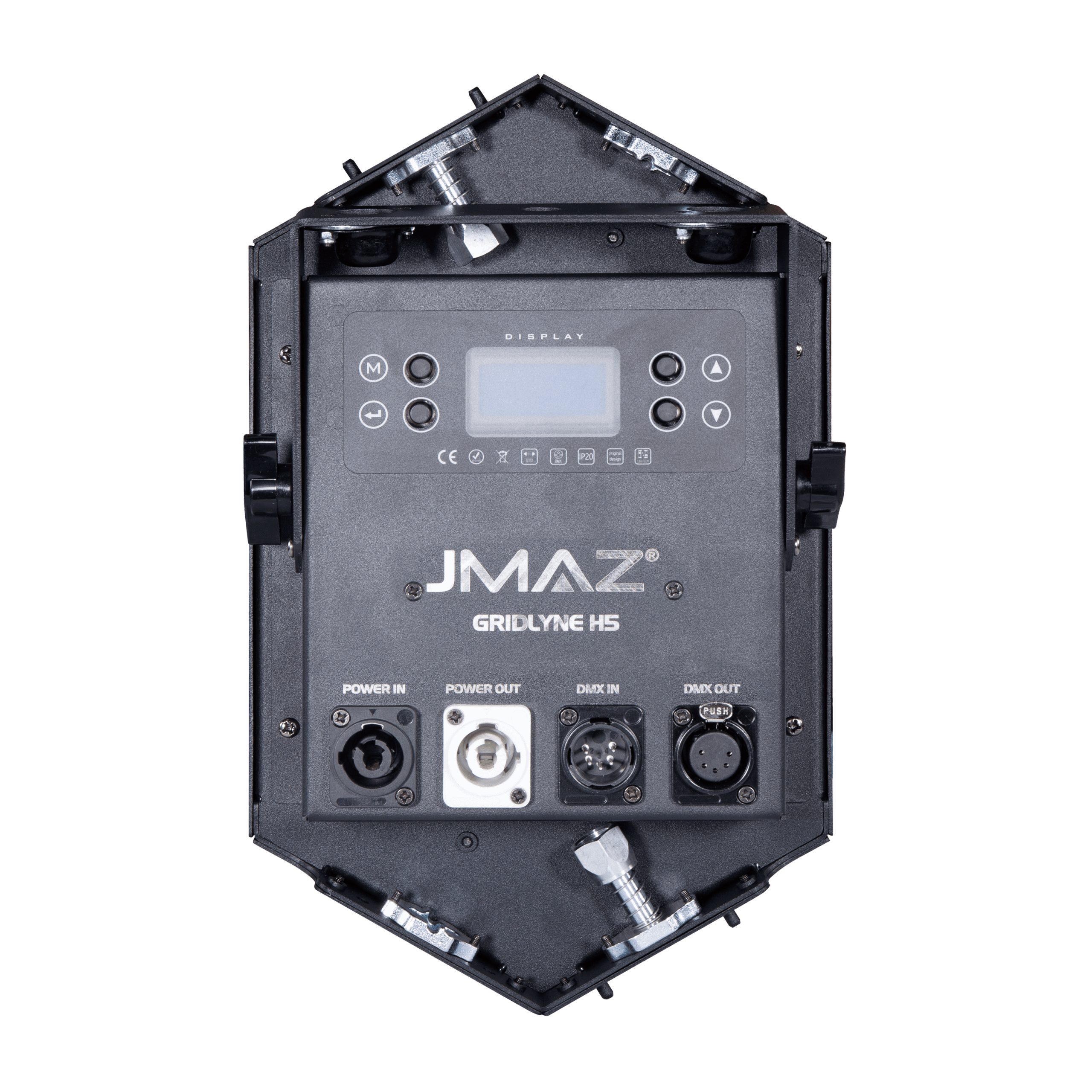

- Power Connection: PowerCon IN/OUT
Box Content
- 1 x GRIDLYNE H5
- 1 x PowerCon Power Cable
- 1 x 5-Pin DMX Cable
- 1 x Manual
Item Dimensions & Weight
- Dimensions: 11.69″ x 7.17″ x 3.15″ / 297 x 182 x 80mm
- Weight: 5.3lbs (2.4kg)
