Vision Profile 250Z

SKU:

JZ1024

250W RGBW LED Ellipsoidal Profile Light w/ Zoom

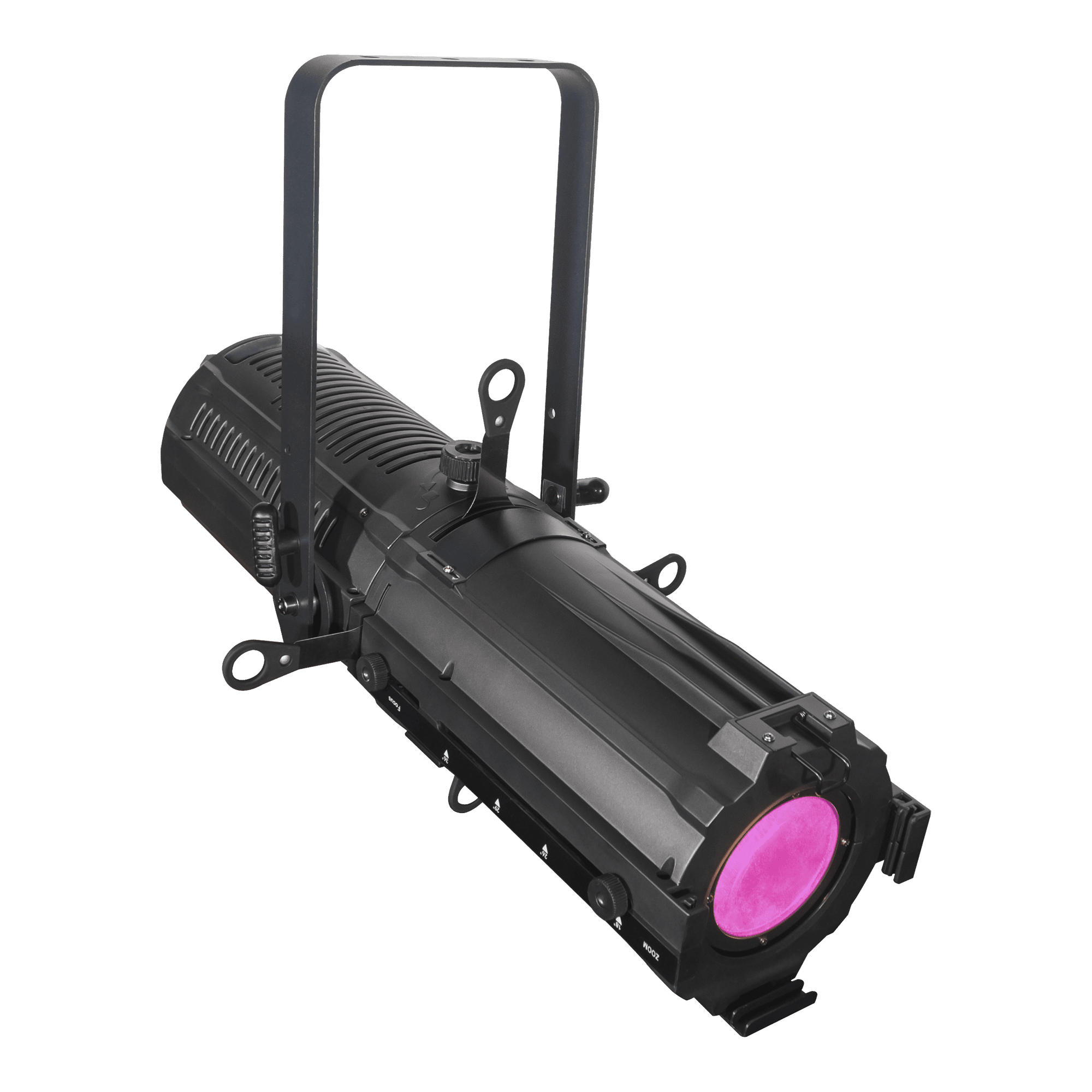

JMAZ Vision Profile 250Z RGBW is a unique, super high output, Ellipsoidal profile fixture. Powered by a high-power 250-watt QUAD (RGBW) LED, this fixture has a color range of 3000K~8000K. The Vision Profile 250Z RGBW projects a smooth even field of light with vivid saturates and subtle pastels by color mixing. Its high CRI (Color Rendering Index) of 91+, makes this fixture ideal for television and film. Add the zoom range of 18-38 degrees (manually adjustable) and 4-leaf framing system, this fixture lets you control the shape and the location of where the light shines. The Vision Profile 250Z RGBW is light-weight, compact, and has rotary, key, and DMX dimmer control. Installation and patching is fast and easy with RDM protocol. These features and more make the Vision Profile 250Z RGBW the ideal replacement for traditional ellipsoidal fixtures

Main features:

  • 1 x 250-watt QUAD (RGBW) LED
  • Color Temperature: 3000K~8000K
  • Color Rendering Index: CRI 91
  • Beam Angle: Manual Zoom from 18-38 degrees
  • Lens Barrel: Compatible with Industry Standard
  • Master/Slave, DMX in/through, Standalone, RDM
  • Housing: Aluminum
  • No Fan (Silent operation)

Technical specifications

Light Source

  • Source: 250W RGBW LED

Color System

  • Color LED: RGBW

Body

  • ABS die-cast plastic w/ aluminum structure

Electronics

  • Dimmer: 0-100% Linear Dimmer
  • Strobe/Shutter: 25 T/sec
  • Color Temperature: 2800K ~ 8000K

Electrical

  • Mains Power Supply:AC Mains
  • Max Power Consumption: 250W
  • Input Voltage: AC 100-240V, 50HZ/60HZ

UPC

093674449794

Optics

  • Zoom: 18-38°

Dynamic Effect

  • Profile/Spot Effect

Control

  • Protocols: DMX512
  • DMX Channels: 1/4/6/10 Channel Modes
  • Manual Framing
  • Manual Zoom

Physical

  • IP Rating: 20
  • Cooling: Fan
  • Data Connection: 3-PinDMX
  • Power Connection: Power-CON
  • Dimensions: 31″” x 14″” x 14″”
  • Weight: 25.4 lbs

Features

  • No Fan (Silent operation)

Download

Product Data / Cut Sheet

File name File size Download
Letter datasheet VisionProfile250Z_PRODUCT_DATA/CUT_SHEET.PDF 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet VisionProfile250Z_DMX_Charts.PDF 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet VisionProfile250Z_CAD_DRAWINGS.PDF 500KB Letter datasheet
