PIXL FX BAR 5050
SKU:
JZ1021
LED Effect Bar 12 Warm White 96 Tri-color 144 Ultra White
JMAZ FX BAR 5050 is the next generation of light bars. Choose from one of the endless built-in shows, preset a certain color or simply run it in sound active mode, the FX BAR 5050 is versatile and a must-have at your next event. With an all-aluminum case serving as a heatsink, the FX BAR 5050 has no fans, which means it will run smooth and quiet. Loaded with a powerhouse of SMD’s and LED’s, the FX BAR 5050 has RBG outer SMD’s, Ultra-White inner SMD’s and 12 warm white round LED’s. Perfect for photography and video production or if you want to use them in your corporate events, studio, background or main stage lighting, bands, decorating your bar or night club, with the FX BAR 5050, the applications are endless.
Main features:
- 96 x RGB Outer SMD LED
- 144 x Ultra-white Inner SMD LED
- 12 X 5W Warm White Beams LED
- DMX512, Auto, Sound Active, Master/Slave, And Manual Modes
Gallery
Technical specifications
Light Source
- Source: 96 x 0.5W RGB SMDs, 144 x 0.5 CW SMDs, 12 x 5W WW LEDs
Color System
- Warm White LEDs
- Color LEDs: RGB
- CW SMD LEDs
Body
- Die-cast aluminum alloy
Electronics
- Dimmer: 0-100% Linear Dimmer
- Strobe/Shutter: 25 T/sec
Electrical
- Main Power Supply: AC Mains
- Max Power Consumption: 150W
UPC
093674450530Optics
- WW LEDs: 28° Beam Angle
Dynamic Effect
- RGB Wash Effect
- Strobe
- Beam Effect
- Dynamic RGB
- Zone Control
Control
- Protocols: DMX512
- DMX Channels: 10/18/23/28/33/65 Channel Modes
Physical
- IP Rating: 20
- Data Connection: 3-Pin DMX
- Power Connection: Power-CON
- Dimensions: 39.4″” x 2.8″” x 2.9″”
- Weight: 8.6 lbs
Box Content
- 1 x PIXL FX Bar 5050
- 1 x User Manual

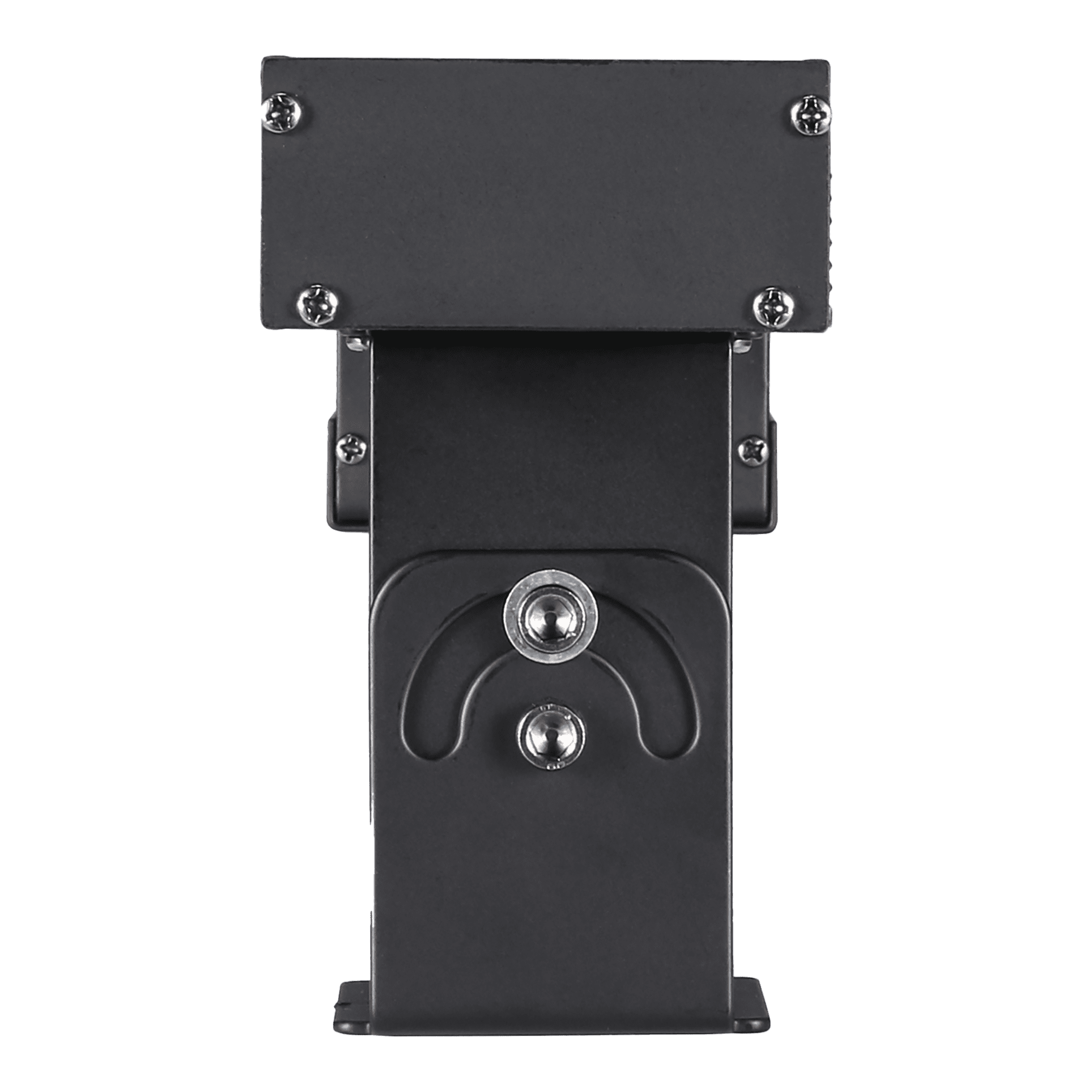

- 2 x Mounting Brackets
- 1 x 3ft 3-pin DMX Chord
- 1 x 3ft PowerCON Chord
