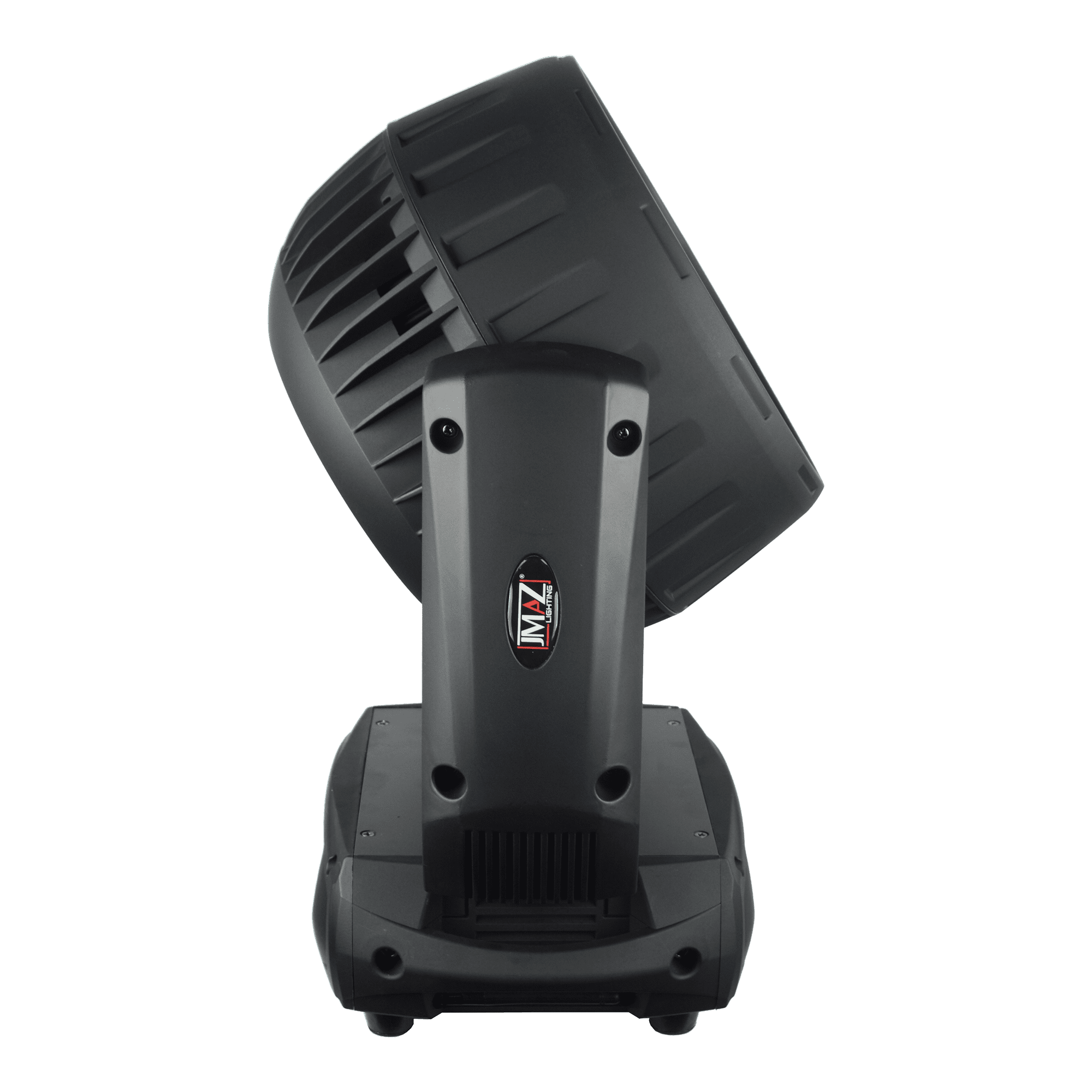

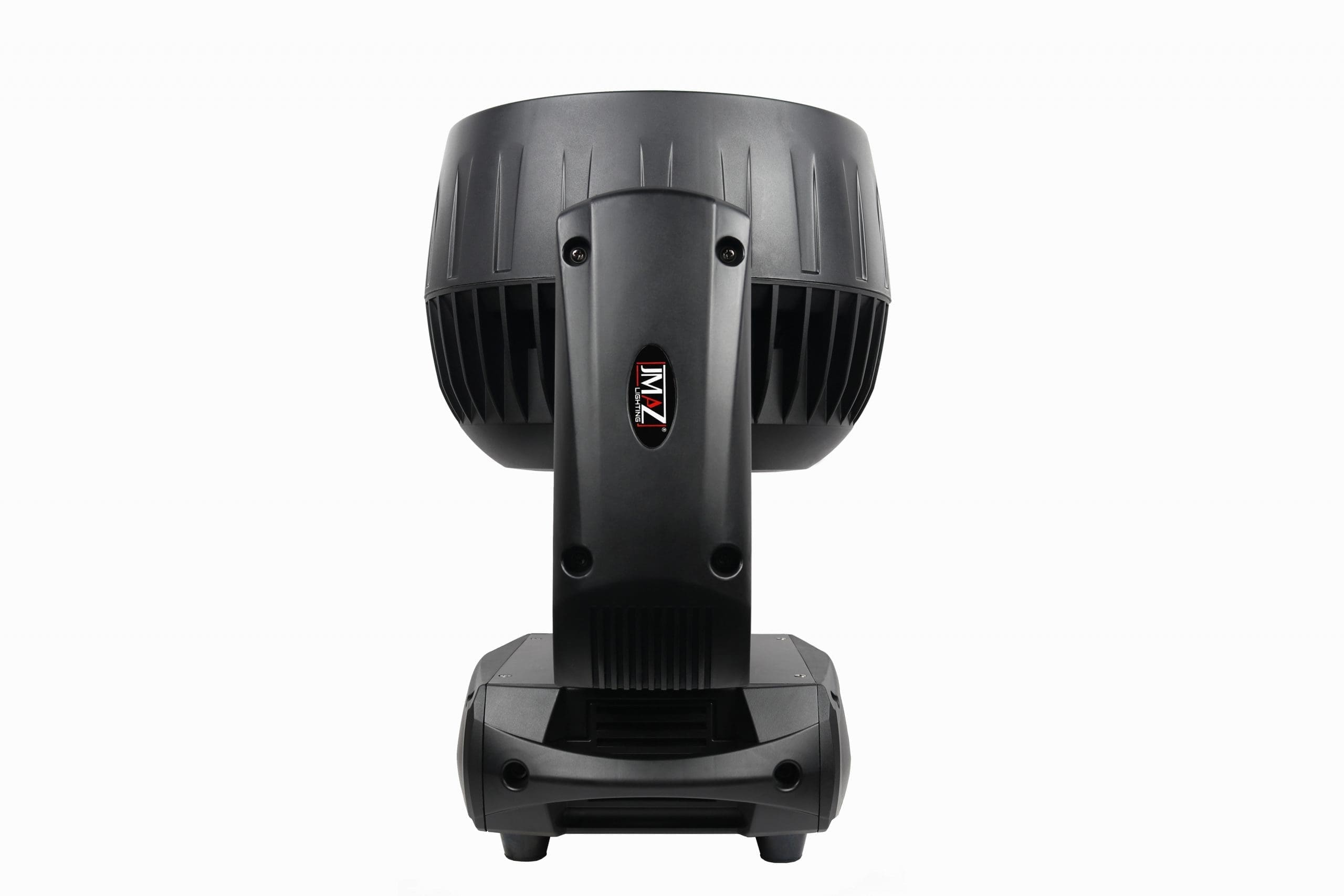

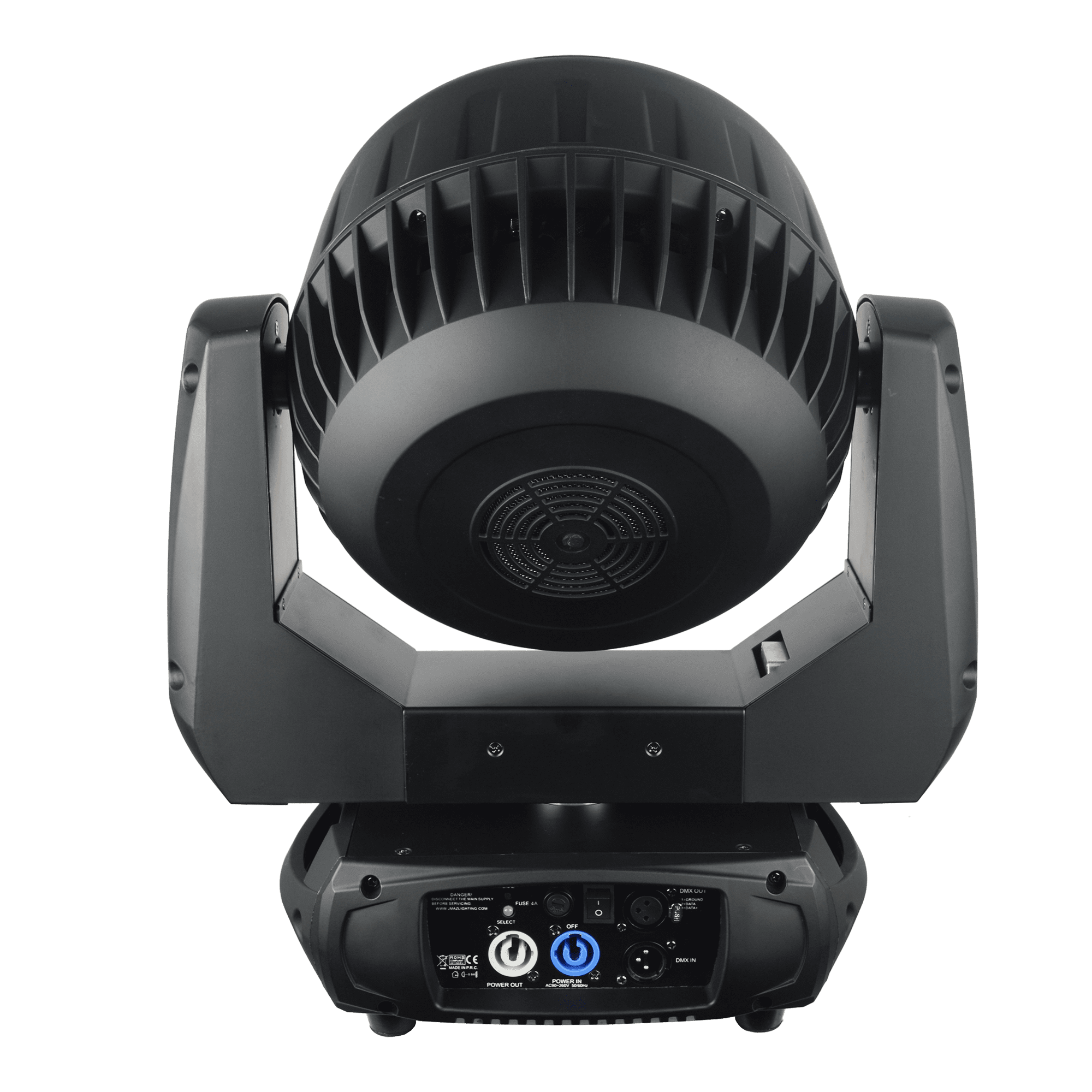

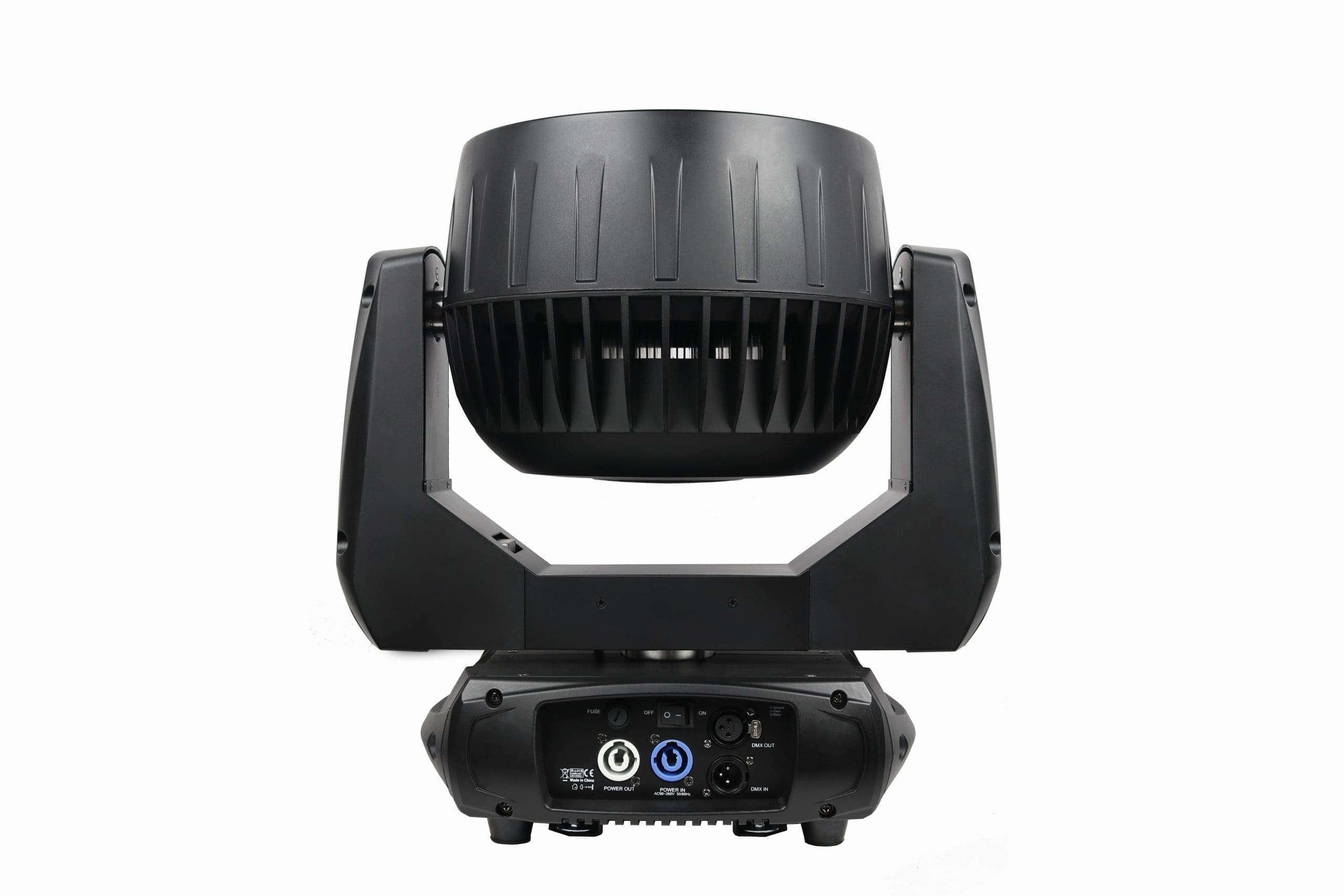

Phantom PixelWash 1930Z

SKU:

JZ3015

280w LED Moving Head Zoom / Wash (6°-60°) RGBW

Main features:

  • 19x15W 4-IN-1 RGBW LEDs
  • DMX512, master-slave and sound activatedor auto operation
  • Built-in Wireless DMX Technology
  • Individually Pixel Control LEDs
  • Motorized Zoom: 6-60°

Technical specifications

Light Source

  • Source: 19 x 30W RGBW LEDs & 0.5W Ring SMDs

Color System

  • Color LEDs: RGBW
  • Color SMDs: RGB

Body

  • Hardware On-Board: sockets for quick-Lock Omega bracket
  • Pan Angle: 630°
  • Title Angle: 270°
  • Pan/Tilt Resolution: 8 / 16 Bit
  • Feedback: Scan position memory, auto reposition after unexpected movement
  • Body: High Temperature Engineered Plastic and Cast Aluminum Casing
  • Body Colour: Black

Electronics

  • Dimmer: 0-100% Linear Dimmer

Electrical

  • Mains Power Supply:AC Mains
  • Max Power Consumption: 570W
  • Input Voltage: AC90-260V 50HZ/60HZ

Optics

  • Zoom: 6° to 60°

Dynamic Effect

  • Ring Tron Effect Overlay
  • Strobe Effect
  • Wash Effect

Control

  • Protocols: DMX512, W-DMX, Wi-MAZ Wireless DMX
  • DMX Channels: 13/15 Channel Modes
  • Wireless Control: Wi-MAZ Wireless DMX, W-DMX, RF Remote
  • Display: 2.4″” TFT LCD Display
  • Firmware Upgrade: Yes, USB-DMX Interface, not included.

Physical

  • IP Rating: 20
  • Cooling: Fan
  • Pan/Tilt:8/16 bit smooth
  • Data Connection: DMX, Wireless DMX
  • Power Connection: Power-CON
  • Dimensions: 16.2″” x 11.1″” x 16.4″”
  • Weight: 29 lbs

Box Content

  • 1 x Phantom Pixelwash 1930Z
  • 1 x User Manual
  • 2 x Omega Brackets
  • 1 x 3ft 3-pin DMX Chord
  • 1 x 3ft PowerCON Chord
  • 1 x RF Remote

Download

Product Data / Cut Sheet

File name File size Download
Letter datasheet PhantomPixelWash1930Z_Catalog_sheet.PDF 500KB Letter datasheet

User Manual

File name File size Download
Letter datasheet PhantomPixelWash1930Z_User_Manual.PDF 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet PhantomPixelWash1930Z_DMX_Charts.PDF 500KB Letter datasheet

Profiles

File name File size Download
Phantom PixelWash1930Z_Profiles Folder 500KB

Photometrics

File name File size Download
Letter datasheet PhantomPixelWash1930Z_photometrics.PDF 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet PhantomPixelWash1930Z_CAD_Drawings1.PDF 500KB Letter datasheet

Tech / Data Sheets

File name File size Download
Letter datasheet PhantomPixelWash1930Z_Full_Tech_sheet.PDF 500KB Letter datasheet
