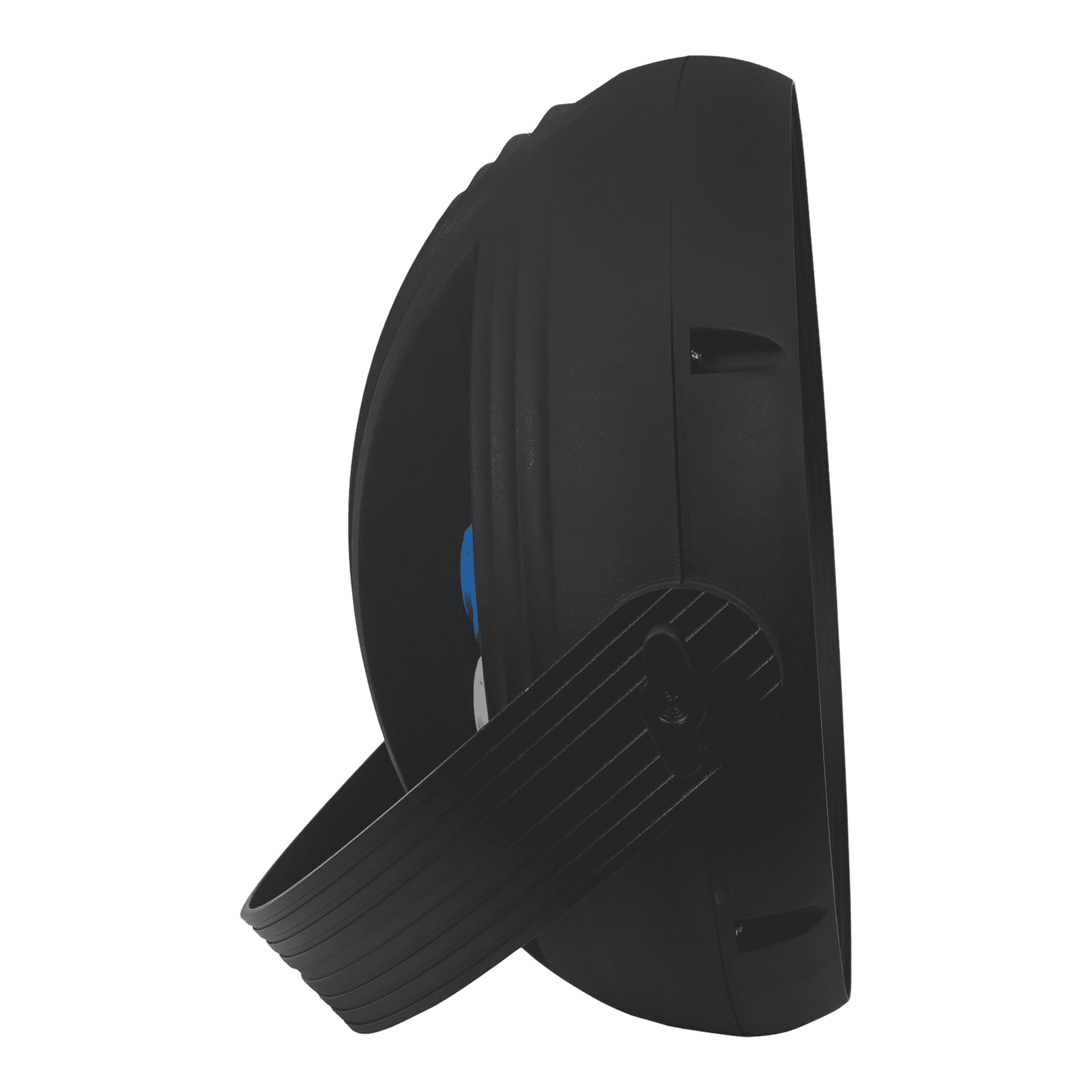

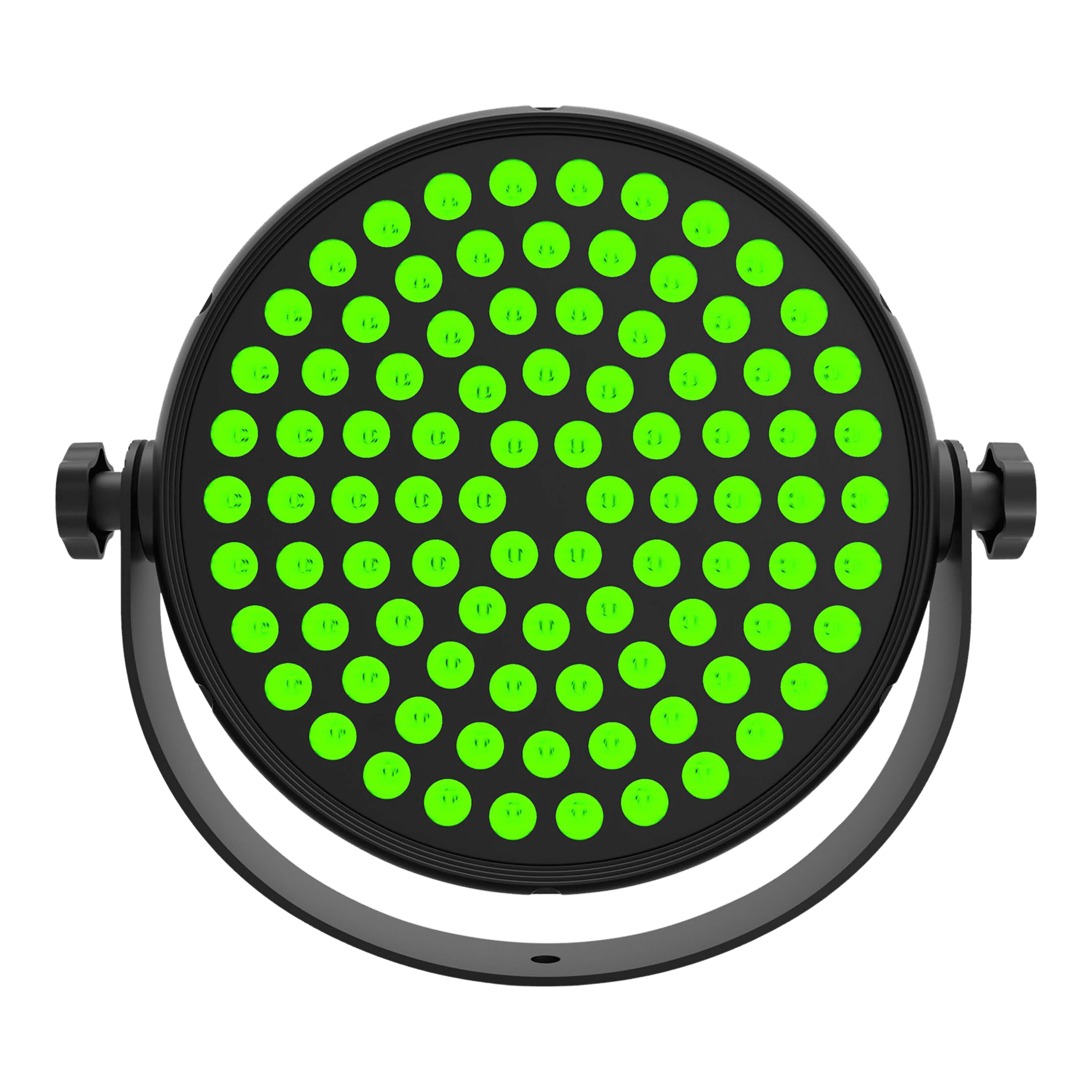

HALO Q4 Wash



90 x 2W RGBW LED Wash Parcan w/ Ring Effect

JMAZ HALO Q4 Wash allows your creativity to run wild by giving you an endless array of Eye-Candy effects. This fixture is loaded with 90 x 2w QUAD (RGBW) LEDs, a 25° beam angle, and LED zone pixel control. The HALO Q4 Wash is packed with built-in color macros, virtual gobos, unique pre-programmed shows, and can be set in sound-activated mode. Take your show and rig to the next level with the must-have HALO Q4 Wash, exclusively from JMAZ Lighting.

Main features:

  • 90 x 2W QUAD (RGBW) LED
  • 32-bit Film Level Dimming
  • Beam Angle: 25°
  • DMX, Master/Slave, Sound Activated, RDM, and Built-in Effects
  • Honeycomb type high transparent PMMA second optical lens

Technical specifications

Light Source

  • Source: 90 x 2W RGBW LEDs

Color System

  • Color LEDs: RGBW


  • ABS die-cast plastic w/ aluminum structure


  • Dimmer: 0-100% Linear Dimmer
  • Strobe/Shutter: 25 T/sec
  • Color Temperature: 2800 – 8000k


  • Mains Power Supply:AC Mains
  • Max Power Consumption: 180W
  • Input Voltage: AC 100-240V, 50HZ/60HZ




  • Beam Angle: 25/40°

Dynamic Effect

  • Strobe Effect
  • Wash Effect
  • Ring Control


  • Protocols: DMX512
  • DMX Channels: 6/9/36/41 Channel Modes
  • Firmware Upgrade: Yes, USB-DMX Interface, not included.


  • IP Rating: 20
  • Cooling: Fan
  • Data Connection: 3-PinDMX
  • Power Connection: Power-CON
  • Dimensions: 16.1″” x 15″” x 7.5″”
  • Weight: 10.5 lbs

Box Content

  • 1 x Halo Q4 Wash
  • 1 x User Manual
  • 1 x Mounting Brackets
  • 1 x 3ft 3-pin DMX Chord
  • 1 x 3ft PowerCON Chord
  • 1 x IR Remote


User Manual

File name File size Download
Letter datasheet HALOQ4Wash User Manual (Revised).pdf 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet HALOQ4Wash_DMX_Charts.PDF 500KB Letter datasheet


File name File size Download
HaloQ4Wash_Profiles Folder 500KB

CAD Drawings

File name File size Download
Letter datasheet HALOQ4Wash_CAD_Drawings.PDF 500KB Letter datasheet

Tech / Data Sheets

File name File size Download
Letter datasheet HALOQ4Wash Full Cut Sheet.pdf 500KB Letter datasheet
