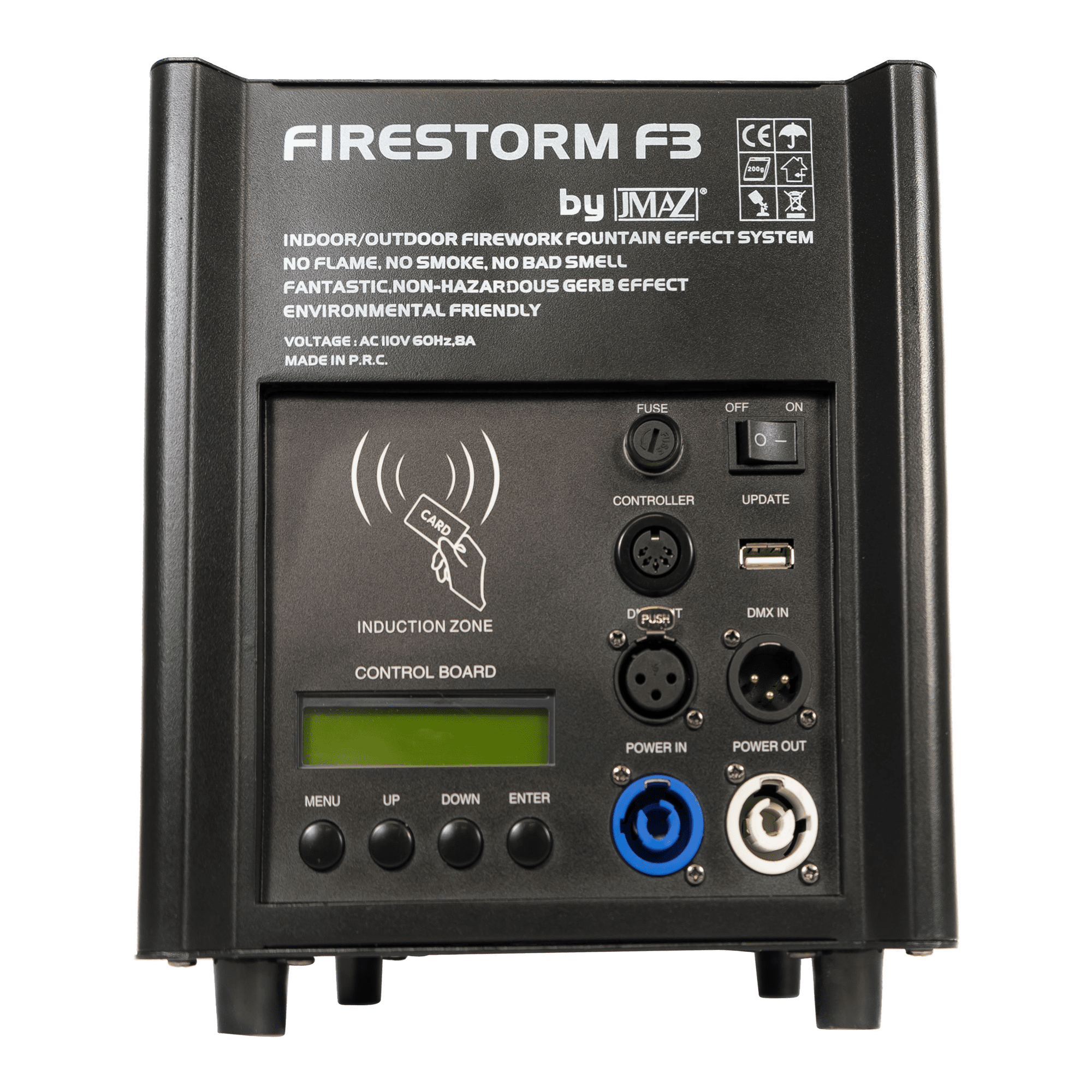

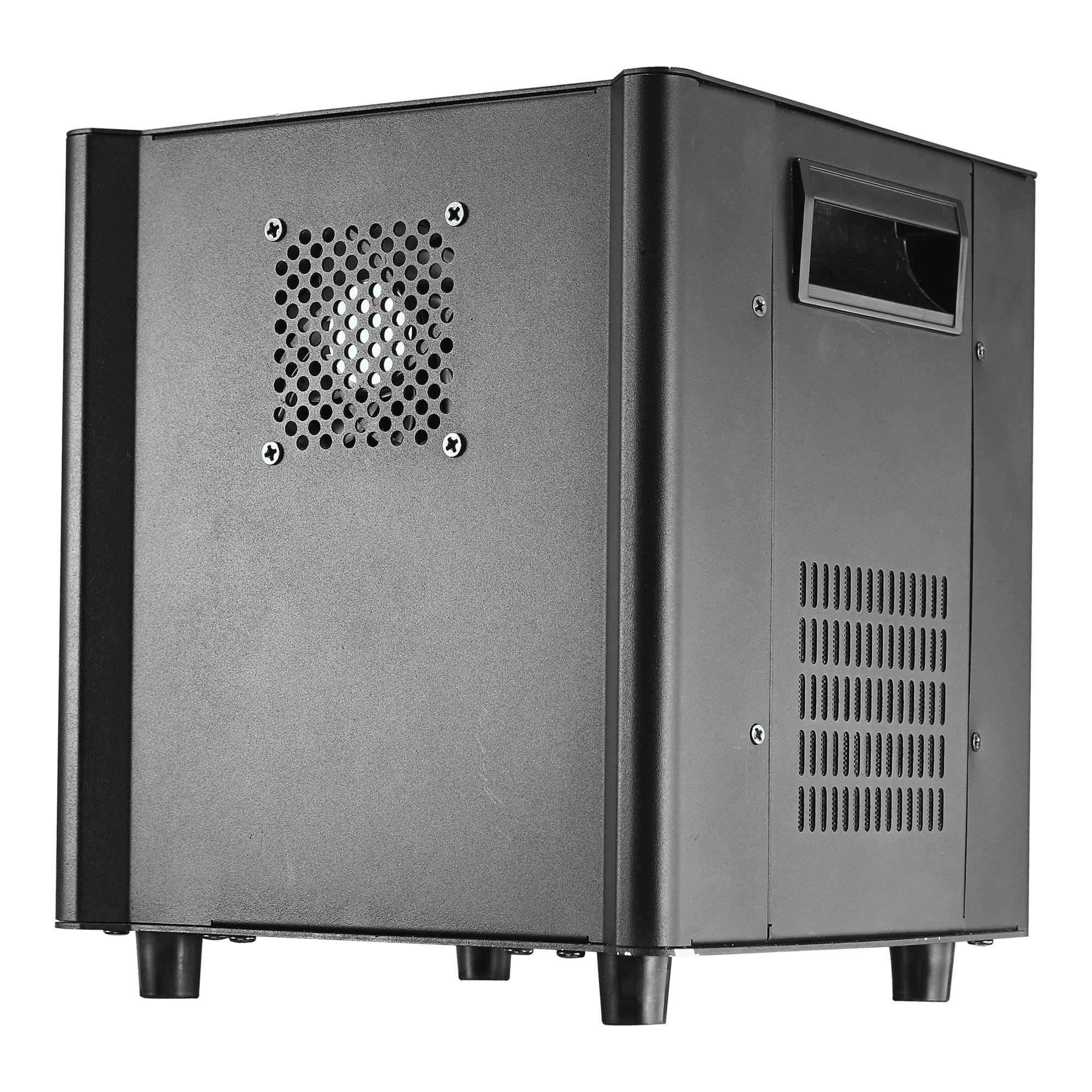

Firestorm F3

SKU:

JZ4001 (Black)
JZ4003 (Chrome)

Cold Spark Machine w/ RF Remote and Receiver

JMAZ Firestorm F3 by JMAZ Lighting is a portable and versatile cold spark machine that can be adjusted to meet your needs. With multiple control solutions built-in, including wired DMX, Stand-Alone Mode, or using the included RF Remote, you can take control of your event. The Firestorm uses only 500-watts of power and has a warm-up time of fewer than 8 minutes. You can adjust the output height with 3 options, as well as a continuous run option, or timed settings, in addition to wirelessly shutting off the heating element to extend the unit’s life. Finish any event strong with memories that will spark a wow! With the Firestorm Series Cold Spark machine from JMAZ, you can create amazing indoor displays taking your events to the next level. (* Must Clean After Every Use)

Main features:

  • Spark Height Range: 3′ – 13′ (1-4 meters)
  • Warm-Up Time: <8 min
  • Spark Height Adjustable: 3 Options (Low, Medium, High)
  • DMX512, Stand Alone, RF Remote Control
  • Rated Power: 500 W
  • Display Screen: LCD
  • * Must Clean After Every Use

Technical specifications

Body

  • Rugged Metal Housing
  • Internal Spark Components

Electronics

  • Spark Output Fader: 0-100%
    (Max 13 ft)

Electrical

  • Mains Power Supply: AC Mains
  • Max Power Consumption: 800W
  • Input Voltage: AC 11-240V, 50/60Hz

UPC

093674449947

Dynamic Effect

  • Spark Fountain

Control

  • Protocols: DMX512
  • DMX Channels: 2 Channel Mode
  • Remote: Wireless RF Remote
  • Firmware Upgrade: Yes, USB-DMX Interface, not included.

Physical

  • IP Rating: 20
  • Cooling: Fan
  • Data Connection: 3-PinDMX
  • Power Connection: Power-CON
  • Dimensions: 11.8″” x 11.8″”x 12.6″”
  • Weight: 17.6 lbs

Box Content

  • 1 x Firestorm F3
  • 1 x RF Receiver
  • 1 x RF Remote
  • 1 x User Manual

Download

Product Data / Cut Sheet

File name File size Download
Letter datasheet Firestorm F3_Catalog_Sheet.PDF 500KB Letter datasheet

User Manual

File name File size Download
Letter datasheet User Manual Firestorm F3.PDF 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet Firestorm F3 DMX Chart.PDF 500KB Letter datasheet

Profiles

File name File size Download
FirestormF3_Profiles Folder 500KB

Tech / Data Sheets

File name File size Download
Letter datasheet Firestorm F3_tech_sheet.PDF 500KB Letter datasheet
