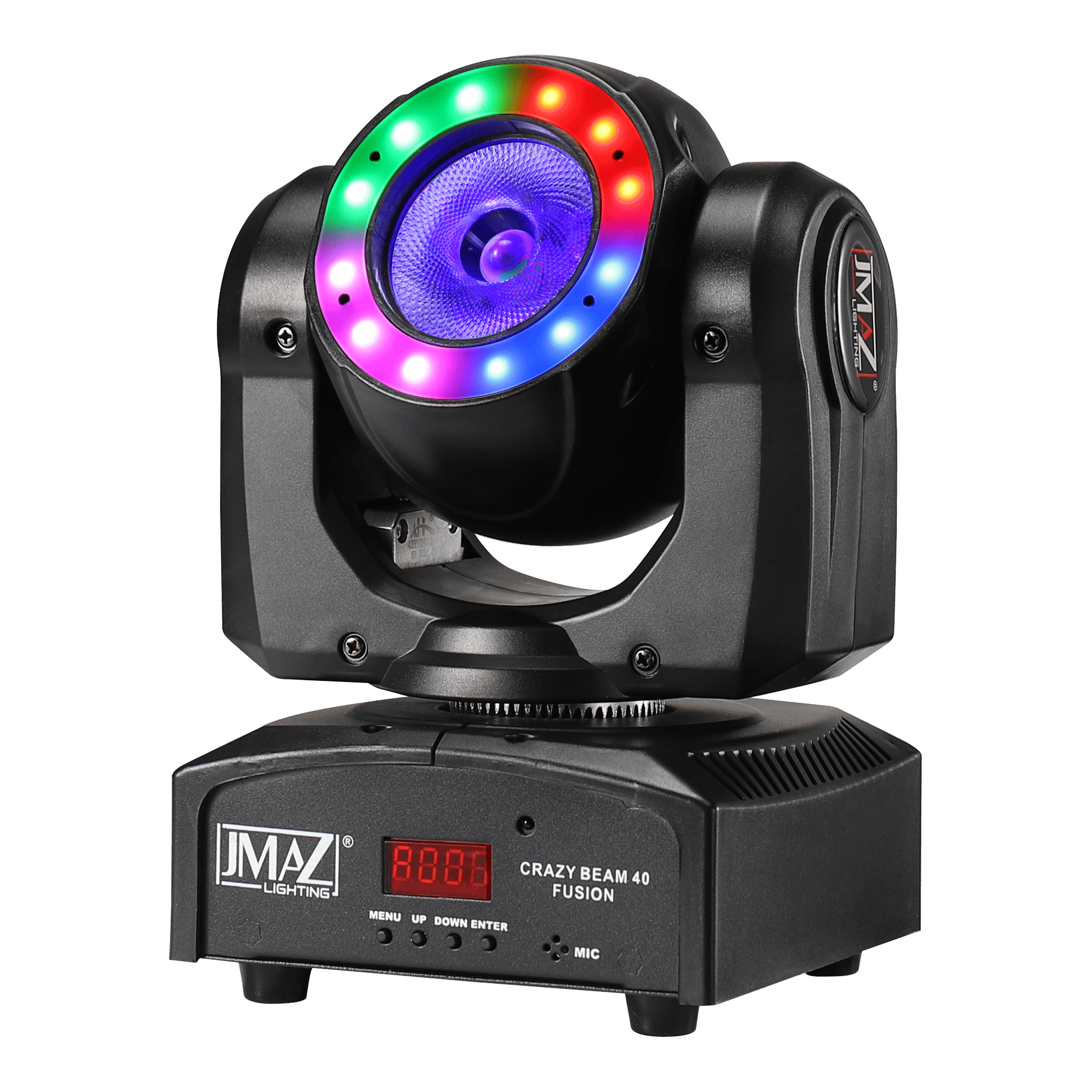

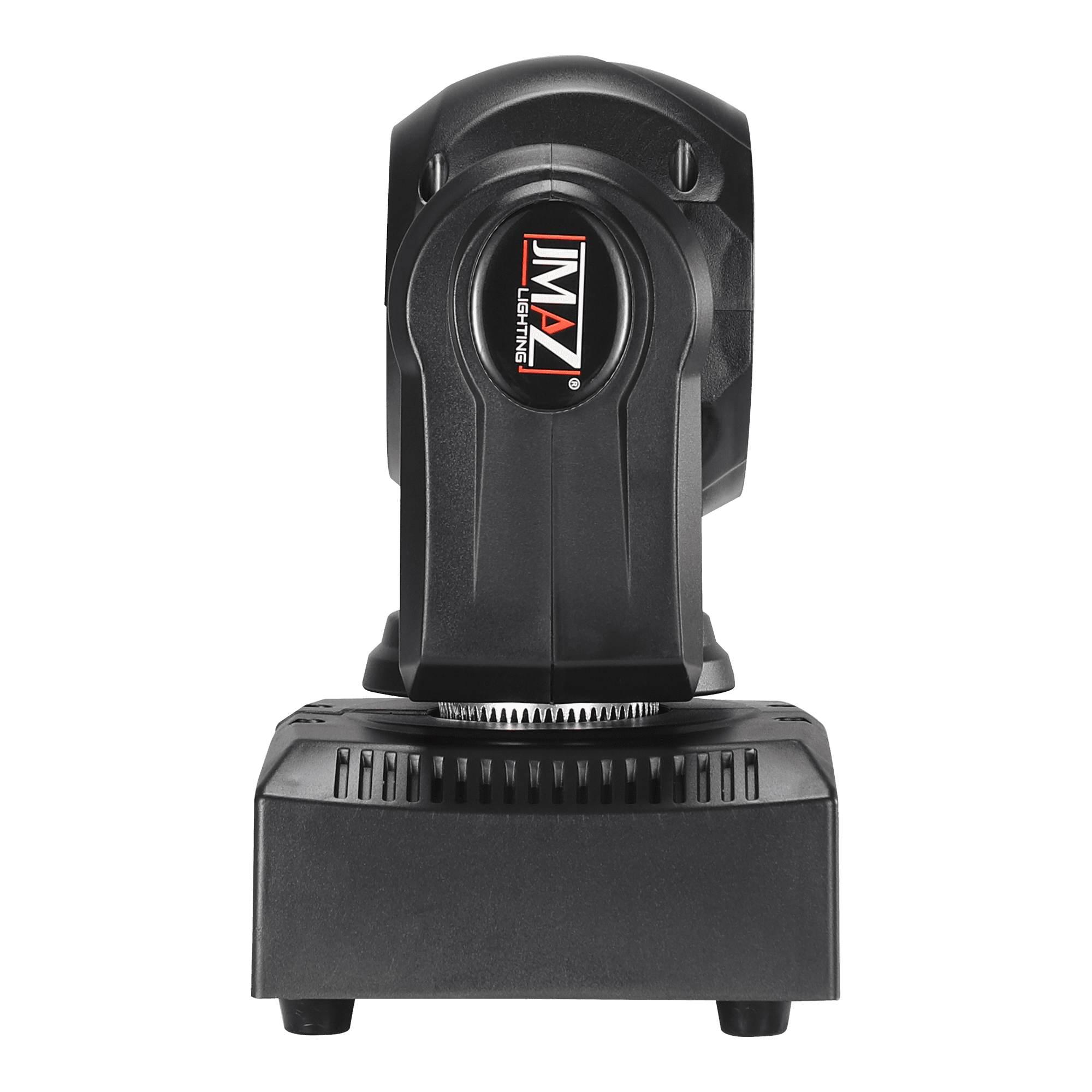

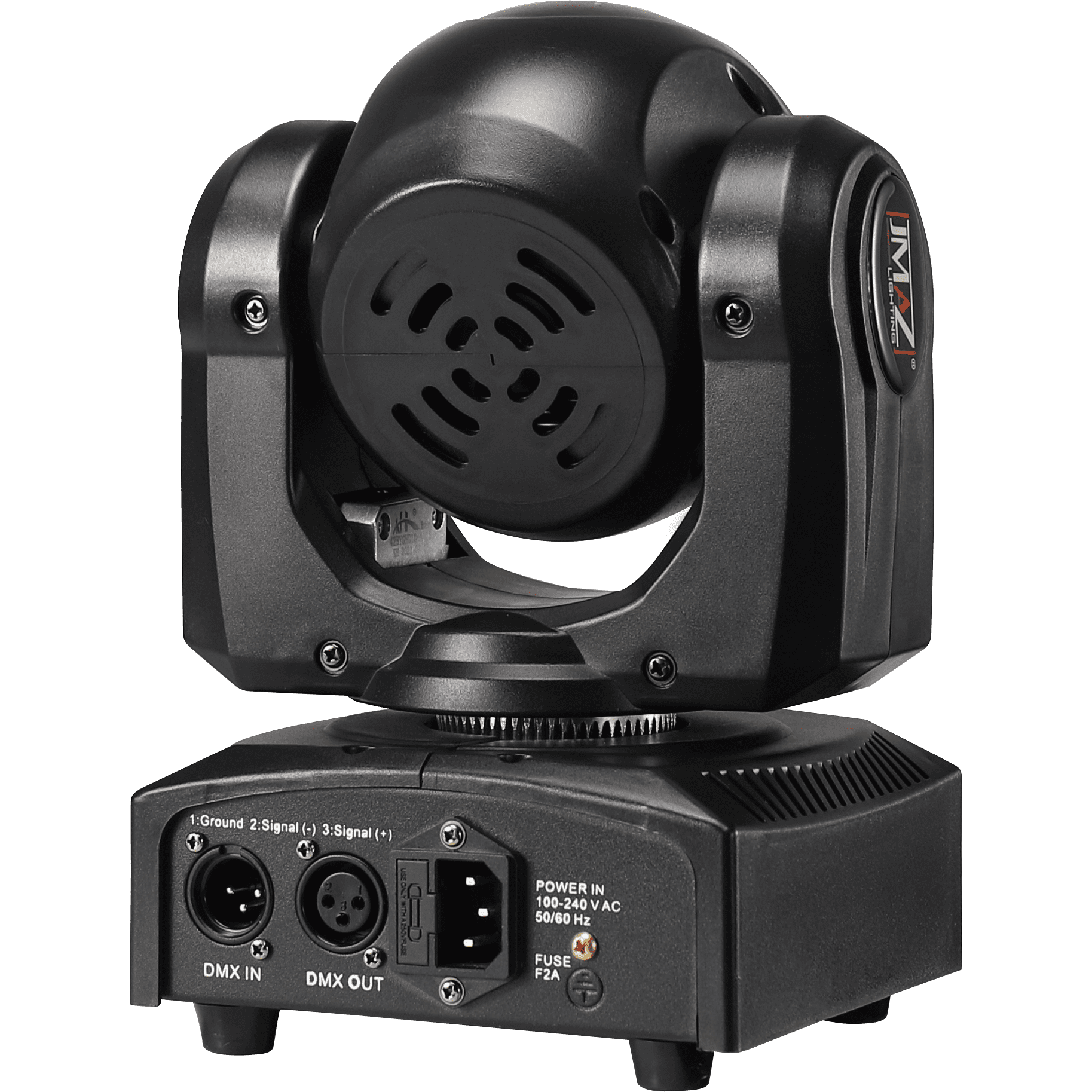

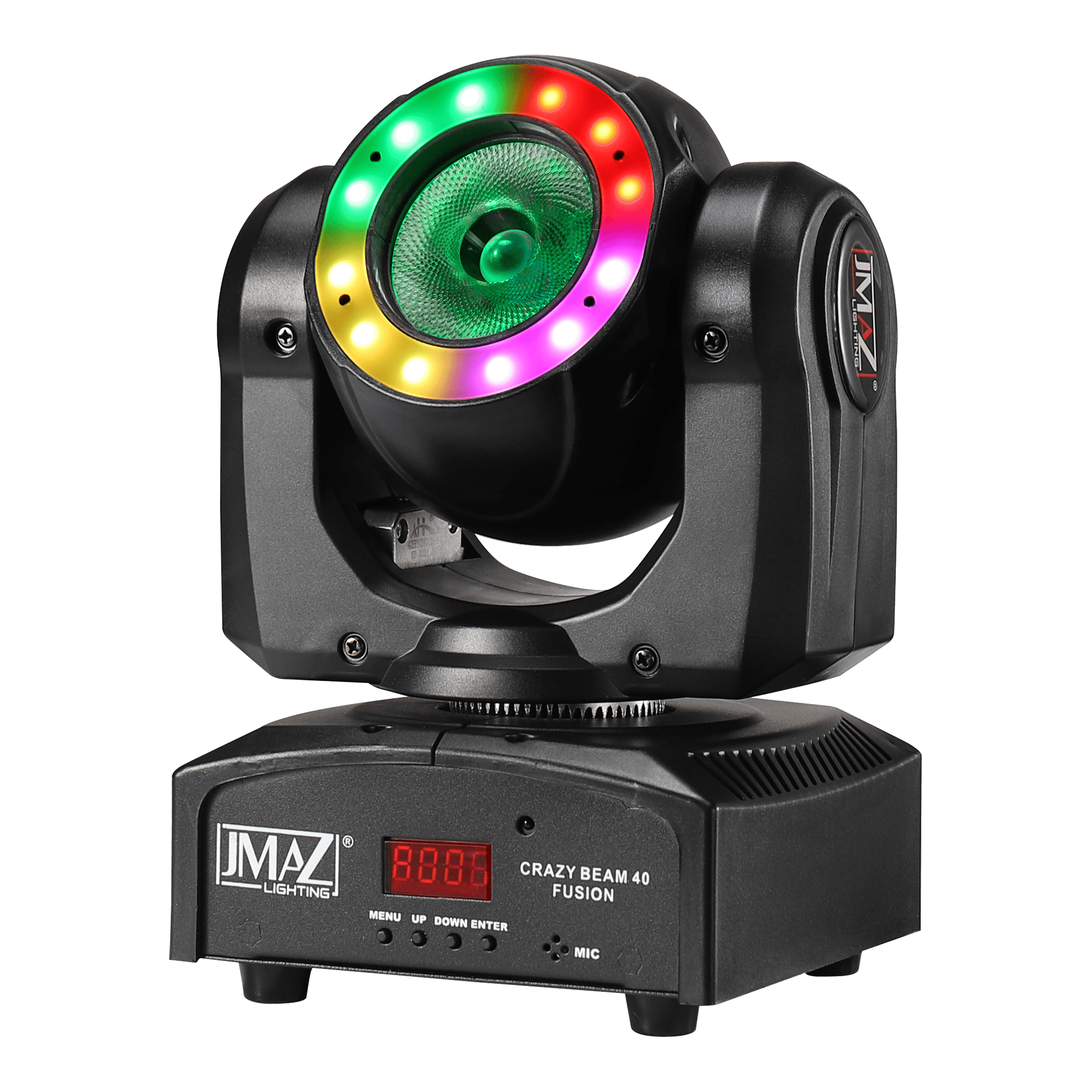

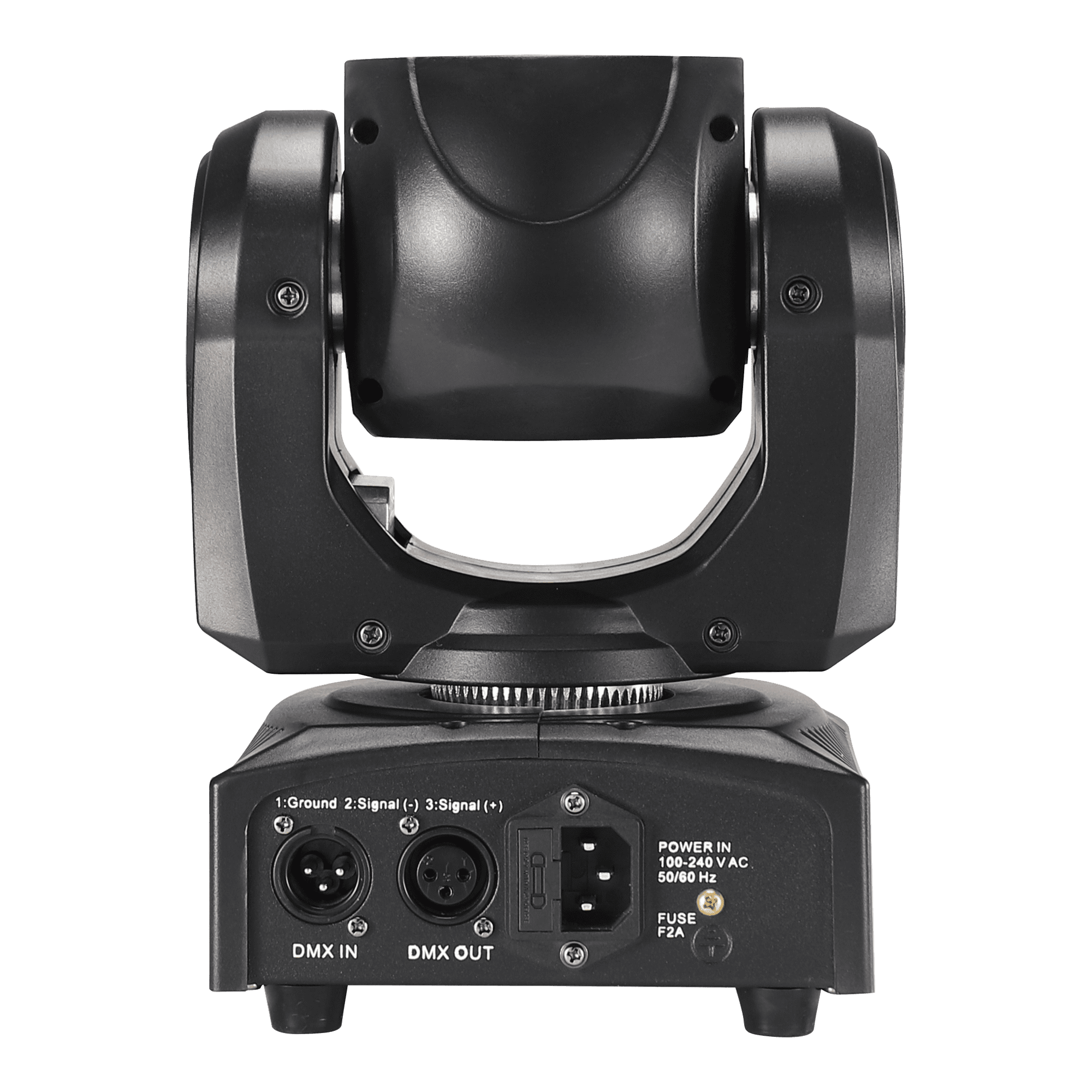

Crazy Beam 40 Fusion



60w RGBW LED Beam Moving Head w/ Ring Effect

A very compact but powerful and extremely fast moving head beam with an LED ring. The Ultra-bright 60W RGBW LED produces saturated primary colours, subtle pastel hues and natural shades of white. This Crazy Beam 40 Fusion is smooth in operation and, with its 5 degree beam angle, makes a fantastic impact in your light show.The LED ring is controllable in 3 cells from 4 sections. Suitable for bars, clubs, mobile DJs and stage use.

Main features:

  • 1 x 60W Quad LED & 12 x 5050 SMD 3in1 LED
  • 3 Operating Modes: Sound Active, Show Mode, & DMX Controlled

Technical specifications

Light Source

  • Source: 1 x 60W RGBW LED, 12 x .05W RGB SMDs

Color System

  • Color LEDs: RGBW


  • Hardware On-Board: sockets for quick-Lock Omega bracket
  • Pan Angle: 540°
  • Title Angle: 210°
  • Pan/Tilt Resolution: 8 Bit
  • Feedback: Scan position memory, auto reposition after unexpected movement
  • Body: High Temperature Engineered Plastic and Cast Aluminum Casing
  • Body Colour: Black


  • Dimmer: 0-100% Linear Dimmer


  • Mains Power Supply:AC Mains
  • Max Power Consumption: 90W
  • Input Voltage: 110-240V, 50HZ/60HZ




  • Beam Angle: 8°

Dynamic Effect

  • Tron Effect Ring
  • Strobe Effect


  • Protocols: DMX512
  • DMX Channels: 16/21 Channel Modes
  • Wireless Control: IR Remote


  • Cooling: Fan
  • Pan/Tilt:8 bit
  • Data Connection: DMX
  • Power Connection: C13/C14
  • Dimensions: 11.5″” x 8.3″” x 8.7″”
  • Weight: 8 lbs

Box Content

  • 1 x Crazy Beam 40 Fusion
  • 1 x User Manual
  • 2 x Omega Brackets
  • 1 x 3ft 3-pin DMX Chord
  • 1 x 3ft PowerCON Chord
  • 1 x RF Remote


User Manual

File name File size Download
Letter datasheet CrazyBeam40Fusion_User_Manual.PDF 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet CrazyBeam40Fusion_DMX_Charts.PDF 500KB Letter datasheet


File name File size Download
Crazy Beam40Fusion_Profiles Folder 500KB


File name File size Download
Letter datasheet CrazyBeam40Fusion_.PDF 500KB Letter datasheet

Tech / Data Sheets

File name File size Download
Letter datasheet CrazyBeam40Fusion_.PDF 500KB Letter datasheet
