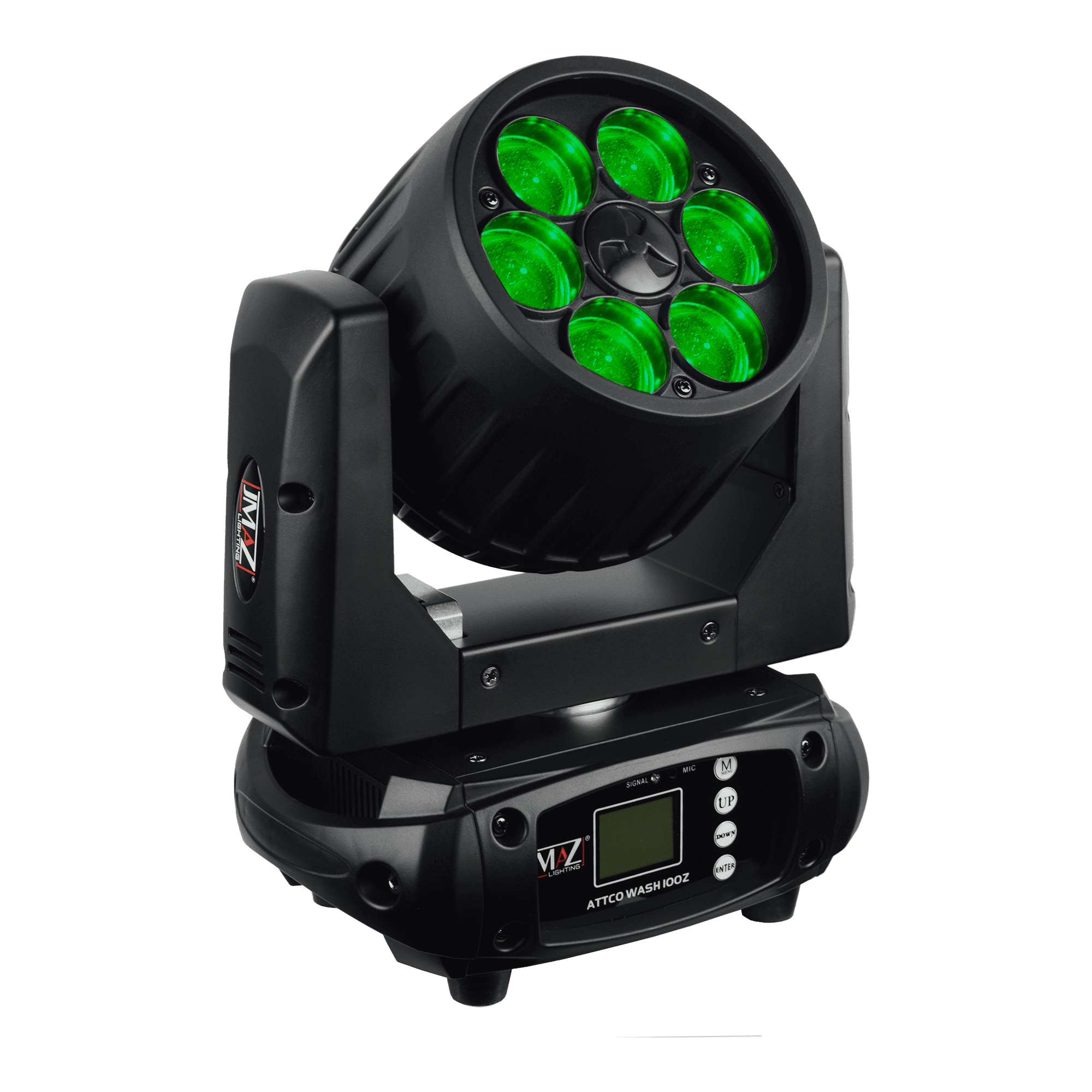

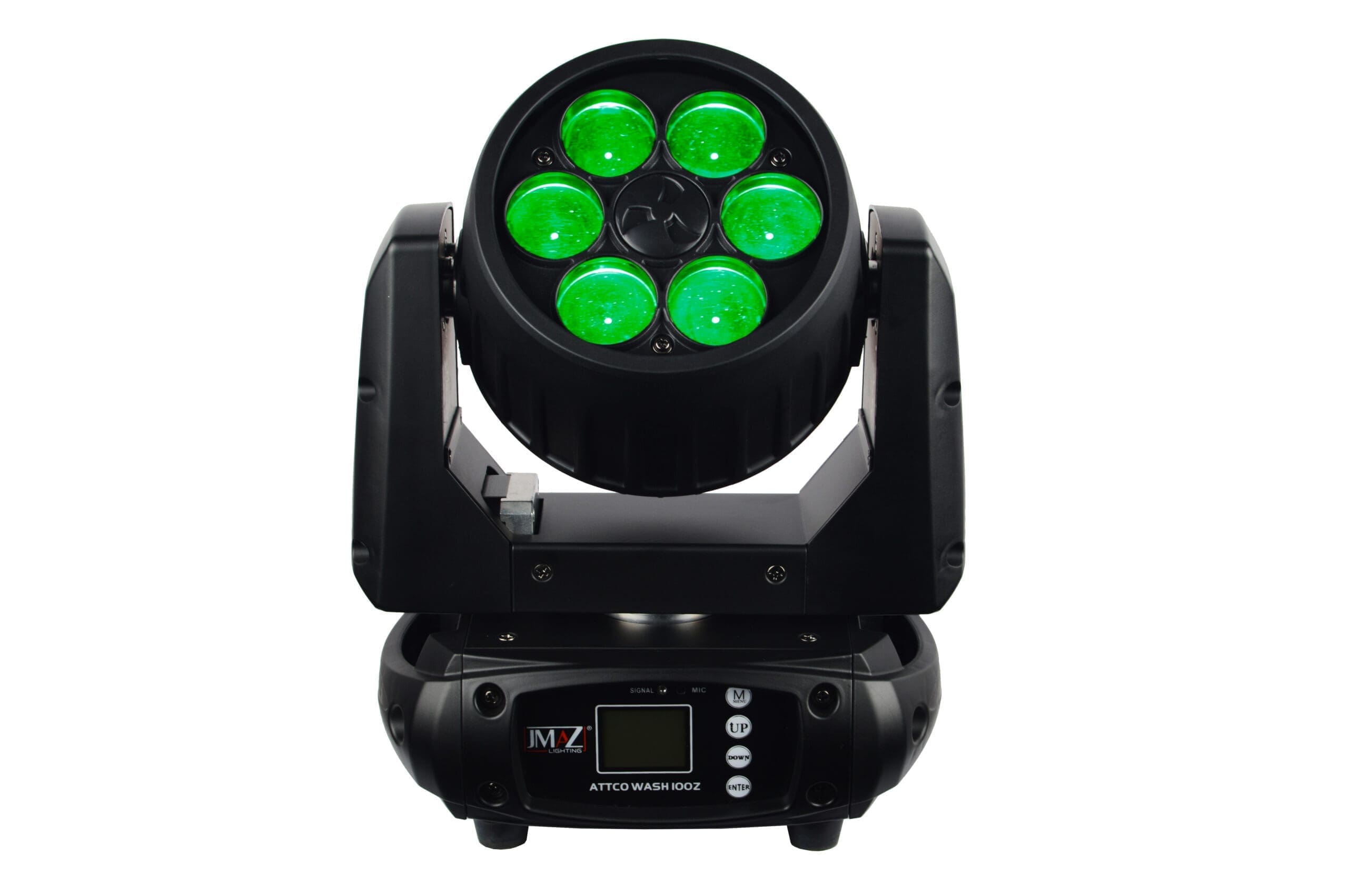

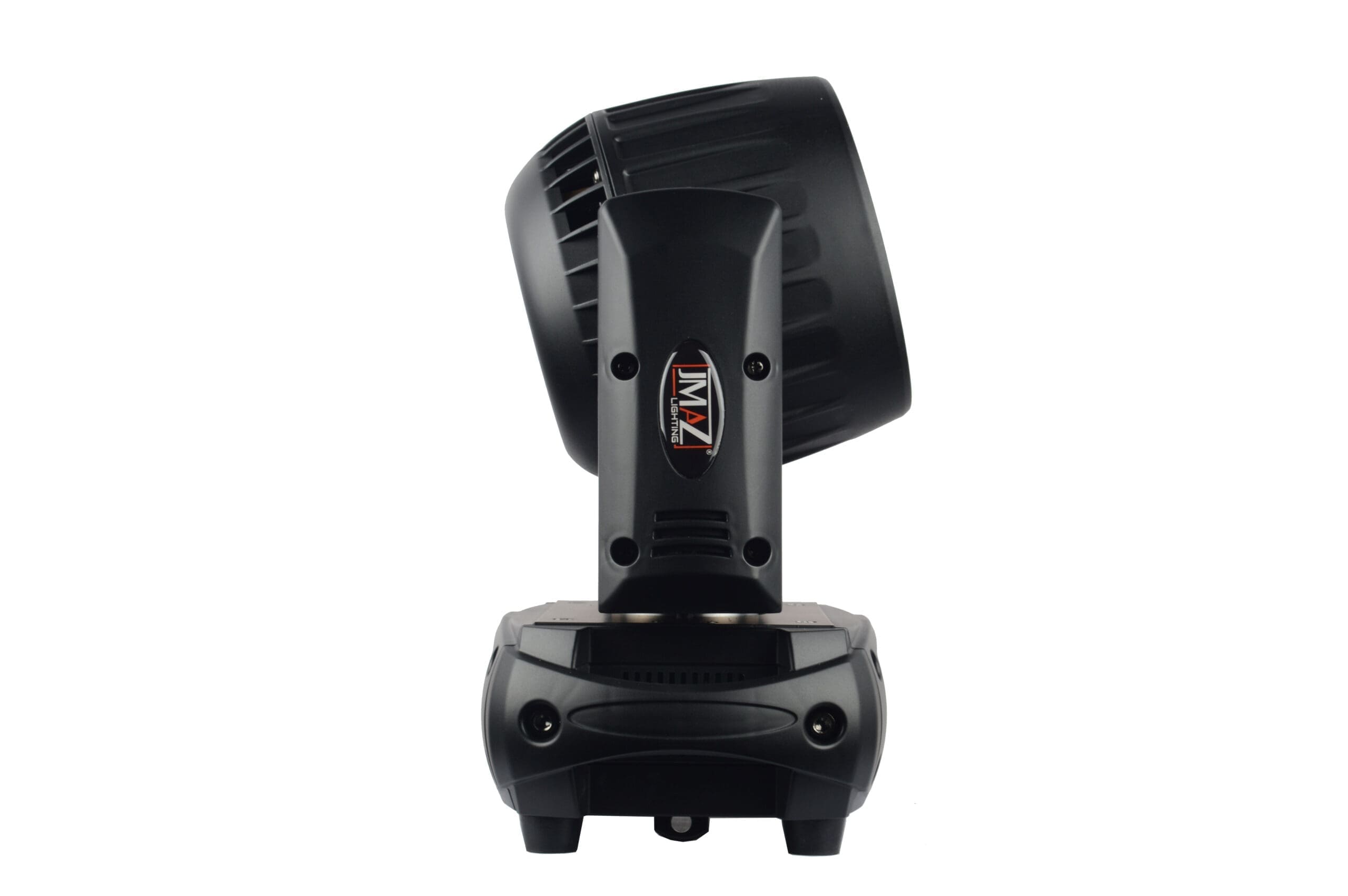

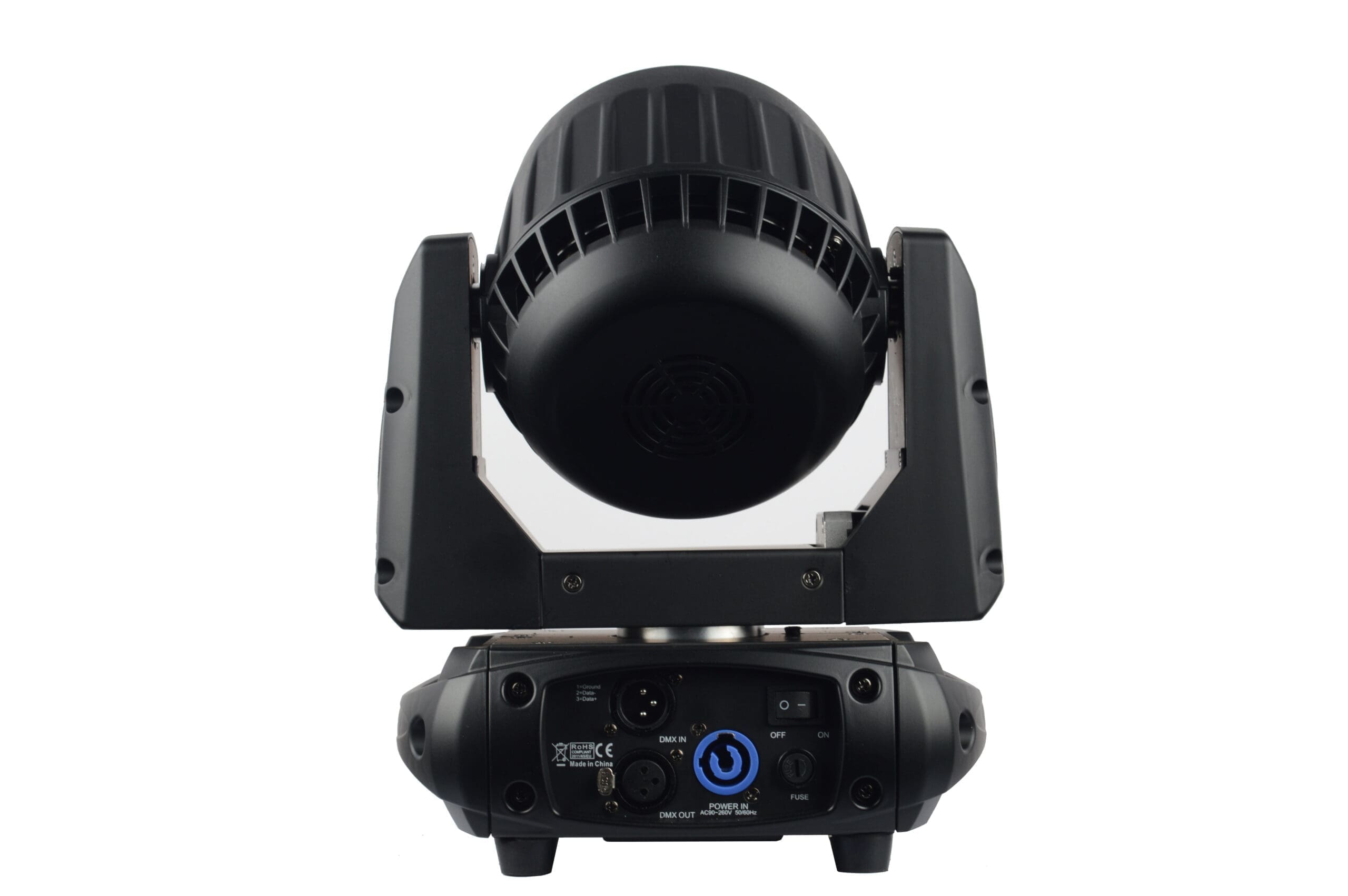

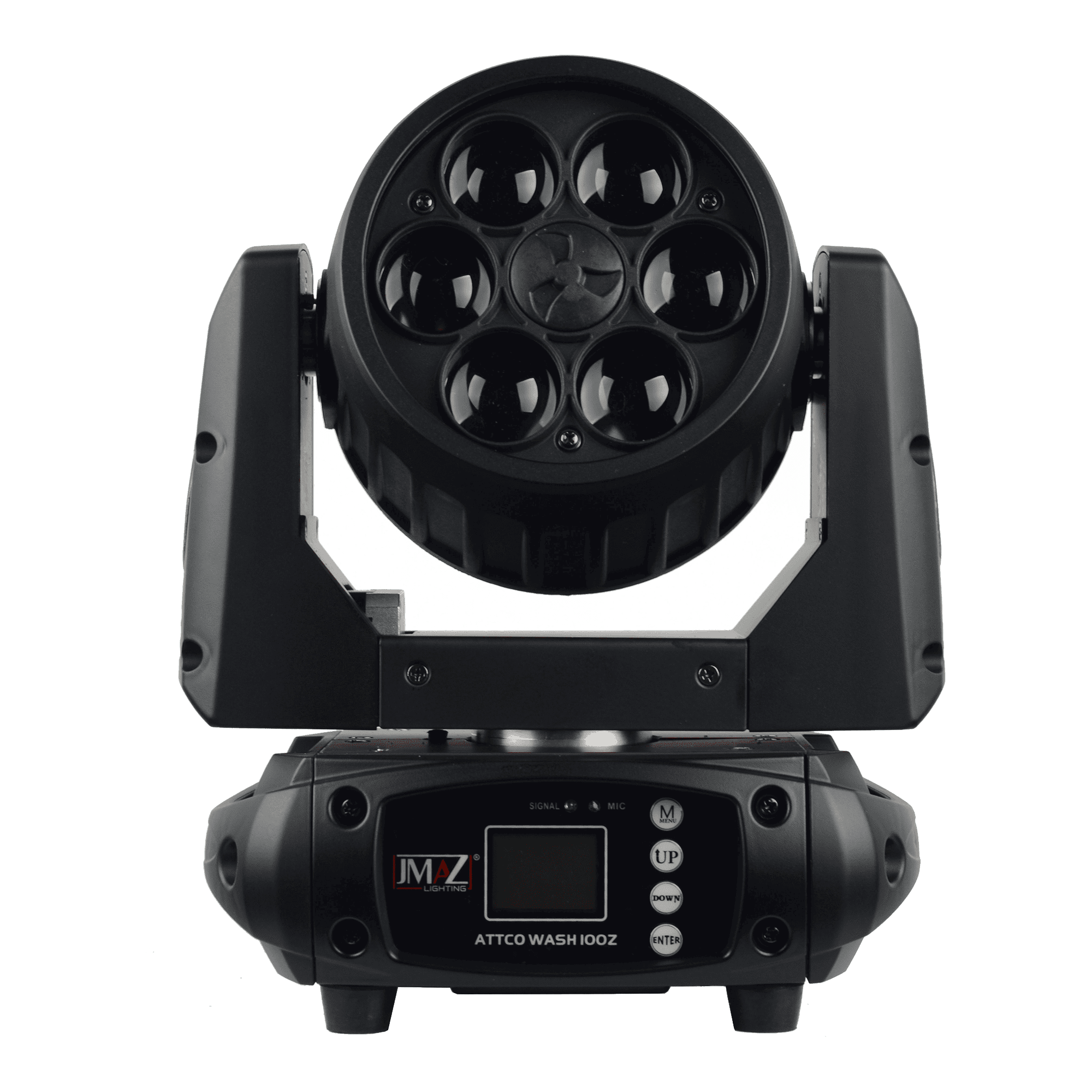

Attco Wash 100Z



90w LED Moving Head Zoom / Wash (6°-60°) RGBW

Main features:

  • 6 x 15W Quad RGBW LEDs
  • 6-60° Smooth Electronic Linear Zoom
  • Built-in Color and Graphic Effect Macros
  • 4 Operating Modes: Sound Active, Show Mode, DMX Controlled and RF Remote Control

Technical specifications

Light Source

  • Source: 6 x 15W RGBW LEDs

Color System

  • Color LEDs: RGBW


  • Hardware On-Board: sockets for quick-Lock Omega bracket
  • Pan Angle: 630°
  • Title Angle: 270°
  • Pan/Tilt Resolution: 8 / 16 Bit
  • Feedback: Scan position memory, auto reposition after unexpected movement
  • Body: High Temperature Engineered Plastic and Cast Aluminum Casing
  • Body Colour: Black


  • Dimmer: 0-100% Linear Dimmer
  • Strobe/Shutter:
  • Operating Temperature: -35° C to 45° C


  • Mains Power Supply:AC Mains
  • Max Power Consumption: 120W
  • Input Voltage: 110-240V, 50HZ/60HZ




  • Zoom: 6° to 60°

Dynamic Effect

  • Flat Beam Field
  • Strobe Effect
  • Zoom Wash Effect


  • Protocols: DMX512
  • DMX Channels: 13/15 Channel Modes
  • Wireless Control: RF Remote
  • Display: 2.4″” TFT LCD Display
  • Firmware Upgrade: Yes, USB-DMX Interface, not included.


  • IP Rating: 20
  • Cooling: Fan
  • Pan/Tilt:8/16 bit smooth
  • Data Connection: DMX
  • Power Connection: Power-CON
  • Dimensions: 11.4″” x 8.3″” x 8.7″”
  • Weight: 7.7 lbs

Box Content

  • 1 x Attco Wash 100Z
  • 1 x User Manual
  • 2 x Omega Brackets
  • 1 x 3ft 3-pin DMX Chord
  • 1 x 3ft PowerCON Chord
  • 1 x RF Remote
