Attco Spot 250Z



250W LED Spot Moving Head

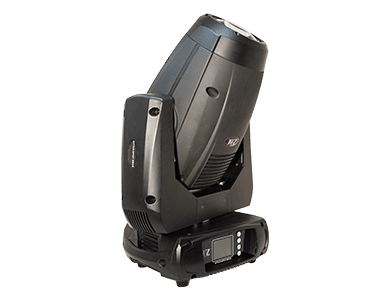

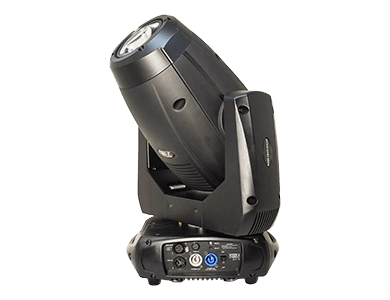

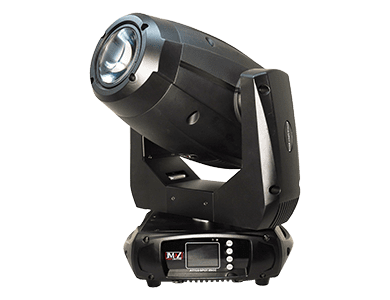

The JMAZ ATTCO SPOT 250Z is a powerful LED moving head that delivers bright, vivid illumination with its 250W 7500K white LED. It is equipped with built-in wireless DMX (Wi-MAZ) for easy and convenient control. The color wheel features 9 vibrant colors , static gobo wheel with 8 gobo a rotating gobo wheel with 6 rotatable gobos. The 3-facet prism can be set to variable speed and direction for added effects. Additionally, the Instant Frost Filter allows for a wash effect. With a 12°-36° beam angle linear zoom and electronic focus, this light is perfect for stage and event lighting

Main features:

  • 1 x 250W White LED
  • 1 Color wheel with 9 colors plus open
  • Static gobo wheel 8 gobos + open
  • Rotating gobo wheel: 6 rotatable + open
  • 3-Facet prism with variable speed and direction
  • Built-in wireless DMX technology

Technical specifications

Light Source

  • Source: 250W White LED

Color System

  • Color Wheel: 9 Colors + Open


  • Hardware On-Board: sockets for quick-Lock Omega bracket
  • Pan Angle: 630°
  • Title Angle: 270°
  • Pan/Tilt Resolution: 8 / 16 Bit
  • Feedback: Scan position memory, auto reposition after unexpected movement
  • Body: High Temperature Engineered Plastic and Cast Aluminum Casing
  • Body Colour: Black


  • Dimmer: 0-100% Linear Dimmer
  • Strobe/Shutter: 25 T/sex
  • Operating Temperature: -35° C to 45° C


  • Mains Power Supply: AC Mains
  • Max Power Consumption: 320W
  • Input Voltage: AC90-260V 50/60H




  • Zoom: 12° to 36°

Dynamic Effect

  • Prism: 3 Facet
  • Rotating Gobos: 6 + Open
  • Static Gobos: 8 + Open
  • Frost Filter


  • Protocols: DMX512, W-DMX, Wi-MAZ Wireless DMX
  • DMX Channels: 13/15 Channel Modes
  • Wireless Control: Wi-MAZ Wireless DMX, W-DMX, RF Remote
  • Display: 2.4″” TFT LCD Display
  • Firmware Upgrade: Yes, USB-DMX Interface, not included.


  • IP Rating: 20
  • Cooling: Fan
  • Pan/Tilt:8/16 bit smooth
  • Data Connection: DMX, Wireless DMX
  • Power Connection: Power-CON
  • Dimensions: 14.1″” x 8.8″” x 19.9″”
  • Weight: 30.9 lbs

Box Content

  • 1 x Attco Spot 250Z
  • 1 x User Manual
  • 2 x Omega Brackets
  • 1 x 3ft 3-pin DMX Chord
  • 1 x 3ft PowerCON Chord
  • 1 x RF Remote


Product Data / Cut Sheet

File name File size Download
Letter datasheet AttcoSpot250Z_Catalog_sheet.PDF 500KB Letter datasheet

User Manual

File name File size Download
Letter datasheet AttcoSpot250Z_User_Manual.PDF 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet AttcoSpot250Z_DMX_Charts.PDF 500KB Letter datasheet


File name File size Download
Attco Spot250Z_Profiles Folder 500KB


File name File size Download
Letter datasheet AttcoSpot250Z_User_Manual.PDF 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet AttcoSpot250Z_CAD_Drawings.PDF 500KB Letter datasheet

Tech / Data Sheets

File name File size Download
Letter datasheet AttcoSpot250Z_Full_tech_sheet.PDF 500KB Letter datasheet
