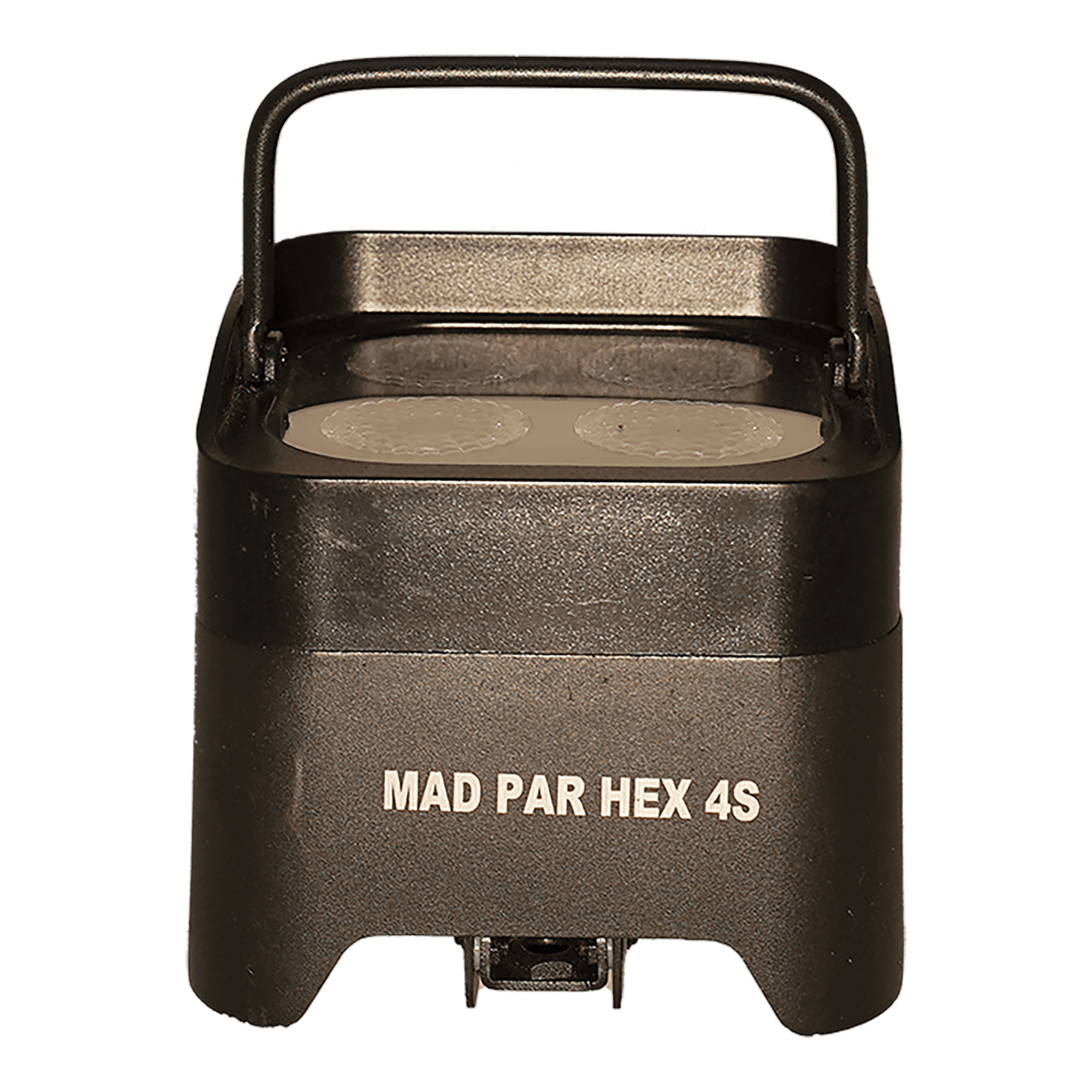

Mad Par HEX 4S


JZ1001 (Black)
JZ1002 (White)

4 x 12W RGBWA+UV LED Battery Powered Uplight

JMAZ Revolutionizing the uplighting category with the features and functionality the others just don’t have, the MAD PAR HEX 4S is here! Engineered with the highest quality components and batteries, the MAD PAR HEX 4S is a completely wireless up light with an unbelievable 15 hours of runtime and built-in Wi-Maz wireless DMX technology. This fixture is a dream come true and perfect for mobile entertainers, rental production companies (small or large), and banquet halls and venues because of its unbelievable power output of 48 watts, smooth color mixing, and virtually unlimited color options. The MAD PAR HEX 4S can run independently or linked wirelessly in master/slave mode. Internal programs include smooth color fade, color jump, 32 preset static colors, strobe, and sound-activated. Available in Black, Chrome, and White, going wireless has never been easier with the MAD PAR HEX 4S, exclusively from JMAZ Lighting.

Main features:

  • 4 x 12W Hex RGBWA+UV LEDs
  • Battery Powered, Rapid Recharge Time: 3 hours
  • Master/Slave, DMX in/through, Wireless DMX, IR Remote Control,
  • 32 preset static colors, strobe, and sound-activated
  • IR Remote Control, Standalone

Technical specifications

Light Source

  • Source: 4 x 12W RGBWA+UV LEDs

Color System

  • Color LEDs: RGBWA+UV


  • Power Supply: Battery
  • Multi-Voltage Operation: 110-240V, 50HZ/60HZ


  • 654728999568(black)
  • 093674449602(white)


  • Beam Angle: 40°


  • Protocols: DMX512, W-DMX, Wi-MAZ Wireless DMX
  • DMX Channels: 6/10/12 Channel Modes
  • Wireless Control: Wi-MAZ Wireless DMX, W-DMX, IR Remote

Box Content

  • 1 x Mad Par Hex 4
  • 1 x User Manual
  • 1 x Cat6 to DMX Chord
  • 1 x Charging Chord
  • 1 x IR Remote


User Manual

File name File size Download
Letter datasheet Attco Beam 230 User Manual.pdf 500KB Letter datasheet

DMX Charts

File name File size Download
Letter datasheet Attco Beam 230 DMX Charts.pdf 500KB Letter datasheet


File name File size Download
Mad Par HEX 4S_Profiles Folder 500KB
